CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output

  • CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output
  • CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output
  • CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output
  • CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output
  • CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output
  • CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output

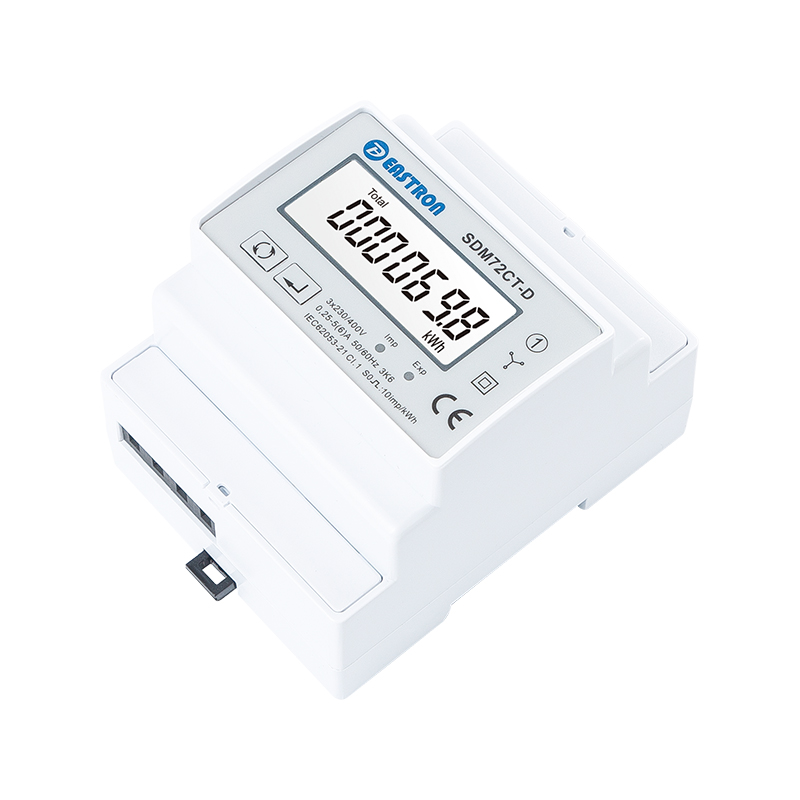

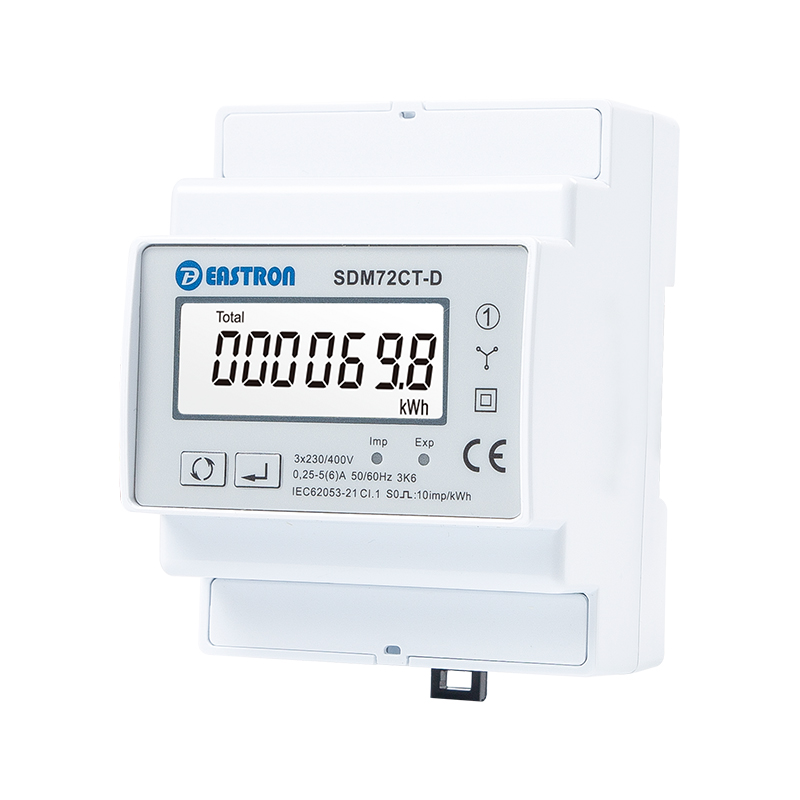

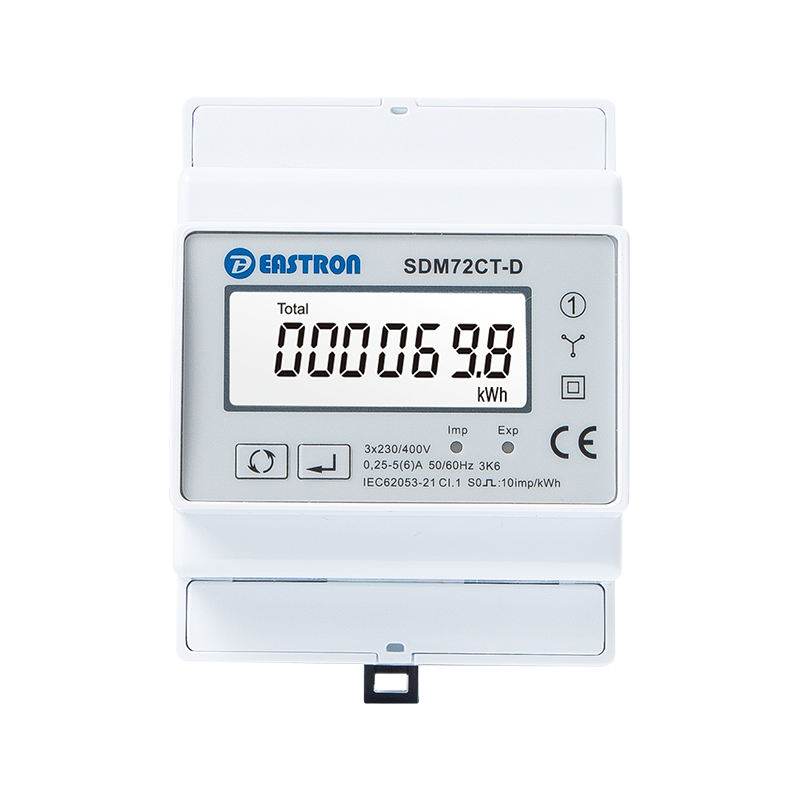

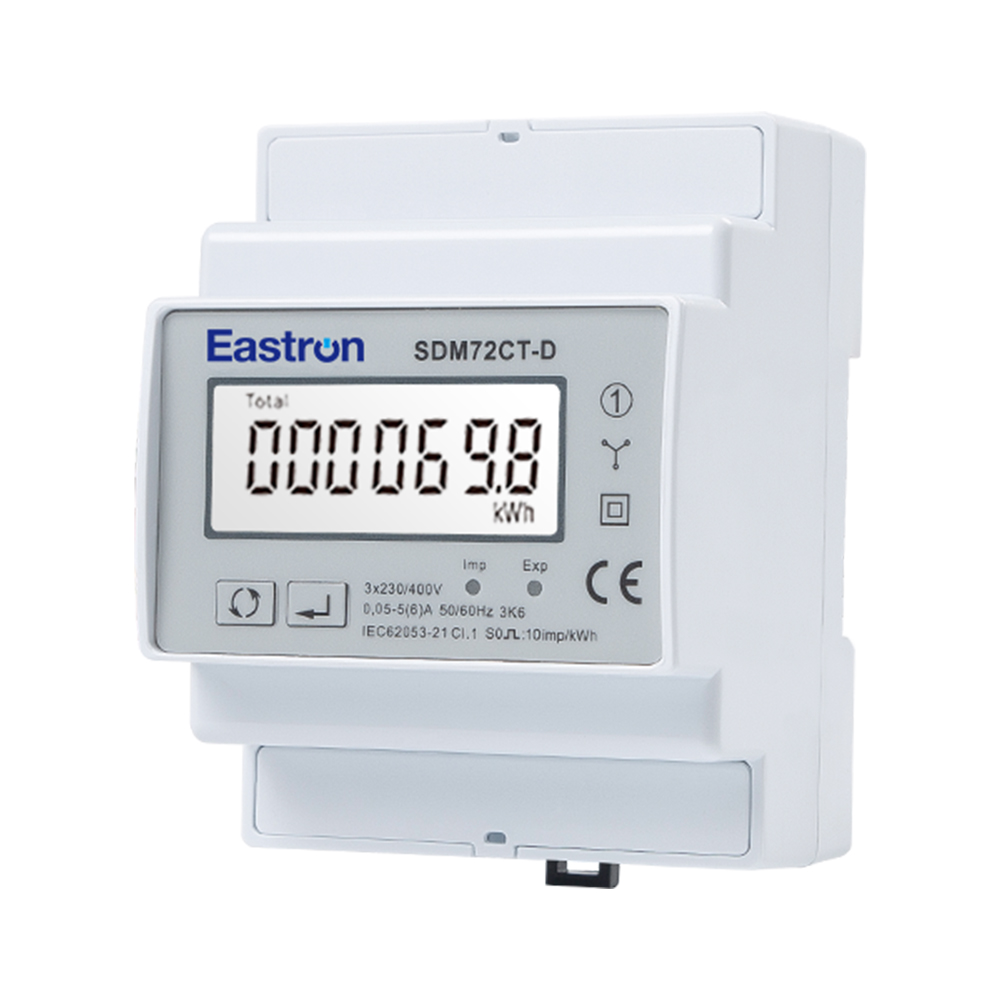

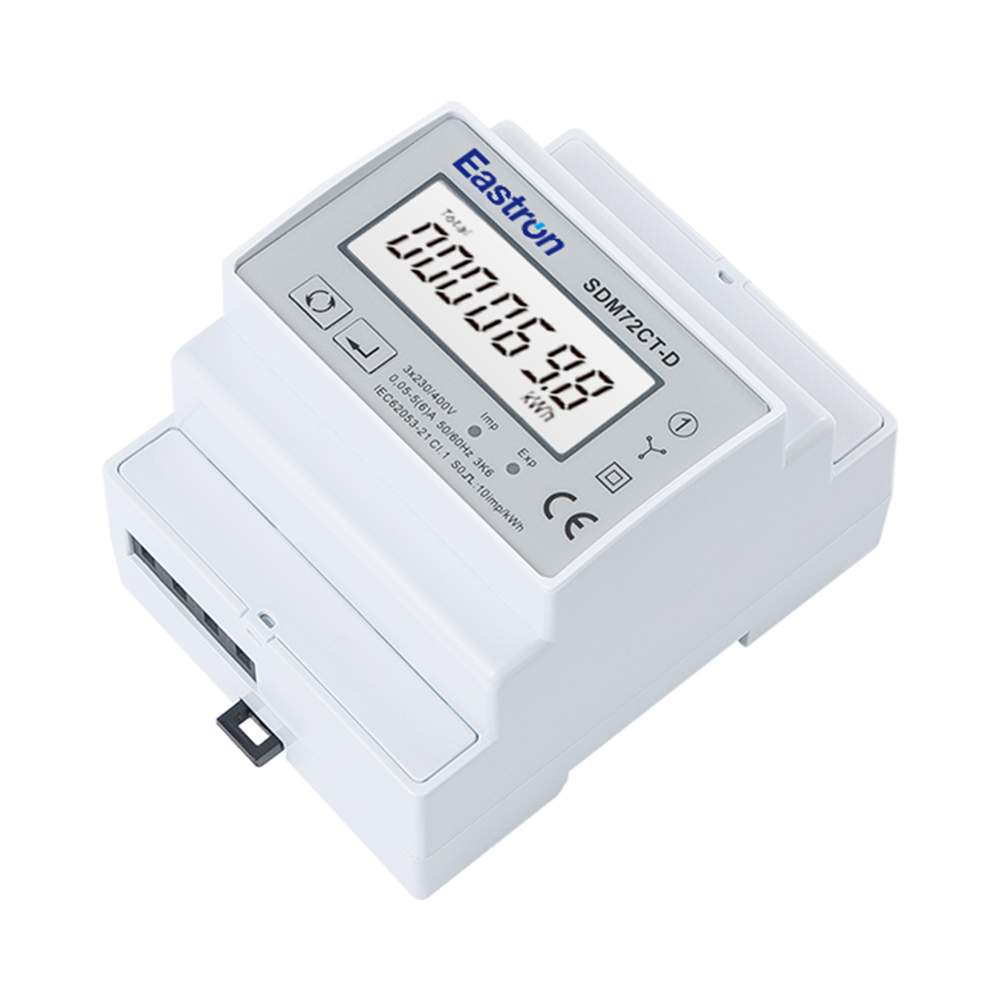

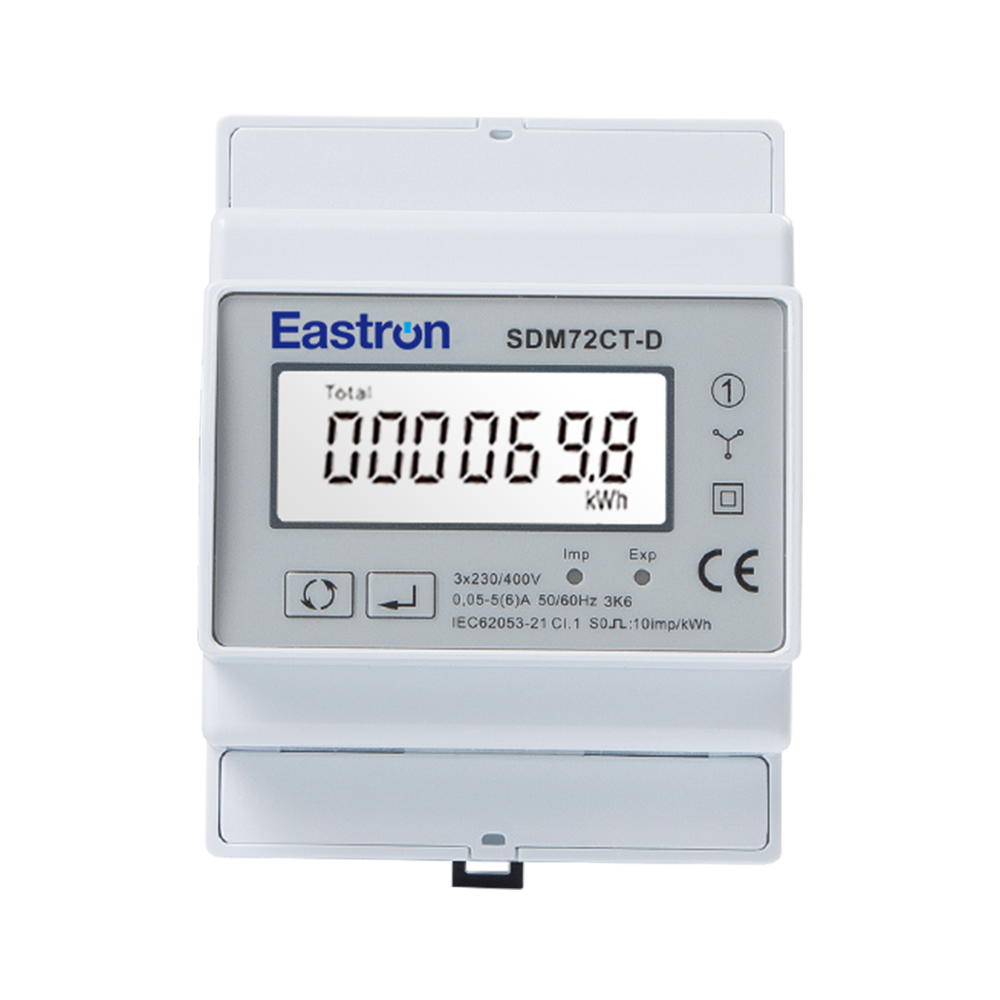

SDM72CT-D

CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Measures Active Energy(kWh)
  • Pulse Output
  • CT Operated
  • 4 Modules 72mm width
  • Class 1.0 Accuracy
  • 35mm Din Rail Mounting

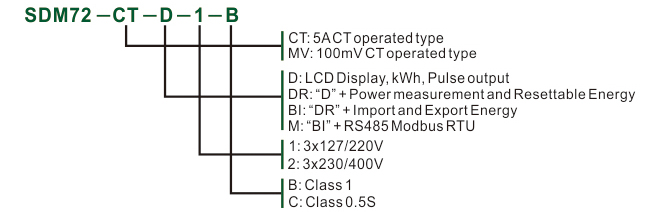

SDM72CT D / DR / BI

THREE PHASE FOUR WIRE ENERGY METER

SDM72CT-D is a CT Type Din Rail Three Phase Electronic kWh meter with Pulse Output.

It is CT operated type, allowing a width range of current input, which provides an economical solution for active energy and active power measurement in three phase four wire applications.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Energy

IEC 62053-21 Class 1.0


Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM72D / DR / BI

Pulse Output for active energy

SDM72CT-D

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

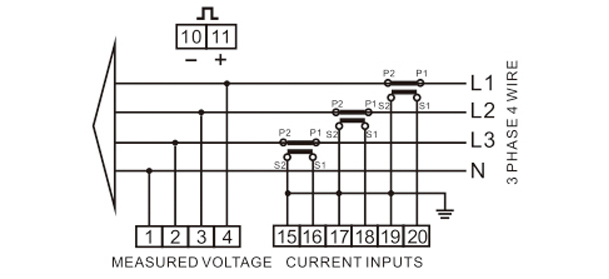

Wiring diagram

Wiring and Dimension [mm:]

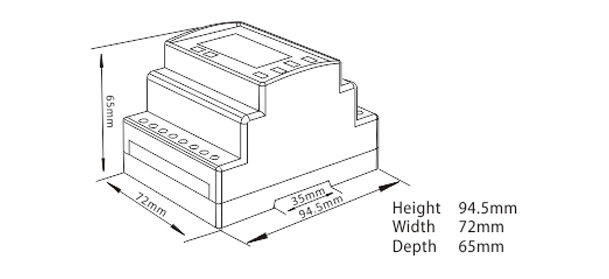

Dimensions
