SDM54M

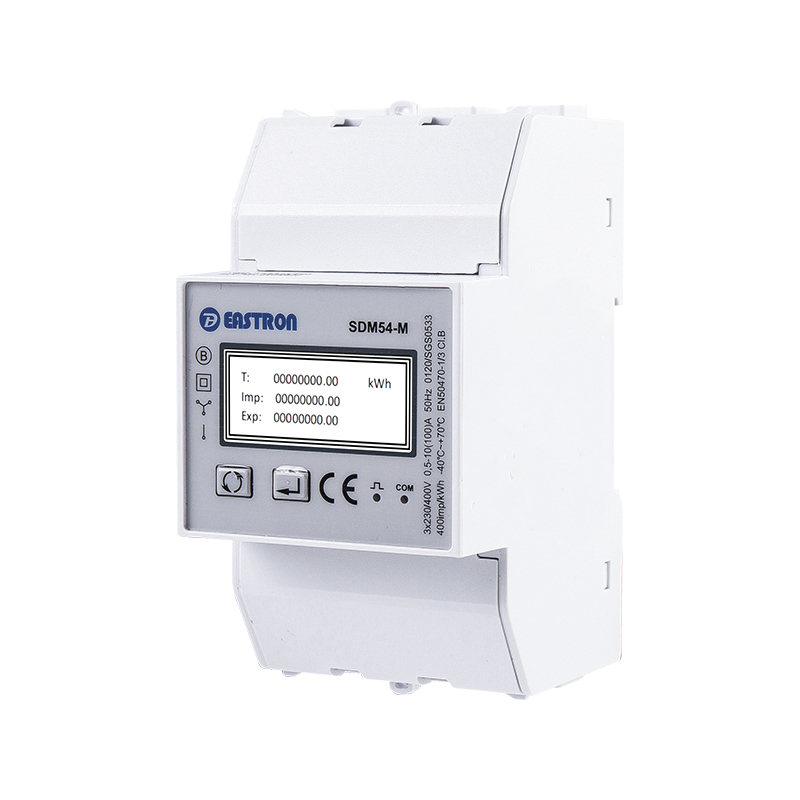

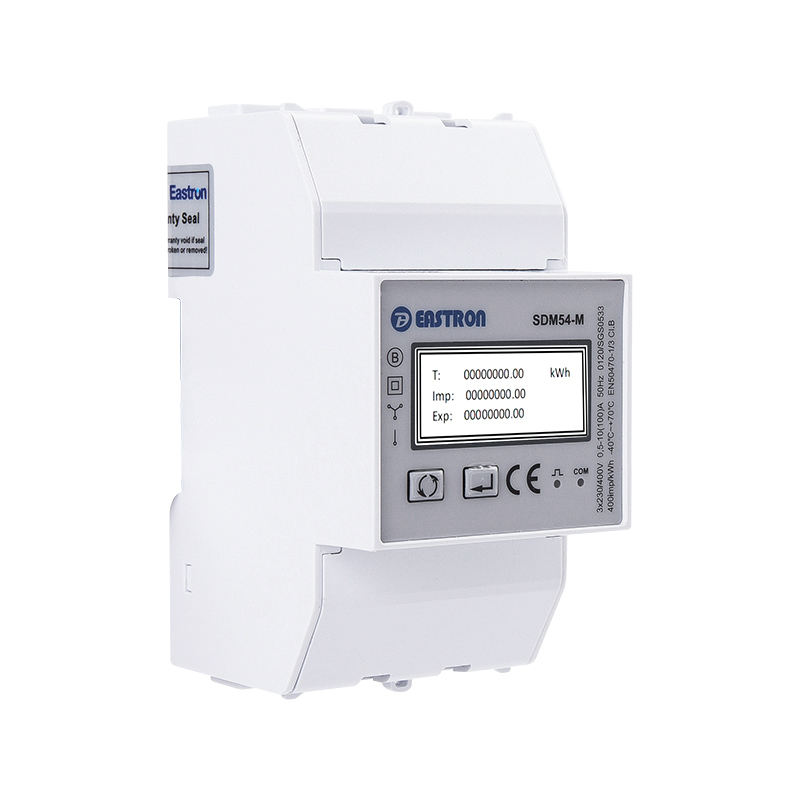

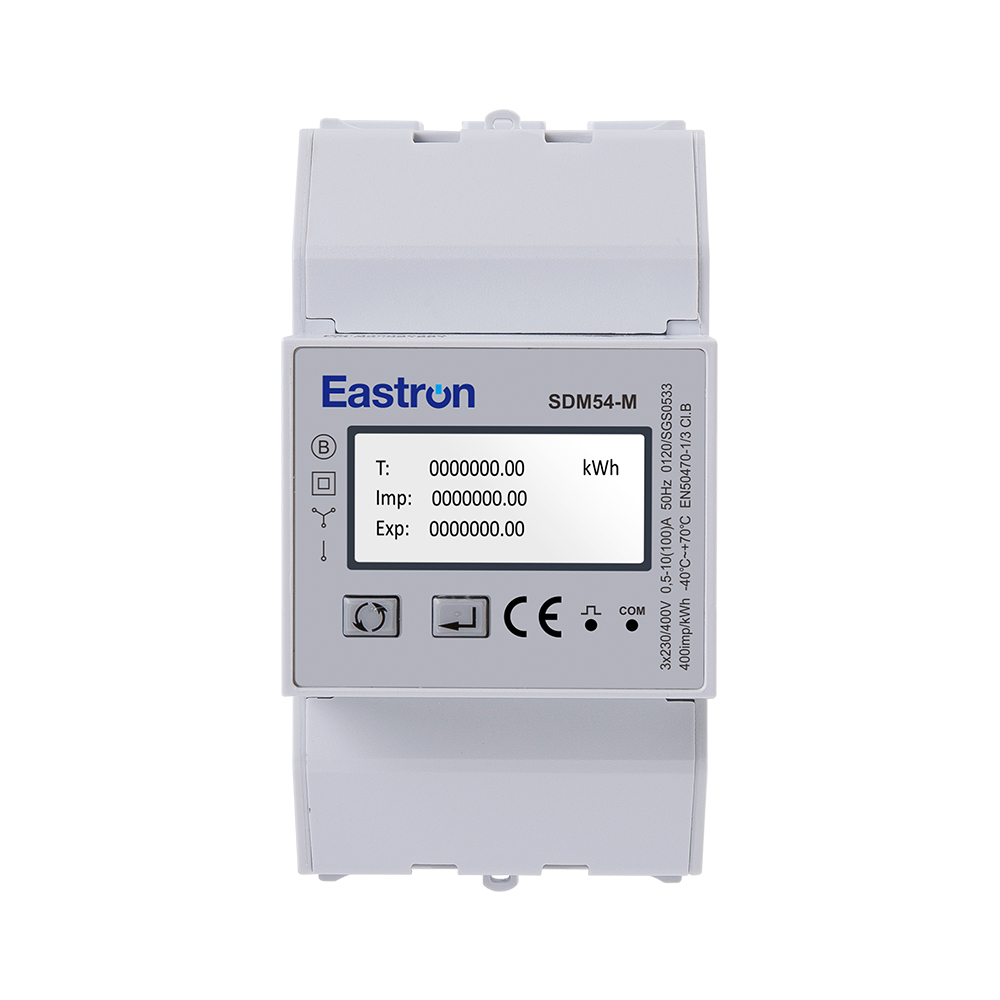

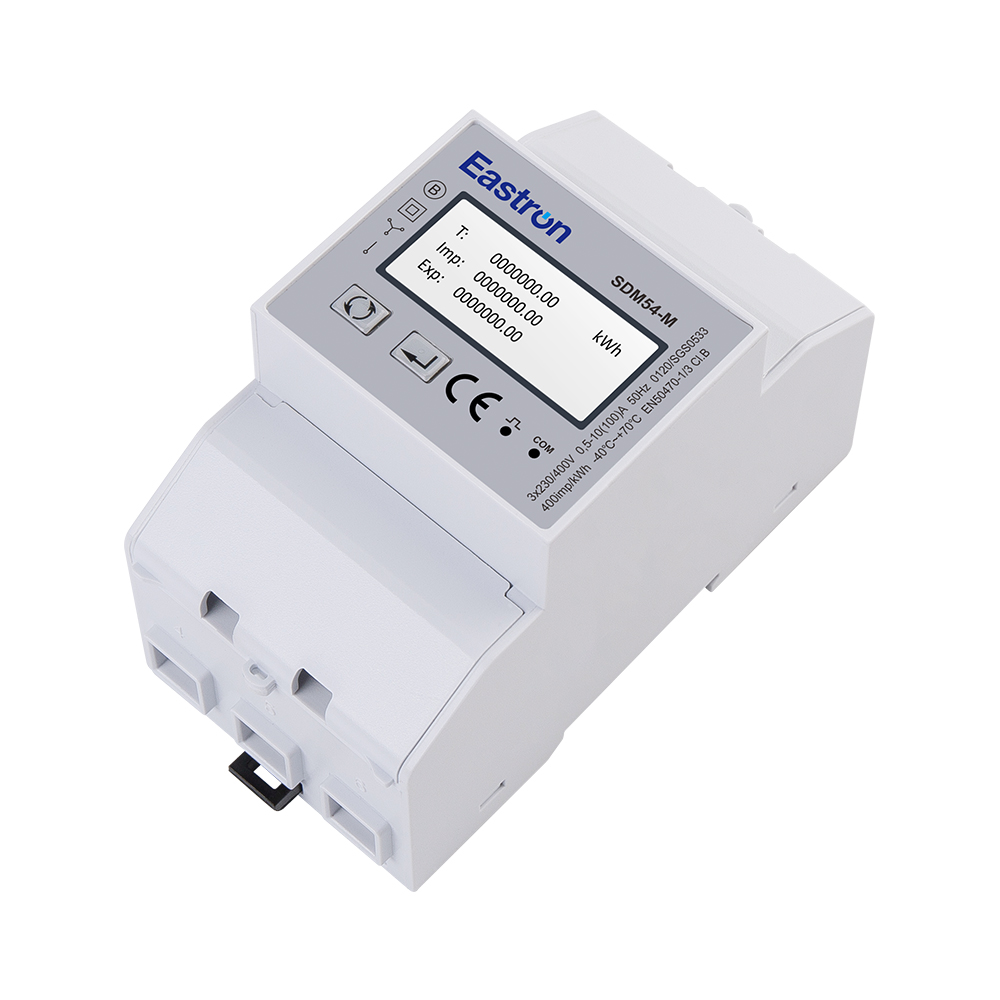

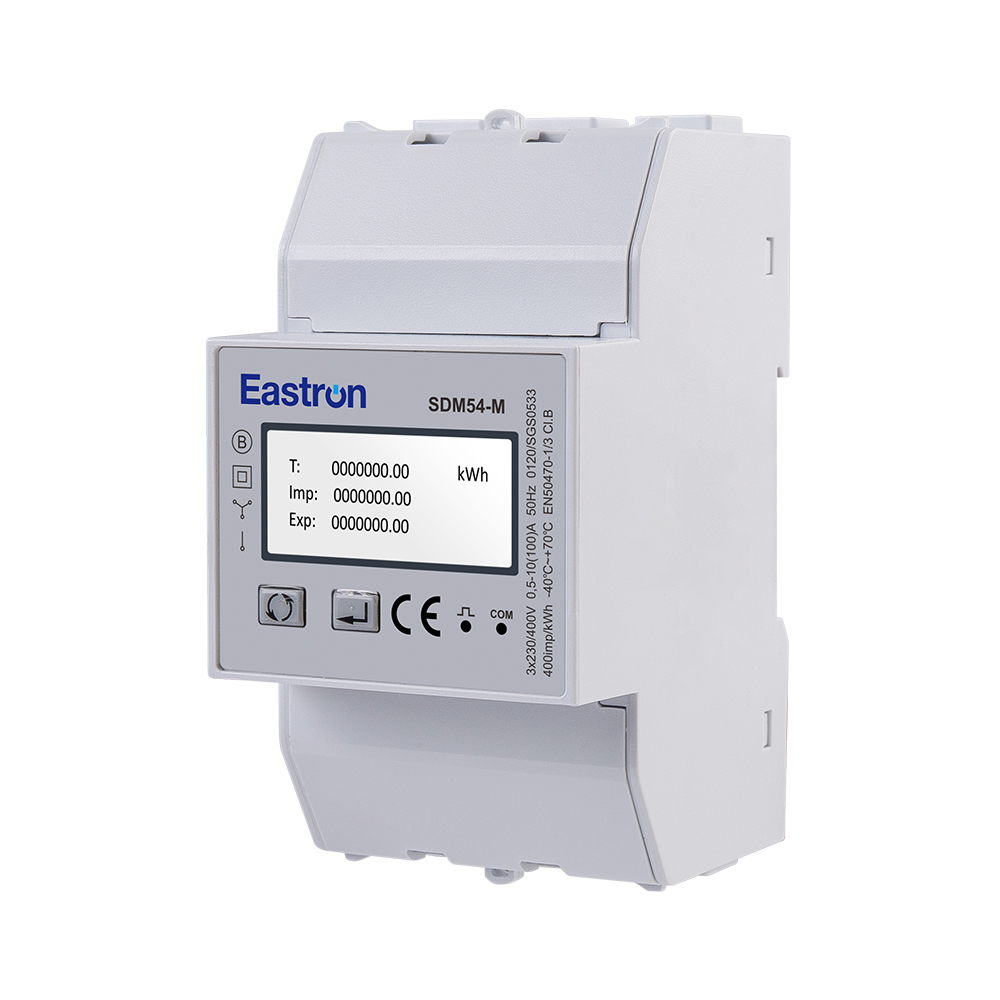

3 Module RS485 Modbus Din Rail Three Phase MID Energy Meter

  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,V etc
  • LCD with backlit
  • 2 Pulse Output +Modbus
  • Bi-directional measurement
  • 100A direct load
  • 3 Module 54mm width
  • MID approved
  • 3P4W,1P2W

SDM54 Modbus/Mbus/2T

THREE PHASE MULTI-FUNCTION POWER ANALYZER

The SDM54-M is a 3 Module RS485 Modbus Din Rail Three Phase MID Energy Meter with  backlit LCD display. It measures and displays the characteristics of single phase two wires (1p2w) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported. Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over preset periods of up to 60 minutes,  mini in size (54mm width) , popular withthree phase  EV charging,  PV solar system, particularly Zero Export system.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM54-Modbus

2 Pulse Outputs + RS485 Modbus

SDM54-2T

2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps, Default:9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<80 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
