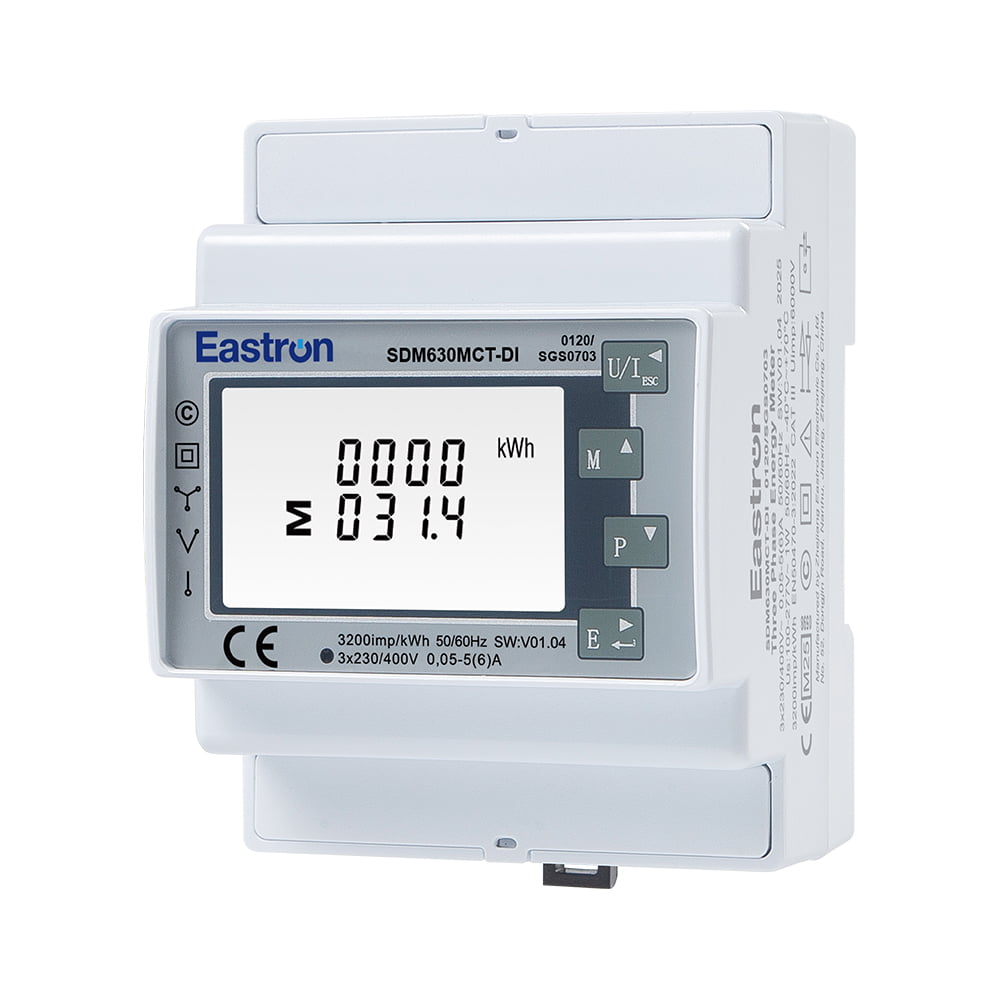

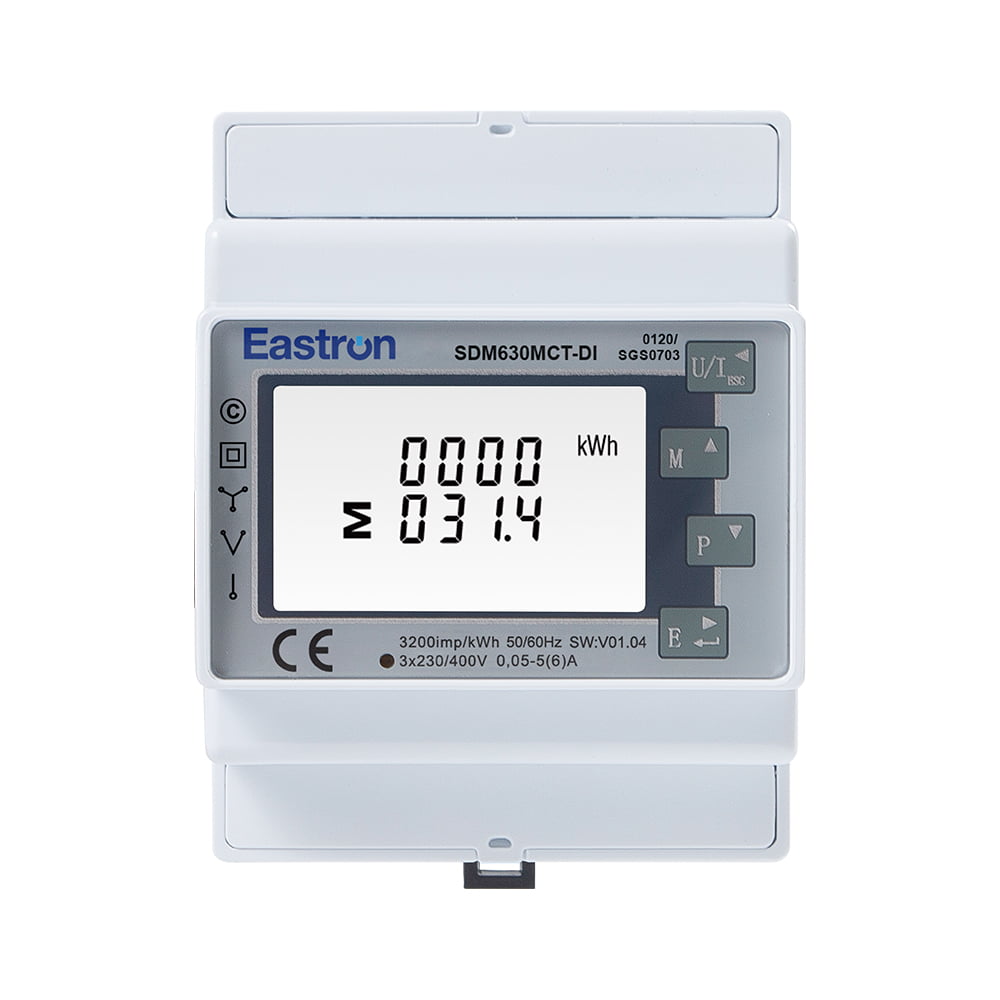

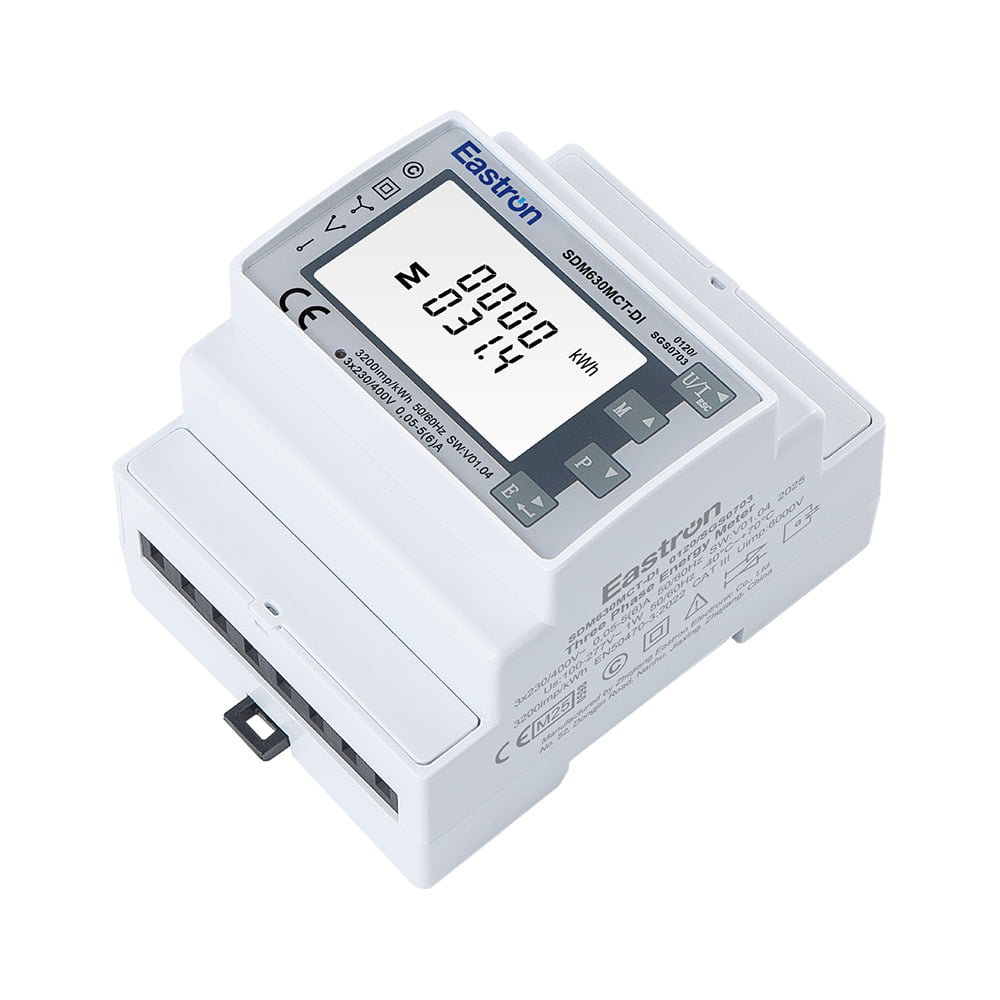

SDM630MCT-DI

Digital Input RS485 CT Operated Din Rail Three Phase MID Energy Meter

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement
  • kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement
  • 2 Digital Inputs
  • RS485 Modbus
The SDM630MCT-DI is Digital Input RS485 CT Operated Din Rail Three Phase MID Energy Meter. This unit measures and displays the characteristics of 1P2W, 3P3W and 3P4W networks. The measuring parameters include voltage (V), current (A), frequency (Hz), power(kW/kVA/kVAr), power factor (PF), imported, exported and total energy (kWh/kVArh).
SDM630MCT-DI also comes with a complete comms capability with built-in RS485 Modbus RTU outputs and 2 digital inputs.
The requisite current input(S) are obtained via 1/5A output current transformers (CT), this meter can be configured to work with a wide range of CTs, giving the unit a wide range of opration. Configuration is password protected.
SDM630MCT-DI has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0703.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

EN50470-1/3 Class B and C

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT-DI

2 Digital Inputs + RS485 Modbus



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
