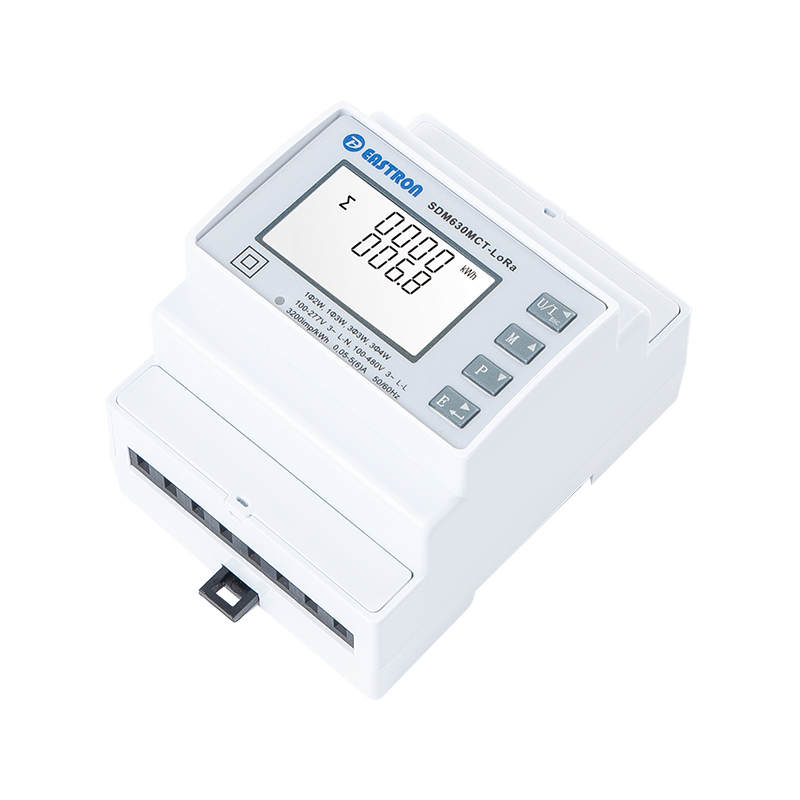

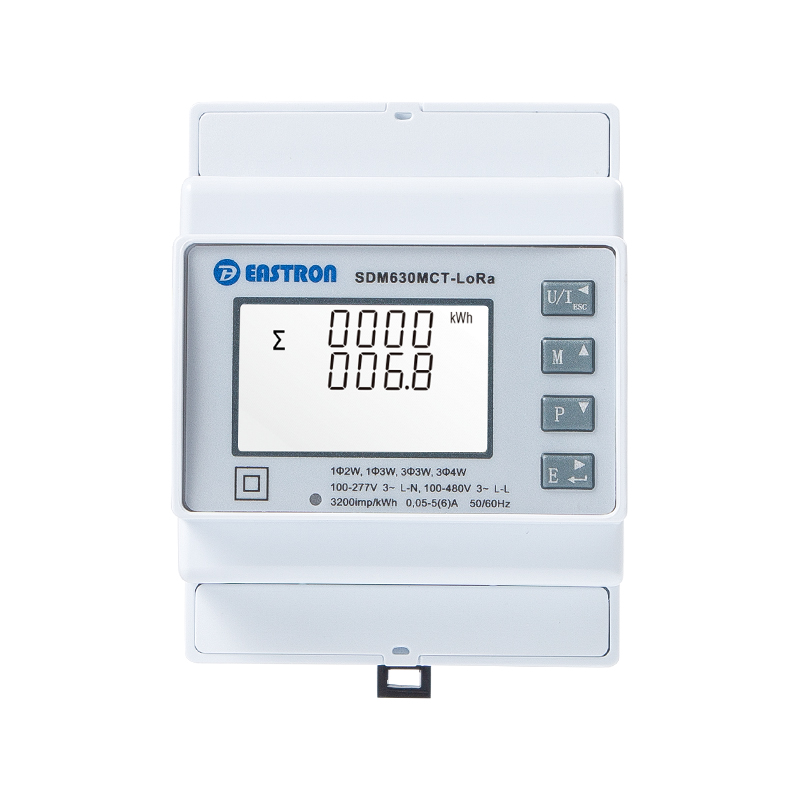

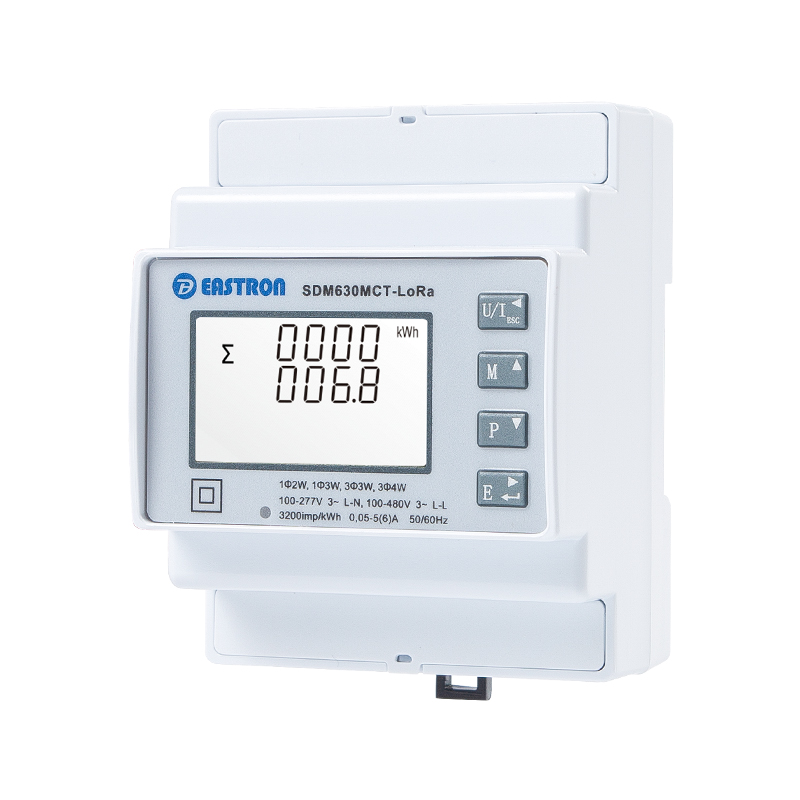

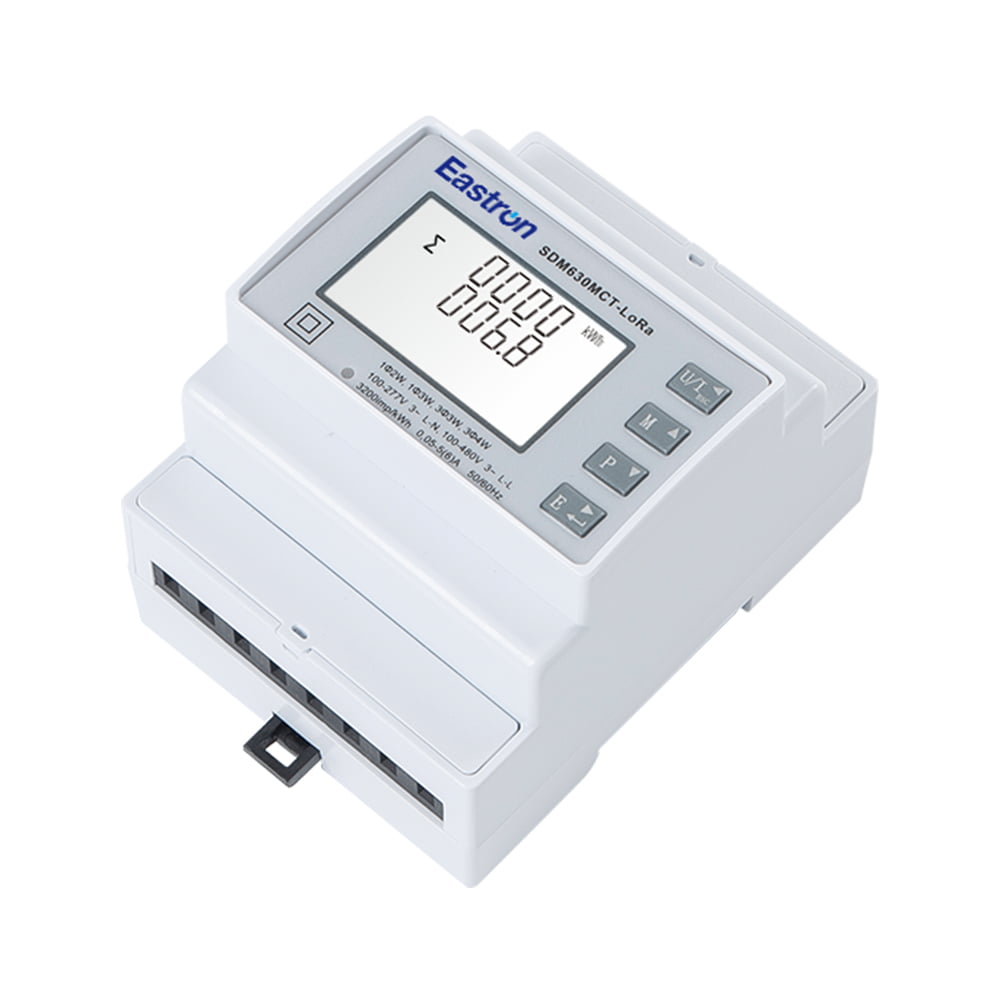

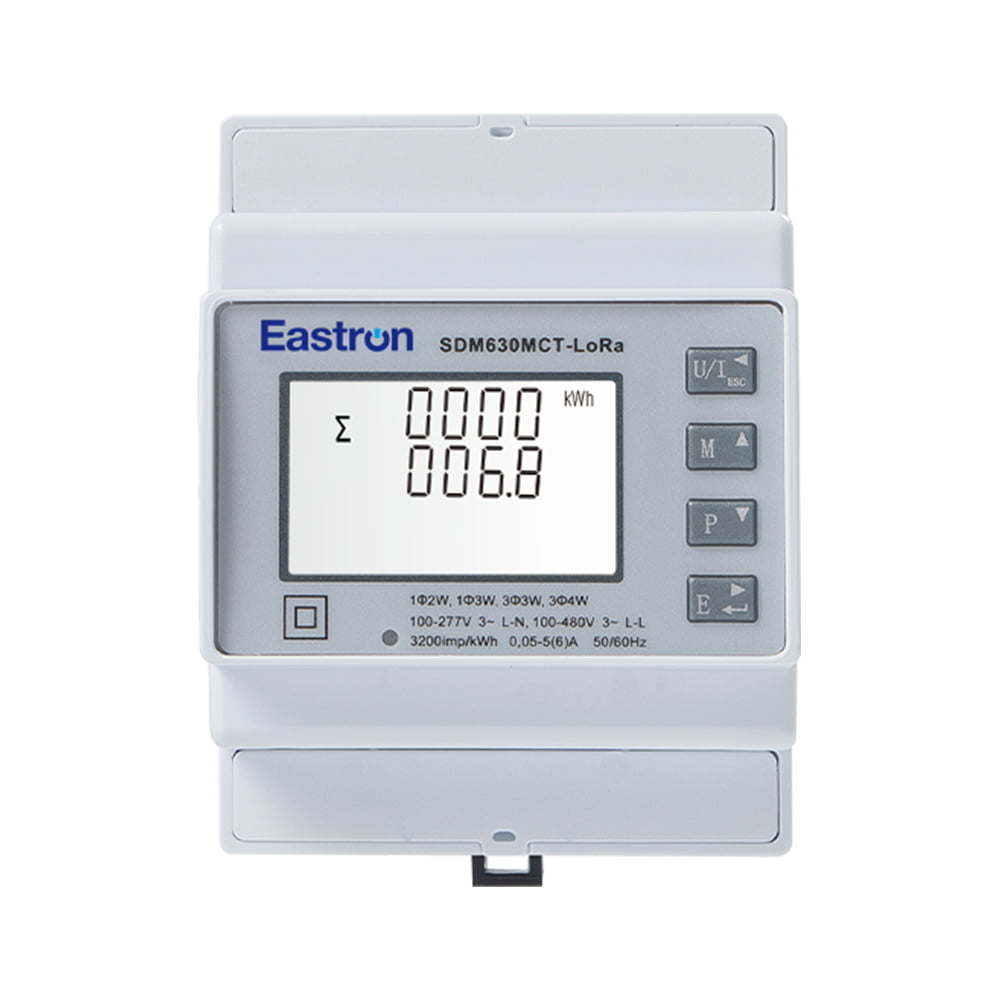

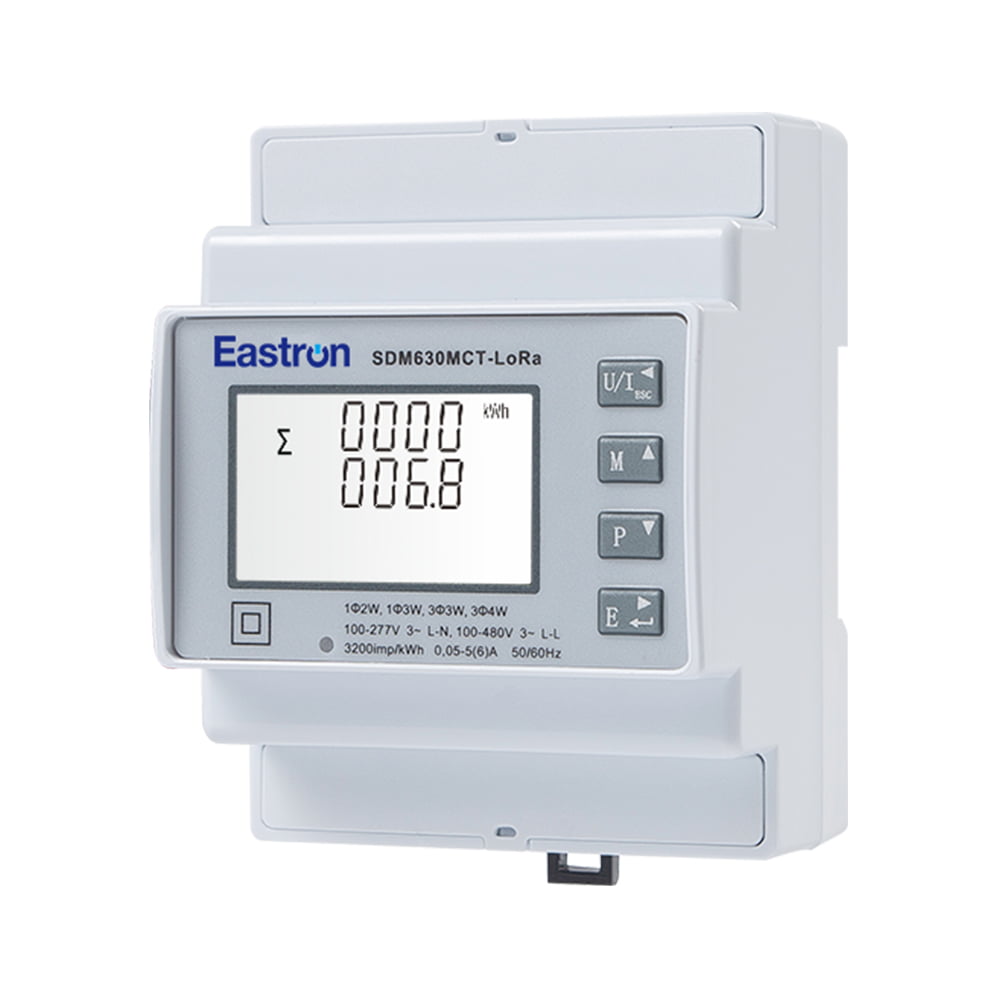

The SDM630MCT-Lora is LoRaWAN CT operated Din Rail Three Phase Multi-function Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. This unit has a built-in LoRaWAN module which allows long range wireless communication. Two pulse outputs are available for real time energy measurement.
SDM630MCT-LoraWAN has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0142.The meter is also ETL listed by intertek.
Electrical Characteristics |
||
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
Measurement Accuracy |
Power |
0.5% of range maximum |
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 EN50470-1/3 Class B and C |
|
Reactive Energy |
IEC62053-23 Class 2 |
|
Frequency |
0.2% of mid-frequency |
|
Current |
0.5% of range maximum |
|
Voltage |
0.5% of range maximum |
|
Power Factor |
1% of unity (0.01) |
Input & Output |
|||
Input |
Current |
CT Secondary |
1A/5A |
CT Primary |
1-9999A |
||
Min Current |
0.25A |
||
Starting Current |
20mA |
||
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
Operational Voltage |
80%~120% of Un |
||

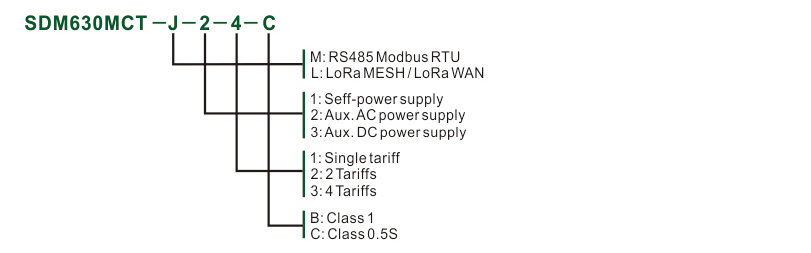

Output |
SDM630MCT/ MT |
2 Pulse Outputs + RS485 Modbus |
|
SDM630MCT-2T/ SDM630MCT-Mbus-2T |
2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source) |
||
SDM630MCT-Mbus |
2 Pulse Outputs + M-bus EN13757 |
||
SDM630MCT-LoRa |
2 Pulse Outputs + LoraWAN |
RS485 Modbus Communications |
|
Communication Address |
1~247 |
Transmission Distance |
1000m Maximum |
Transmission Speed |
1200bps~38400bps |
Parity |
None (default), Odd, Even |
Stop Bits |
1 or 2 |
Response Time |
<100 mS |
M-Bus EN13757-3 Communications |
|
Communication Address |
1~250 |
Transmission Distance |
1000m Maximum |
Baud Rate |
300bps~9600bps |
Parity |
None (default), Odd, Even |
Stop Bits |
1 or 2 |
LoRaWAN Communications |
|
Communication Frequency |
EU868/ AS923/ AU915/ US915, etc. |
