SDM630MCT-ML

Quad Load RS485 Modbus Din Rail Three Phase Multi-function Energy Meter

  • Multi-parameters for 4 Loads, 12 Loads
  • Multi-Parameter Measurement
  • RS485 Modbus Comunication
  • Independently programmable CT ratios
  • RJ12 Socket for fast connection
  • True RMS measurement

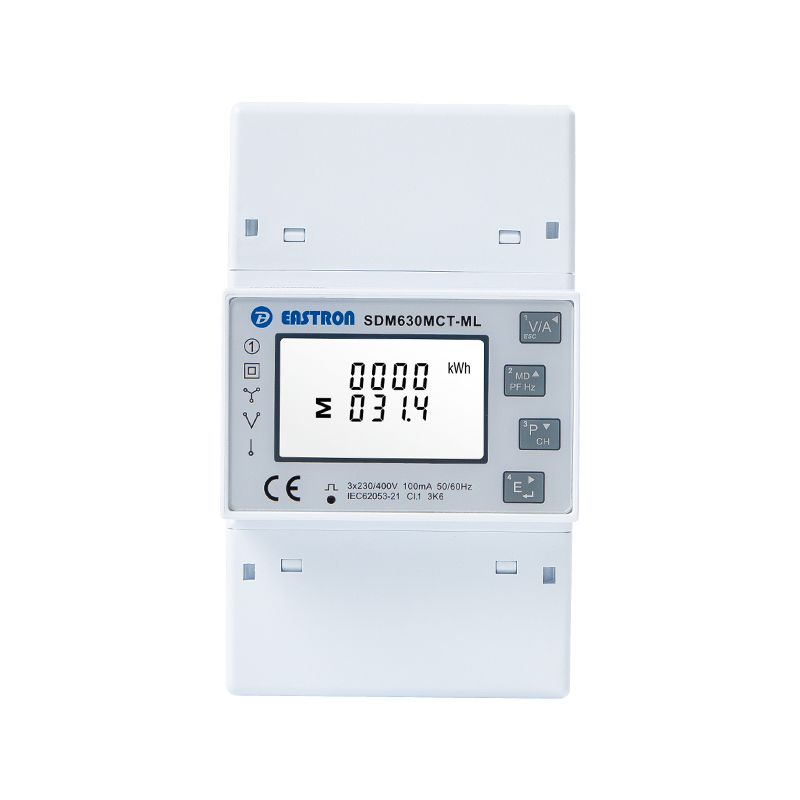

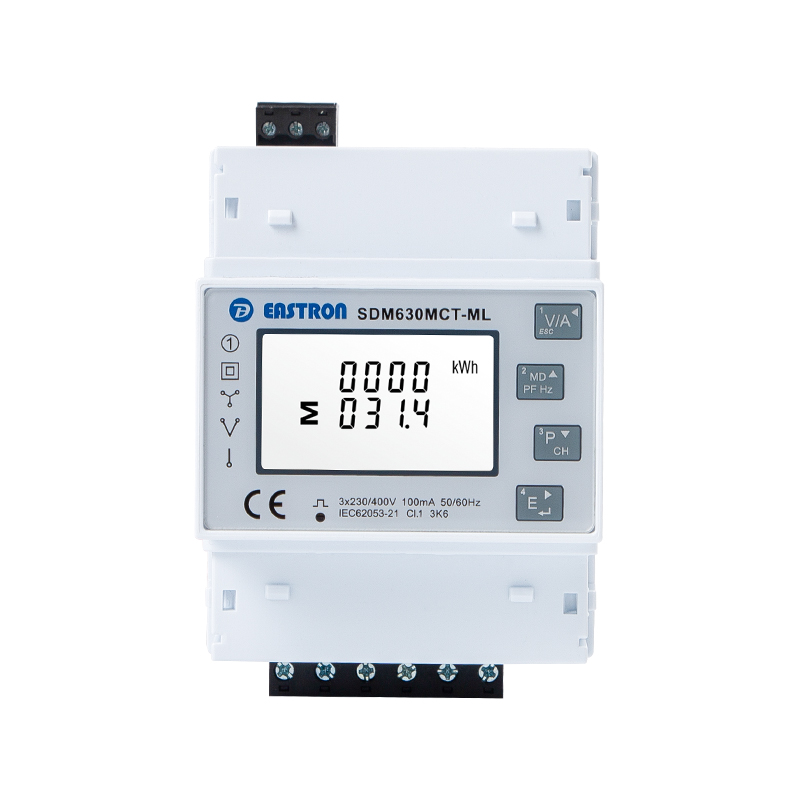

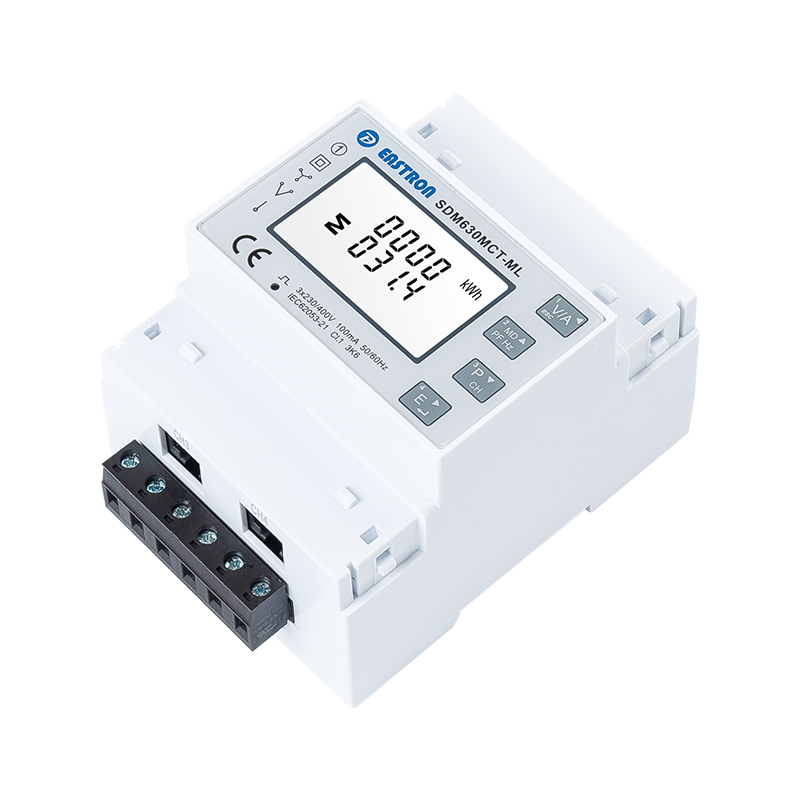

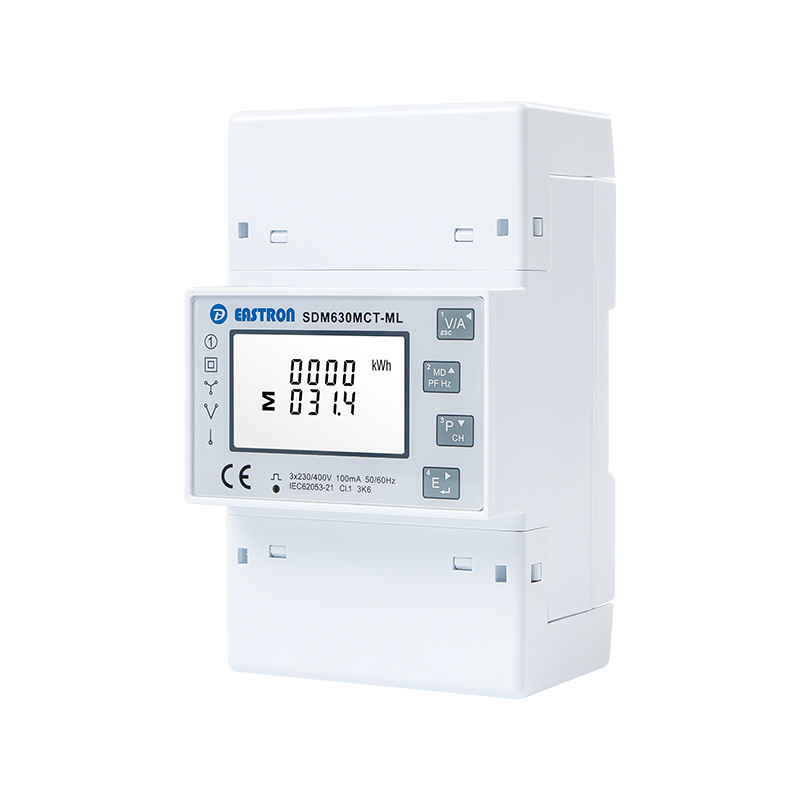

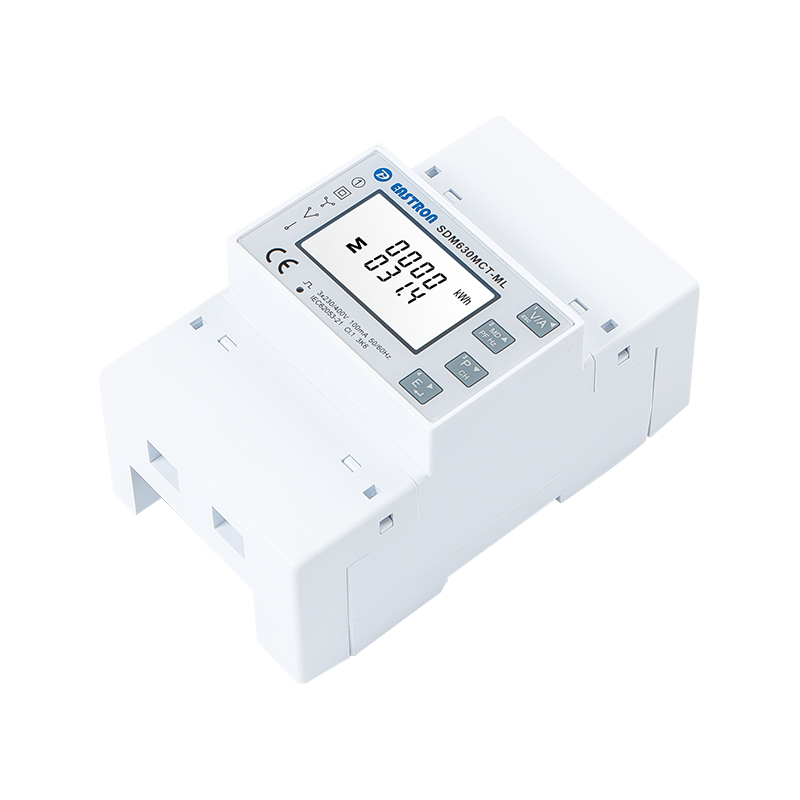

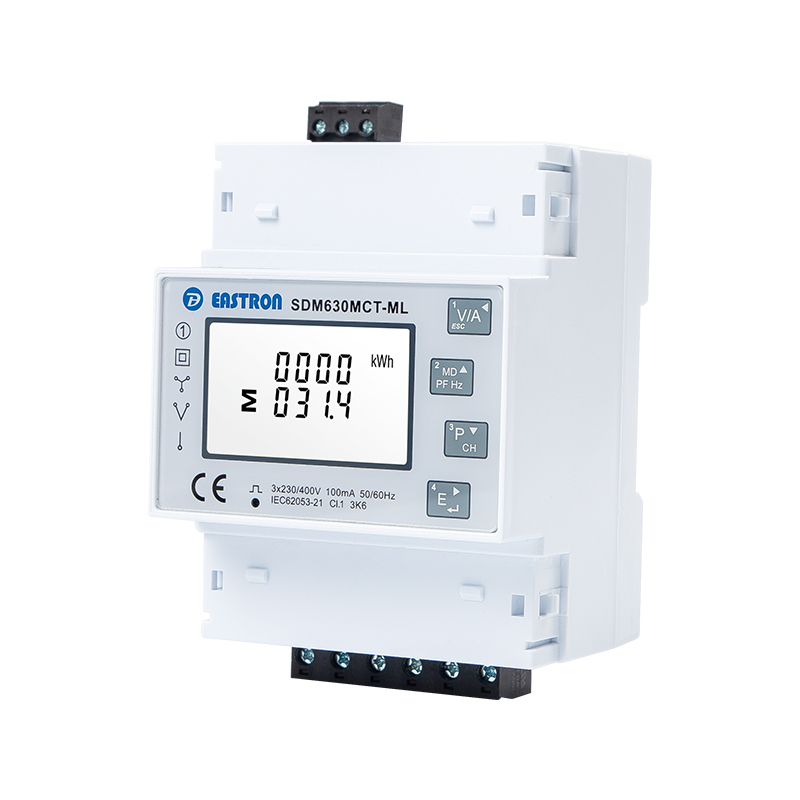

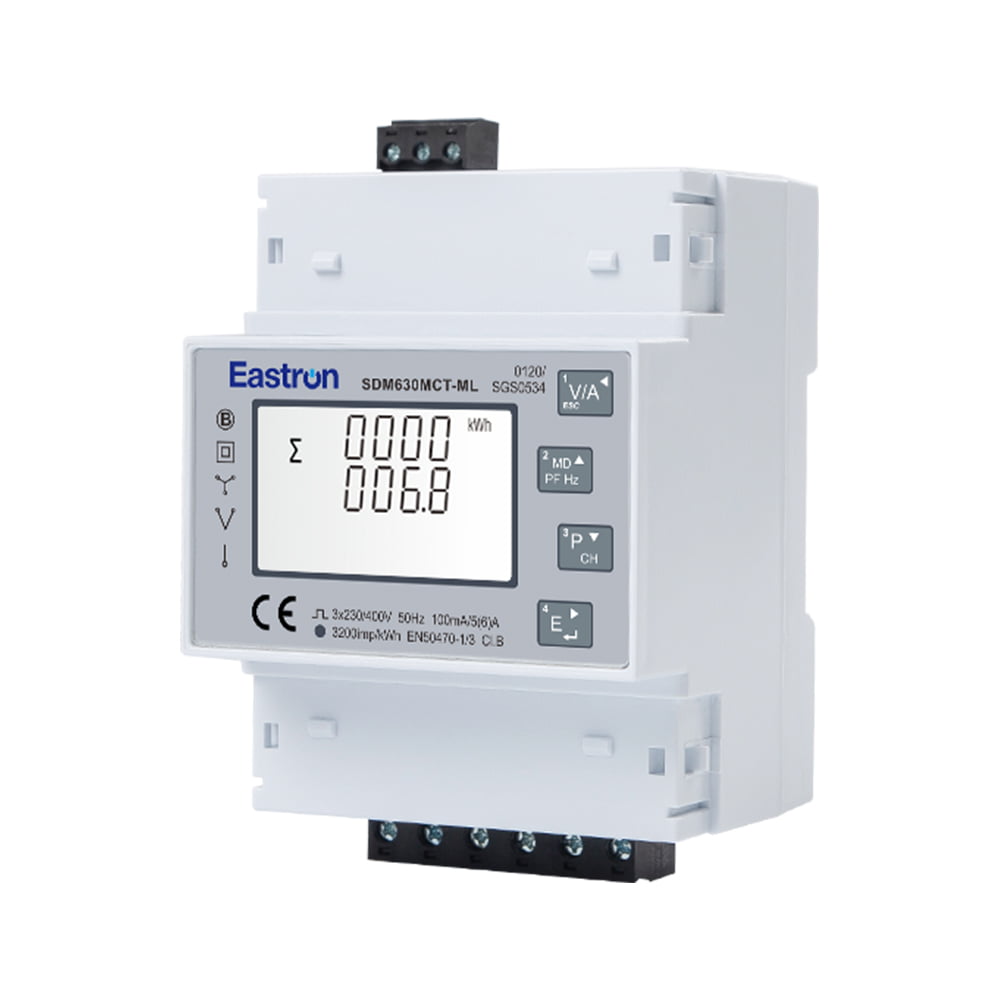

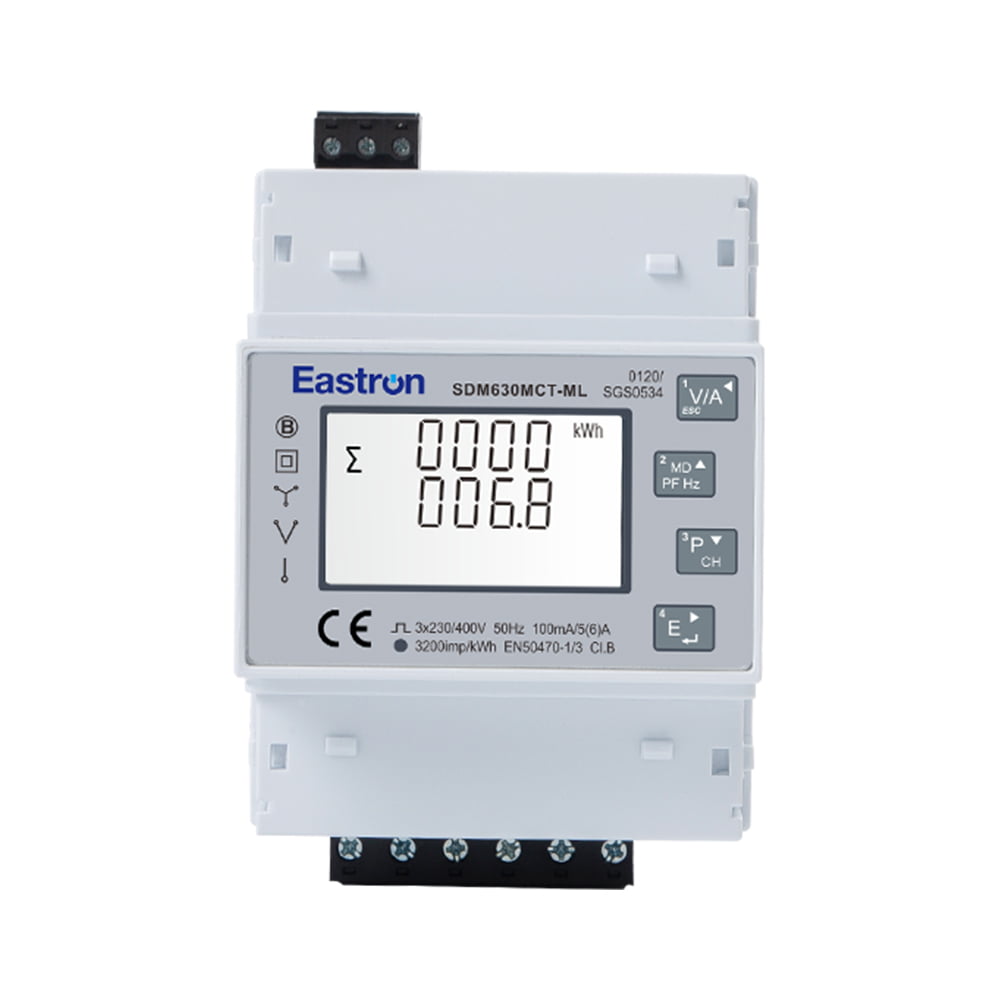

SDM630MCT-ML

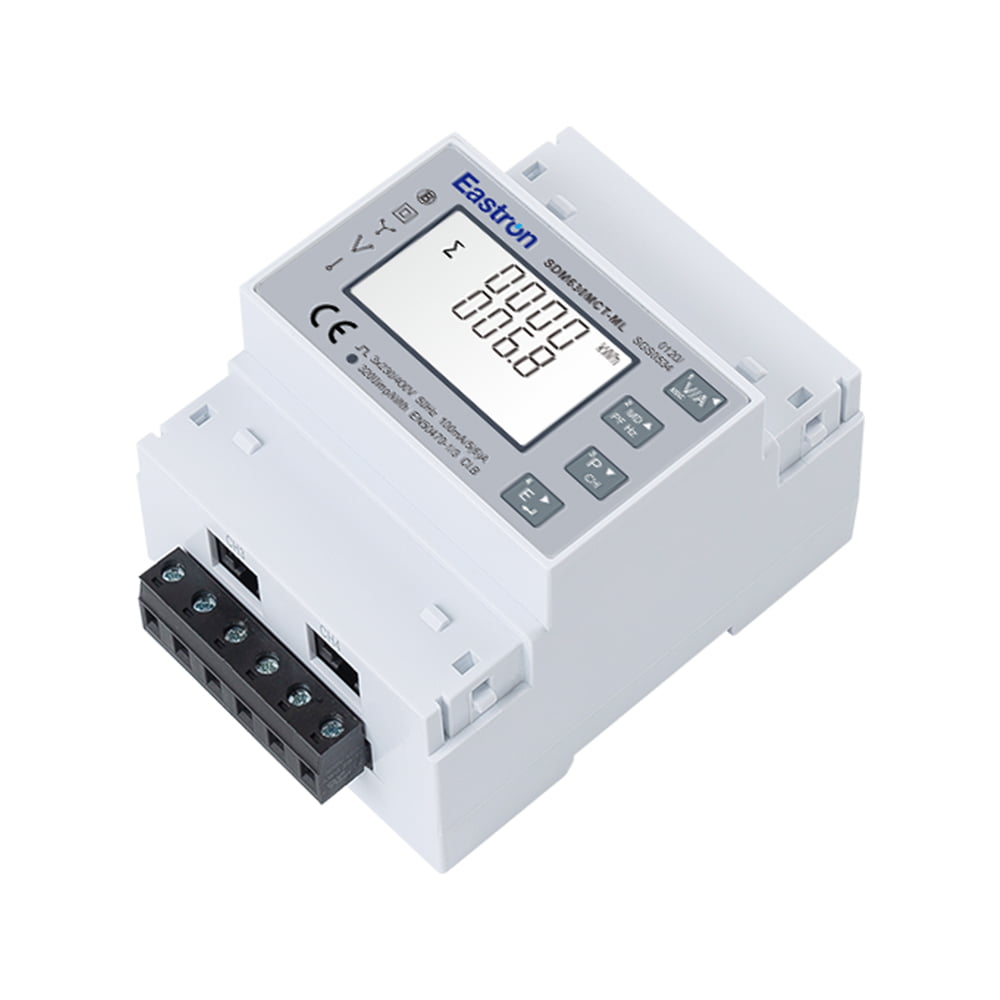

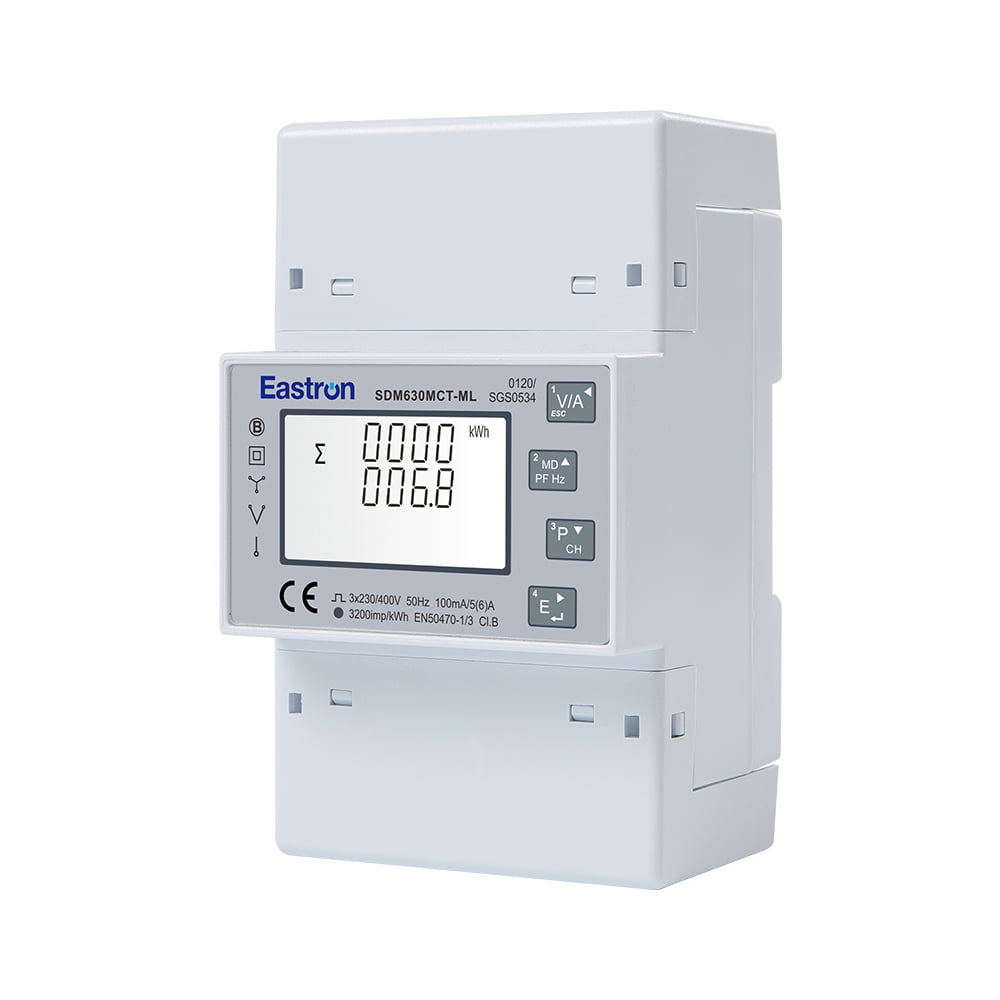

The SDM630MCT-ML is Quad Load RS485 Modbus Din Rail Three Phase Multi-function Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters. This meter contain four metering circuits in one case, and accepts inputs from four separate RJ12 CTs.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 100mA input CTs. Build-in interface provides RS485 Modbus RTU outputs.

SDM630CT-ML has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0534.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

CT Secondary

100mA/ 100mV





CT Primary

1-9999A

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT-ML/3L/2L-1L

RS485 Modbus (RJ45 port)

SDM630MCT-ML-TCP

Ethernet Modbus TCP



RS485/Ethernet Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
