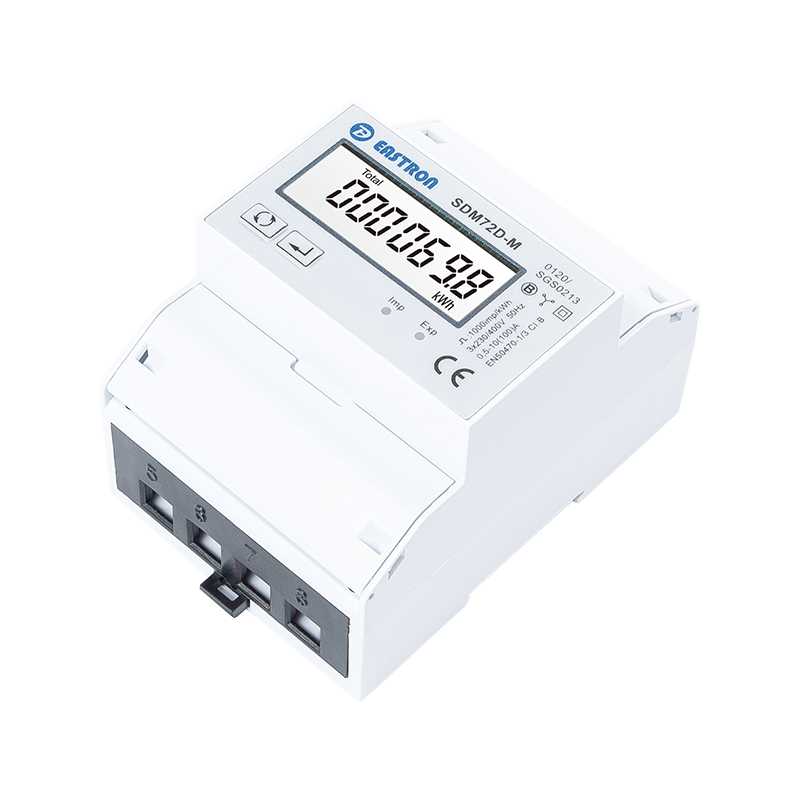

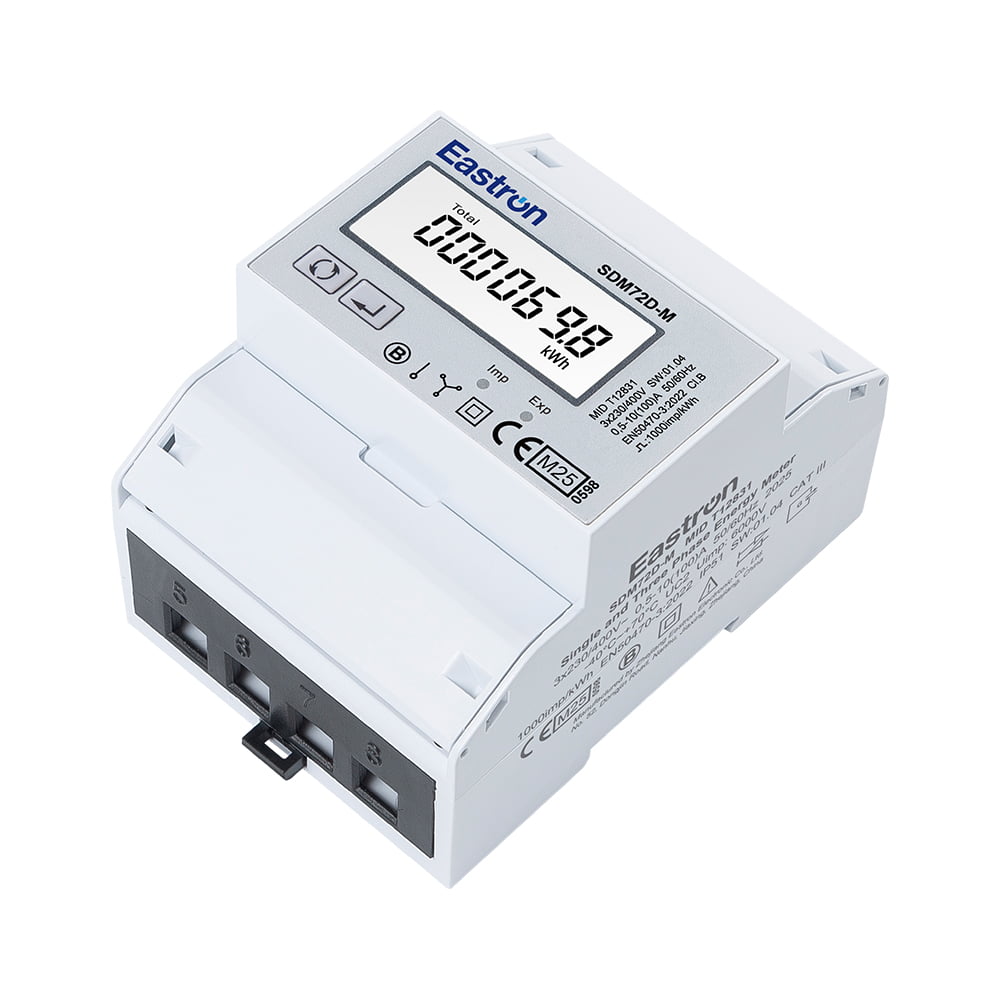

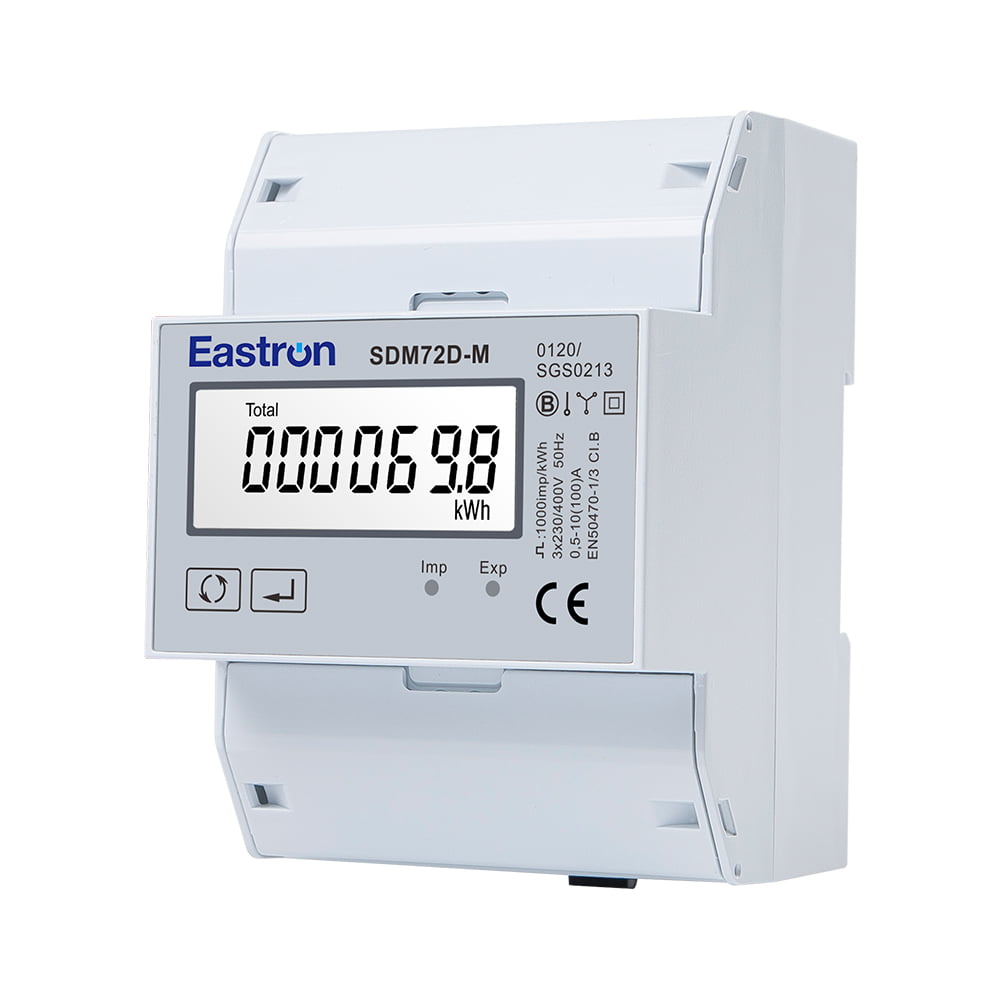

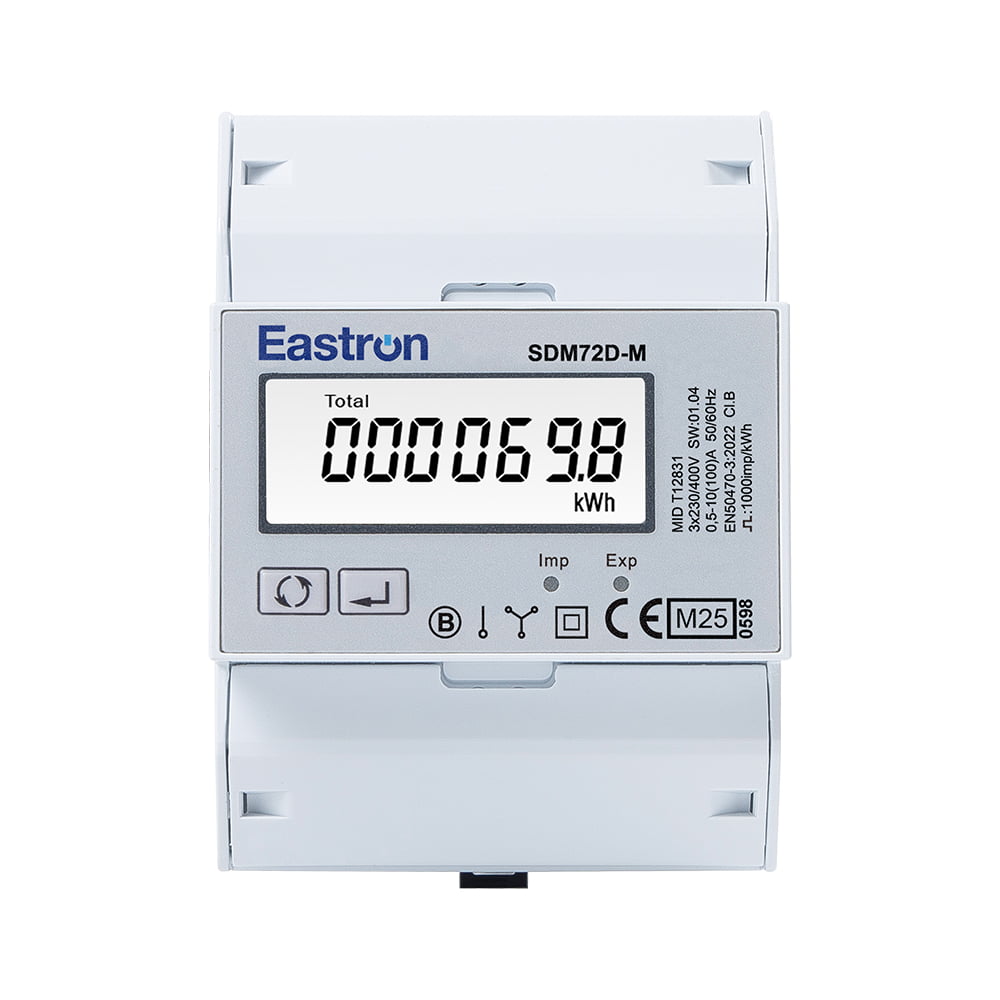

SDM72D-M

MID Din Rail Three Phase Multi-function EV Meter for EV Charging Metering

  • Max. 100A Direct Load
  • For 22kW or below AC EV Charging Piles
  • Multi-measurement: kWh, kVarh, W, Var, PF, Hz, etc.
  • Bi-directional measurement
  • Resettable energy
  • Rs485 Modbus + Pulse output

SDM72DM

THREE PHASE ENERGY METER

SDM72D-M is a MID Din Rail Three Phase Multi-function EV Meter for EV Charging Metering.

The unit measures and displays voltage, current, frequency, power factor, active power, reactive power, active energy and reactive energy, etc. A resettable partial energy is provided, and the user can easily check the active energy imported and active energy exported during a certain period.

The meter is widely used in applications like EV Charger Piles. It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P4W)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0 / EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

SDM72D-M

2 Pulse Output + RS485 Modbus

SDM72CT-M

2 Pulse Output + RS485 Modbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
