5A output 3-in-1 Current Sensor (CT)

  • 5A output 3-in-1 Current Sensor (CT)
  • 5A output 3-in-1 Current Sensor (CT)
  • 5A output 3-in-1 Current Sensor (CT)
  • 5A output 3-in-1 Current Sensor (CT)

ESCT-C Series

5A output 3-in-1 Current Sensor (CT)

  • 3-in-1 Current Transformer
  • Integrated wire sealable terminal cover
  • Primary current input: 60A-630A
  • Secondary output: 1/5A
  • Cost effective three phase moulded case

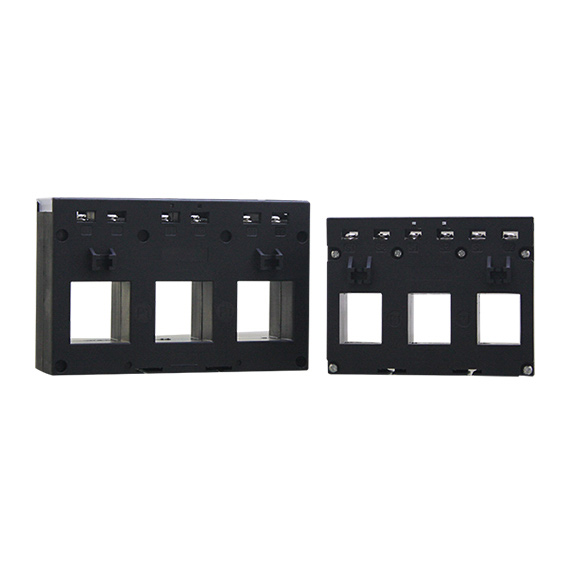

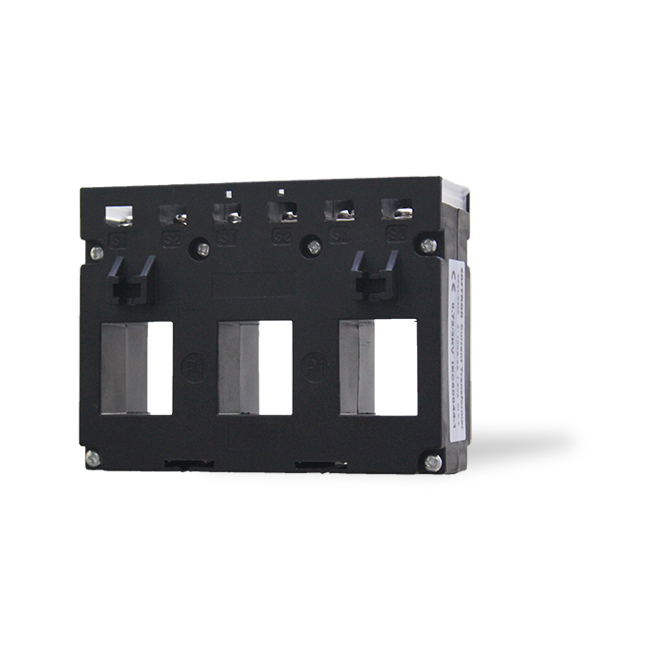

Eastron ESCT-C Series is a three phase 5A output 3-in-1 current sensor(CT). It including 3 types CT size: ESCT-C325, ESCT-C335 and ESCT-C345. Primary current range are from 60A to 630A.

The ESCT-C Series is widely used in three phase systems. It is suitable for both cable and busbar installation. Din rail mounting is supported. A three phase 3-in-1 current transformer will be more economical than 3pcs single phase current transformers.

Model Primary
Current
Secondary
Output
Burden(VA)
Class 0.5 Class 1.0
ESCT-C325 60A 1A or 5A - 1
100A 1A or 5A - 1.5
125A 1A or 5A 1.5 1.5
150A 1A or 5A 1.5 1.5
200A 1A or 5A 1.5 1.5
ESCT-C335 100A 1A or 5A - 1.5
125A 1A or 5A - 2.5
150A 1A or 5A - 3.75
200A 1A or 5A 1.5 1.5
250A 1A or 5A 1.5 1.5
ESCT-C345  250A 1A or 5A 1.5 1.5
300A 1A or 5A 2.5 2.5
400A 1A or 5A 2.5 2.5
500A 1A or 5A 2.5 2.5
600A 1A or 5A 2.5 2.5
630A 1A or 5A 2.5 2.5

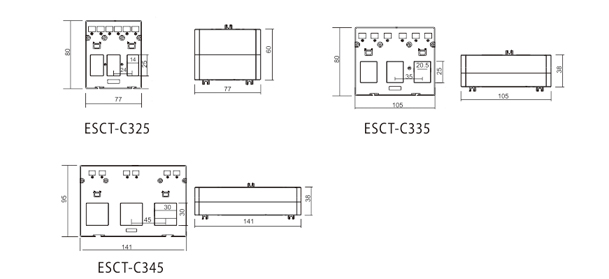

Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions
