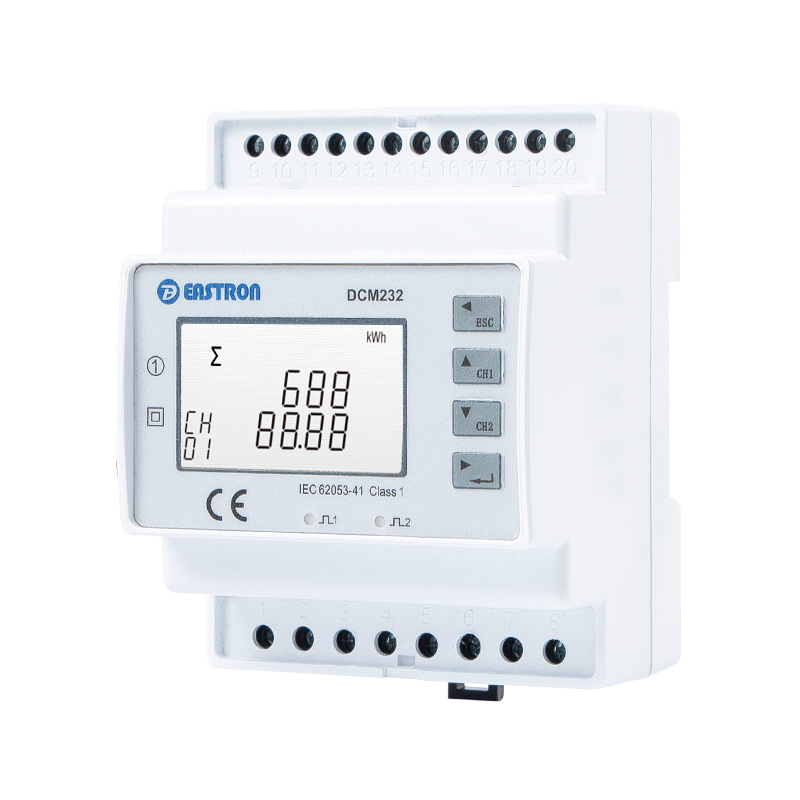

DCM232

Double Channels Din Rail DC Energy Meter 5-1000V DC RS485 Modbus

  • Double DC Input Channels
  • LCD Display with Backlit
  • Voltage Input 5…1000V DC
  • Current input 75mV/60mV/45mV available
  • Bi-directional Measurement
  • Pulse Output & RS485 Modbus RTU
  • Precision Monitoring Solution for DC systems
  • Multi-tariff (RTC) Available
  • Record 12 Months kWh Information

DCM232

DCM232 series is the double channels din rail DC energy meter, support 5-1000V DC voltage, RS485 Modbus/ DLT645 communication. With double DC input channels, the DCM232 series is an ideal solution for mesauring and monitoring in DC systems, like telecommunications base station, the EV Charging Piles, the solar PV systems, etc.

DCM232 series provides multi-parameters measurement like current, voltage, power, frequency, import and export energy and so on. Besides two pulse outputs, it also offers two RS485 port for Modbus communication.

The meter has two versions working with AC or DC power supply.The input voltage range could reach 1000V.

Electrical Characteristics

Type of Measurement

RMS on DC system (1P+N)

Measurement Accuracy

Power

1 % of range maximum



Active Energy

1 % of range maximum



Current

0.5% of range maximum



Voltage

0.5% of range maximum



Input & Output

Input-Voltage

Range

5-1000V DC

5-600VDC

5-300VDC

Power consumption

≤0.5VA

Input-Current

Shunt

75mV is default,40/60mV optional

Power consumption

≤0.1VA

Output

DCM232

Pulse Output + RS485 Modbus



Modbus Communications

Interlace Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1-247

Transmission Mode

Half Duplex

Data Type

Floating Point

Transmission Distance

1000m Maximum

Transmission Speed

2400bps〜38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

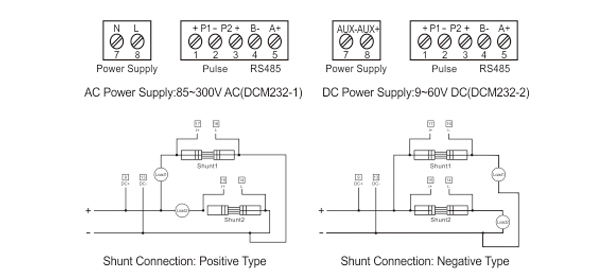

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
