Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System

  • Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System
  • Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System
  • Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System
  • Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System
  • Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System
  • Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System

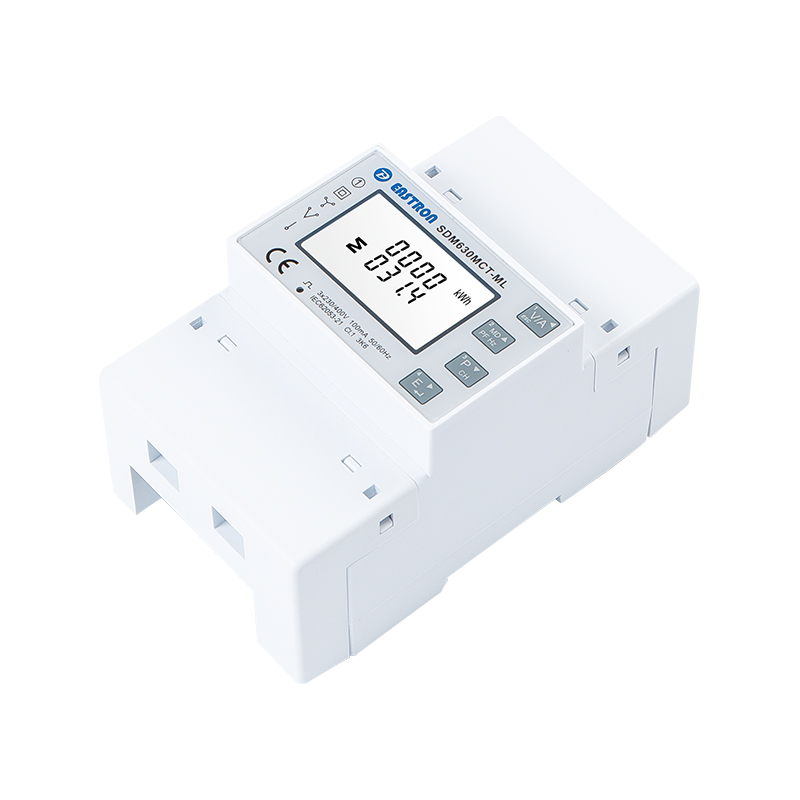

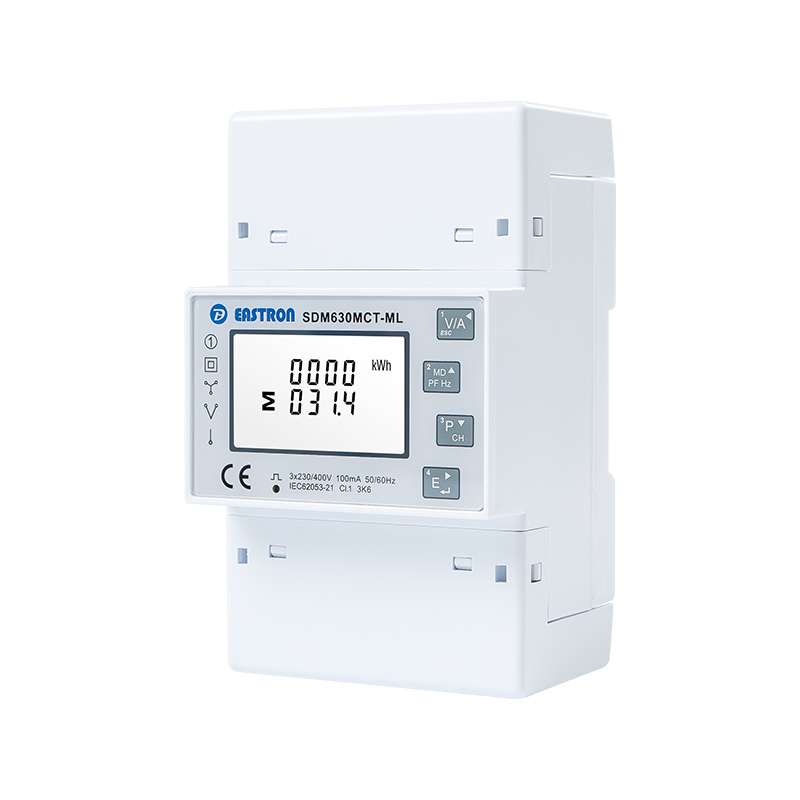

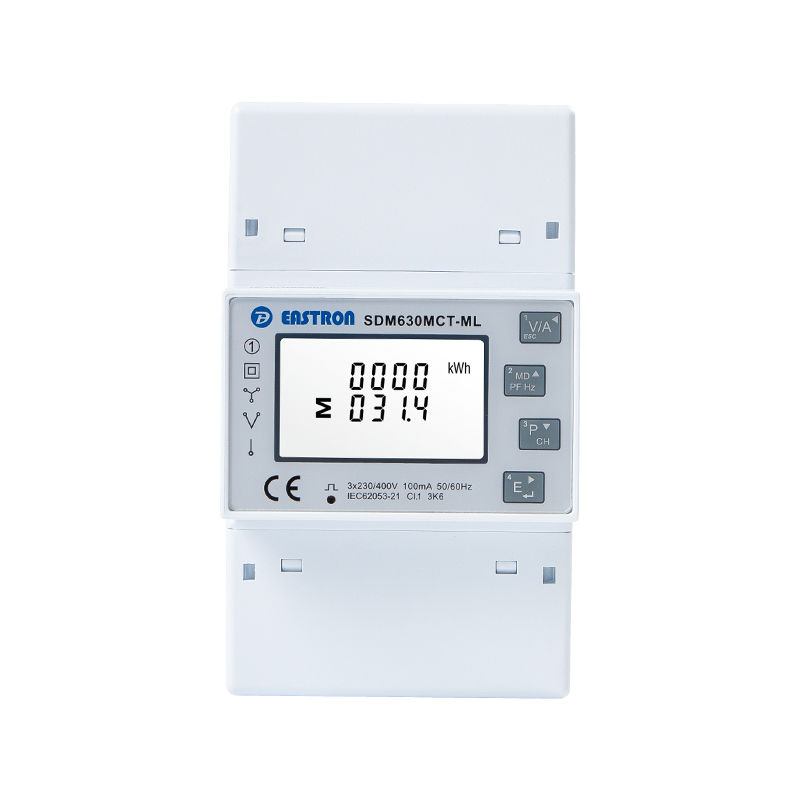

SDM630MCT-ML-TCP

Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System

  • Multi-parameters for 4 Loads, 12 Loads
  • Multi-Parameter Measurement
  • Ethernet TCP/IP
  • Independently programmable CT ratios
  • RJ12 Socket for fast connection
  • True RMS measurement

SDM630MCT-ML-TCP

The SDM630MCT-ML-TCP is Ethernet Modbus TCP Quad Load Three Phase Energy Meter for Easy Click System. The Ethernet communication allow its connection to SCADA systems using Modbus TCP/IP protocol. The meter can be directly connected with TCP/IP masters for remote reading.

The meter can work with 1p2w, 1p3w, 3p3w and 3p4w electricity grid, and it provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy, etc.

The meter can be used as 4x three phase energy meters or 12x single phase energy meters.

By using plug- in connectors, the meter provides an easy click solution, saving 80% installation time and avoiding wiring mistakes.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

CT Secondary

100mA/ 100mV

CT Primary

1-9999A

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT-ML/3L/2L-1L

RS485 Modbus (RJ45 port)

SDM630MCT-ML-TCP

Ethernet Modbus TCP



RS485/Ethernet Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
