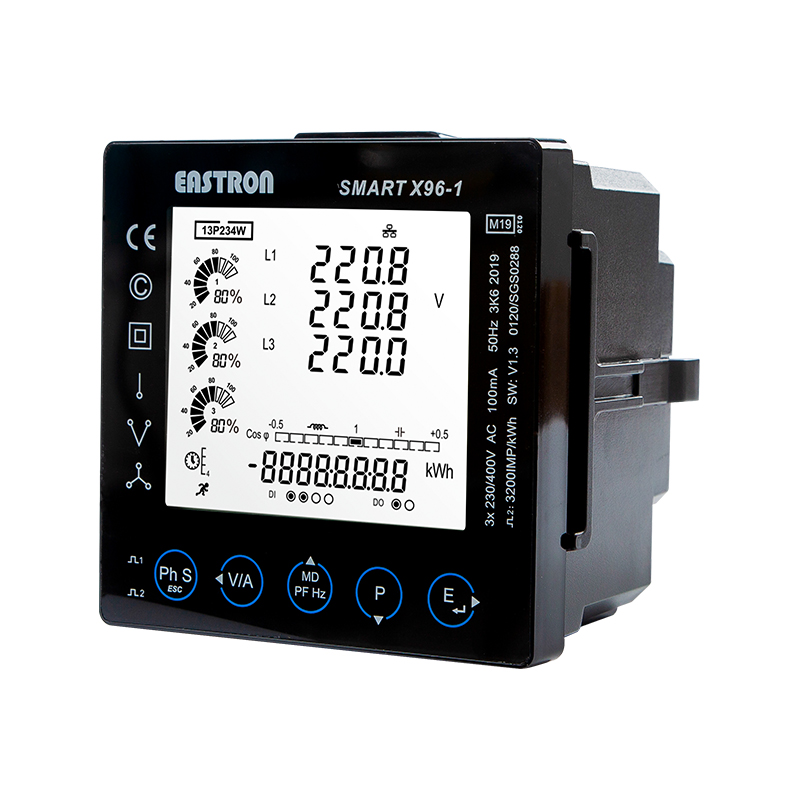

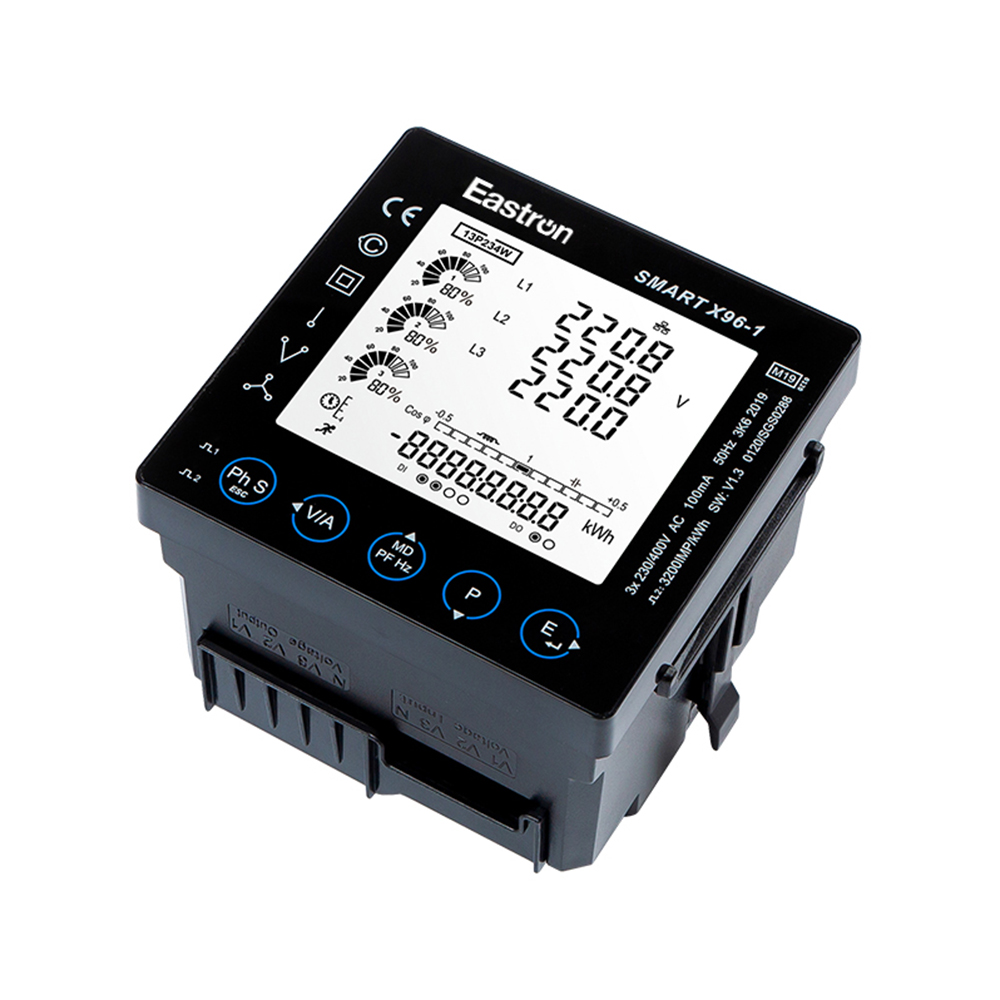

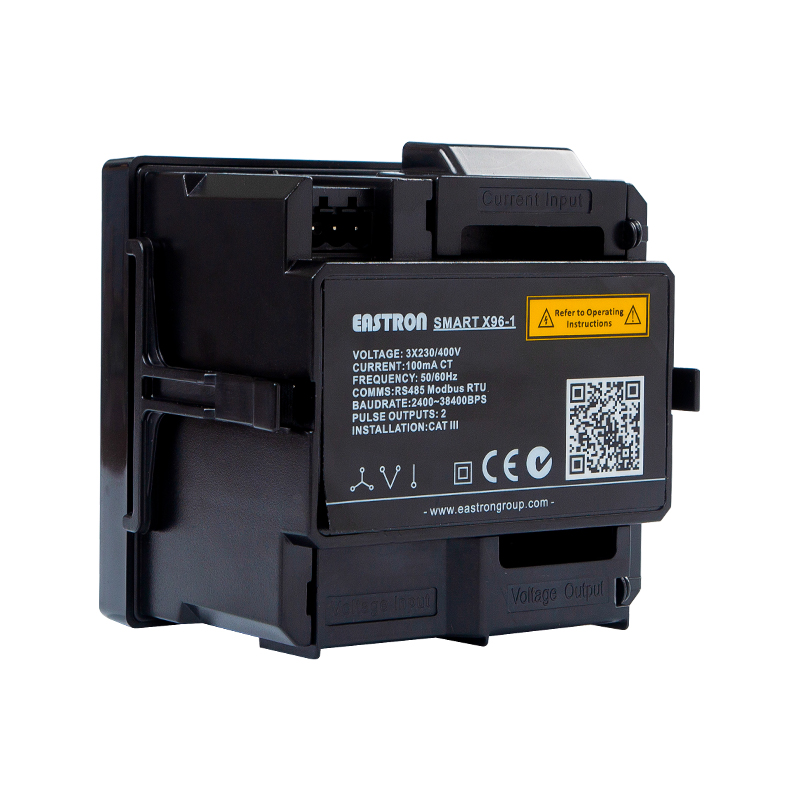

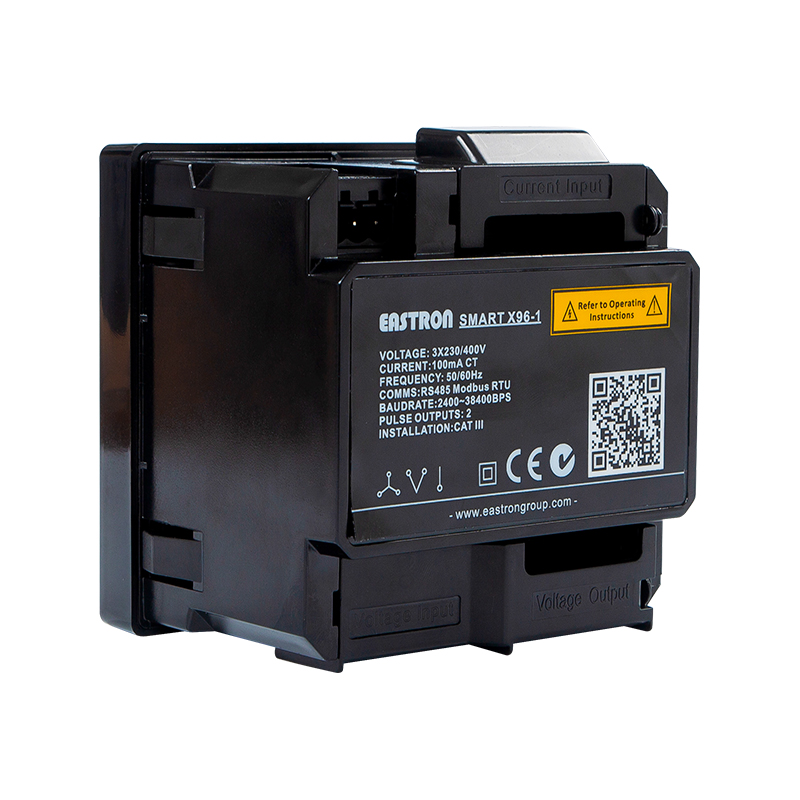

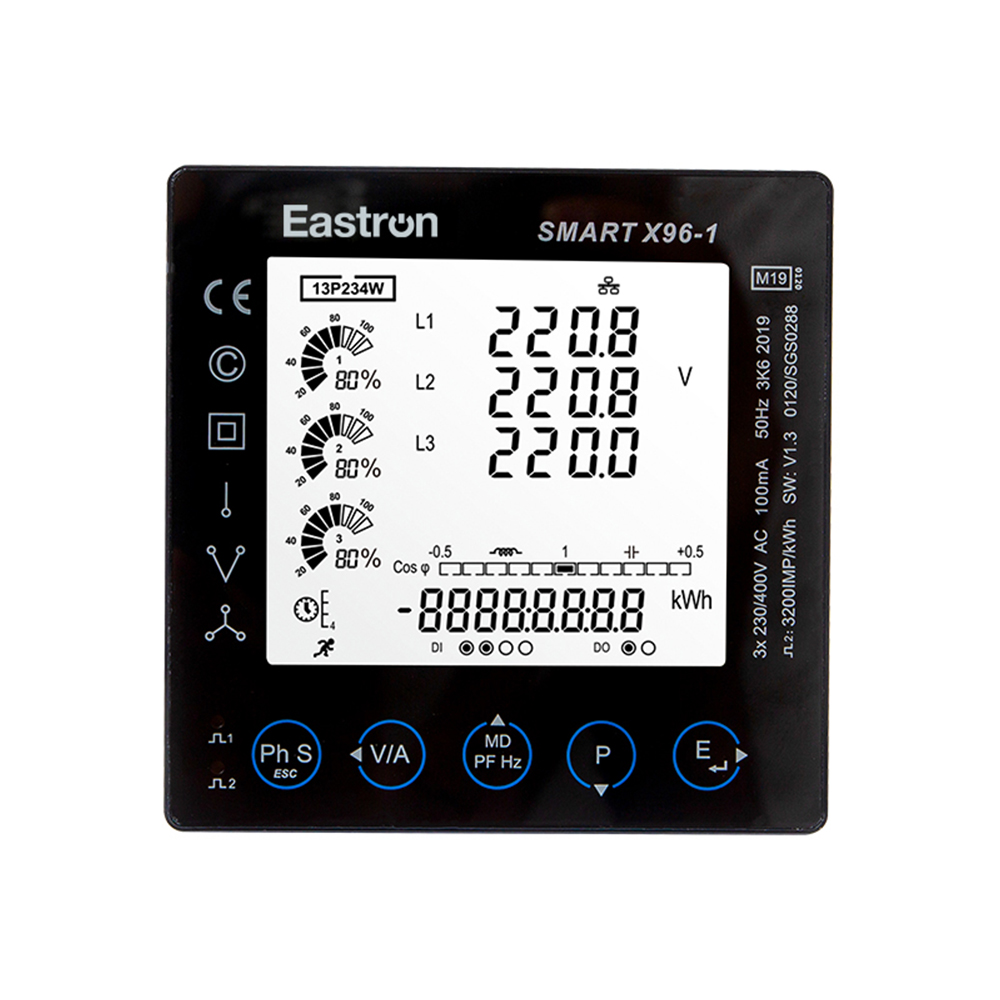

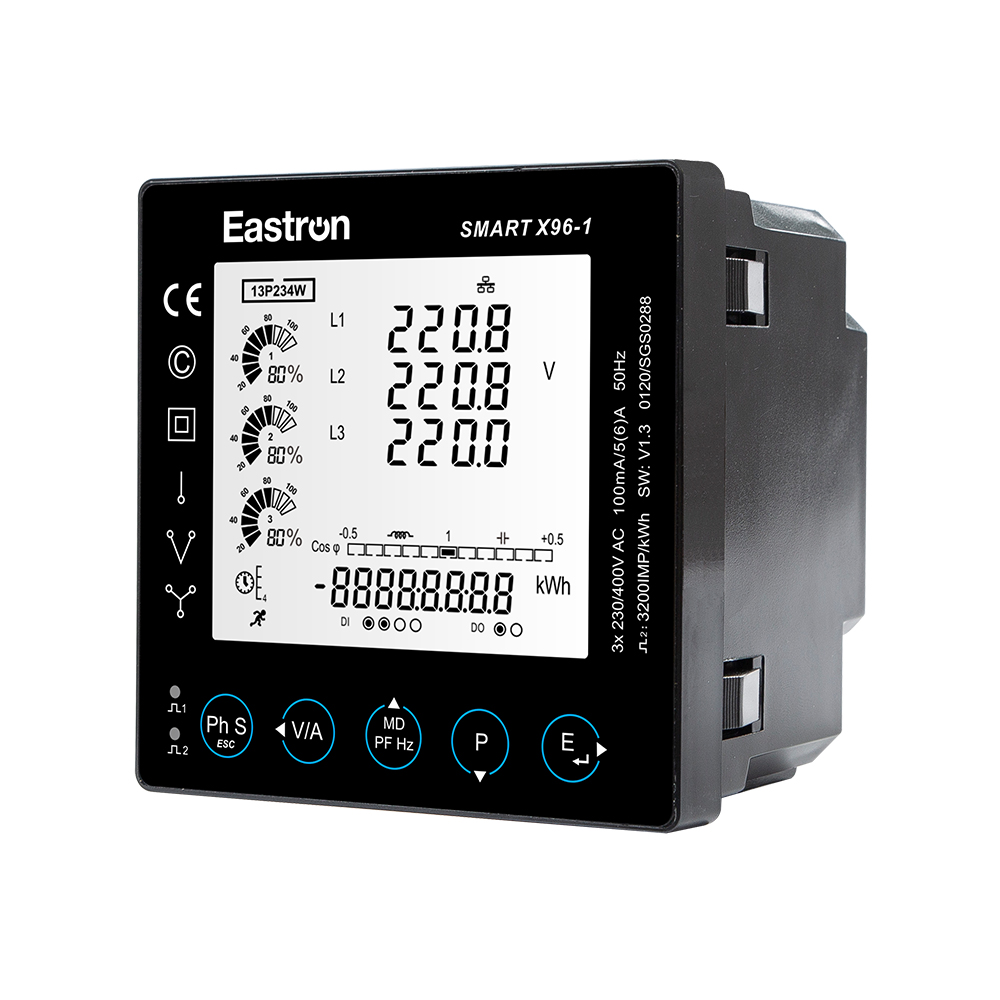

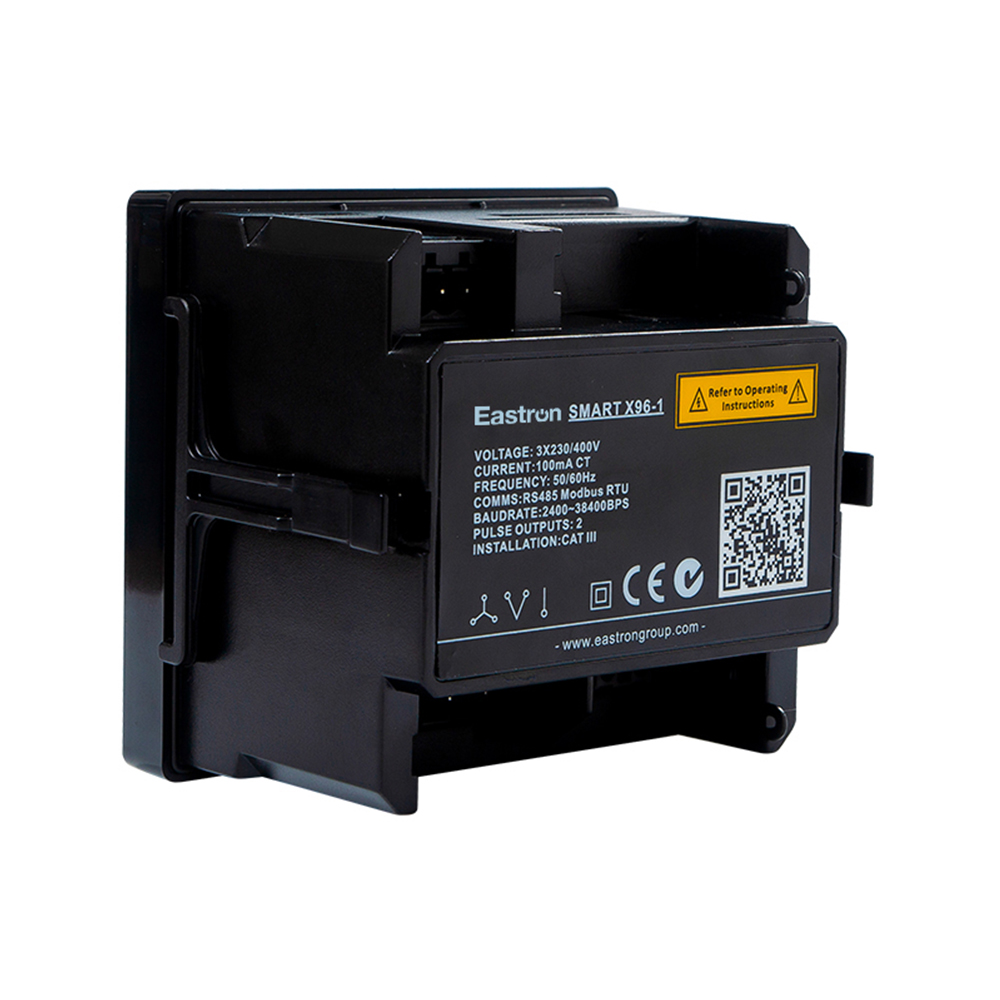

Eastron Smart X96-1A is a RJ12 CT Type Three Phase Panel Mounted Power Analyzer for Easy Click System. The meter measures and displays the characteristics of 1p2w, 3p4w and 3p3w suppliers, including voltage, current, frequency, power, active and reactive energy, imported and exported, harmonics, demanda máxima, etc.
The meter support self-powered from any of the three phases. The solution Engineered and designed around a "plug and play" concept, this replaces the need to hardwire 6 individual secondary cables from the Current Sensor to the power meter, saving installation time by up to 85%, and also removes potential wiring errors.
|
Electrical characteristics |
||
|
Type of measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement accuracy |
Active power |
1.0% of range maximum |
|
Reactive power |
1.0% of range maximum |
|
|
Apparent power |
1.0% of range maximum |
|
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
1.0% of range maximum to IEC 62053-24 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
|
THD |
2% to 63rd harmonic |
|
Input & Output |
||
|
Input-Current |
Rated Current |
100mA |
|
Max Current |
9999A |
|
|
Output |
Contact Rating current |
2-27mA at 27V DC |
|
Contact Rating voltage |
5-27V DC |
|
|
Pulse Width |
60 / 100 / 200 ms |
|
|
Pulse constant of S0 1 |
0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh |
|
|
Pulsed constant of S0 2 |
3200 IMP/kWh ((non-configurable)) |
|
|
Communication |
RS485 port |
Modbus RTU (RS485) |
|
Type |
2-wire half duplex |
|
|
Baud rate |
2400,4800, 9600, 19200, 38400 bps |
|
|
Address |
1 to 247 |
|
|
Pariy |
None (default), Even, Odd |
|
|
Stop Bit |
1 or 2 |
|
|
Mechanical Characteristics |
|
|
Weight |
420g |
|
IP Degree of Protection (IEC 60529) |
IP51 front display |
|

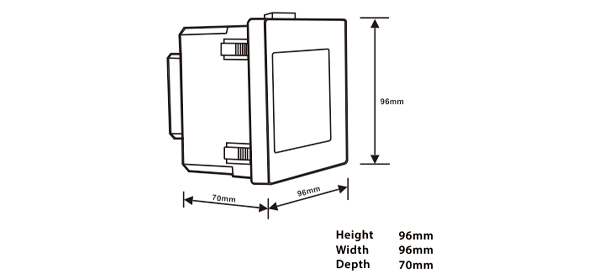

Dimensions (WxHxD) |
96x96X92mm |
|

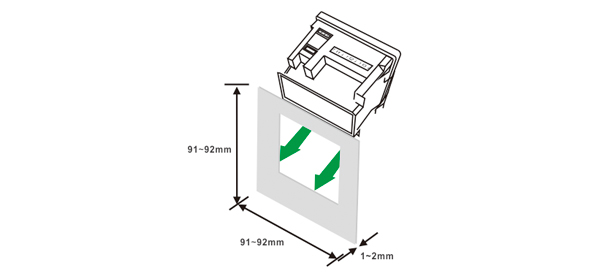

Panel cut-out |
Vertical |
|
Material of meter case |
Self-extinguishing UL 94 V-0 |
|
Terminals |
Voltage: Shrouded screw-clamp. Current: RJ12 terminal |
|
Environmental Characteristics |
|
|
Operating Temperature |
-25 to 55°C |
|
Storage Temperature |
-40 to 70°C |
|
Humidity Rating |
<95% RH at 50 °C (non-condensing) |
|
Pollution Degree |
2 |
|
Altitude |
2000m |
Eastron Electronic Co., Ltd. headquartered in Jiaxing, China, near to Shanghai, Hangzhou, Jiangsu, is one of the leading high-tech manufacturer and supplier for electricity products and energy measurement solutions. Over the years, we have developed a rich range of electricity meters, sensors, communication modules and management systems.Custom Manufacturers of RJ12 CT Type Three Phase Panel Mounted Power Analyzer for Easy Click System.
Eastron keeps investing on the research and development of new technology and new products on electricity metering. We have energetic and innovative development teams in both China and UK,which help us keep the competitive edge in the market. The collaboration with leading universities and institutions also brings many cutting-edge technology into our products. To make sure the reliability of the products, Eastron has setup own professional lab that can performs EMC, LVD, accuracy and environment tests according to IEC, EN, GB, UL standards.
With more than 40 patented technologies on software, embedded software and hardware, Eastron has been awarded with “High-tech Enterprise” and “High-tech R&D Centre of Electricity Application”. Eastron strictly follows ISO 9001 Quality management system, and the production is approved by SGS according to MID standard.Suppliers and Factory of RJ12 CT Type Three Phase Panel Mounted Power Analyzer for Easy Click System
Creating value to and growing up with our partners is our mission. Eastron provides not only the high quality and innovative products, but also first-class service to all our customers. We have professional team for technical supports and aftersales services. We have provided products and services to more than 50 countries in Europe, Asia-Pacific, America, Middle East, and Africa. We pride ourselves on having long-term partners globally that allows us to further our growth and bring our innovation and quality to the market.
We develop and produce high performance electricity meters, power analyzers, current sensors, communication modules and management systems. RJ12 CT Type Three Phase Panel Mounted Power Analyzer for Easy Click System Manufacturers and Factory
Address: NO 52, Dongjin Road, Nanhu, Jiaxing, Zhejiang, China
Copyright @ Eastron Electronic Co., Ltd. All rights reserved Suppliers of RJ12 CT Type Three Phase Panel Mounted Power Analyzer for Easy Click System
