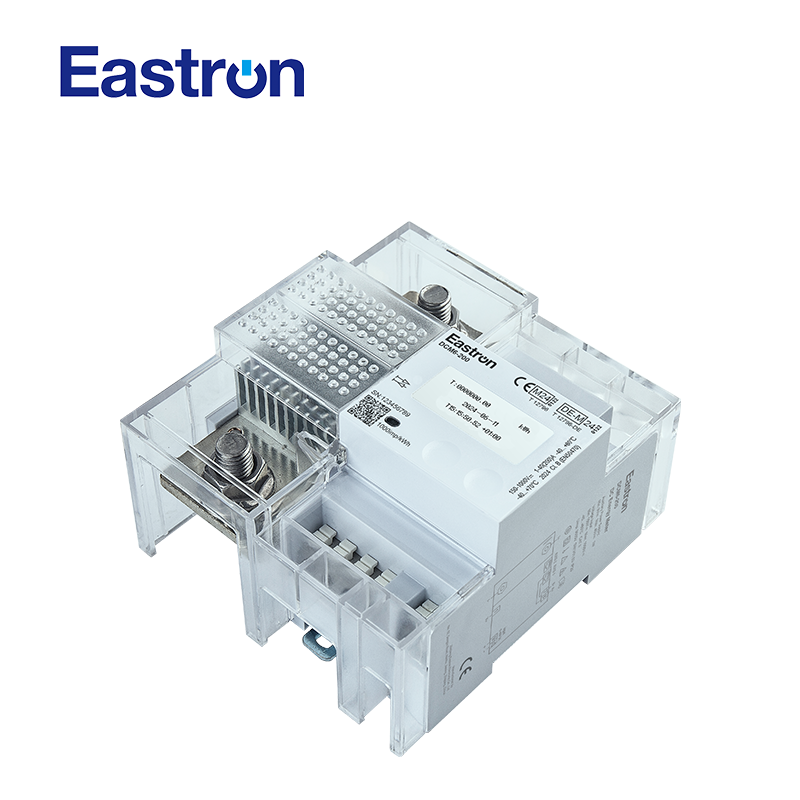

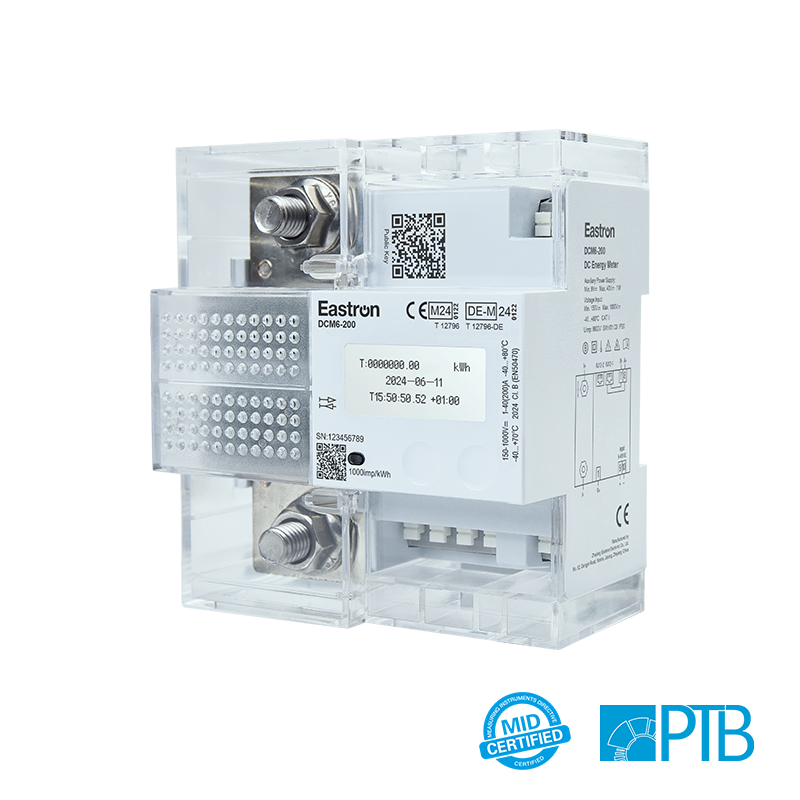

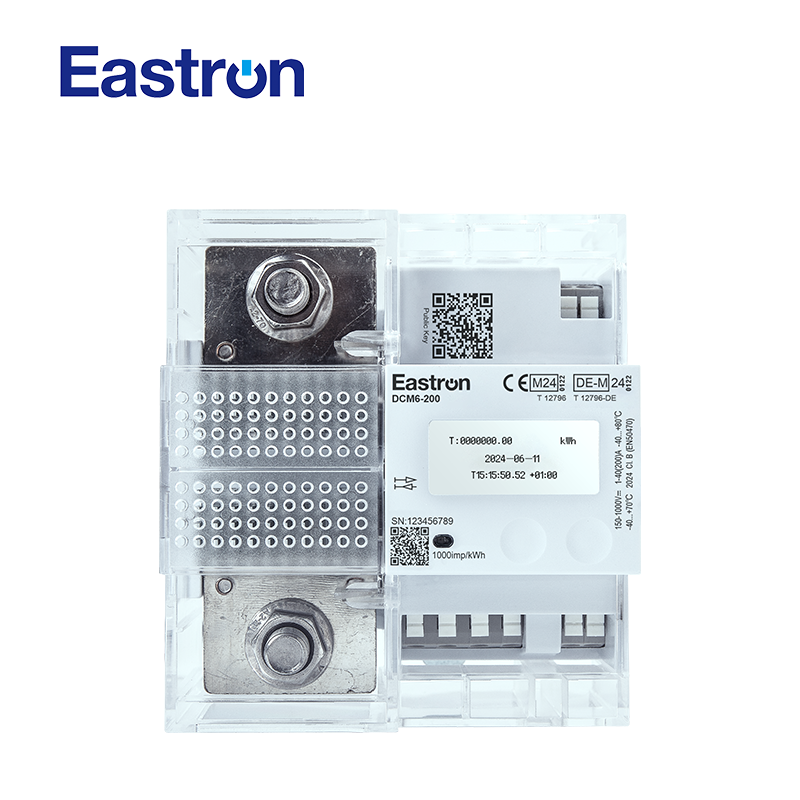

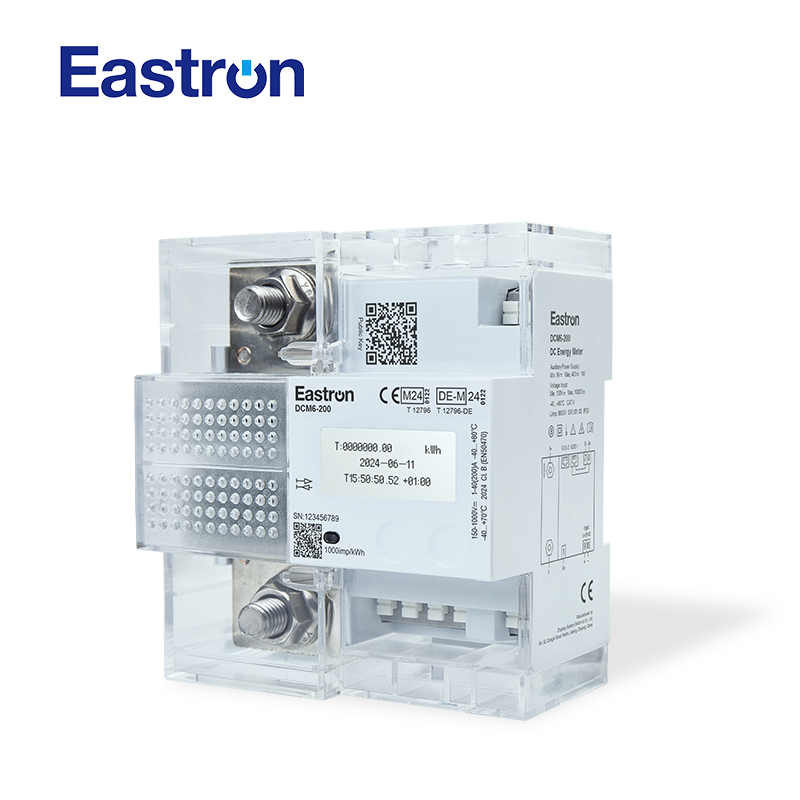

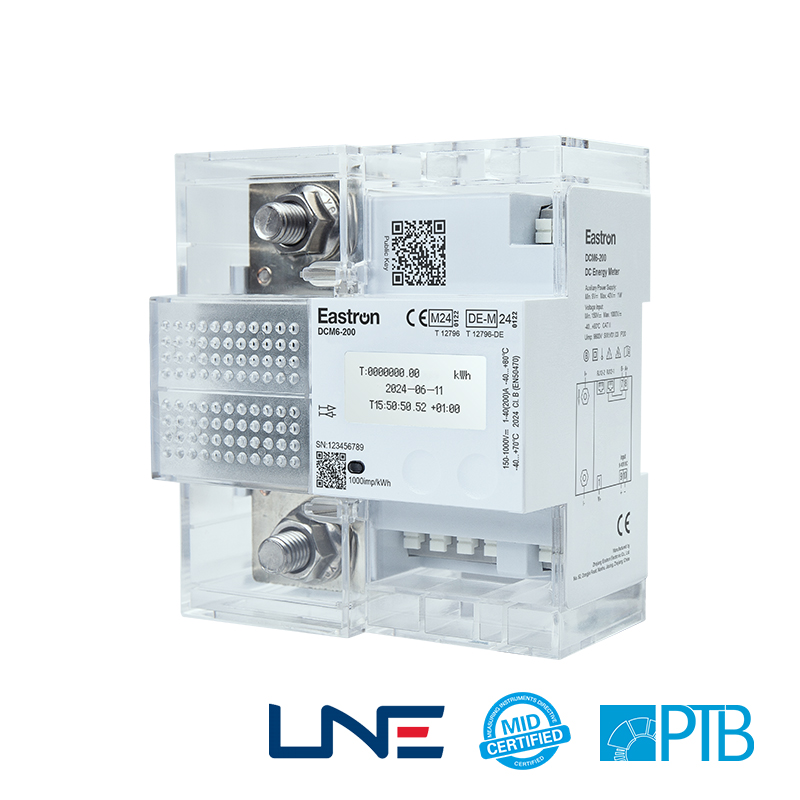

MID & PTB DC Energy Meter for DC EV Charger

  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger
  • MID & PTB DC Energy Meter for DC EV Charger

DCM6-200

MID & PTB DC Energy Meter for DC EV Charger

  • EN50470-4 CLASS B
  • MAX. 200A
  • OCMF 1.2.0 COMPLIANCE
  • BI-DIRECTIONAL MEASUREMENT
  • -40~+80 °C
  • CABLE LOSS CALCULATION
  • 225000+ TRANSACTION RECORDS
  • 3000+ EVENTS RECORDS

The DCM6 Series is a DC electricity meter for measurement within an e-mobilty charging station. It has a dedicated microcontroller for crypto function in order to comply with Eichrecht. Furthermore, all charging processes are stored within the internal data storage of the meter. The Eichrecht Measurement and Calibration Act, which is an amendment to Measuring and Verification Act (Mess und Eichgesetz/ MessEG) and the Measuring and Verification Ordinance (Mess- und Eichverordnung / MessEV) is the solution giving the user transparency for detailed billing for each charging event.

Voltage
Umax 1000V DC
Umin 150V DC
Auxiliary power supply  9-40V DC



Current
Ist (Starting current) 0.08A
Imin(Minimum current) 1A
Itr (Current) 4A
Iref (Normal current) 40A
Imax(Maximum current) 200A



Accuracy
Class B



Display
LCD Dot Matrix
Life Cycle >12 Years



Serial Output
Type 2xRS485 (RTU)
Ports 2 xRJ12+1 plug-in terminal



RS485 interface
4800~115200bps(19200bps default) 8N1(Settable)

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

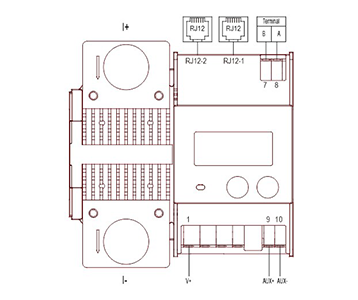

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
