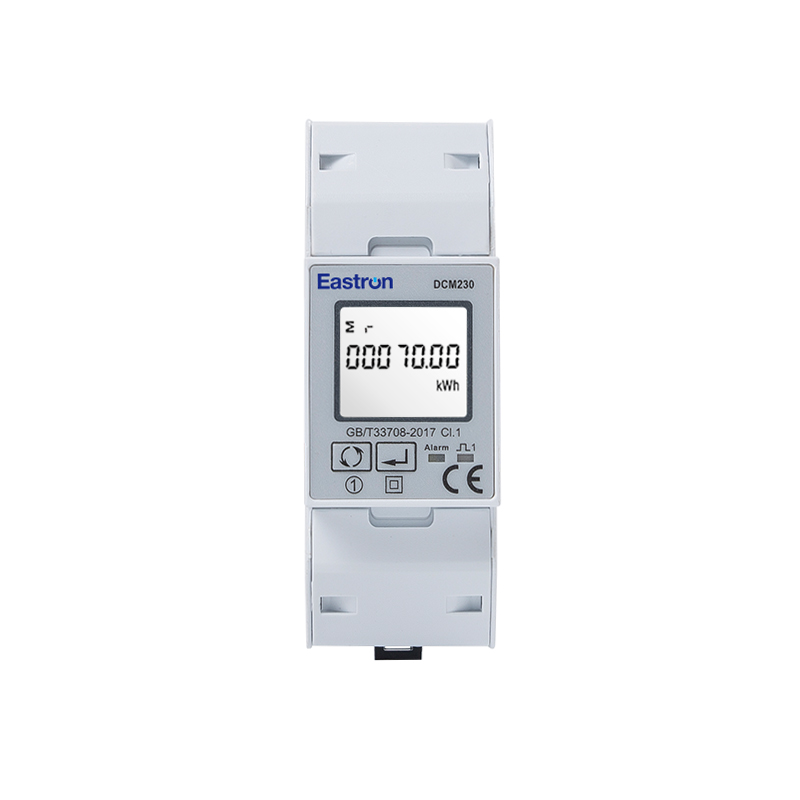

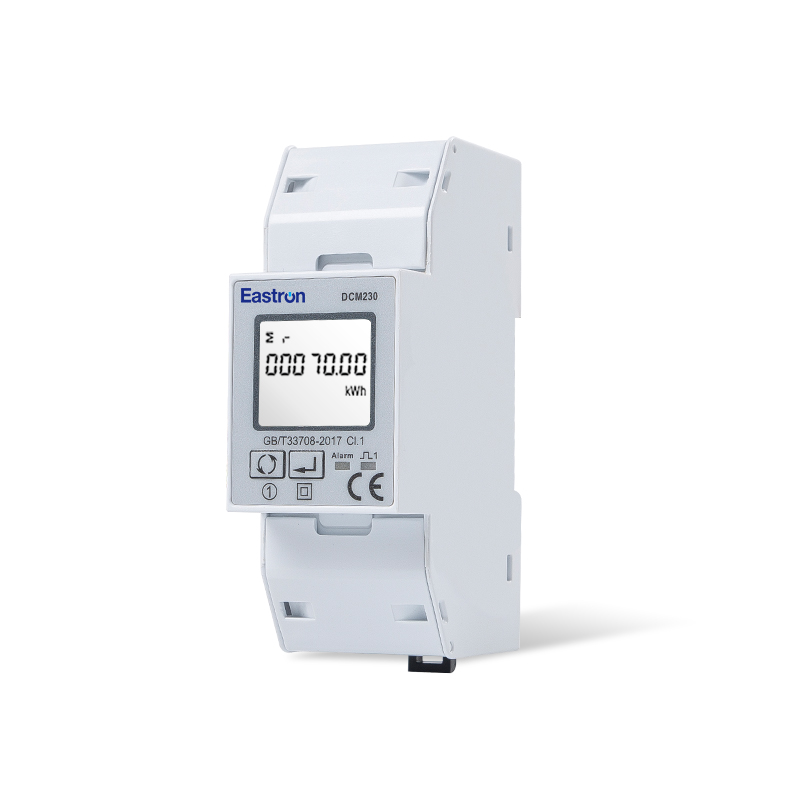

DCM230

Din Rail DC Energy Monitoring Meter for EV Charging Metering

  • Two Module Mini Size
  • LCD Display with Backlit
  • Voltage Input 5-1000V DC
  • Current Input 75mV/60mV/ 50mV/45mV Available
  • Precision monitoring Solution for DC EV Charging Piles
  • Bi-directional Measurement
  • Pulse Output
  • RS485 Modbus RTU
  • Class 1.0 / 0.5 Accuracy

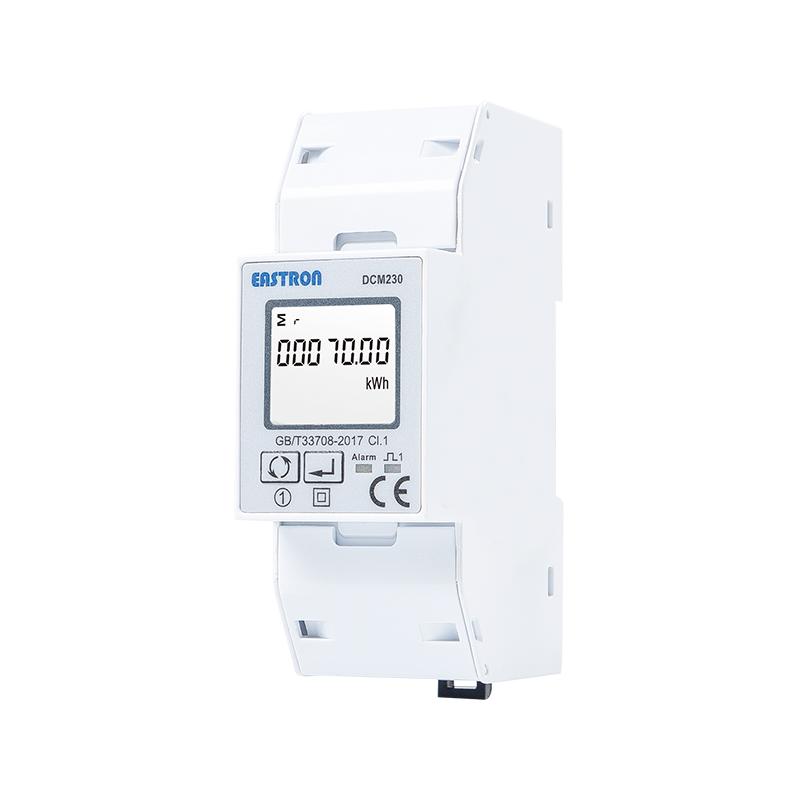

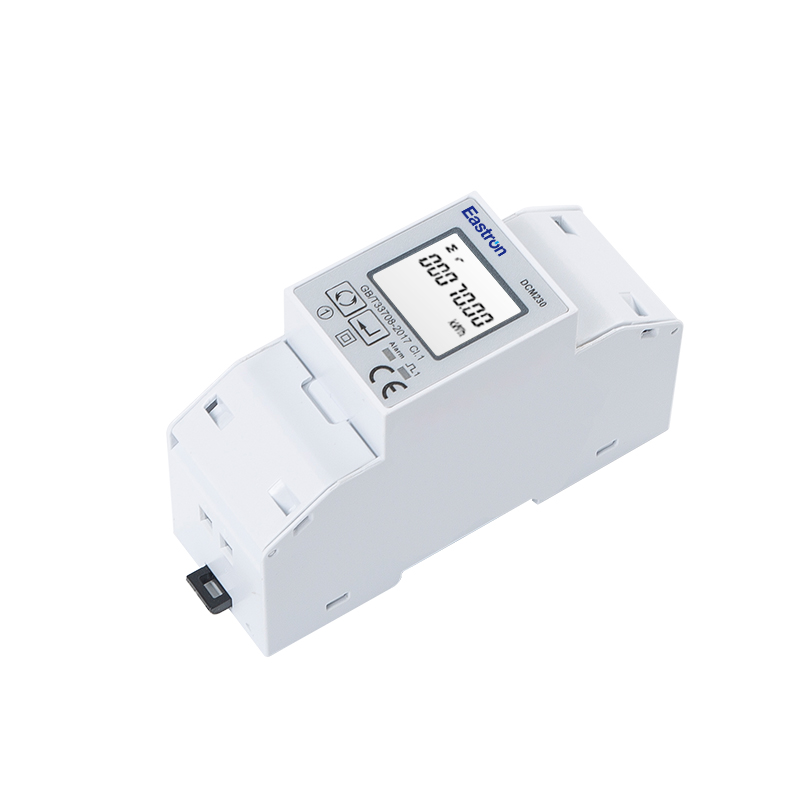

DCM230

SINGLE LOAD MULTI-FUNCTION ENERGY METER

DCM230 is a din rail DC energy monitoring  meter for EV charging metering. It can measure multi-parameters like current, voltage, power, frequency, import and export energy and so on in the DC energy system. Besides a pulse output interface, an RS485 port was provided for  Modbus RTU or DLT-645 protocol. The DCM230 meter has two versions working with AC or DC power supply. The input voltage range could reach 1000V.



Electrical Characteristics

Type of Measurement

RMS on DC energy system (1P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

0.5% of range maximum

Current

0.2% of range maximum

Voltage

0.2% of range maximum



Input & Output

Input-Voltage

Range

5-1000V DC

5-600V DC

5-300V DC

Power consumption

≤0.5VA

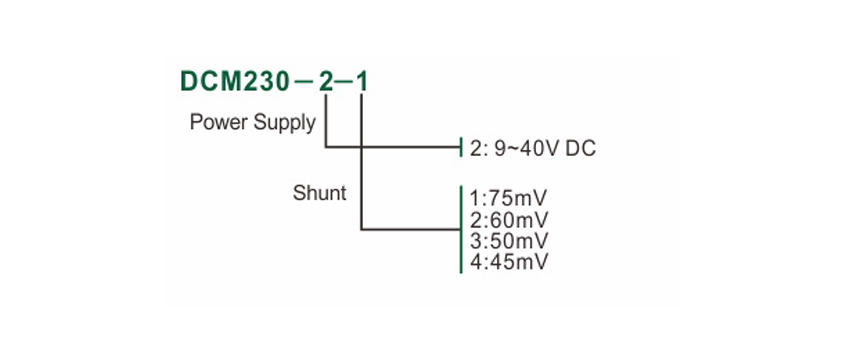

Input-Current

Shunt

75mV in default, 45/60mV optional

Power consumption

≤0.1VA

Output

DCM230

Pulse Output + RS485 Modbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~19200bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

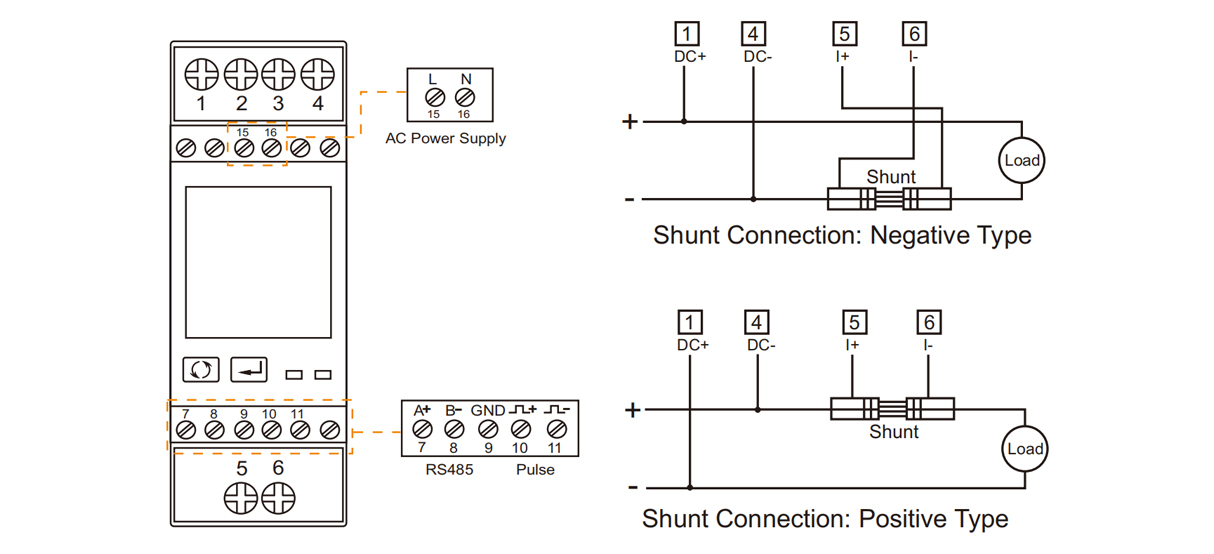

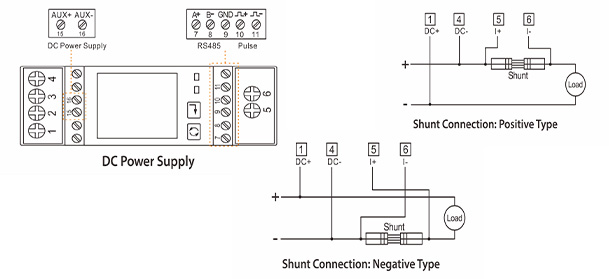

Wiring diagram

Wiring and Dimension [mm:]

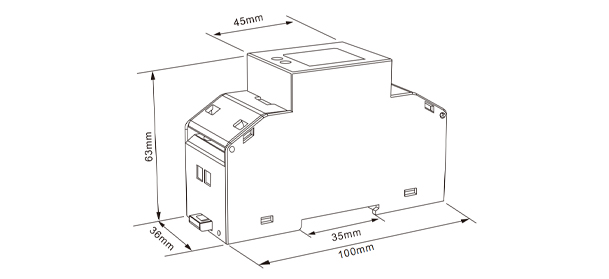

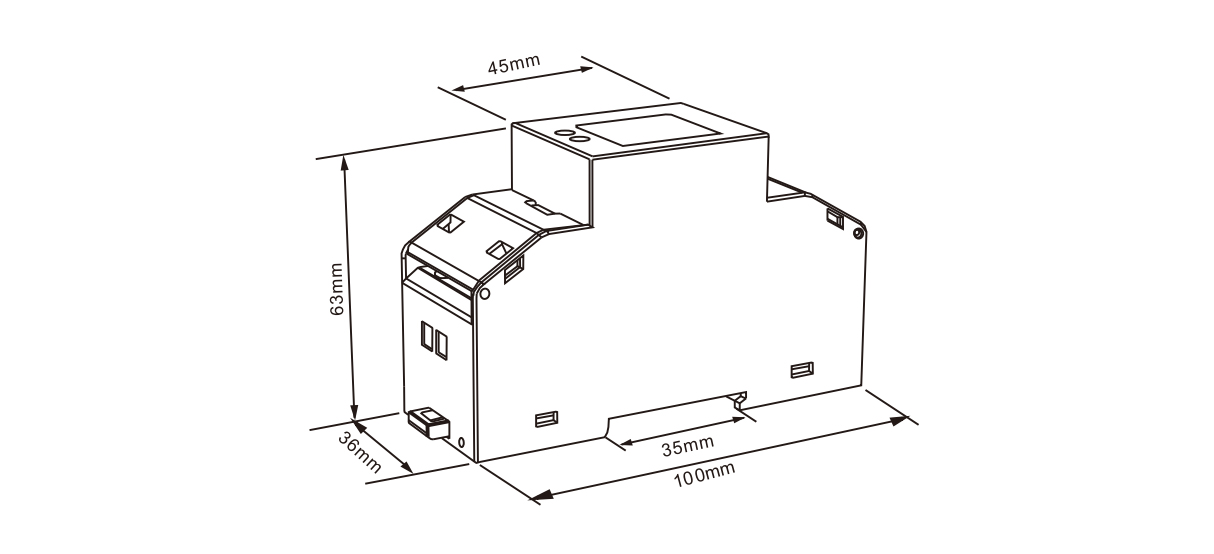

Dimensions
