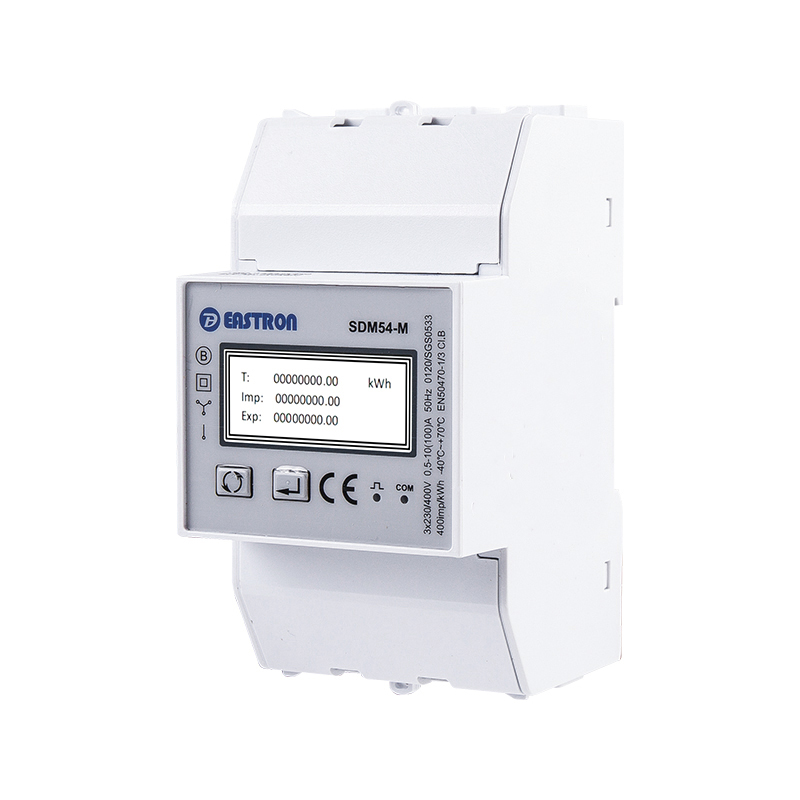

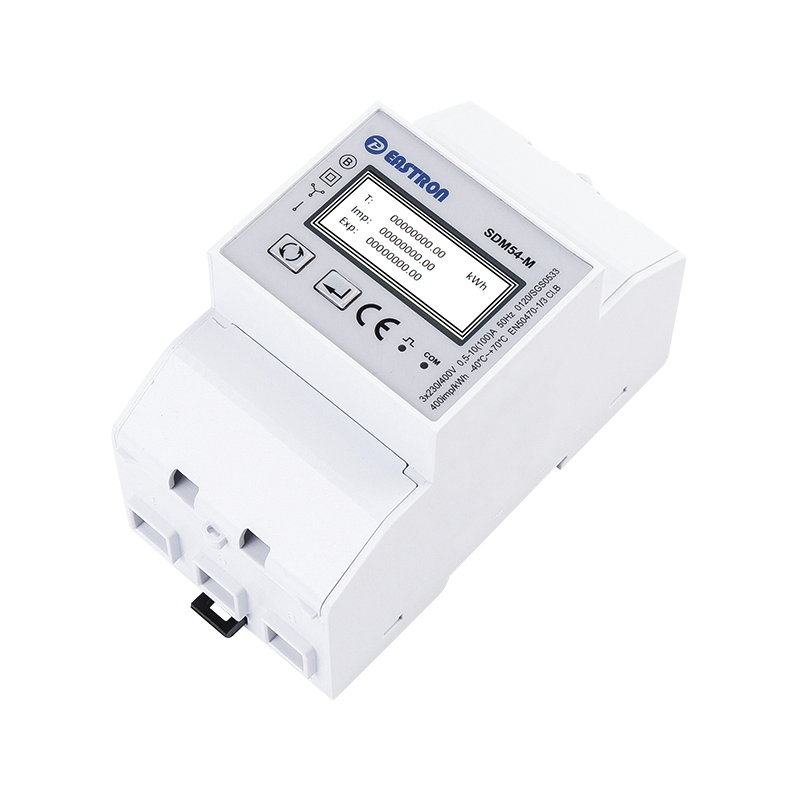

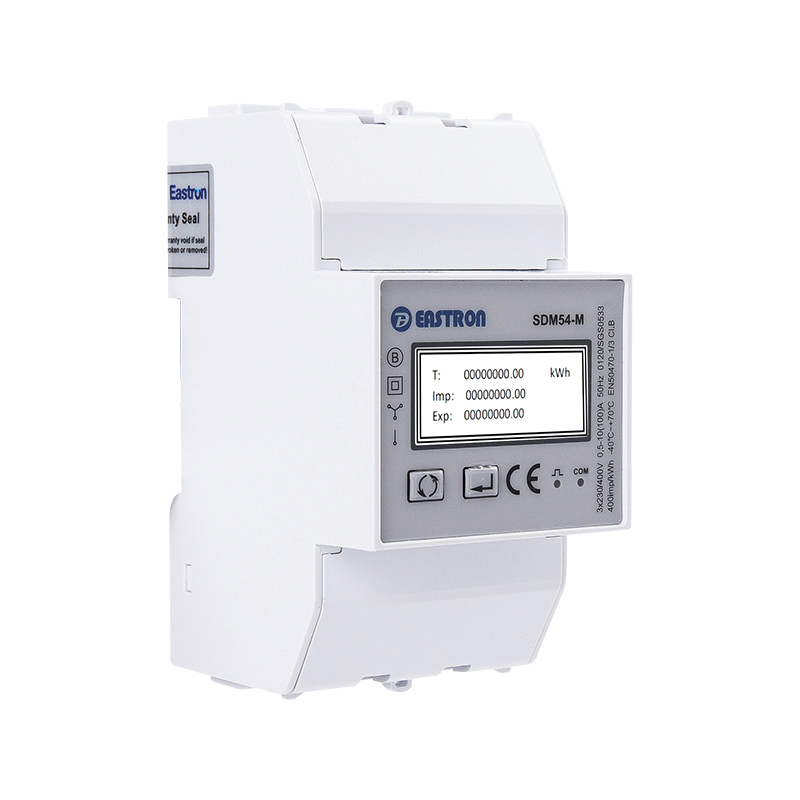

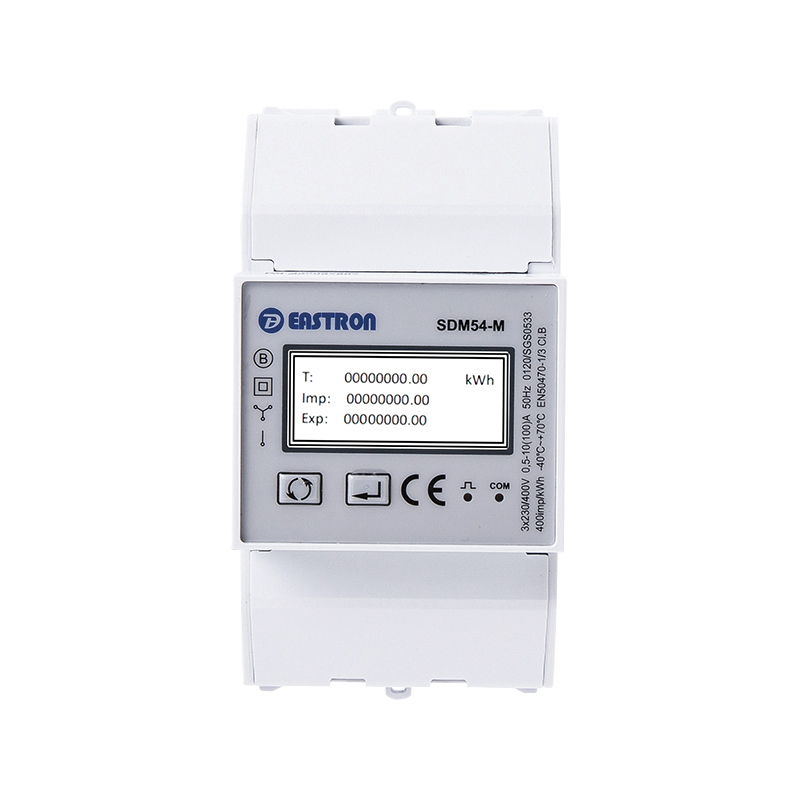

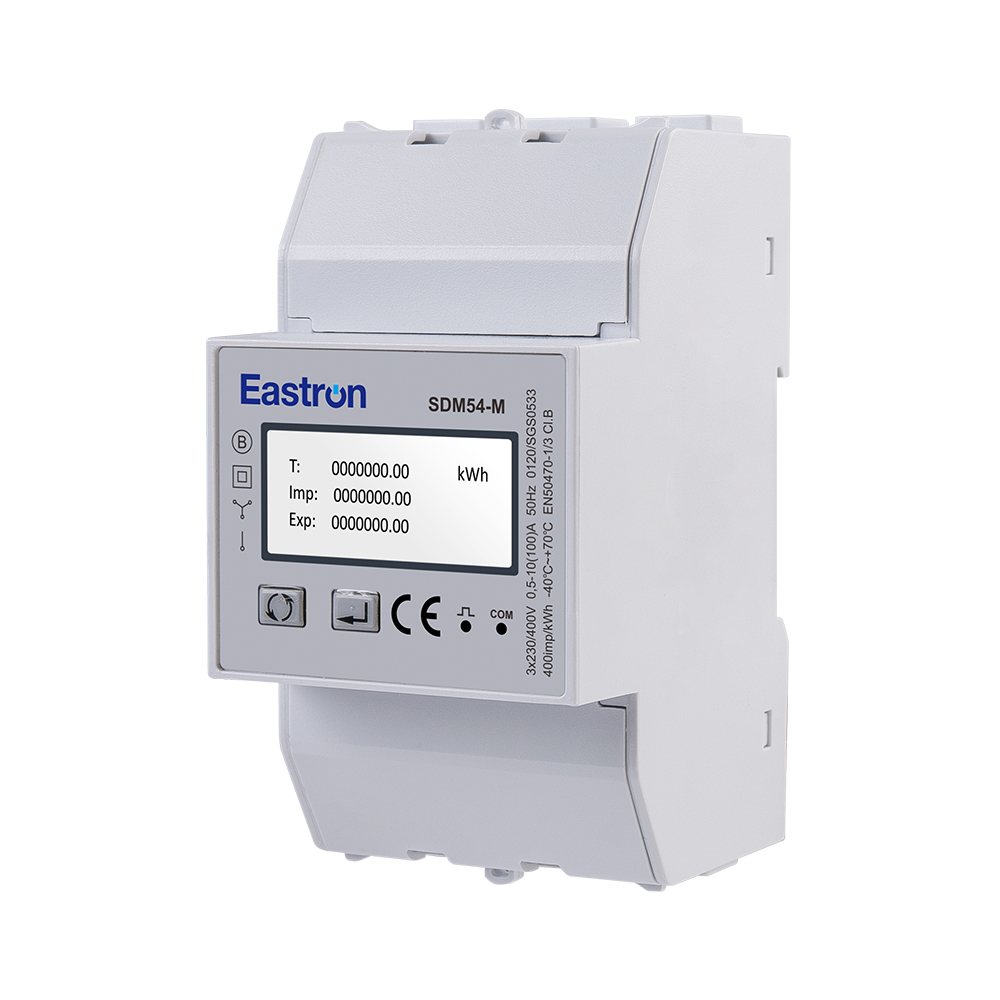

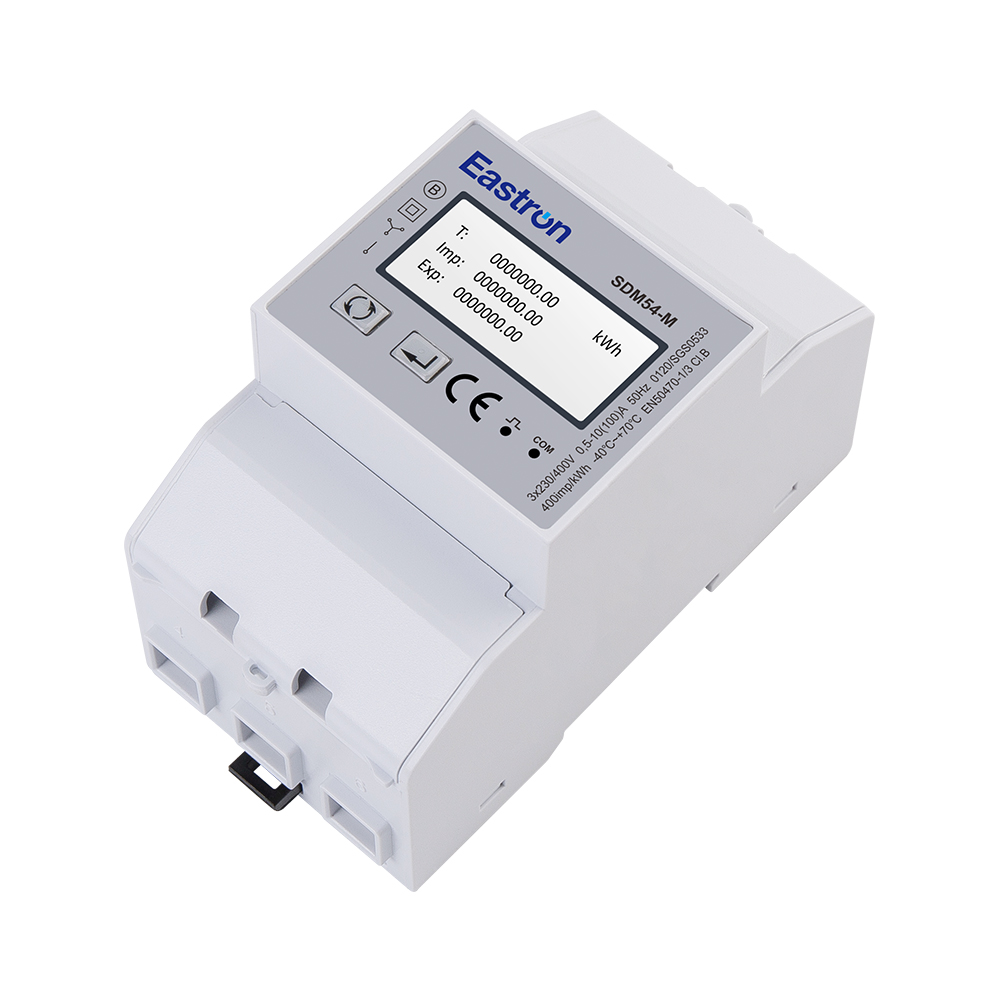

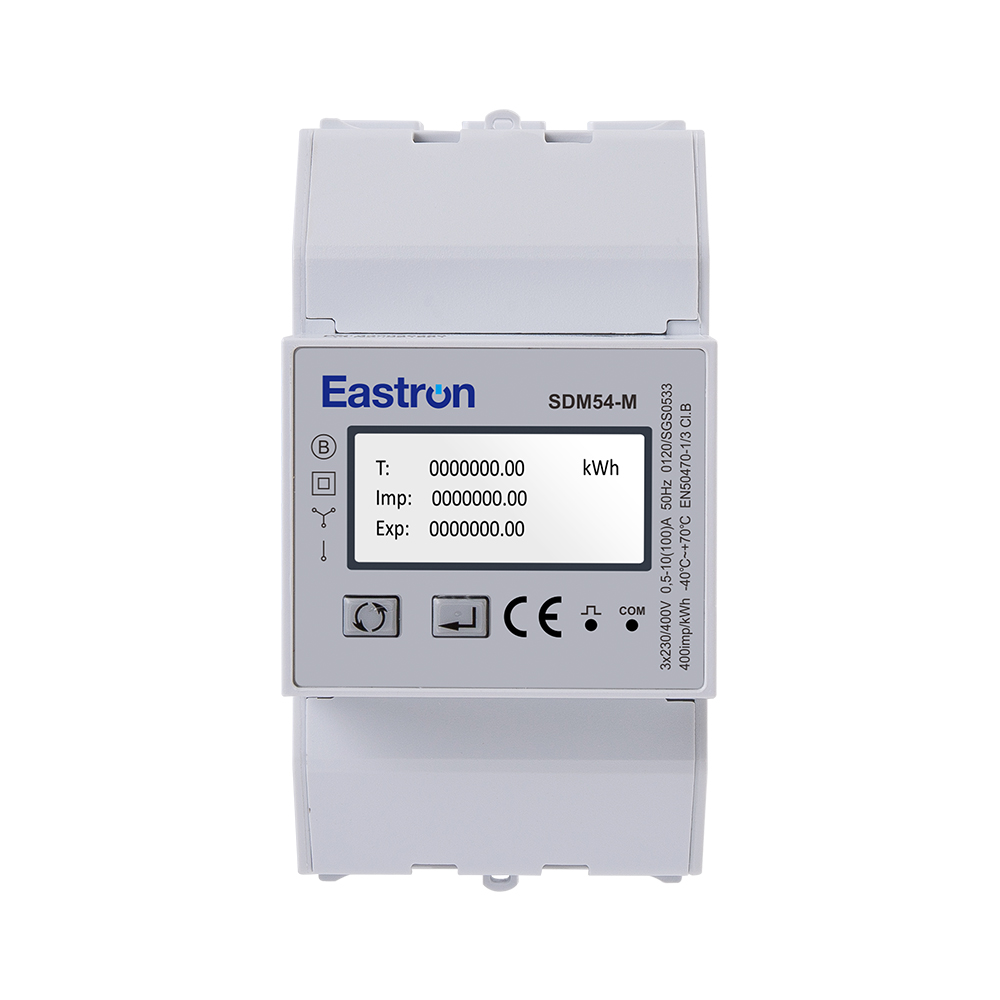

The SDM54 is a MID 3 Modules Din Rail Three Phase Direct Multi-function Meter for EV Charging Metering. It measures and displays the characteristics of single phase two wires (1p2w) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported. Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over preset periods of up to 60 minutes, mini in size (54mm width) , popular with three phase EV Charging system applications.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 EN50470-1/3 Class B |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.5A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM54-Modbus |
2 Pulse Outputs + RS485 Modbus |
|
|
SDM54-2T |
2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source) |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps, Default:9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<80 mS |
