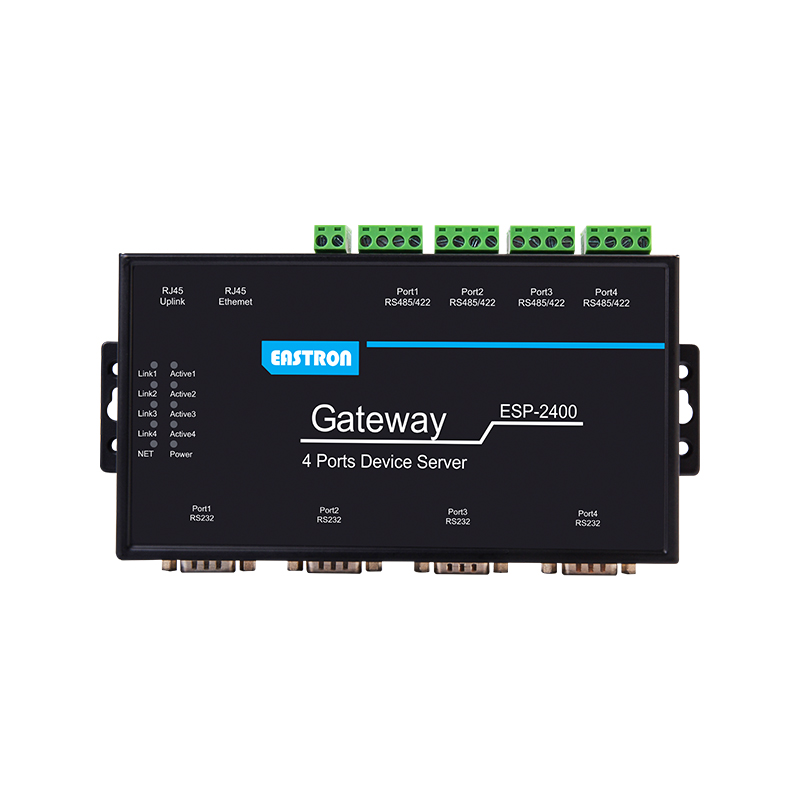

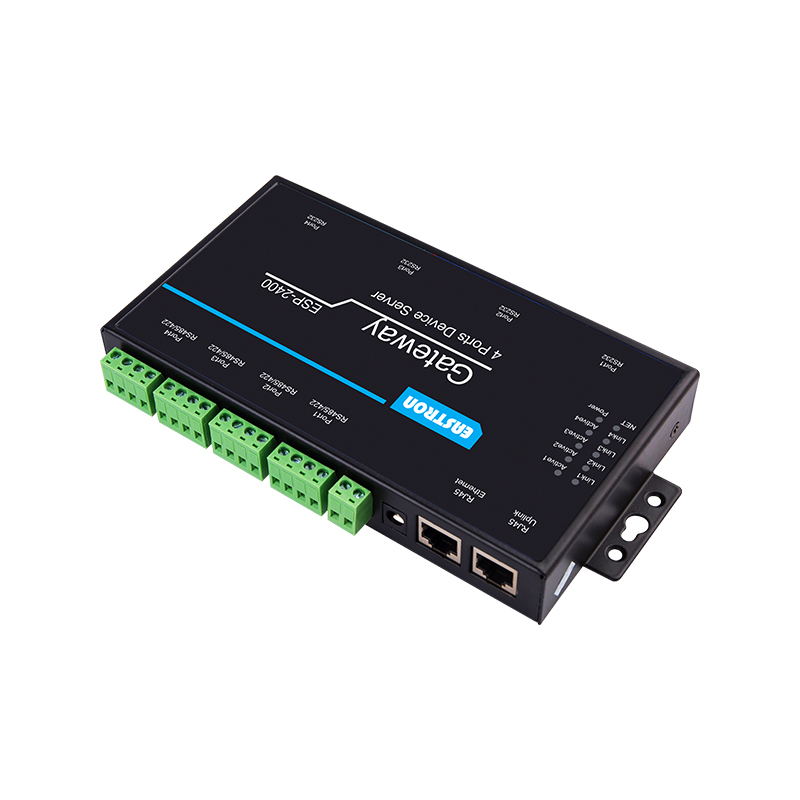

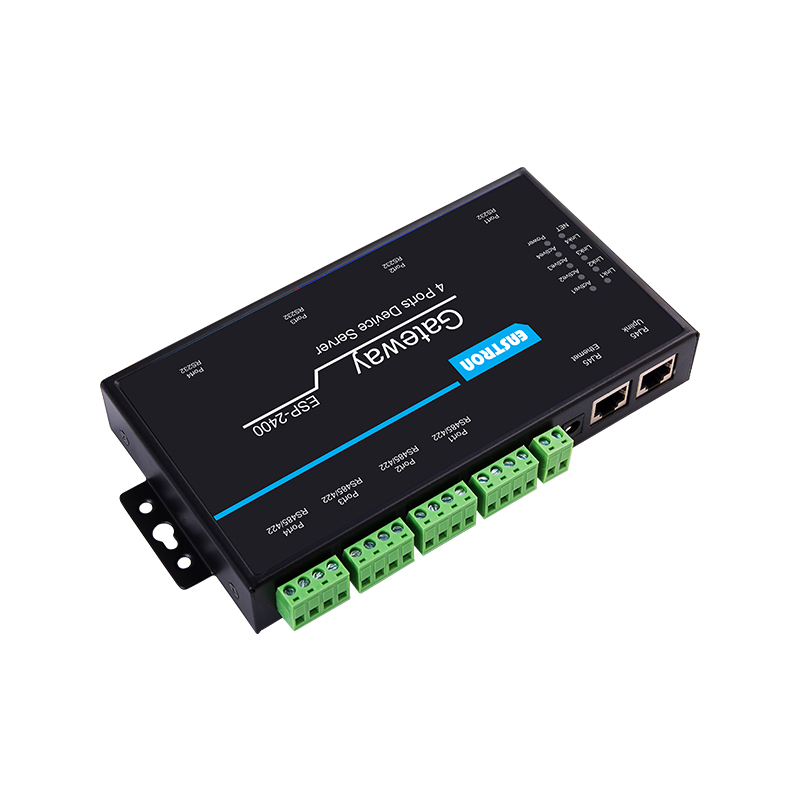

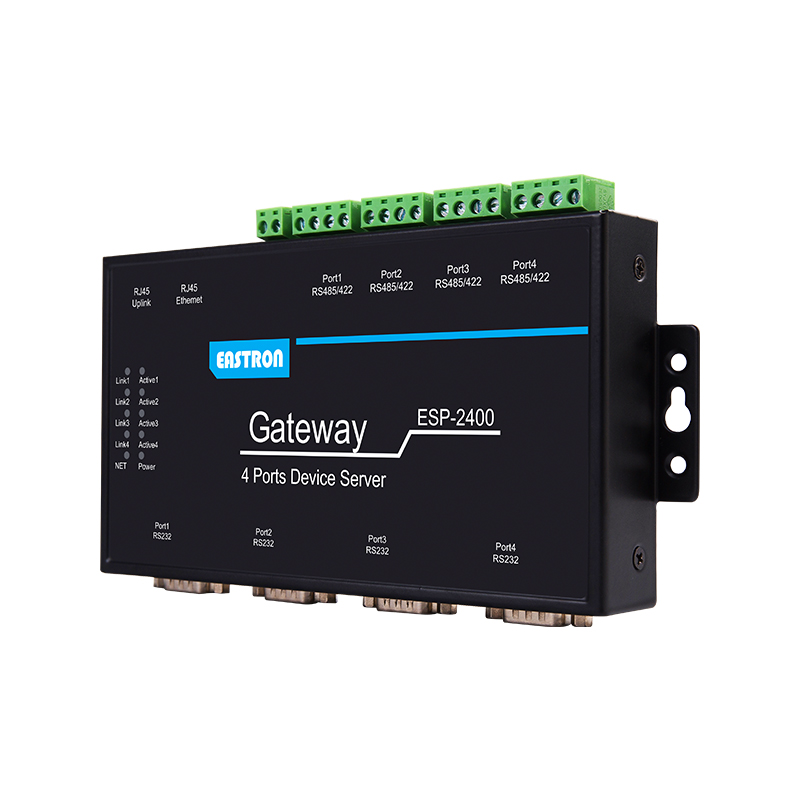

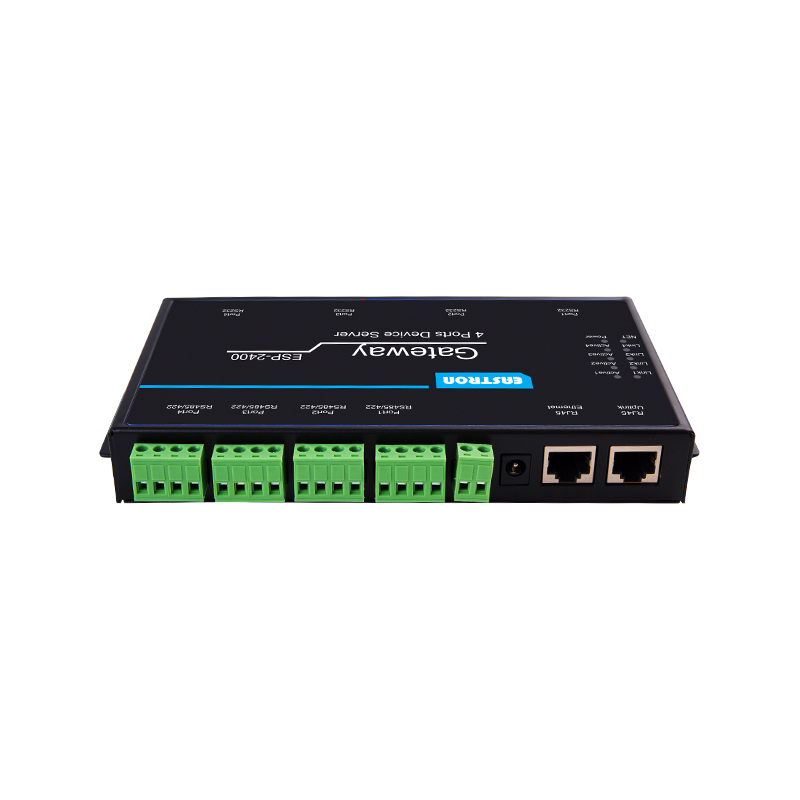

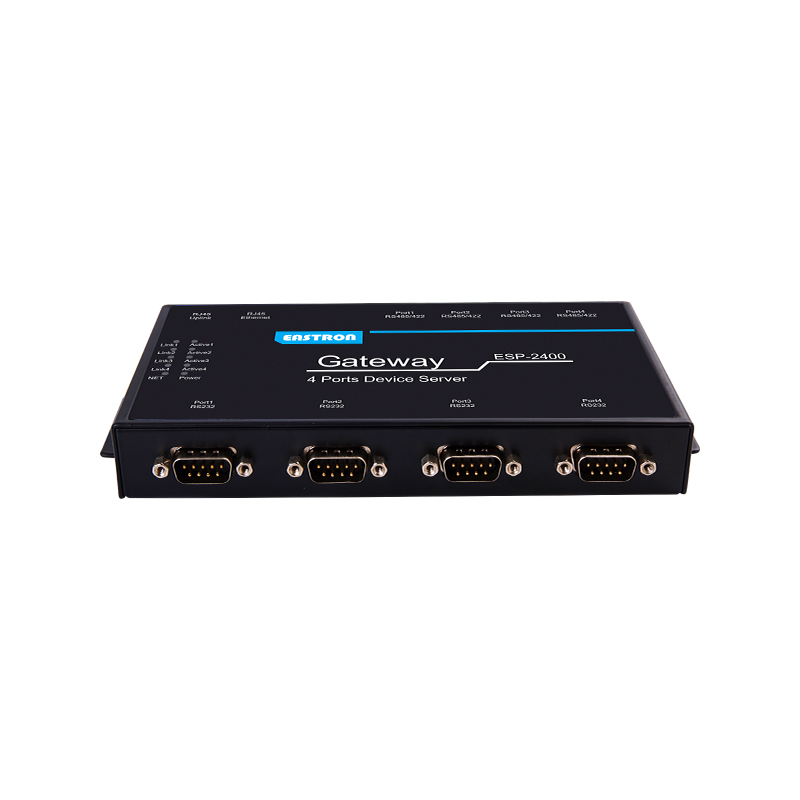

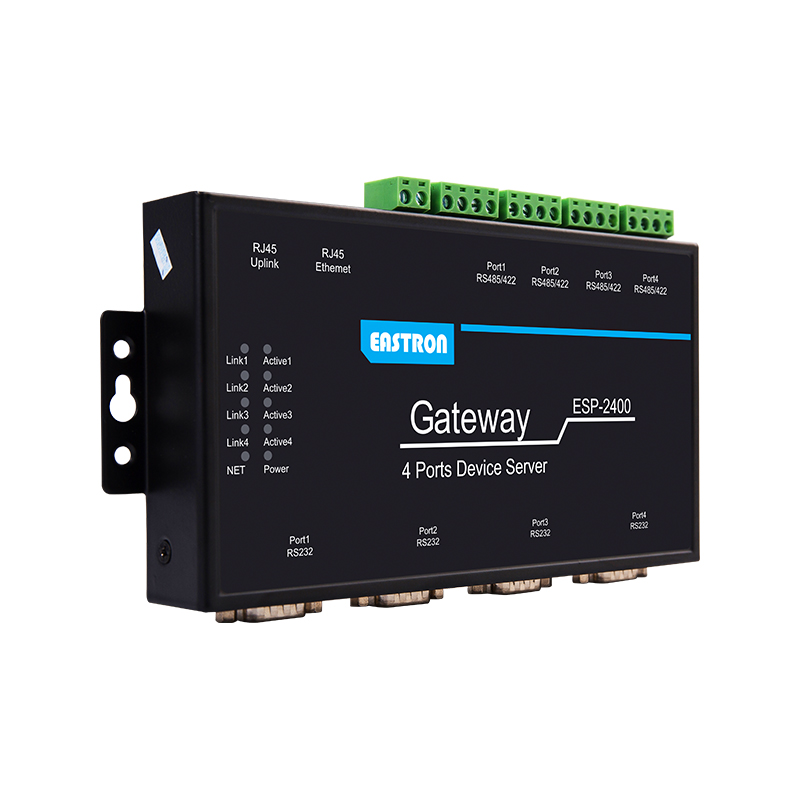

ESP-2400

Four RS485/232/422 ports to Ethernet Protocol Converter for IOT Solutions

  • 4 dependent RS232/422/485 Interface.
  • Modbus TCP/IP-Modbus TCP converter
  • 10/100M Ethernet Auto-Negotiation
  • Easy Configuration Through a Web Interface
  • Security Protocol Such As TLS/AES/DES3
  • Support  Web OTA Wirelss Upgrade

ESP-2400 is with Four RS485/232/422 ports to Ethernet Protocol Converter for IOT Solutions. The gateway are designed for easy integration of modbus TCP and RTU networks. With those models, Modbus serial slave devices can be seamlessly incorporated into an existing modbus TCP network, and modbus TCP slaves can be made accessible to serial masters. the ESP-2400 offer features that make network integration easy, customizable, and compatible with any Modbus network.

Product parameters
Basic Frequency 320MHz
Flash 16MB
SDRAM 32MB
Operating System Linux
Ethernet
Interface Standard 2 RJ45 with LED
Rate 10/100 Base-T Auto-Negotiation
Protection 8KV Contact discharge 15KV Air discharge
Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Telnet, uPNP
Security Protocol TLSv1.2,AES- 128Bit,DES3,SSL
Wi-Fi Security
Port Number 4 RS232/485/422)
Interface Standard RS232:DB9 RS485/RS422:5.08mm
Data Bits 8
Stop Bit 1
Check Bit None, Even, Odd
Baud Rate TTL:2400 bps~460800 bps
Flow Control No Flow control Software Xon/ Xoff flow control
Buffer 8K
Configuration Web or IOTManagerPC Software
Virtual Serial Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012
Size 90*200*25mm
Operating Temp. -45~70℃
Storage Temp. -50~90℃,5~95%RH(no condensation)
Input Voltage 9~50VDC
Working Current ~600mA
Power <1W
Warranty 1 year
Accessory 1* 5V/1A power adapter 1*Ethernet cables
Network Transformer integrated

Wiring and Dimension [mm:]
