Residual Current Operated Protective Sensor for EV Charger

  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger

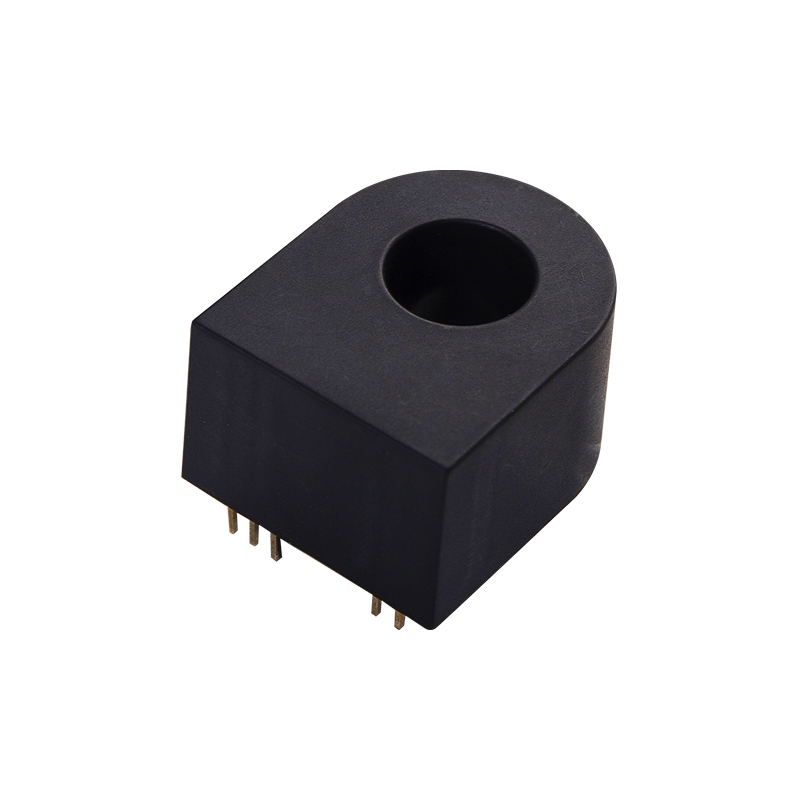

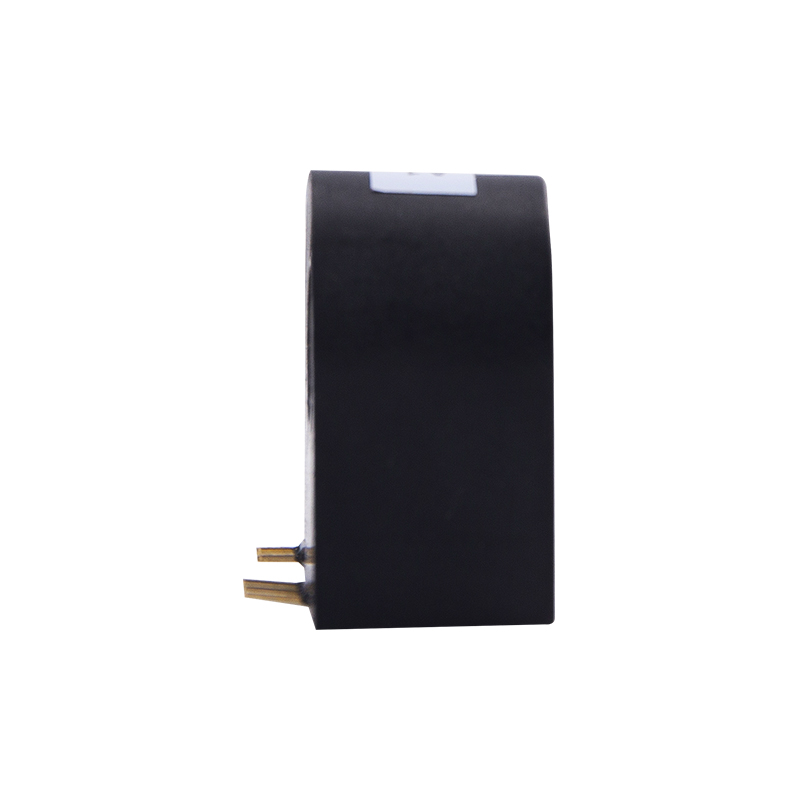

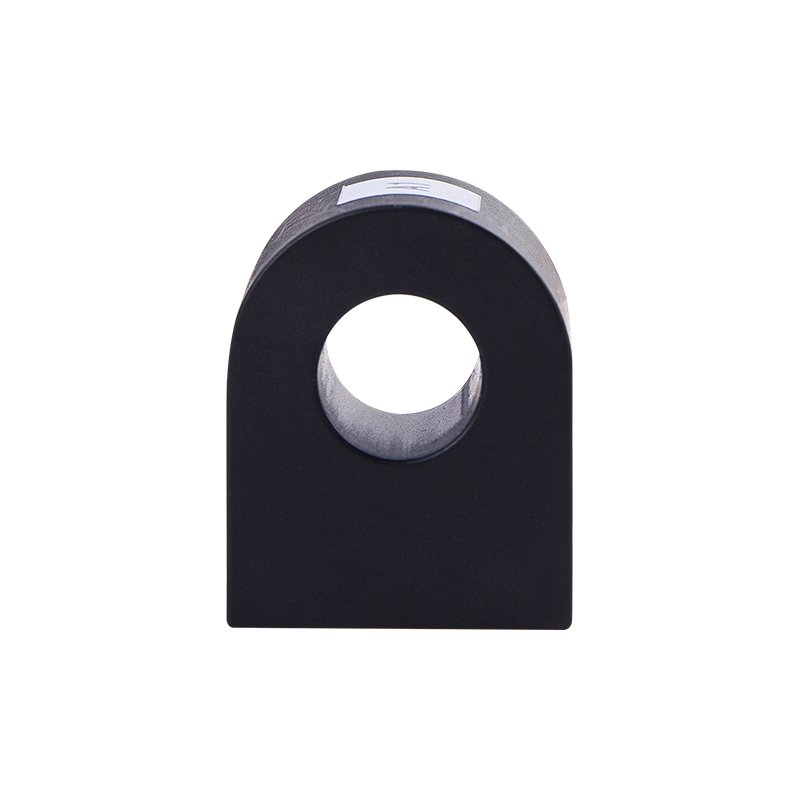

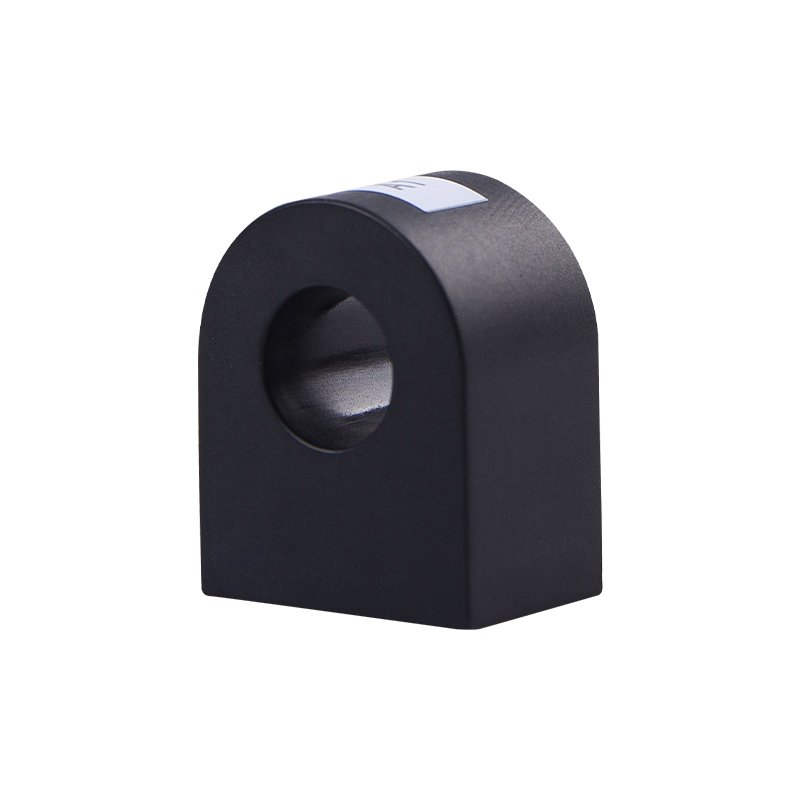

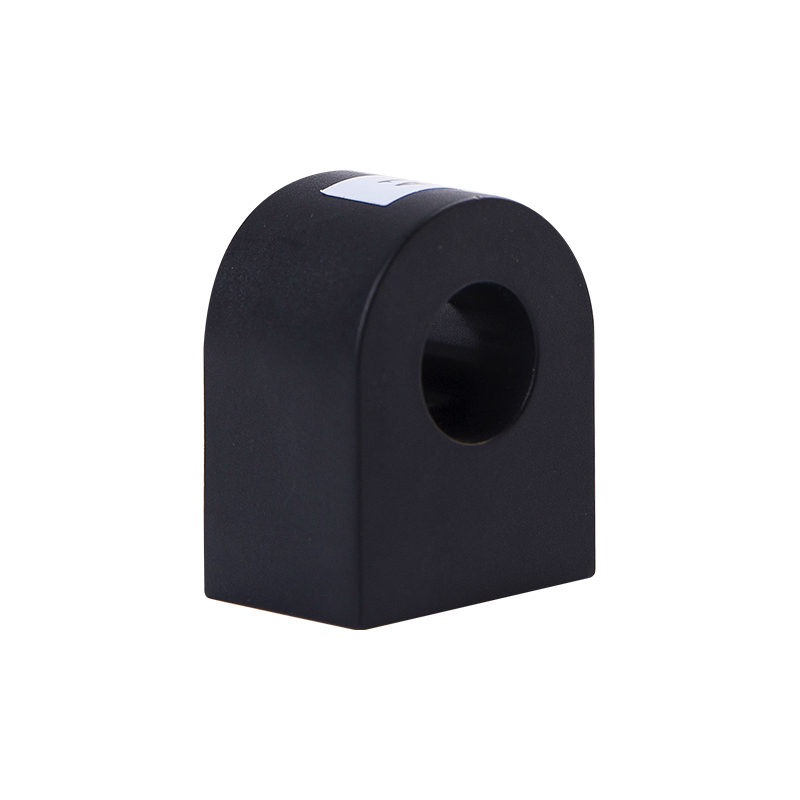

ESCS-A1-E1

Residual Current Operated Protective Sensor for EV Charger

  • DC 6mA Current Alarm
  • Mounted on PCB Board
  • Integrated Digital Residual Current Indication
  • Application for EV Charger

ESCS-A1 is residual current operated protective sensor for EV charger.

It's to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). Generally, AC/DC sensitive residual current sensors can be used where direct current and alternating current circuits are directly connected and therefore AC/DC leakage currents can occur.

It meets the standards of IEC 62752, IEC 62955 RDC-PD related residual current operating characteristics requirements and GB/T 22794 basic residual current operating characteristics requirements, adapting to DC 6mA test requirements.

Product Features:

● Type-A+6mA residual current module for EV charging pile protection

● Mounted on PCB board

● All-in-One highly integrated digital residual current action indication

International Standards:

● IEC 62757 residual current requirements for mode 2 charging

● GB/T 22794 basic residual current requirements, adapting to DC 6mA test requirements

Order code

Current Input

Digital Input

Standard

ESCS-A1-E1

DC 6mA/ AC 30mA

0V/5V

IEC62752

ESCS-A2-E1

DC 6mA/ AC 30mA

0V/5V

IEC62752/IEC62955 RDC-PD

Wiring and Dimension [mm:]
