Smart X96-3RC

Rogowski Coil Connect 96x96 Panel Mounted Multi-function Power Analyzer

  • Rogowski coil connected
  • Multi-parameters measurement
  • RS485 Modbus RTU
  • Bar graph for power indication
  • Backlit LCD display for full viewing angles
  • Push-in installation and plug-in connection

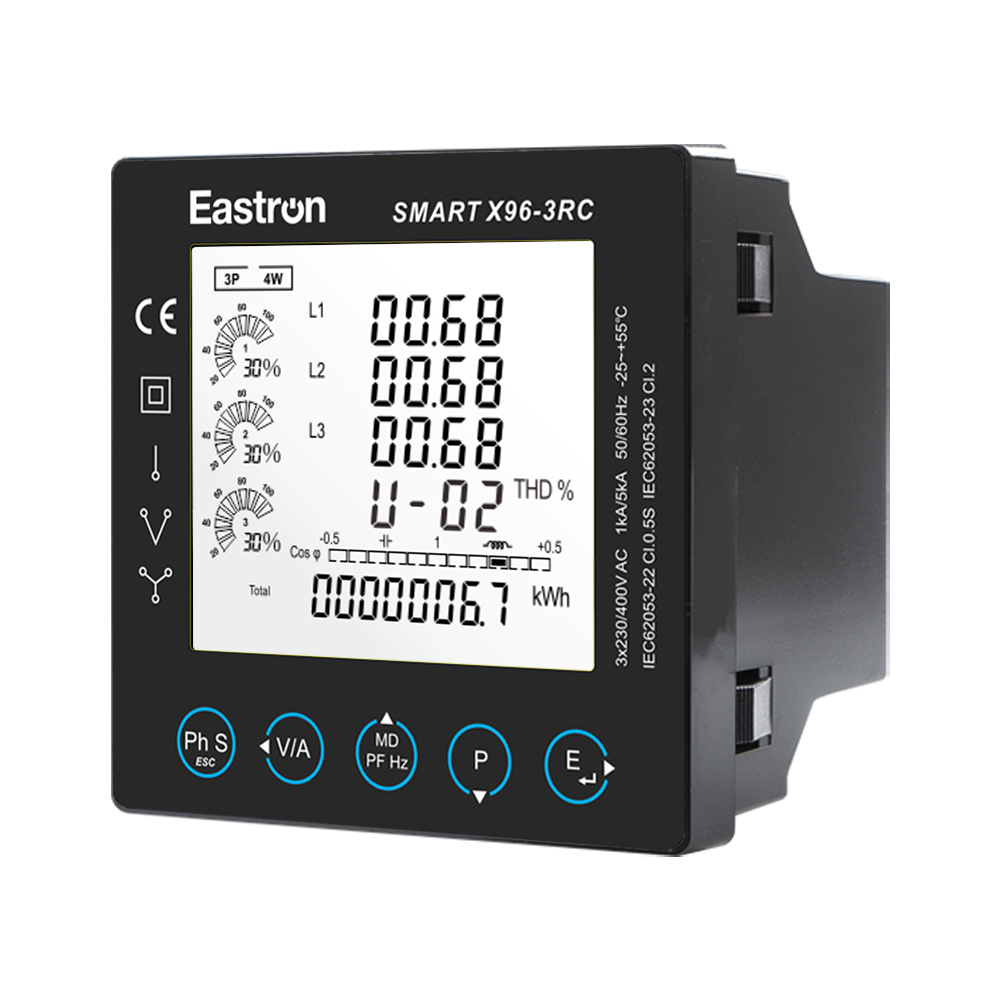

Eastron Smart X96-3RC is a rogowski coil connect 96x96 panel mounted multi-function power analyzer. The model measures and displays the characteristic of 1p2w, 3p4w suppliers, including voltage, current, frequency, power, active and reactive energy, imported or exported, etc.
The biggest advantage of this meter is that it can be configured to work with a wide range of Rogowski coils directly, without the need of integrators, saving a lot of costs. The primary current for this model supported is up to 5kA.

Electrical characteristics

Type of measurement

RMS on three phase AC system (3P+N)

Measurement accuracy

Active power

1.0% of range maximum

Reactive power

1.0% of range maximum

Apparent power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

1.0% of range maximum to IEC 62053-24

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current

85mV/kA

Max Current

1Ka/ 5kA

Voltage

Aux.Power supply

230V L-N AC or 120V~380V DC

Measured Voltage

50V ~ 600V (3P4W)

50V ~480V (3P3W)

Communication

RS485 port

Modbus RTU (RS485)

Type

2-wire half duplex

Baud rate

2400,4800, 9600, 19200, 38400 bps

Address

1 to 247

Pariy

None (default), Even, Odd

Stop Bit

1 or 2



Mechanical Characteristics

Weight

420g

IP Degree of Protection (IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96X92mm

Panel cut-out

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Terminals

Shrouded screw-clamp.



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m



Wiring and Dimension [mm:]

Installation and Dimension [mm:]

Installation

Installation and Dimension [mm:]

Dimensions
