RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer

  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer
  • RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer

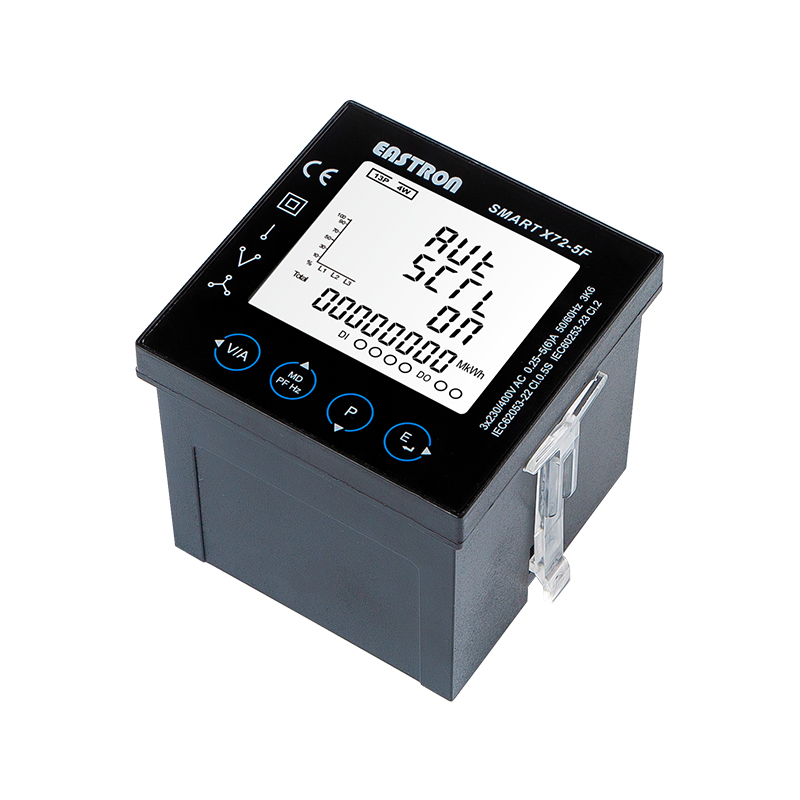

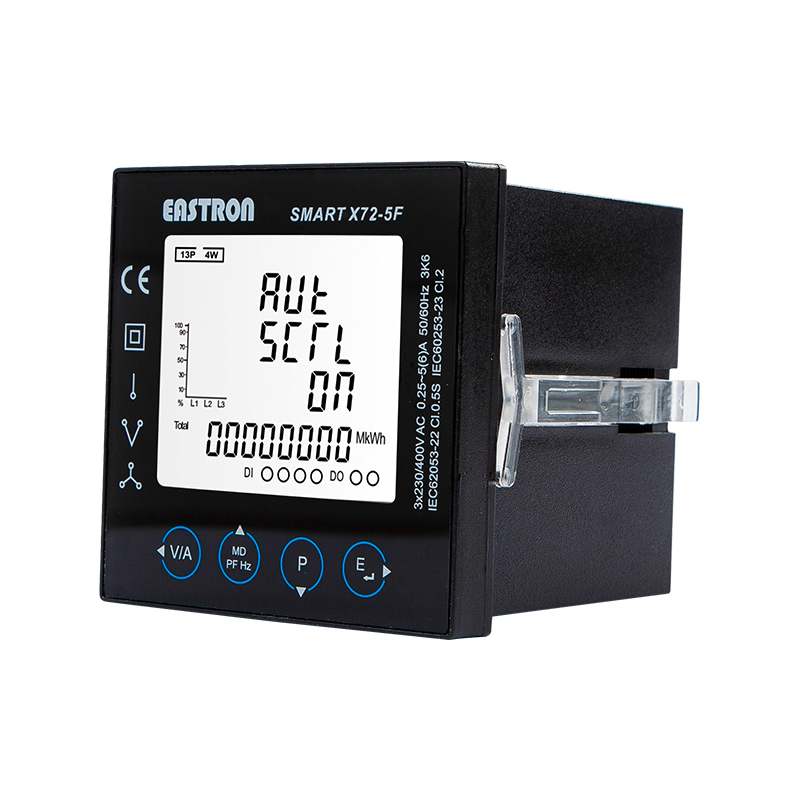

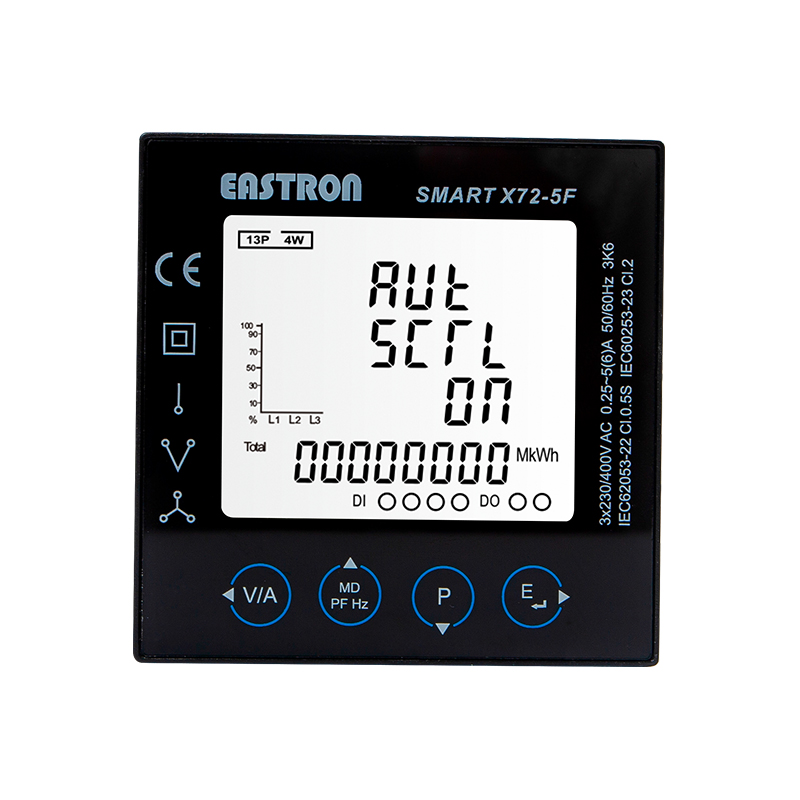

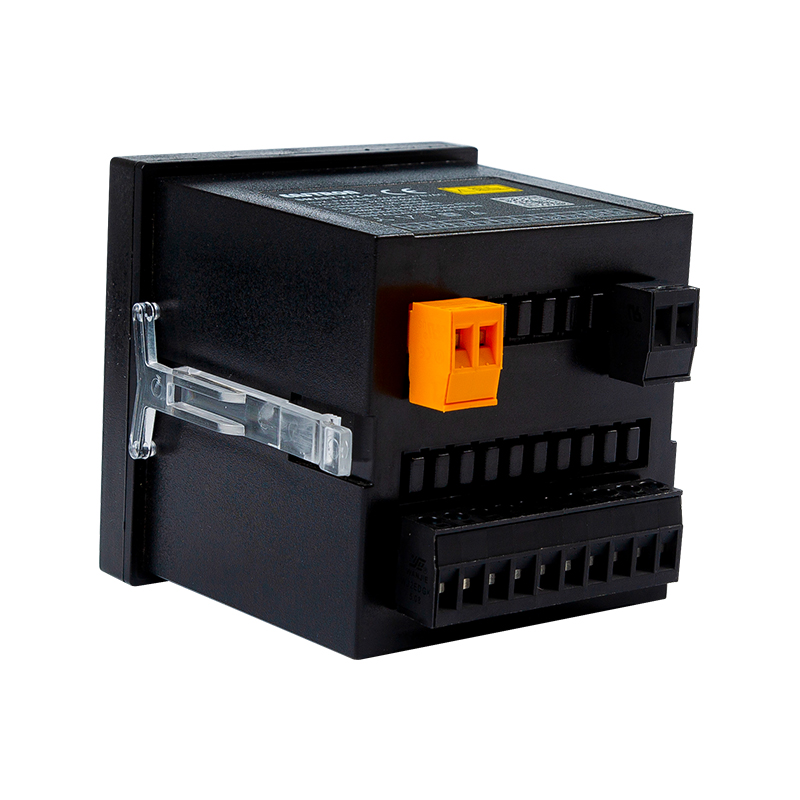

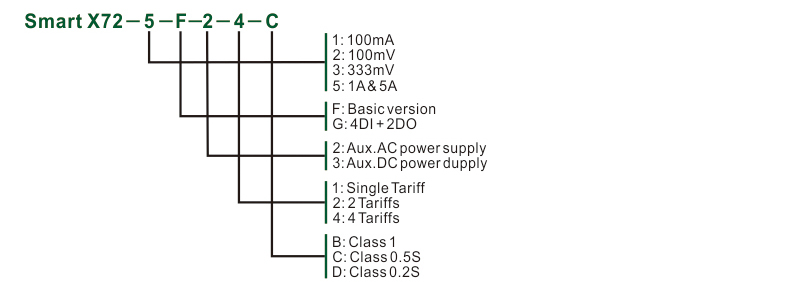

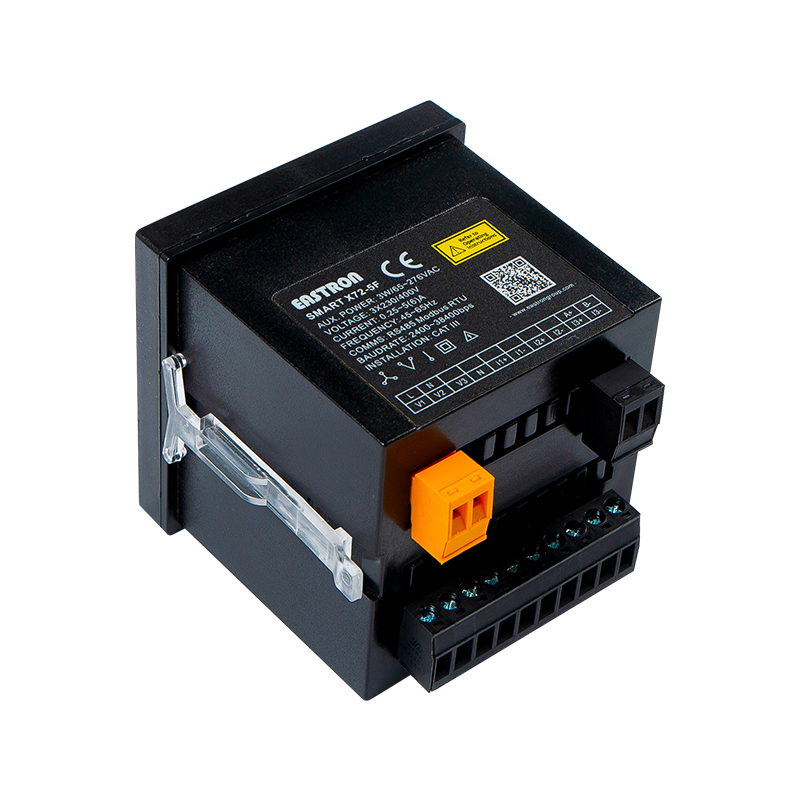

Smart X72-5F

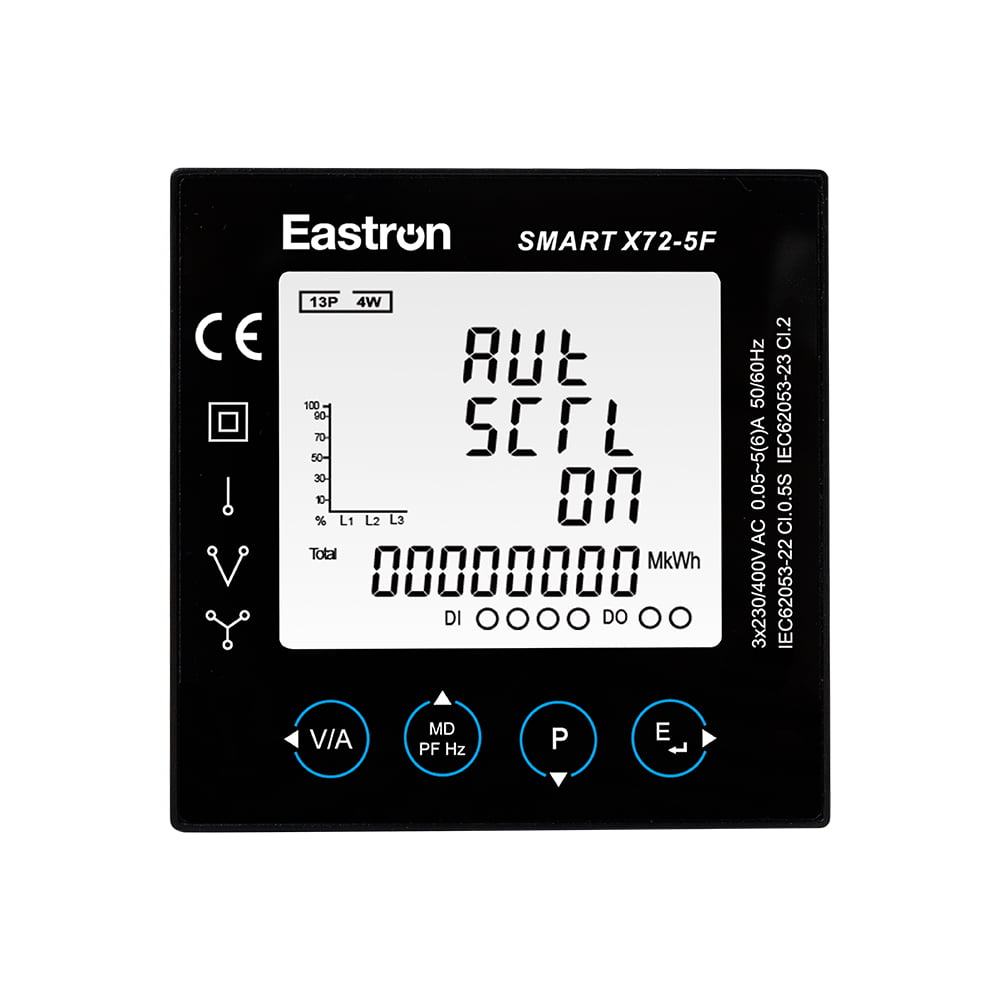

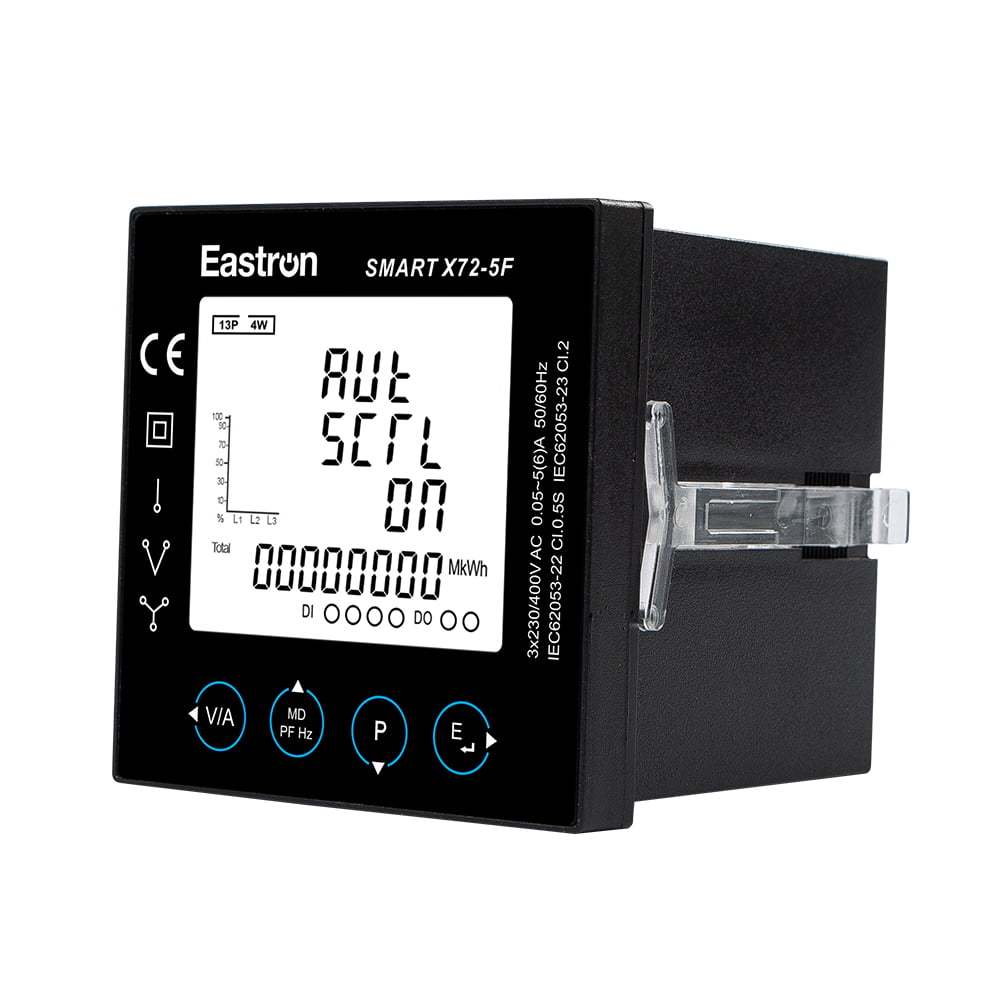

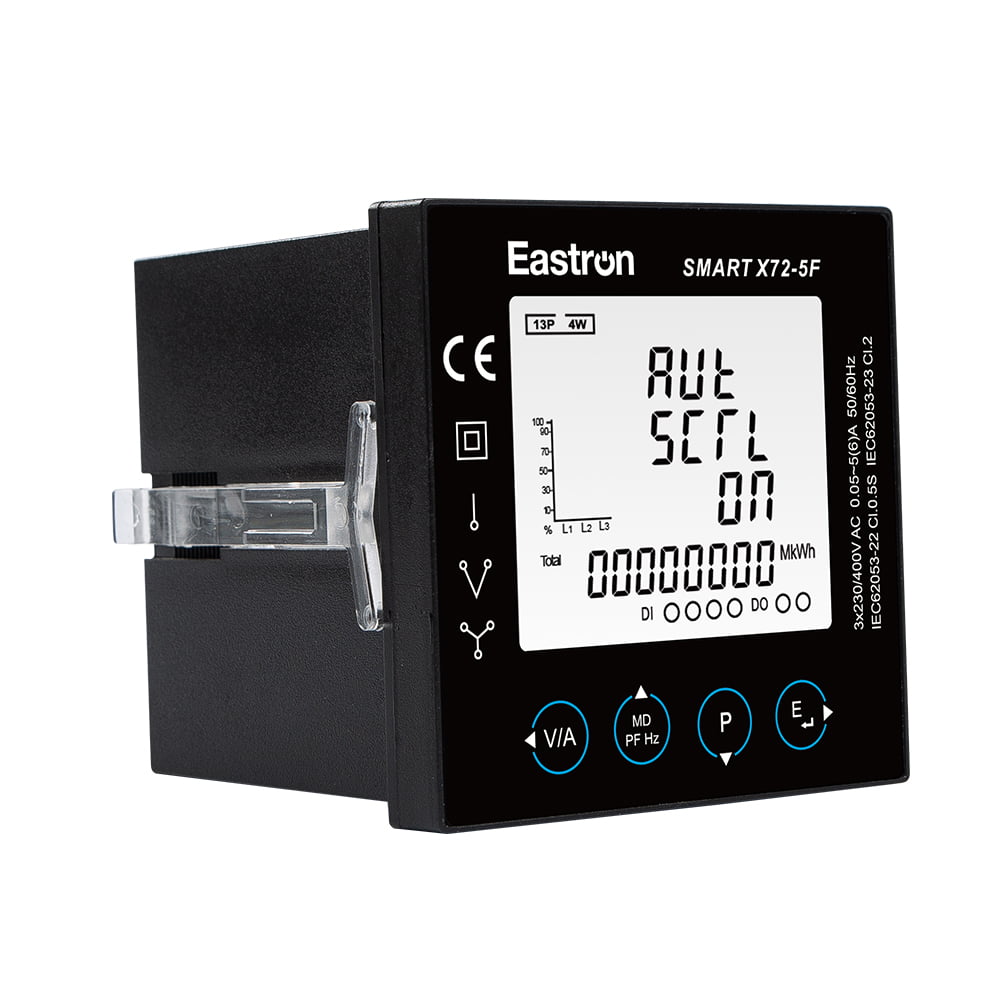

RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer

  • Measure THD of voltage and current
  • IHD up to 15th
  • Multi-parameters measurement
  • RS485 Modbus RTU and Pulse Outputs
  • CT and PT programmable
  • Bar graph for power indication

Smart X72

SMART POWER ANALYZER

Eastron Smart X72-5F is an RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer. It can accurately measure and display various power parameters in single-phase two-wire, three-phase three-wire and three-phase four-wire power grids: voltage, current, power, frequency, active power, reactive power Electricity, imported and exported, etc.

Smart X72 has RS485 communication interface, supports the highest communication rate of 38400bps, can realize remote communication, is an ideal choice for power monitoring. Parameters can be set through the touch buttons on the panel or RS485 Modbus communication. Configuration is password protected.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Active Power

1.0% of range maximum

Reactive Power

1.0% of range maximum

Apparent Power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)

THD

2% to 15th harmonic



Input

Current

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

20mA

Voltage

Aux.Power Supply

230V L-N AC or 120V~380V DC

Measured Voltage

50V ~ 600V (3P4W)

50V ~480V (3P3W)



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Mode

Half Duplex

Data Type

Floating Point

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

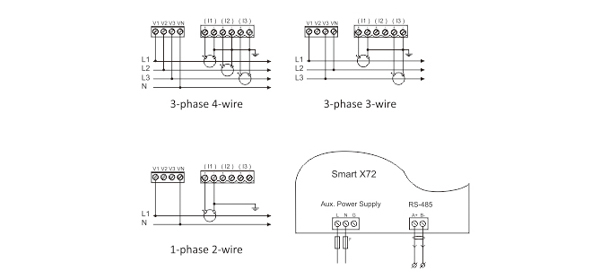

Wiring diagram

Wiring and Dimension [mm:]

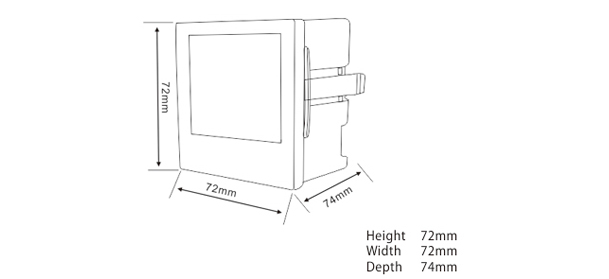

Dimensions
