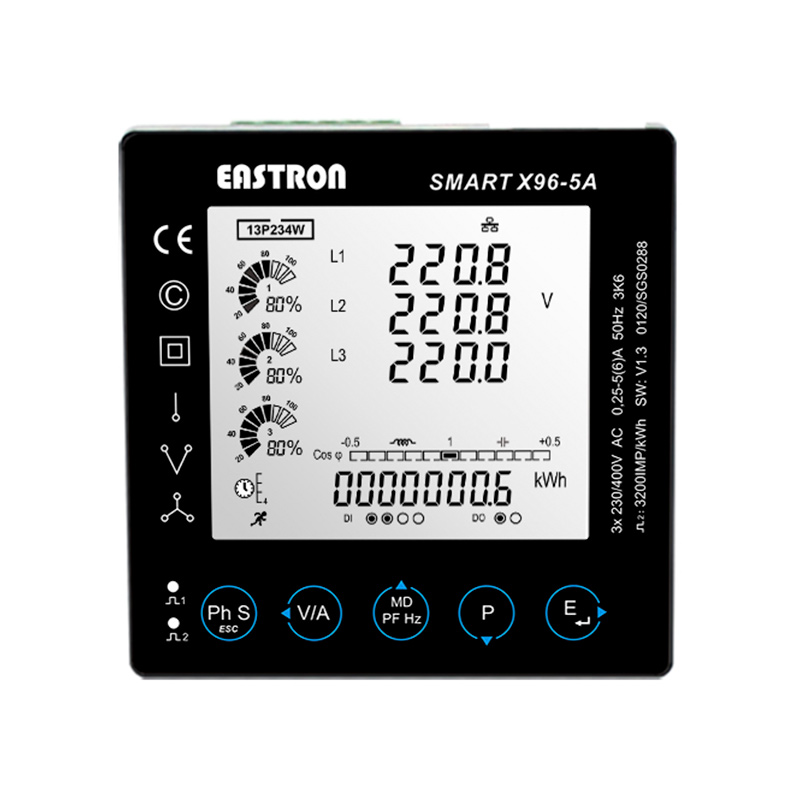

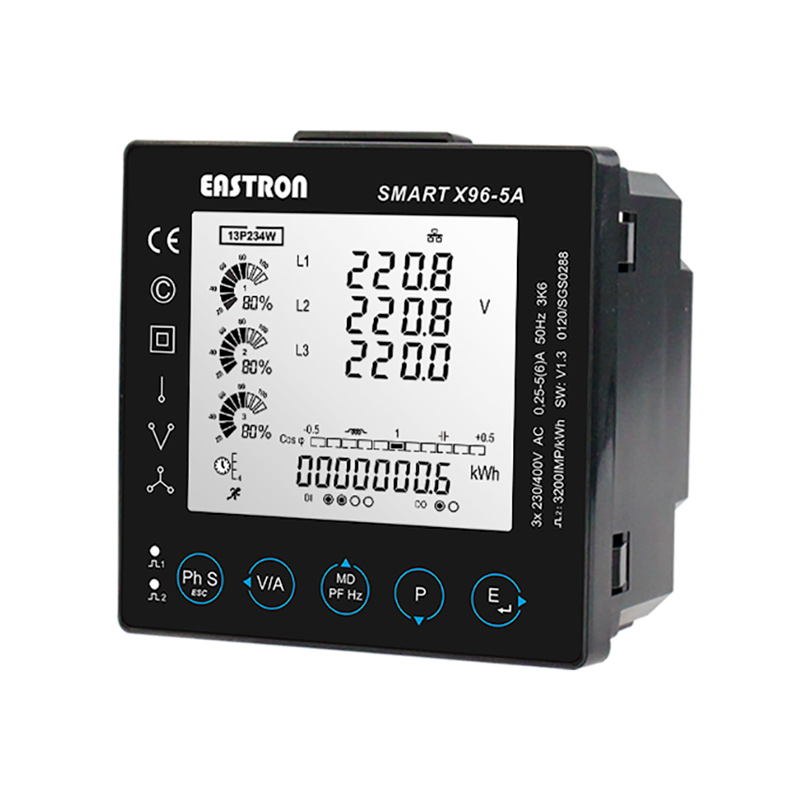

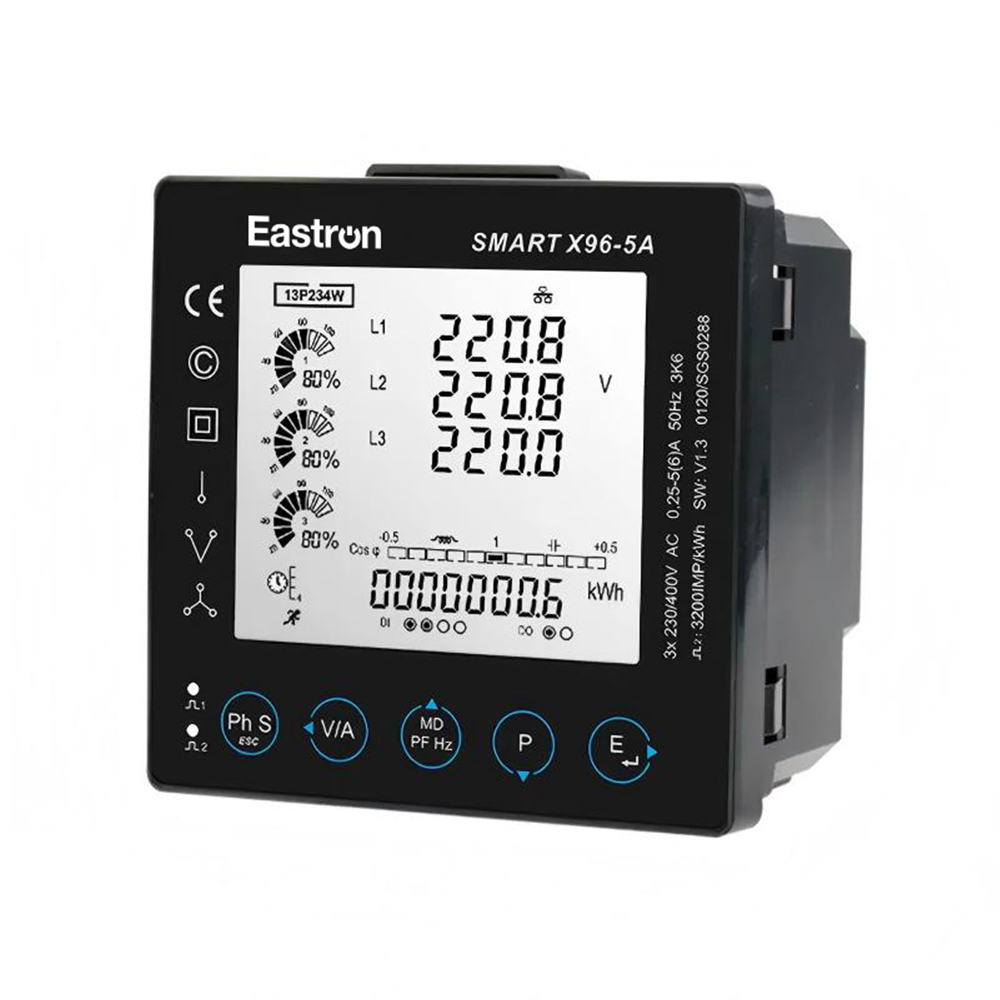

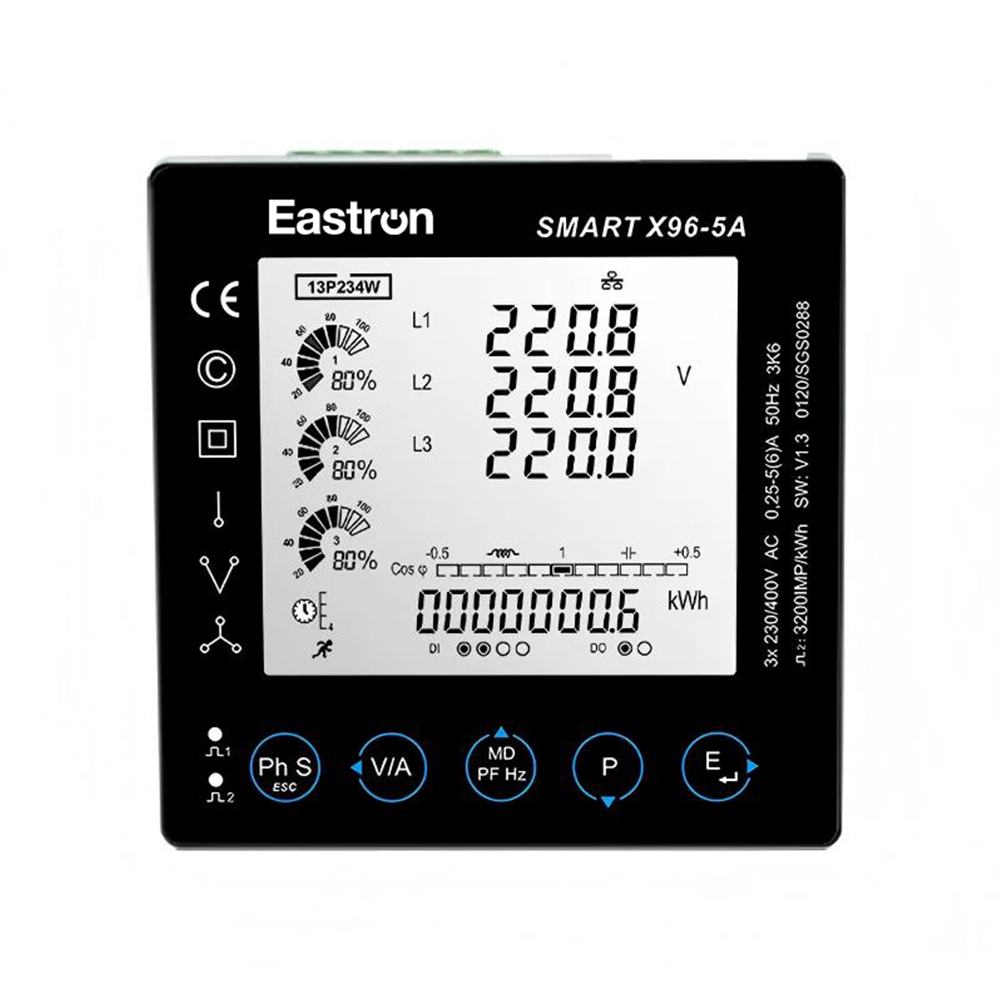

Eastron Smart X96-5A is a RS485 Modbus Panel Mounted Multi-function Power Analyzer. The meter measures and displays the characteristics of 1p2w, 3p4w and 3p3w suppliers, including voltage, current, frequency, power, active and reactive energy, imported and exported, harmonics, demanda máxima, etc.
The meter support self-powered from any of the three phases. It uses a high definition screen with programmable backlight for high visibility in dark area and from all viewing angles. New sector icons shows the percentage of the power load on 3 phases. R485 Modbus RTU and 2 pulse outputs are equipped for remote communication.
The meter is widely used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in LV/MV intelligent power grid.
Electrical characteristics |
||
Type of measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
Measurement accuracy |
Active power |
1.0% of range maximum |
Reactive power |
1.0% of range maximum |
|
Apparent power |
1.0% of range maximum |
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
Reactive Energy |
1.0% of range maximum to IEC 62053-24 |
|
Frequency |
0.2% of mid-frequency |
|
Current |
0.5% of range maximum |
|
Voltage |
0.5% of range maximum |
|
Power Factor |
1% of unity (0.01) |
|
|
THD |
2% to 63rd harmonic |
Input & Output |
||
Input-Current |
Rated Current |
5A |
Max Current |
9999A |
|
Min Current |
0.25A |
|
Starting Current |
20mA |
|
Output |
Contact Rating current |
2-27mA at 27V DC |
Contact Rating voltage |
5-27V DC |
|
Pulse Width |
60 / 100 / 200 ms |
|
Pulse constant of S0 1 |
0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh |
|
Pulsed constant of S0 2 |
3200 IMP/kWh ((non-configurable)) |
|
Communication |
RS485 port |
Modbus RTU (RS485) |
Type |
2-wire half duplex |
|
Baud rate |
2400,4800, 9600, 19200, 38400 bps |
|
Address |
1 to 247 |
|
Pariy |
None (default), Even, Odd |
|
Stop Bit |
1 or 2 |
Mechanical Characteristics |
|
Weight |
420g |
IP Degree of Protection (IEC 60529) |
IP51 front display |
Dimensions (WxHxD) |
96x96X92mm |
Panel cut-out |
Vertical |
Material of meter case |
Self-extinguishing UL 94 V-0 |
Terminals |
Shrouded screw-clamp. |
Environmental Characteristics |
|
Operating Temperature |
-25 to 55°C |
Storage Temperature |
-40 to 70°C |
Humidity Rating |
<95% RH at 50 °C (non-condensing) |
Pollution Degree |
2 |
Altitude |
2000m |
