RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer

  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer
  • RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer

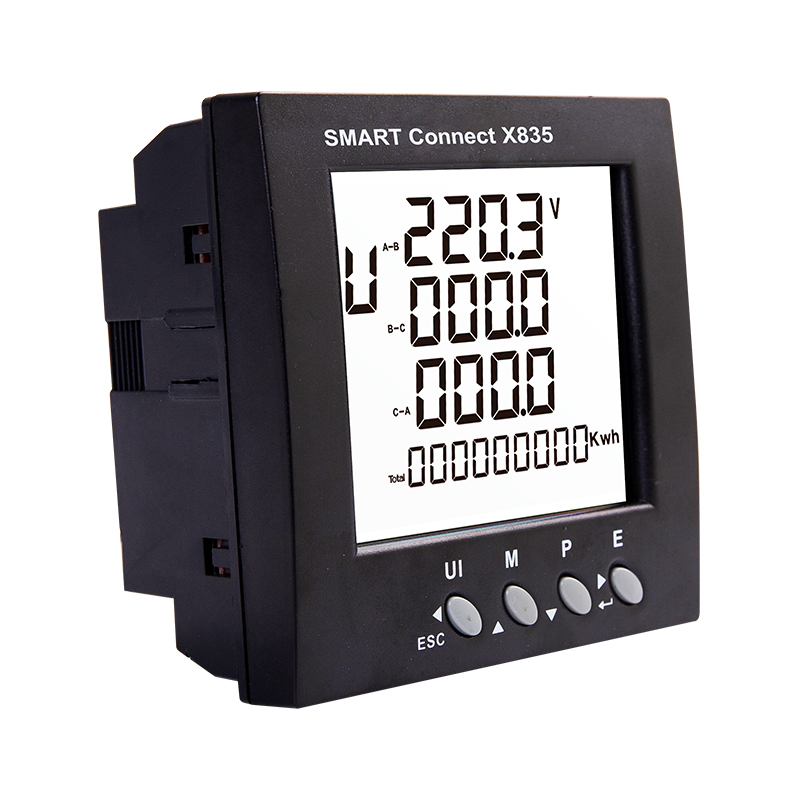

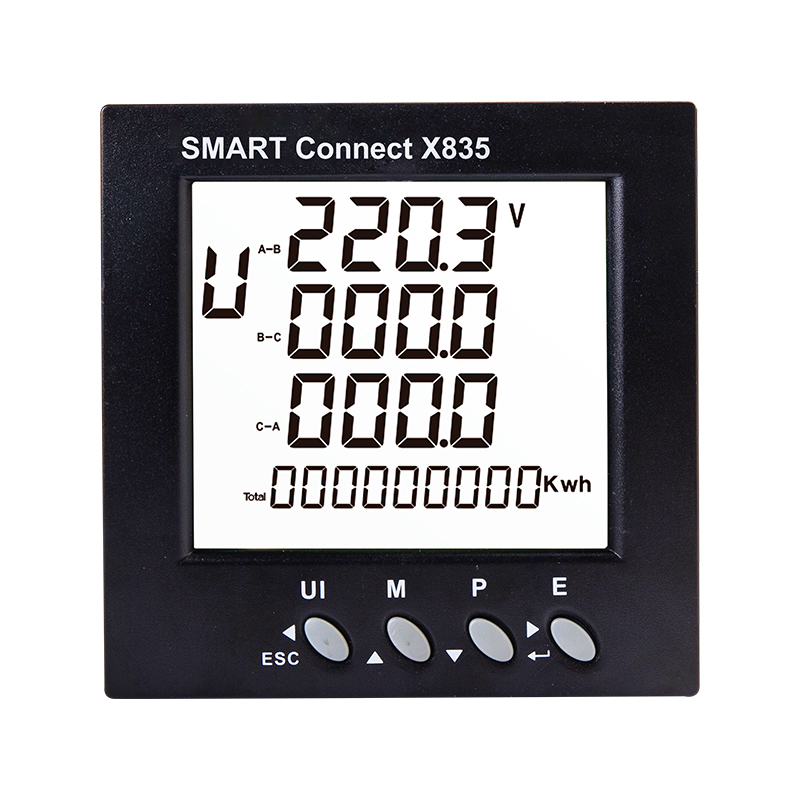

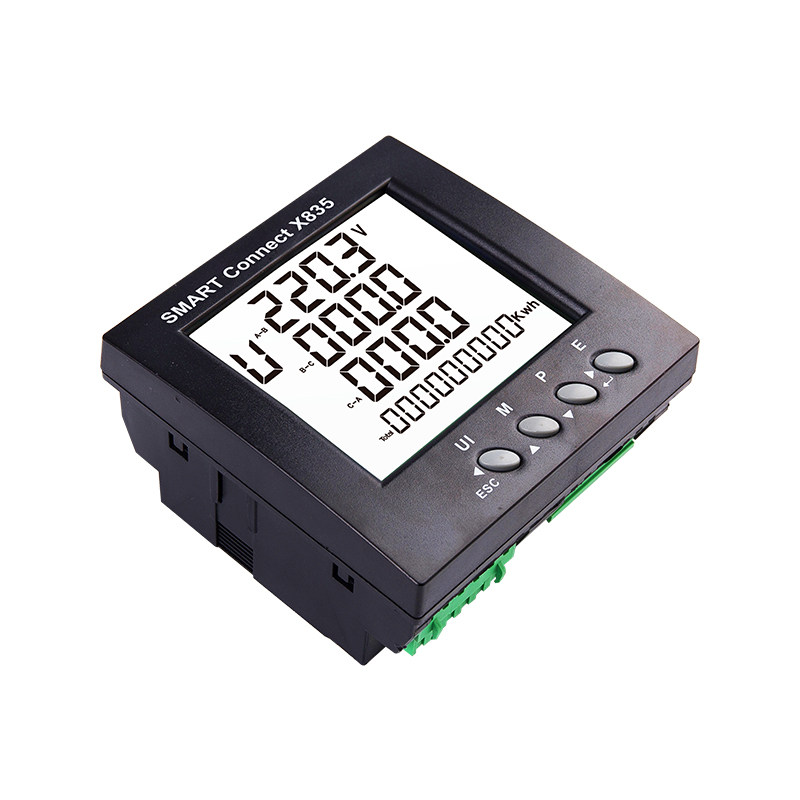

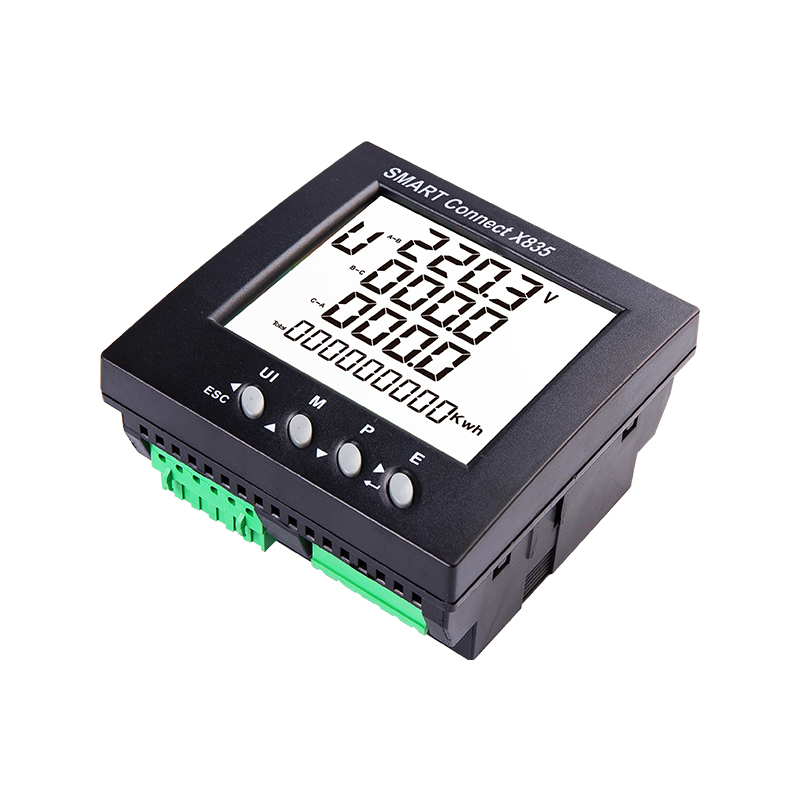

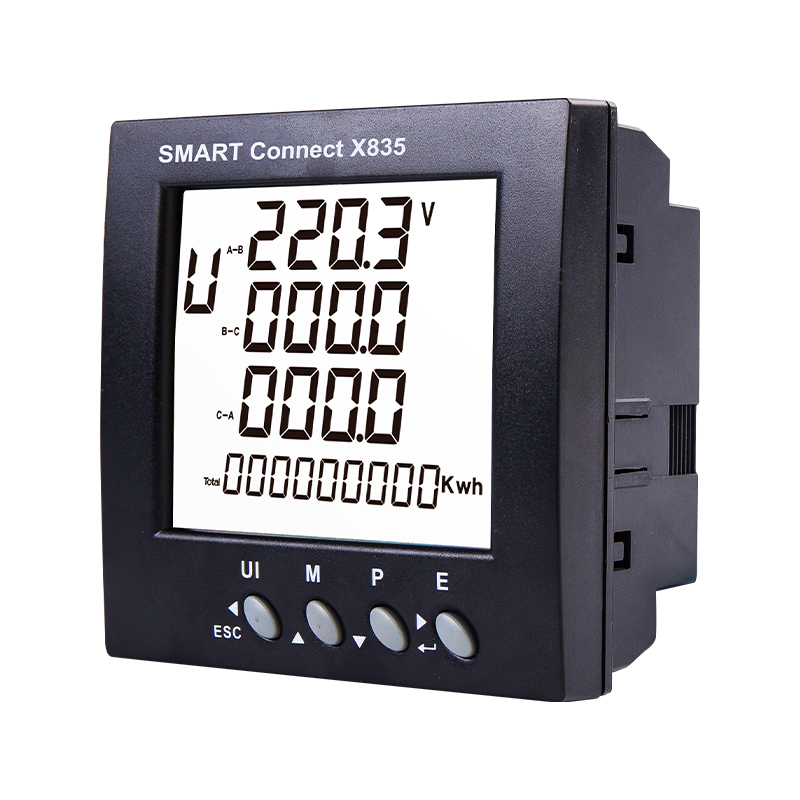

Smartconnect X835

RS485 Modbus Panel Type 96x96x50 Multi-function Power Analyzer

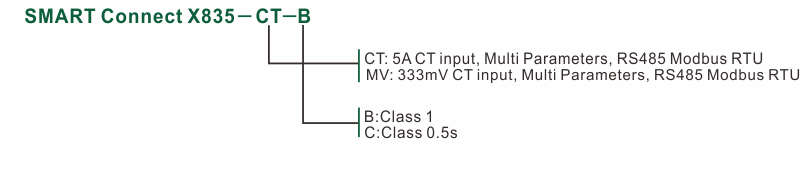

  • 333mV / 5A CT input optional
  • Multi-parameters measured
  • Bi-directional measurement
  • Measure THD of voltage and current
  • RS485 Modbus RTU and two pulse outputs

SMART Connect X835

SMART POWER ANALYZER

Eastron Smartconnect X835 are a economic solution for three phase intelligent panel meter. They are used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in high voltage inntelligent power grid.

The unit measures and displays the characteristics of single phase two wire, three phase three wire and three phase four wire supplies, including voltage, frequency, current, power, active and reactive energy, imported and exported. The meter provides a RS485 Modbus communication for remote reading and monitoring.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Active Power

1.0% of range maximum

Reactive Power

1.0% of range maximum

Apparent Power

1.0% of range maximum

Active Energy

IEC 62053-21 Class 1

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Output

Contact Rating Current

2-27mA at 27V DC

Contact Rating Voltage

5-27V DC

Pulse Width

60 / 100 / 200 ms

Pulse Output 1

0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh

Pulsed Output 2

3200IMP/kWh



RS485 Modbus Communication

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

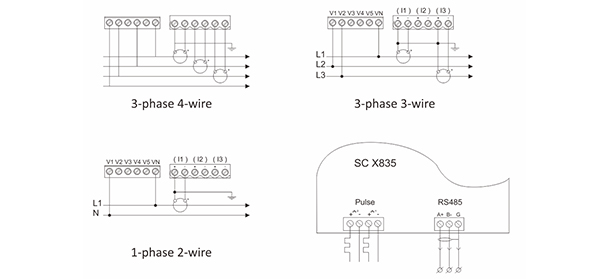

Wiring diagram

Wiring and Dimension [mm:]

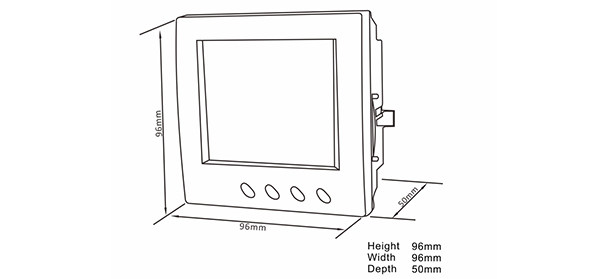

Dimensions
