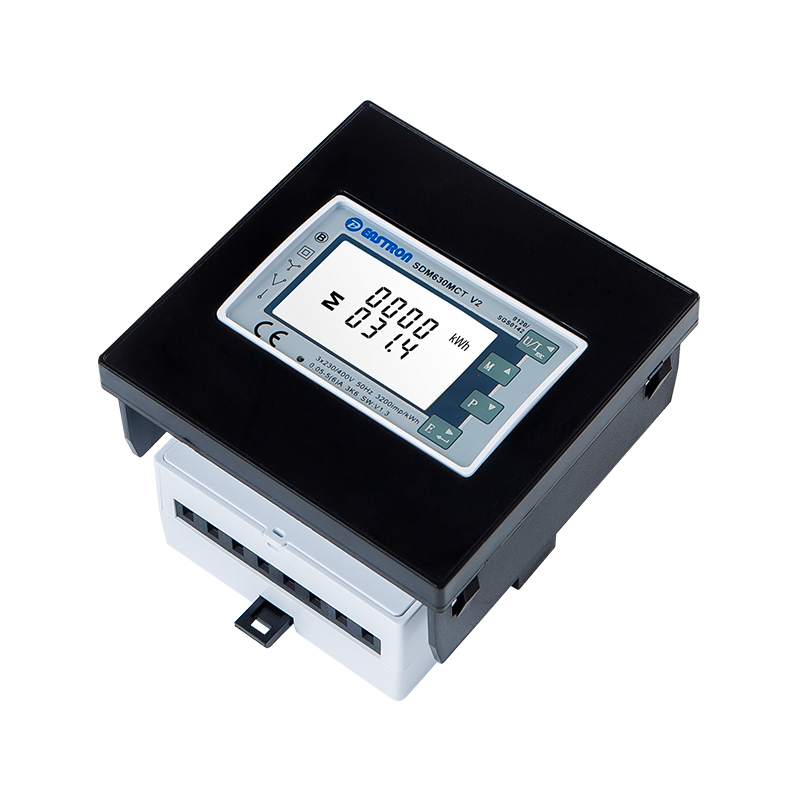

MID Din Rail Three Phase Multi-function Meter with PK96 Panel Adaption Kit

  • Cost effective solution for panel mounted MID approved multi-function meter
  • Fits within a 92mm² cutout
  • Detachable fascia to access screw terminals from the front
  • Quick installation
  • Multi-parameters measurement
  • RS485 & Pulse outputs port available
  • Multi-tariffs available
The solution of SDM630MCT series meters with a PK96 panel kit was designed as a cost effectived solution for a MID approved multi-function panel-mounted meter.
The PK96 panel kits can work with any of Eastron SDM630MCT Series meters.
With the PK96 panel adaption kit, it could be installed as a panel meter and to be used on some applications like distributon boards. This cradle has been designed for a quick and easy installation as opposed to similar products available.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

EN50470-1/3 Class B and C

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT/ MT

2 Pulse Outputs + RS485 Modbus

SDM630MCT-2T/ SDM630MCT-Mbus-2T

2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source)

SDM630MCT-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630MCT-LoRa

2 Pulse Outputs + LoraWAN



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



LoRaWAN Communications

Communication Frequency

EU868/ AS923/ AU915/ US915, etc.

Wiring and Dimension [mm:]
