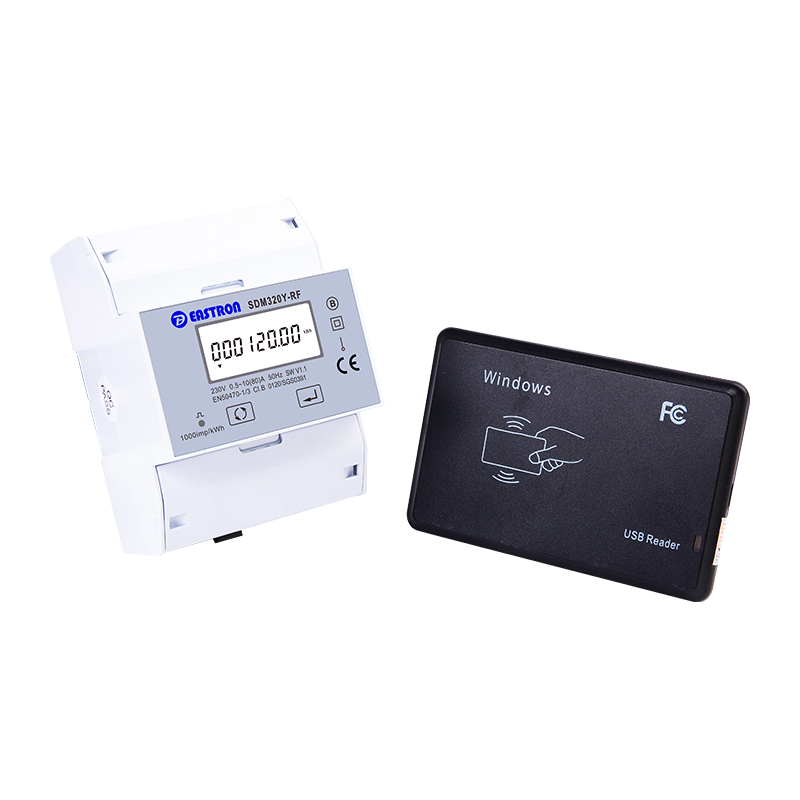

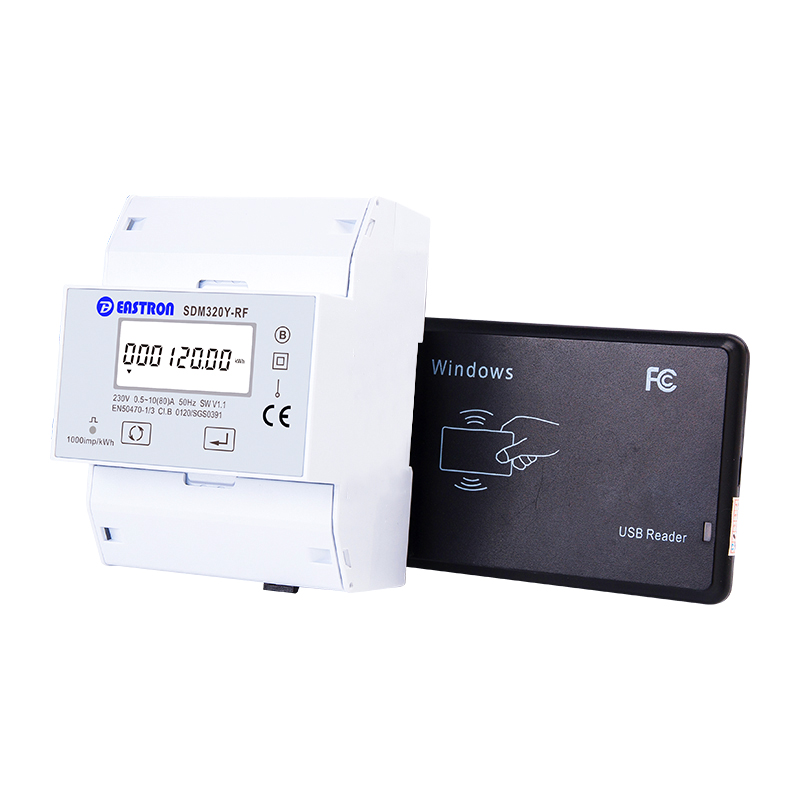

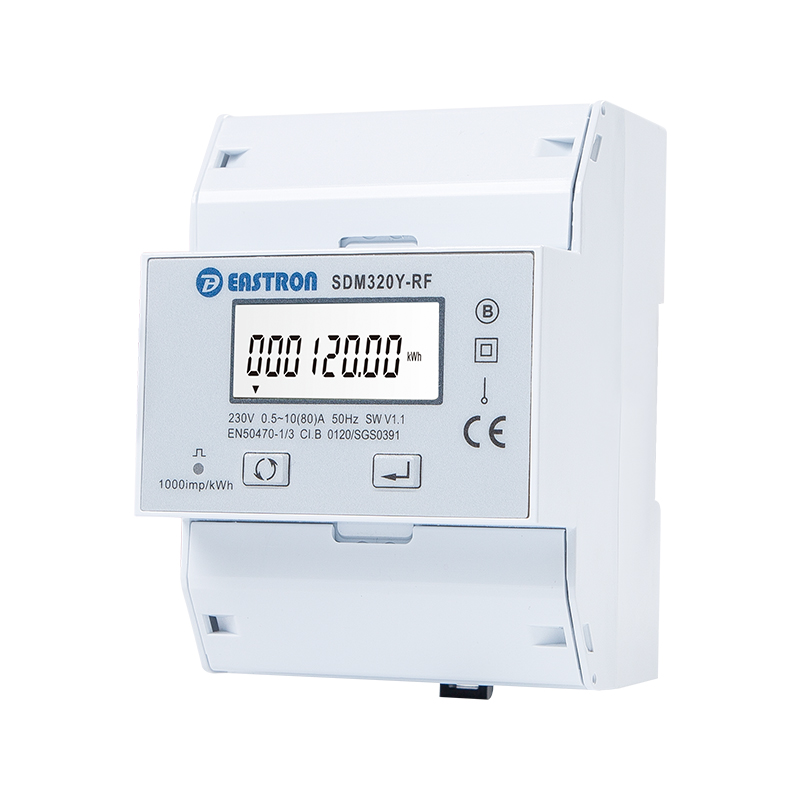

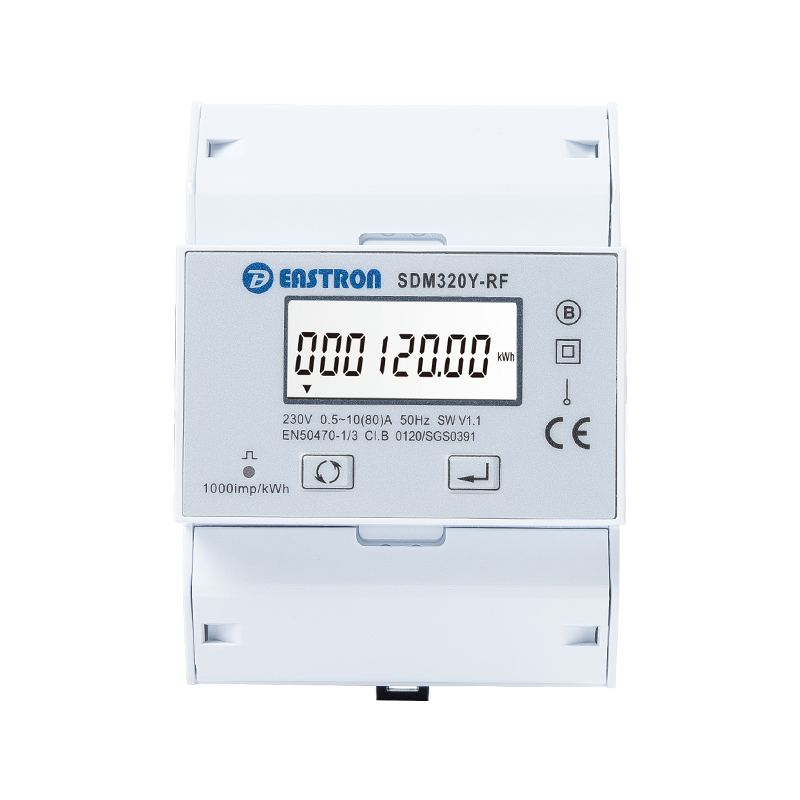

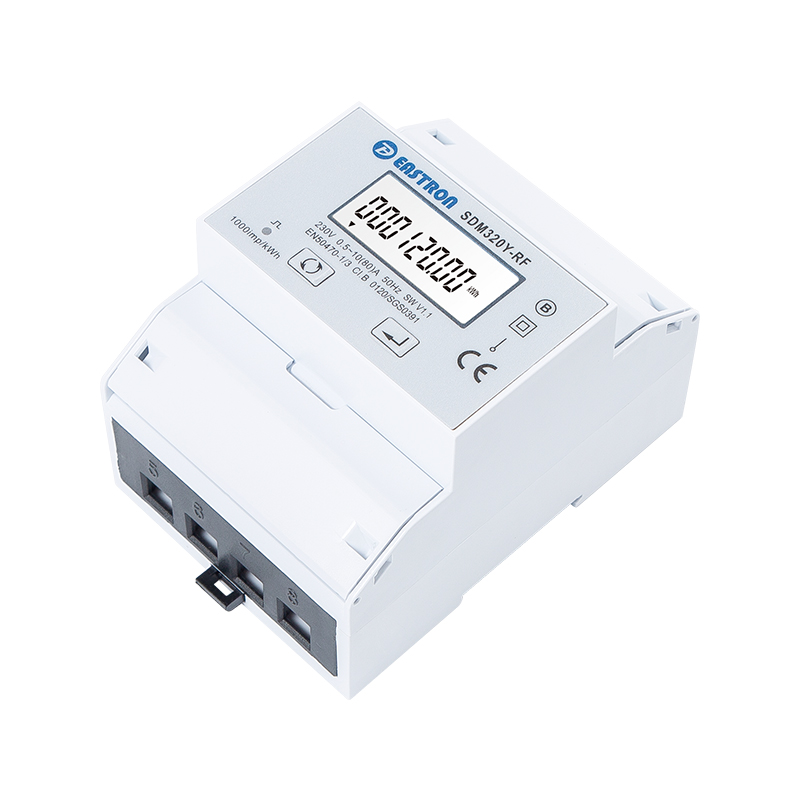

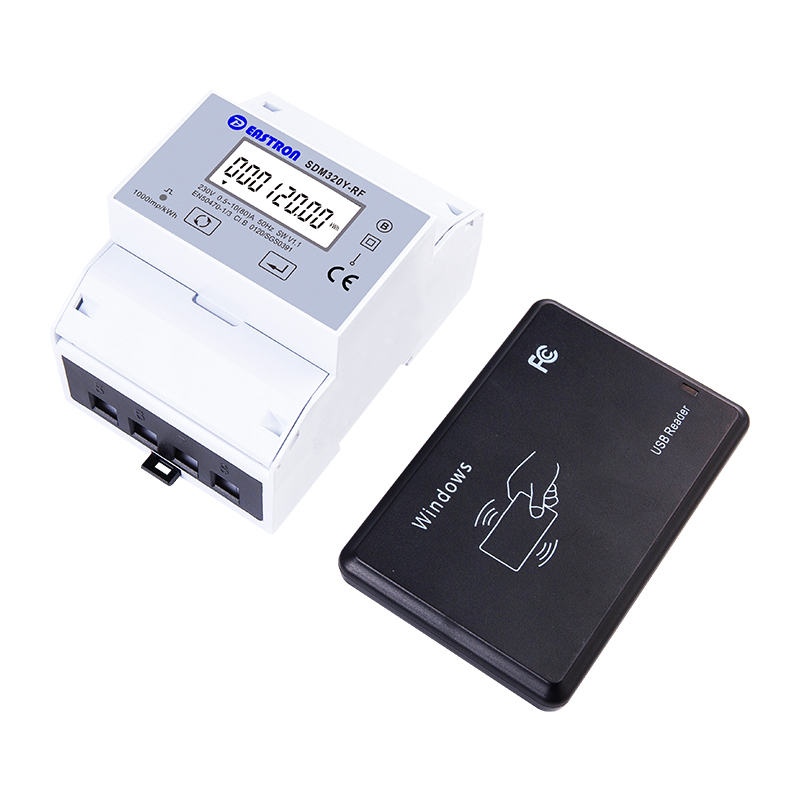

Single Phase Energy Meter with IC RF card for Prepay System

  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System
  • Single Phase Energy Meter with IC RF card for Prepay System

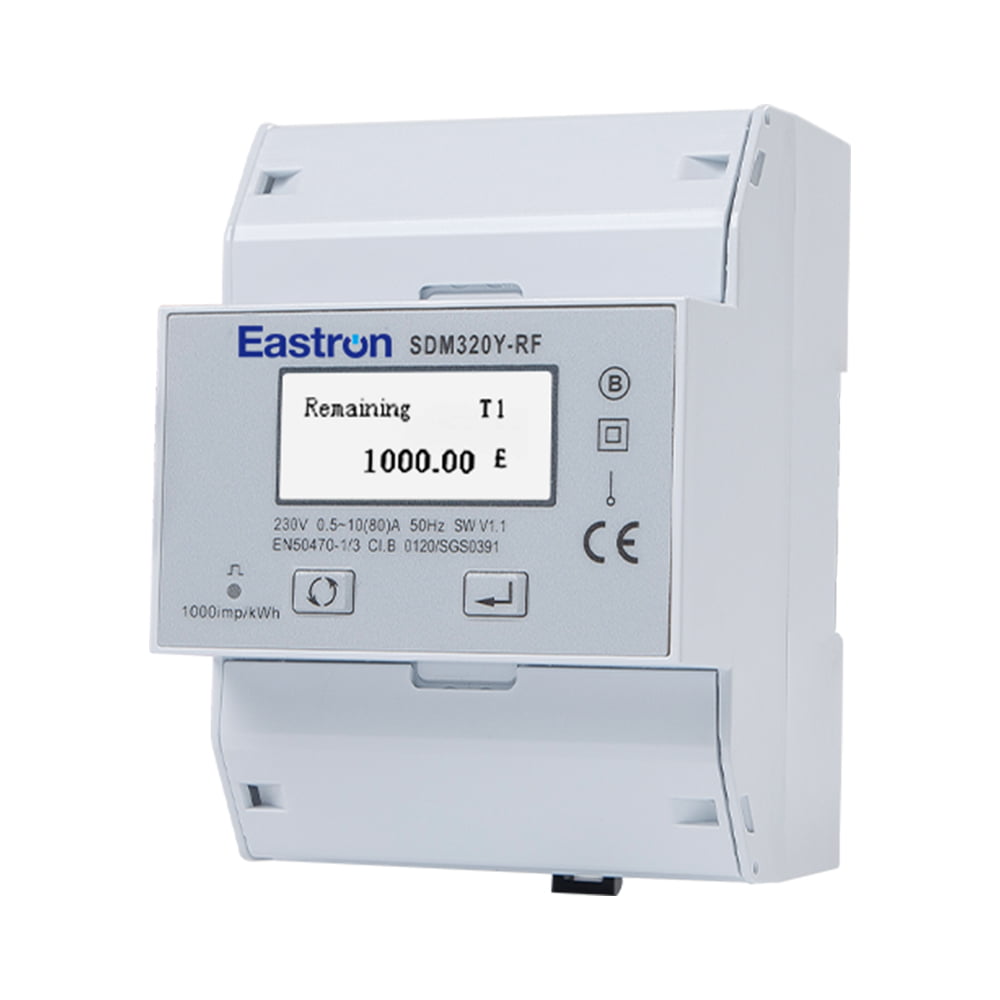

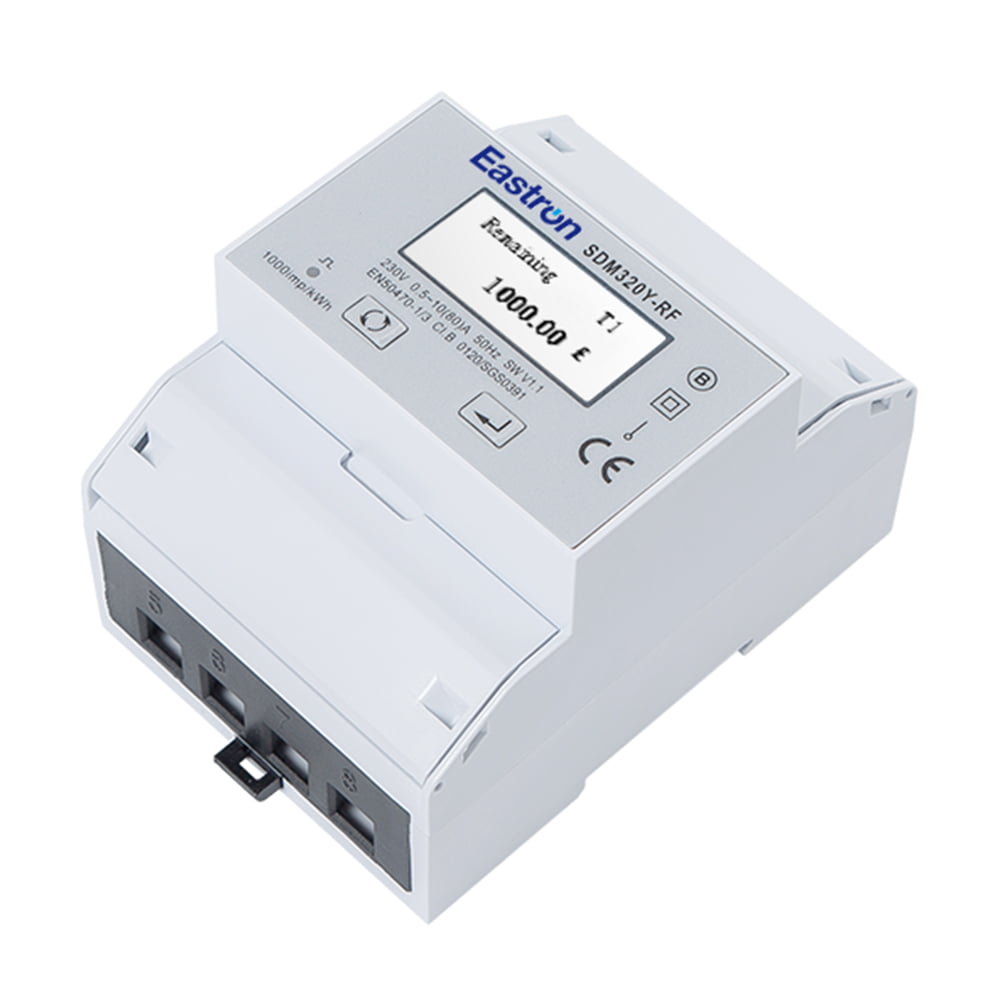

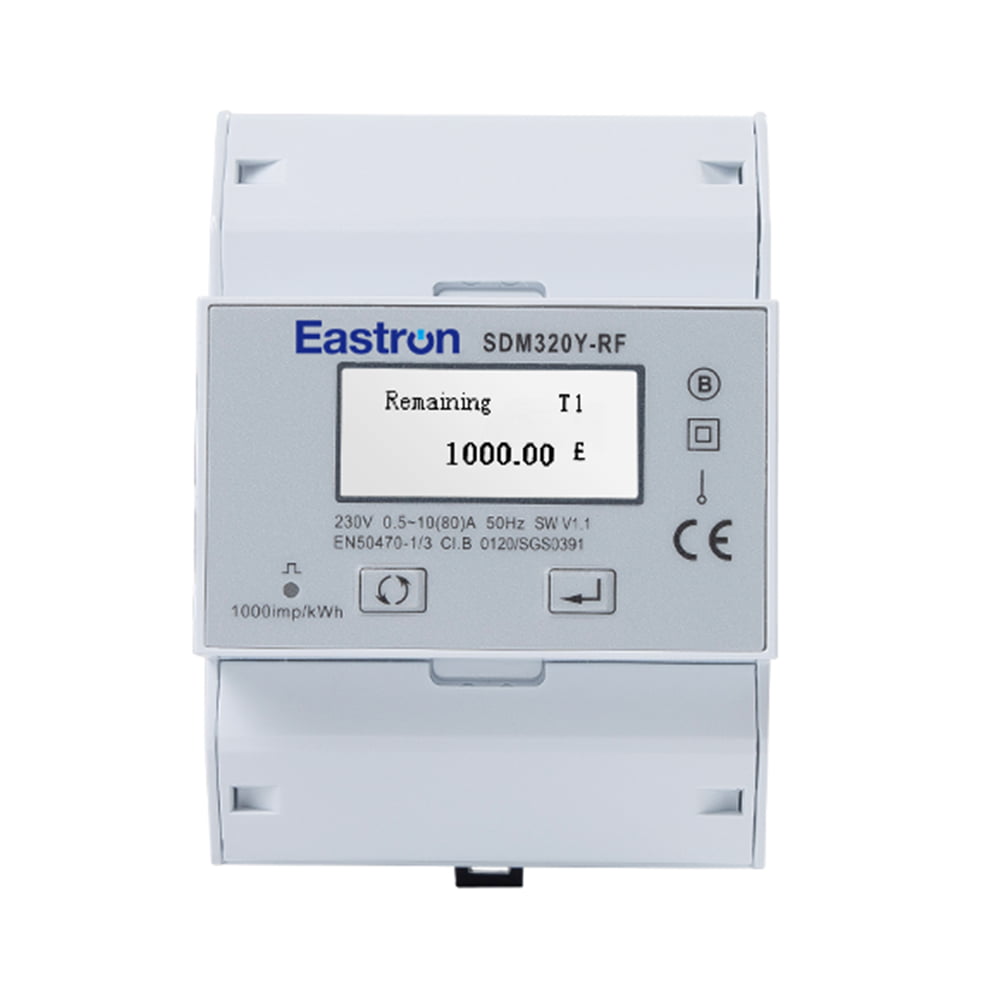

SDM320Y-RF

Single Phase Energy Meter with IC RF card for Prepay System

  • 100A Max. Direct Load
  • 4 Module wide
  • Credit alarms

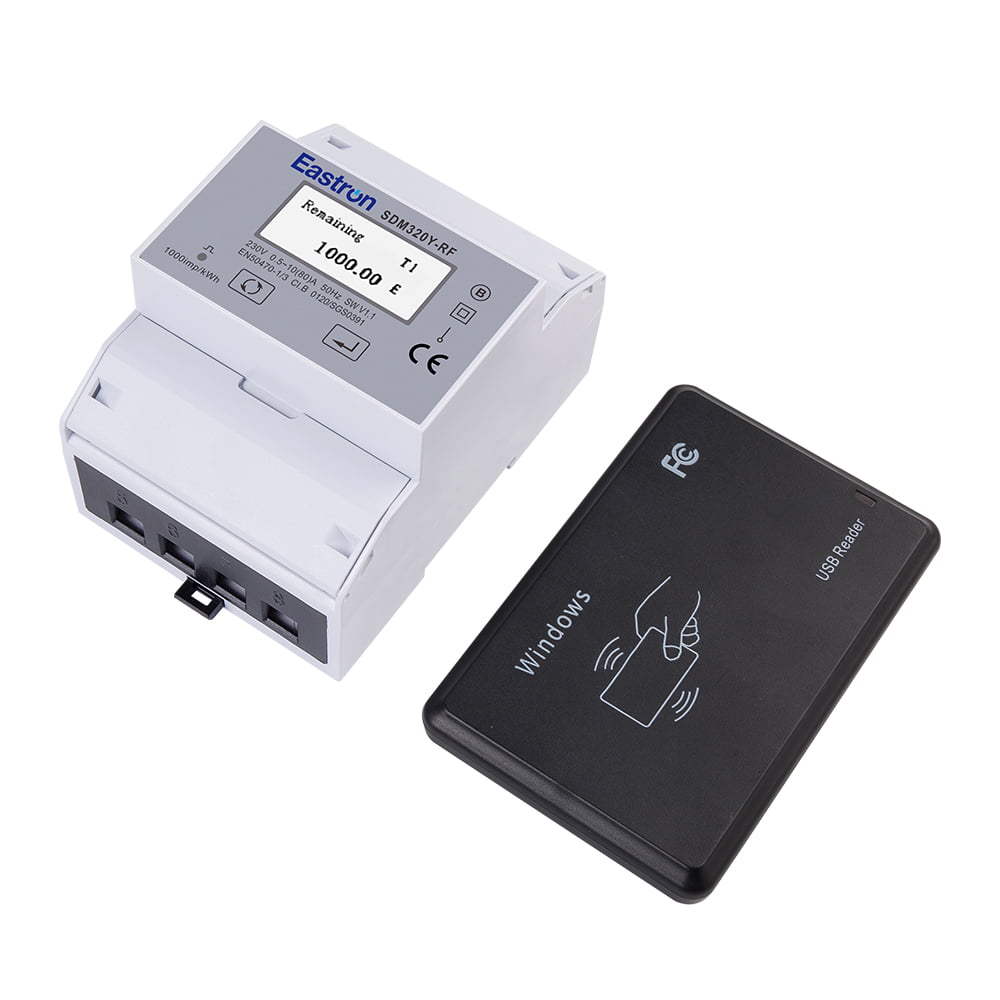

  • RF Recharging
SDM320Y-RF is Single Phase Energy Meter with IC RF card for Prepay System. It measures the consumed energy and shows the used amount and remaining credit as well as alarms for T1 and T2 credit.
It's designed to address the needs of small and medium power users/commercial households with high mobility and tendency to owe fees. It can be applied to Ac charging posts, solar photovoltaic, etc. Its complete communication function makes it suitable for various real-time power monitoring systems.

Electrical characteristics

Type of measurement

RMS including on single phase AC system

Measurement accuracy

Power

1%

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

±0.2%

Current

±0.5%

Voltage

±0.5%

Power Factor

±0.01



Input & Output

Input

Current

Rated Current

5A

Max Current

100A

Min Current

0.25A

Starting Current

40mA

Voltage

Rated Volatge (Un)

230V

Operational Volatge

80% ~ 120% of Un

Output

SDM320C

Pulse Output + RS485 Modbus

SDM320Y

Pulse Output + RS485 Modbus

SDM320Y-RF

Pulse Output + RF

SDM320C-DI

Pulse Output + RS485 Modbus + Digital Input



RS485 Modbus Communications

Communication address

1~247

Transmission distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

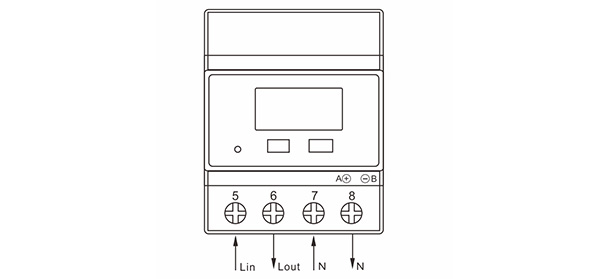

Wiring diagram

Wiring and Dimension [mm:]

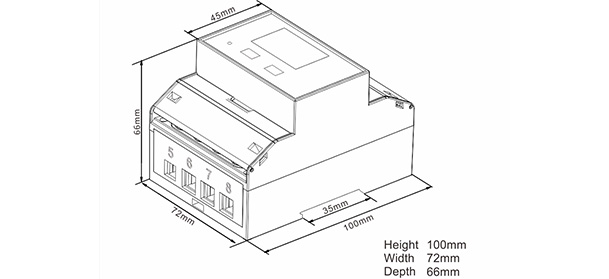

Dimensions
