PTB/Eichrecht Multi-function DC Energy Meter for German Mess EV Regulation

  • PTB/Eichrecht Multi-function DC Energy Meter for German Mess EV Regulation
  • PTB/Eichrecht Multi-function DC Energy Meter for German Mess EV Regulation

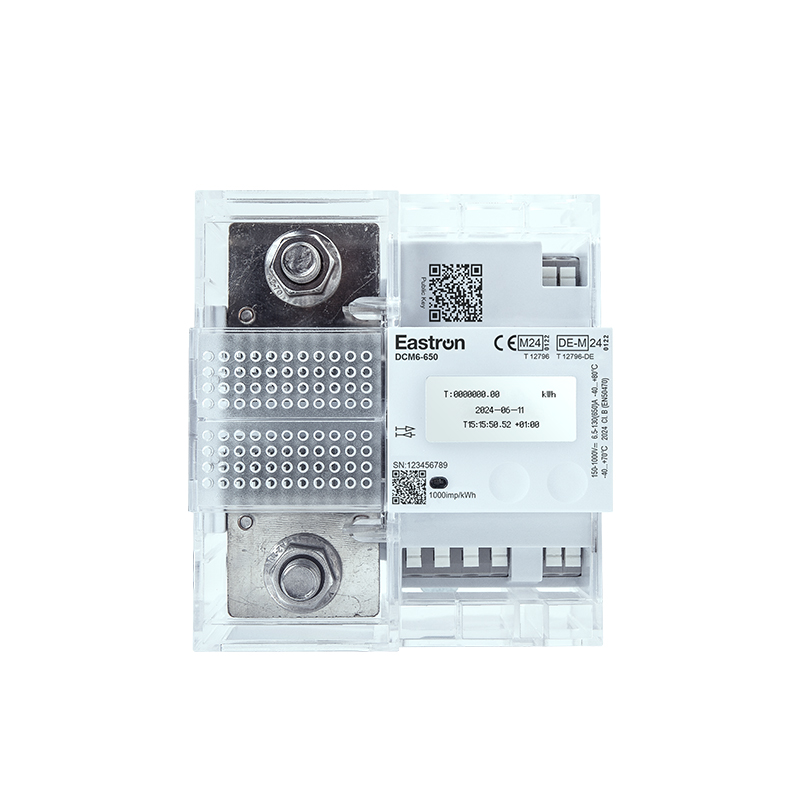

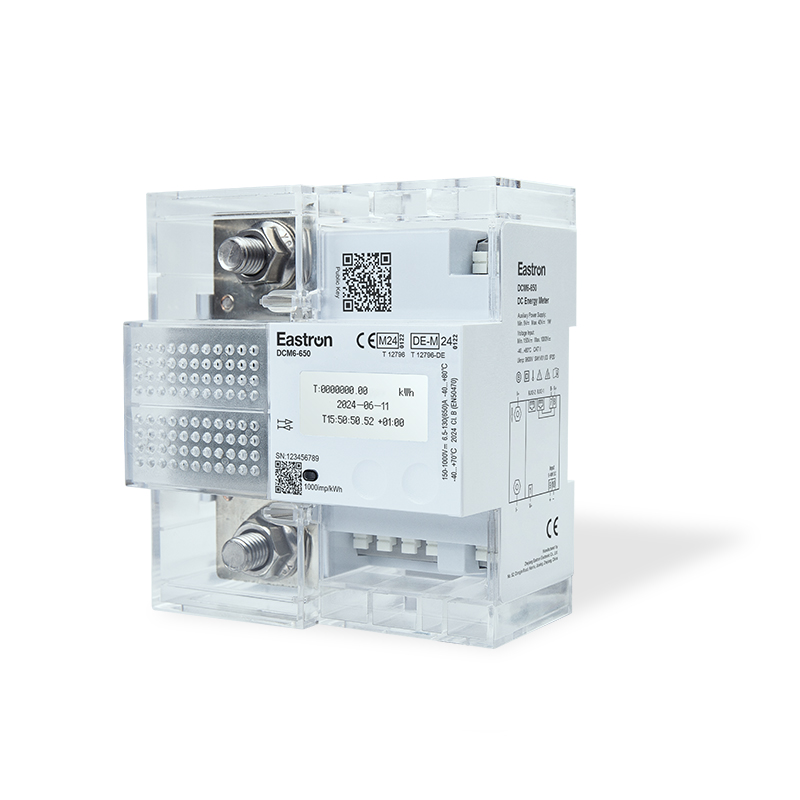

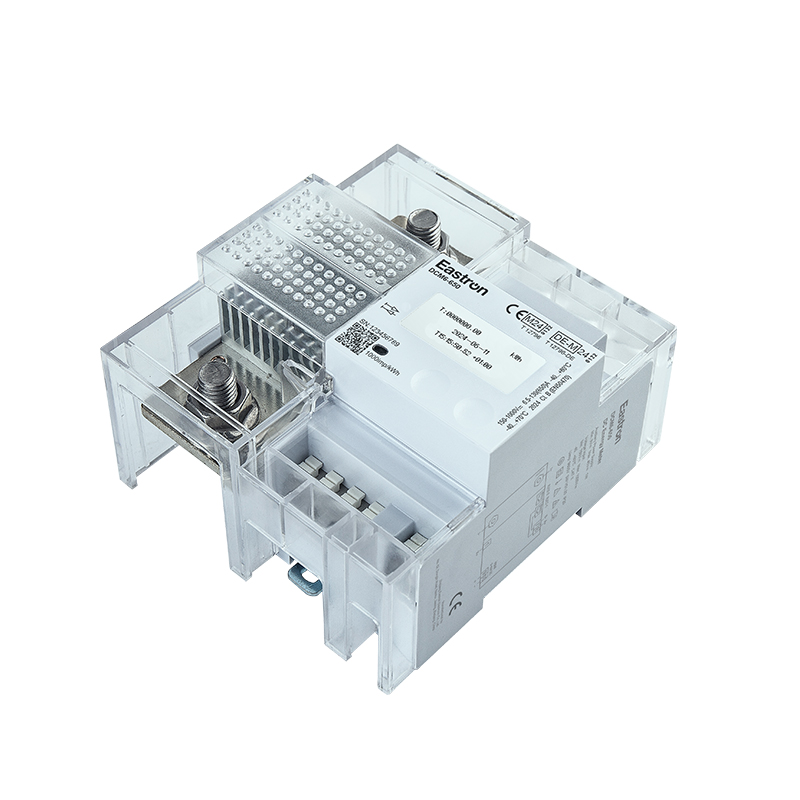

DCM6-650

PTB/Eichrecht Multi-function DC Energy Meter for German Mess EV Regulation

  • Voltage up to 1000V
  • Max. current 650A
  • Charging Data recording
  • Charging Duration Monitoring
  • Signed and Encrypted Charging Data
  • Line loss energy measurement
  • PTB / Eichrecht Approved

DCM6-650 belongs to the DCM6 Series. It is a PTB(Eichrecht) and MID approved DC energy meter designed for measurement within an EV Charger station. The meter support Max. 650A current load. It has a dedicated micro-controller for encryption function in order to comply with Eichrecht, the German Mess-EV regulation. Furthermore, all charging processes are stored within the internal data storage of the DC meter.

Another model in DCM6 Series is DCM6-200, which support Max. 200A current load.

Voltage
Umax 1000V DC
Umin 150V DC
Auxiliary power supply voltage 9-40V DC



Current
Ist (Starting current) 0.52A
Imin(Minimum current) 6.5A
Itr (Current) 13A
Iref (Normal current) 130A
Imax(Maximum current) 650A



Accuracy
Class 1



Display
LCD Dot Matrix
Life Cycle >12 Years



Serial Output
Type 2xRS485 (RTU)
Ports 2 xRJ12+1 plug-in terminal



RS485 interface
4800~115200bps(19200bps default) 8N1(Settable)

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
