5A Output Single Phase Integrator for Rogowski Coil

  • 5A Output Single Phase Integrator for Rogowski Coil
  • 5A Output Single Phase Integrator for Rogowski Coil

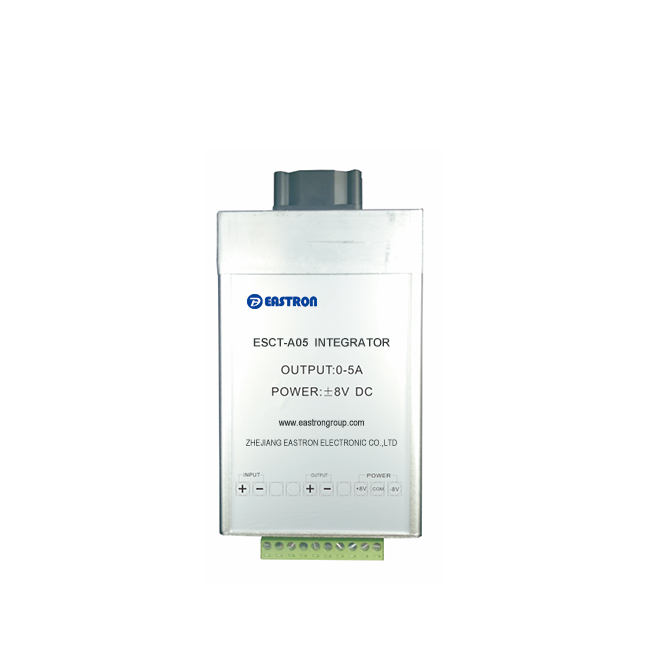

ESCT-A05 integrator

5A Output Single Phase Integrator for Rogowski Coil

  • High read accuracy 0.5%
  • High linearity 0.2%
  • High bandwidth for measurement 30 to 5kHz
  • Output 5A rms

ESCT-A05 is a 5A output single phase integrator for rogowski coil. It is in a shield aluminium alloy enclosure, powered from 2pcs SMPS(switch module power supply).

ESCT-A05 can be combined with any model and size of ESCT-RC Rogowski coils. The available values are:0-5A AC.

ESCT-A05 and Rogowski coil is a very flexible system, suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.

Due to its specific features, flexible Rogowski coil is an extremely comfortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution

Specification

Model

ESCT-A05

Rated Output

5A AC rms

Maximum Output (Overload)

5A AC rms

Power Consumption

80W

Bandwidth

30Hzto5kHz(-3dB)

Maximum Burden

0.8 Ω

Measurement

Secondary CTs to measure output of integrator

Power Supply

85-265V AC/DC(Powered from 2pcs 85-265 to 8VDC 40W SMPS)

Rated Input

10OA/6O0A/1000A/3000A/6000A

Read Accuracy

0.5% typical at 1%(≥10A) to 100% of rated current @25℃

Phase Error

≤0.5°

Linearity

±0.2% of reading (10% to 100% of range)

Output on 0A (Zero Drift)

≤ 0.05A

Temperature Drift

200ppm/℃

Weight

850g

Dimension

125*80*37mm

Operating Temperature

-20℃ to 70℃

Storage Temperature

-30℃ to 90℃

Relative Humidity

80% max.without condensation

Protection Degree

IP20



Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions
