Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output

  • Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output

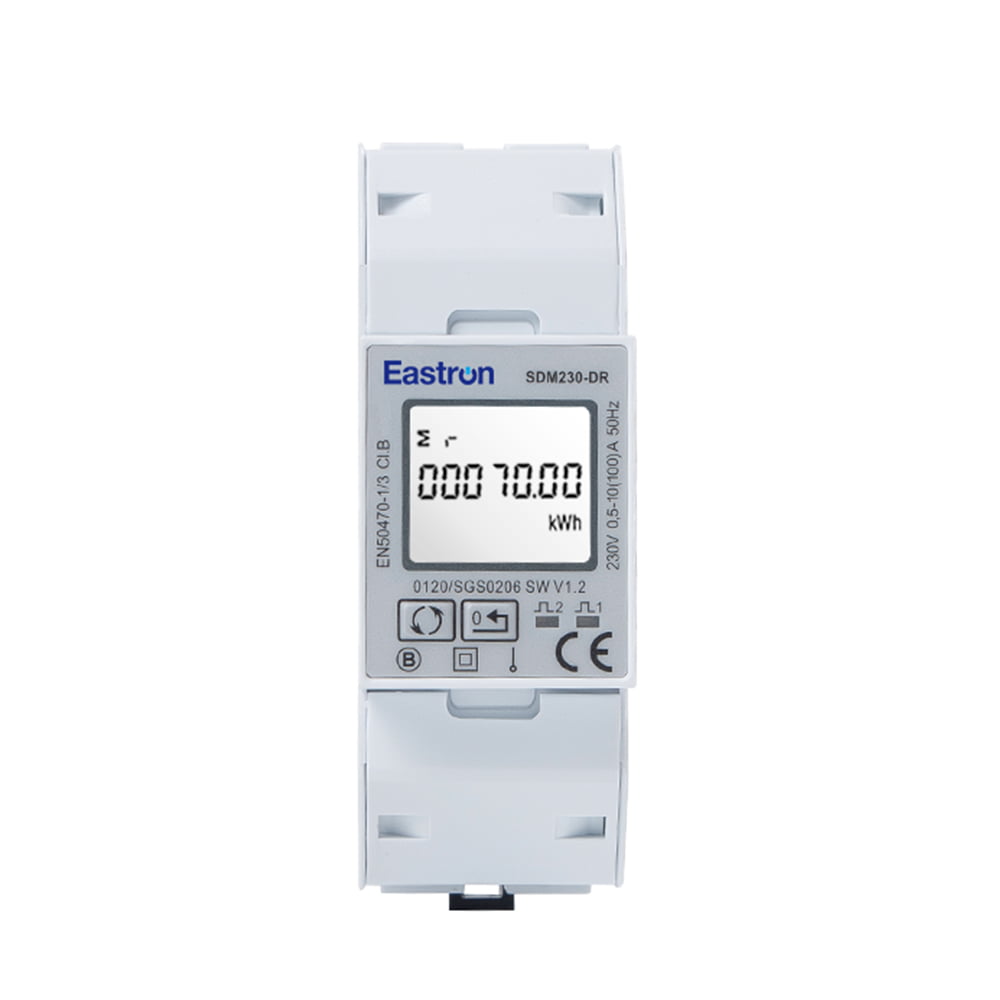

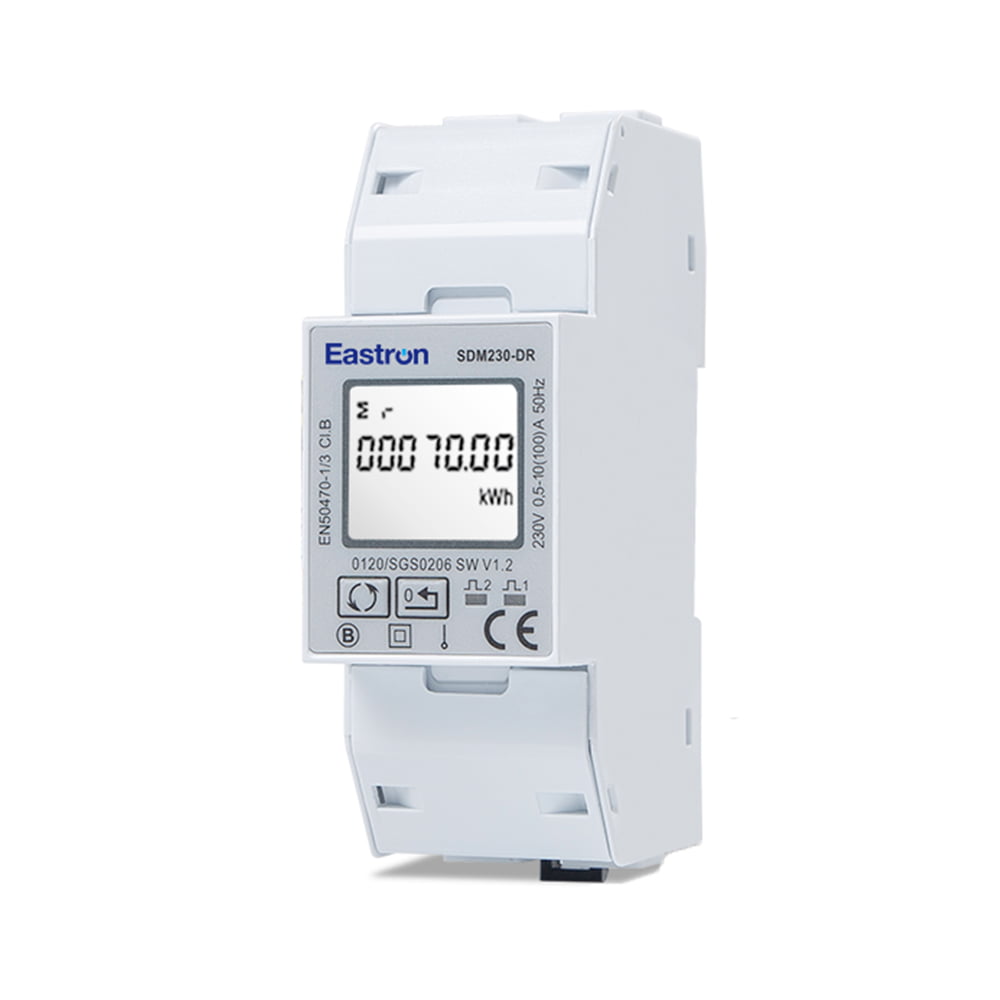

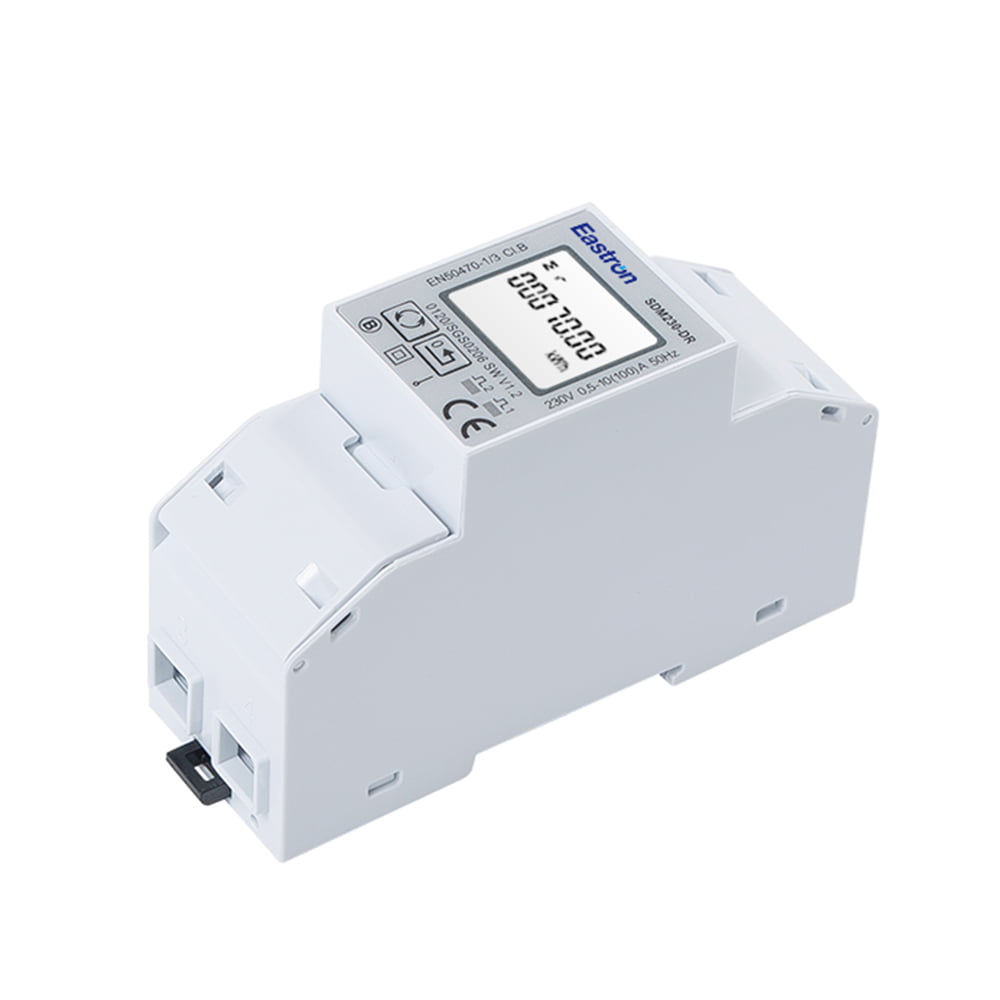

SDM230DR

Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output

  • Active Energy + Power measured
  • LCD display with backlit
  • Pulse Output
  • Max. 100A Direct Load
  • Partial Energy resettable
  • 2 Module 36mm Width
  • 1P2W

SDM230 DR / BI

SINGLE PHASE TWO WIRE KWH METER

The SDM230DR is a Resettable Din Rail Single Phase Electronic kWh meter with Pulse Output and LCD Display. It is a 2-(2 module 36mm width) kWh meter with Max.100A direct input. It provides a partial energy which is resettable. It also provides an uni-directional (anti-reverse) measurement version, which is widthly used in solar generation energy measurement.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B



Input & Output

Input

Current

Rated Current (Ib)

10A

Max Current (Imax.)

100A

Min Current (Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operation Voltage

80% ~120% of Un

Output

SDM230DR/ SDM230BI

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
