Single Phase Electronic kWh meter with Pulse Output

  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output
  • Single Phase Electronic kWh meter with Pulse Output

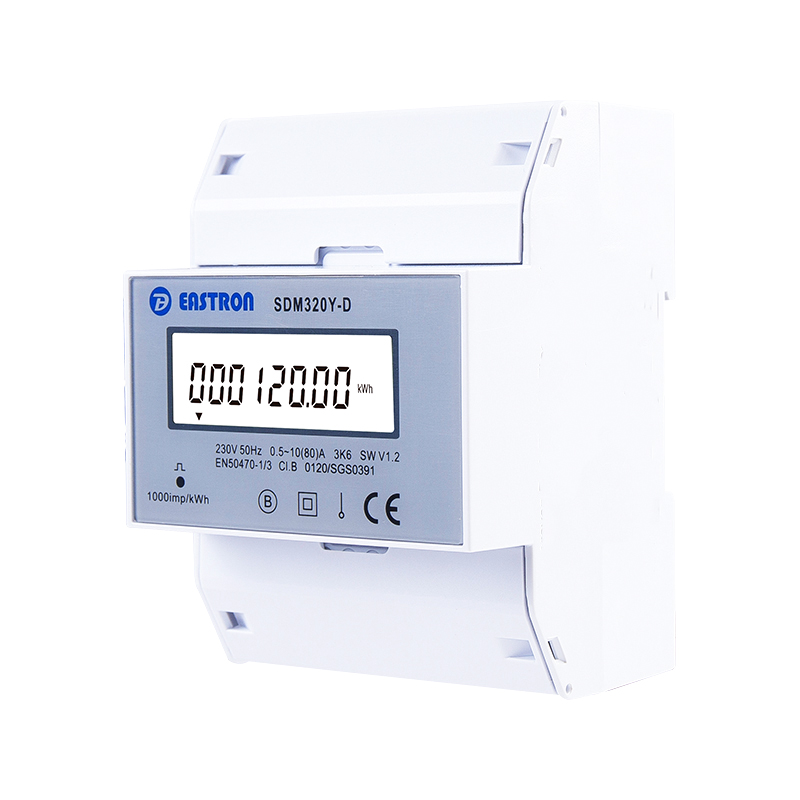

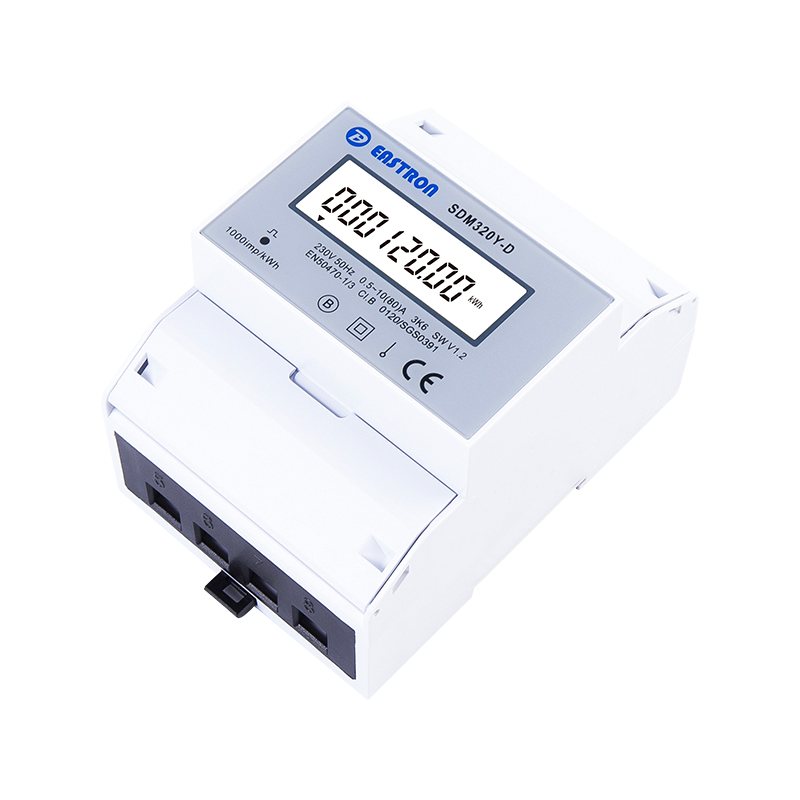

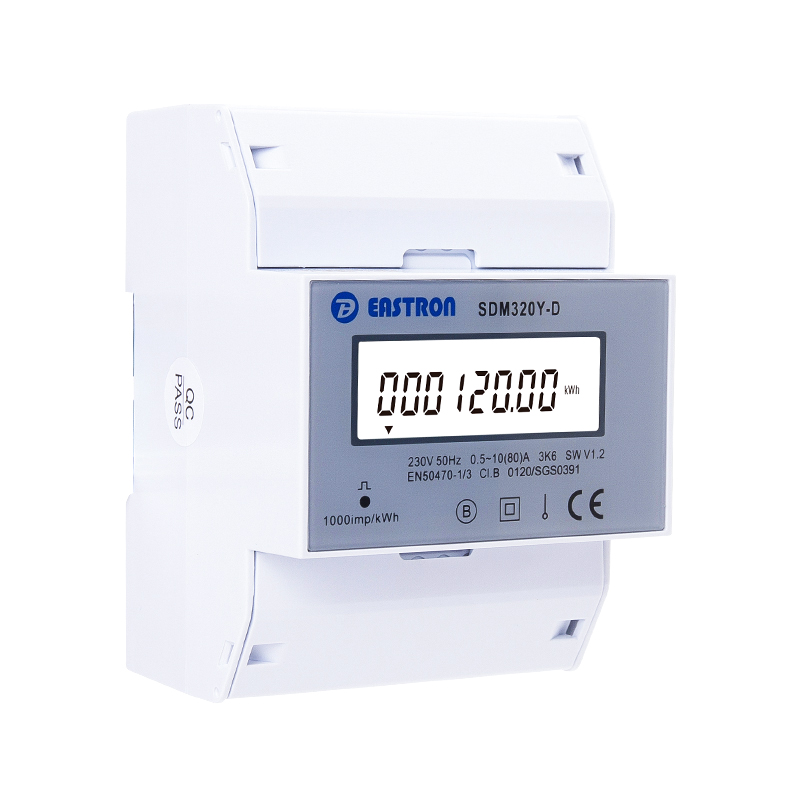

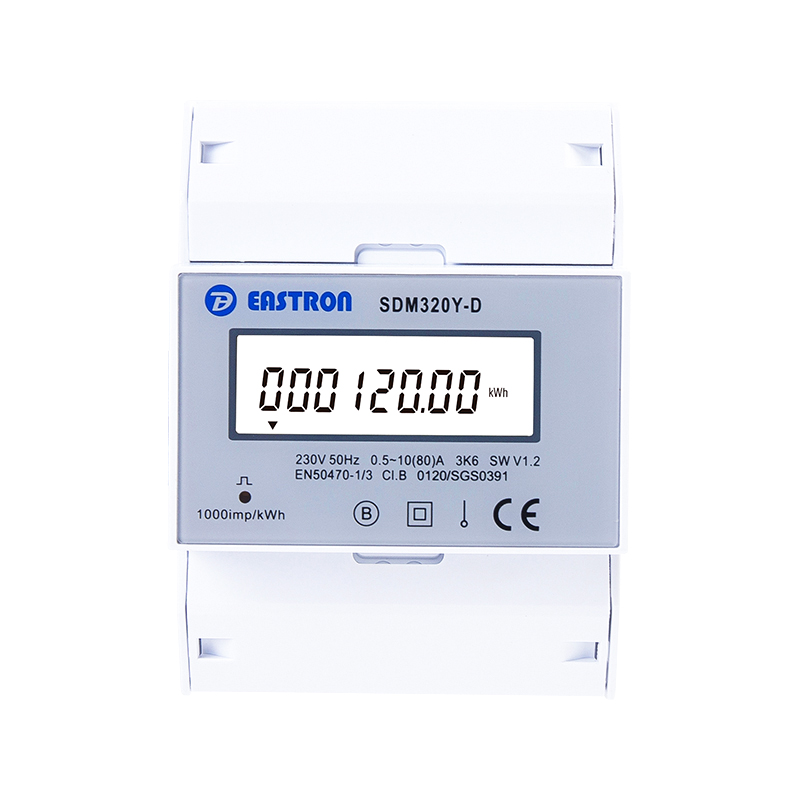

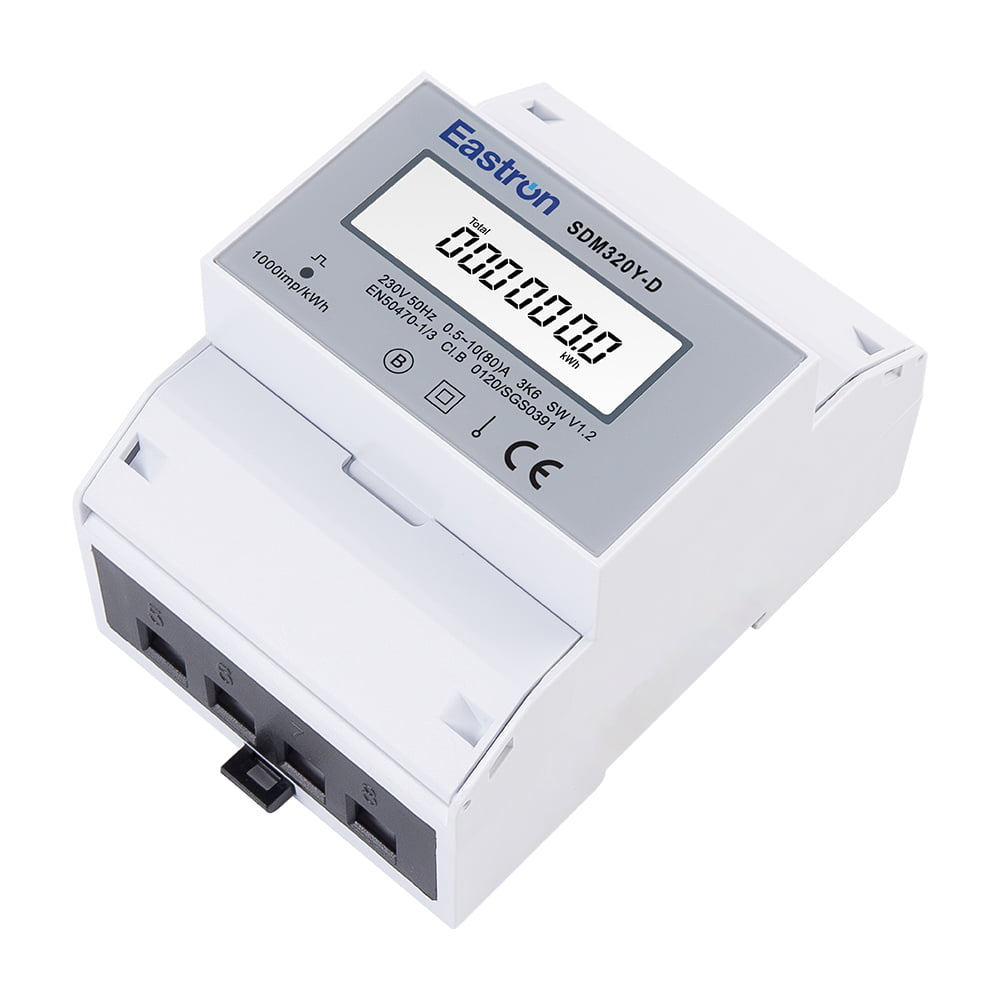

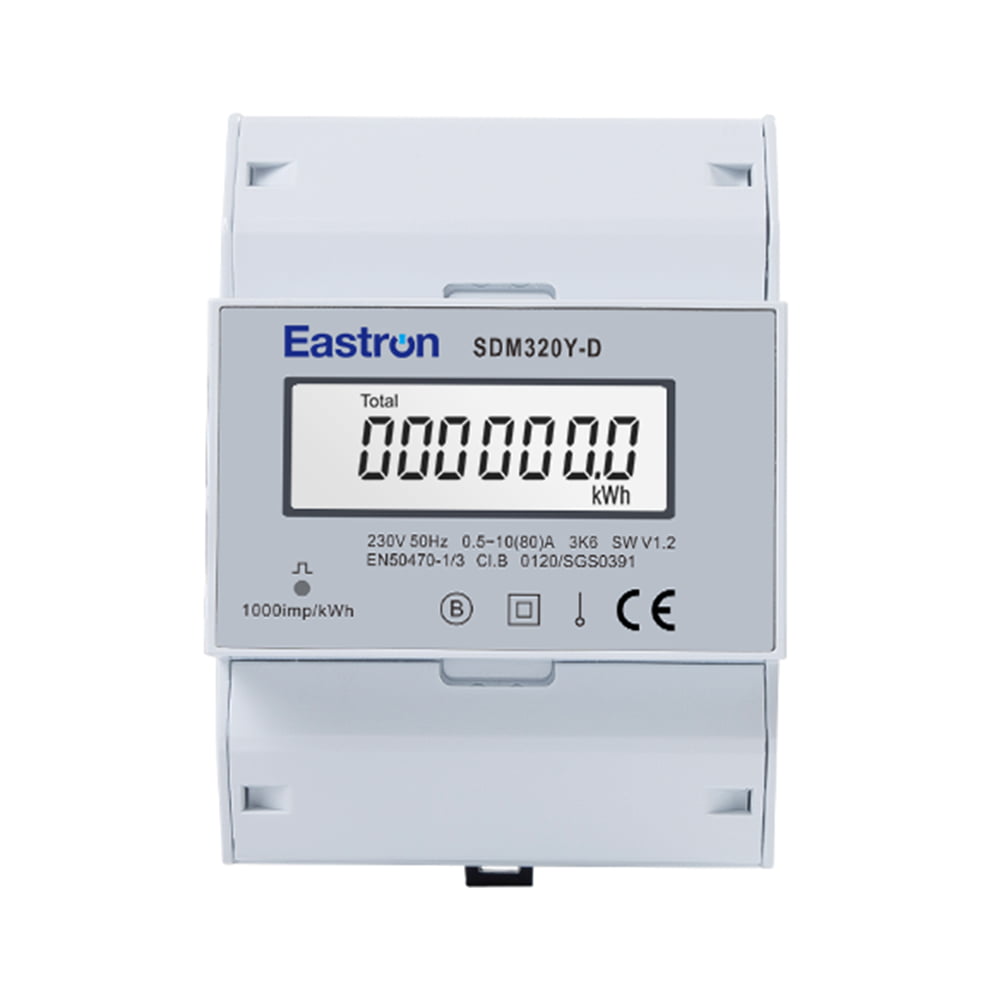

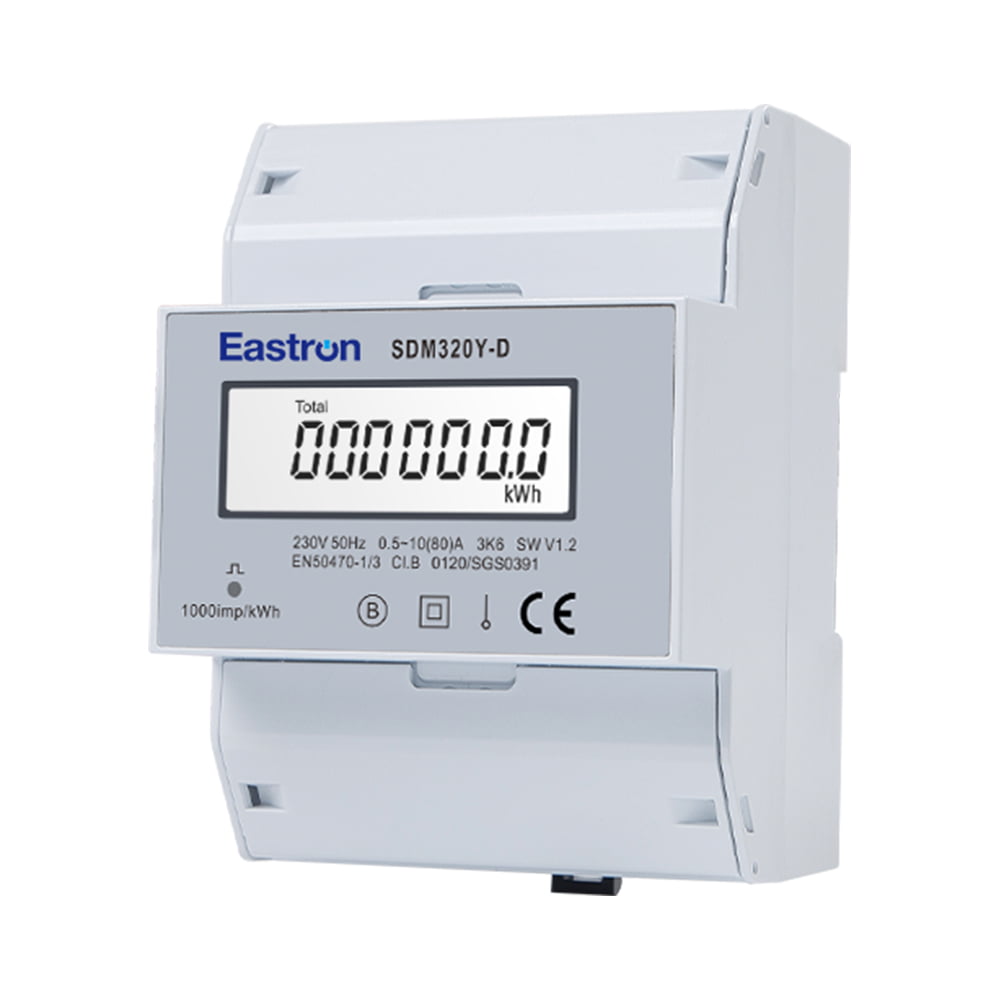

SDM320Y-D

Single Phase Electronic kWh meter with Pulse Output

  • Max. 100A Direct Load
  • 230V AC Voltage Input
  • 4 Modules 72mm Width
  • 1P2W
SDM320Y-D is a single phase electronic kWh meter with pulse output function. It is a 4 module size meter, which measures active energy (kWh) only.
The meter equipped with a 1000imp/kWh pulse output.

Electrical characteristics

Type of measurement

RMS including on single phase AC system

Accuracy

Active Energy

IEC 62053-21 Class 1.0;

EN50470-1/3 Class B



Input & Output

Input

Current

Rated Current

10A

Max Current

80A

Min Current

0.5A

Starting Current

40mA

Voltage

Rated Volatge (Un)

230V

Operational Volatge

80% ~ 120% of Un

Output

SDM320Y-D

Pulse Output

SDM320Y-RF

Pulse Output + RS485 Modbus

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

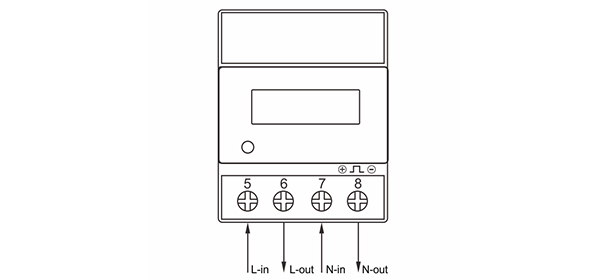

Wiring diagram
