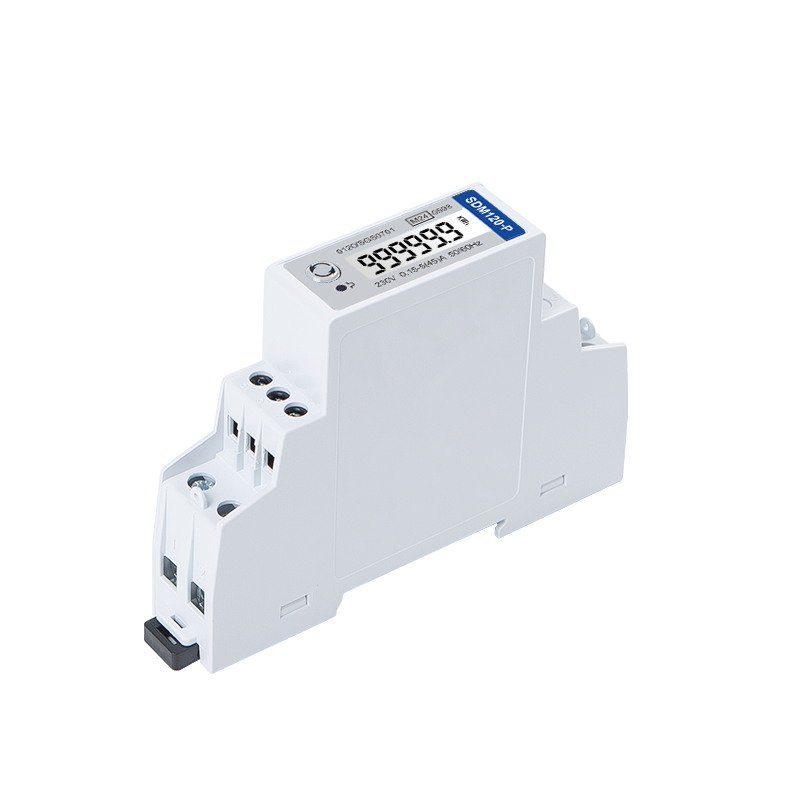

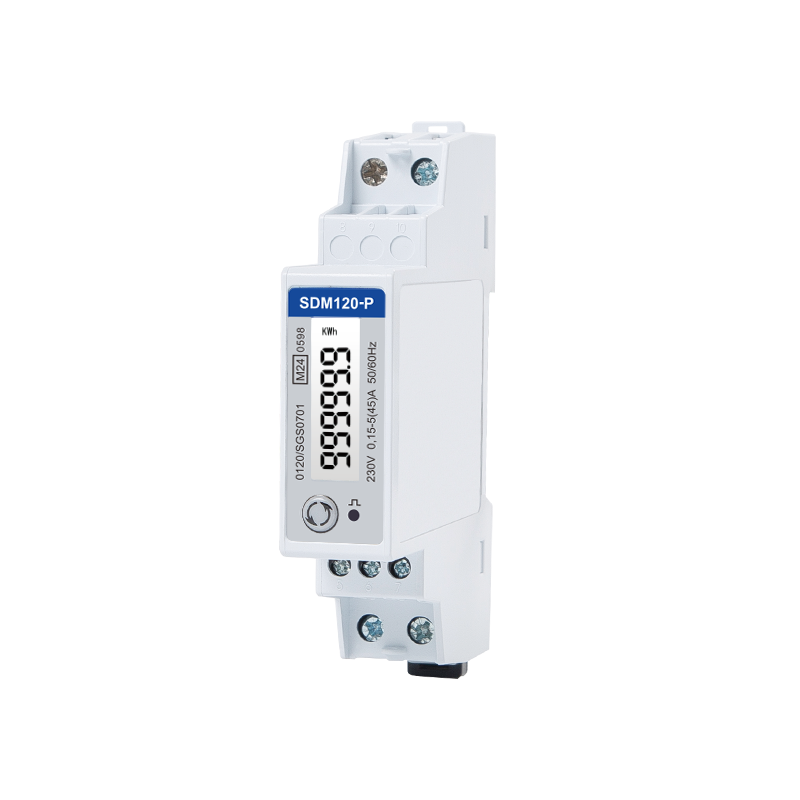

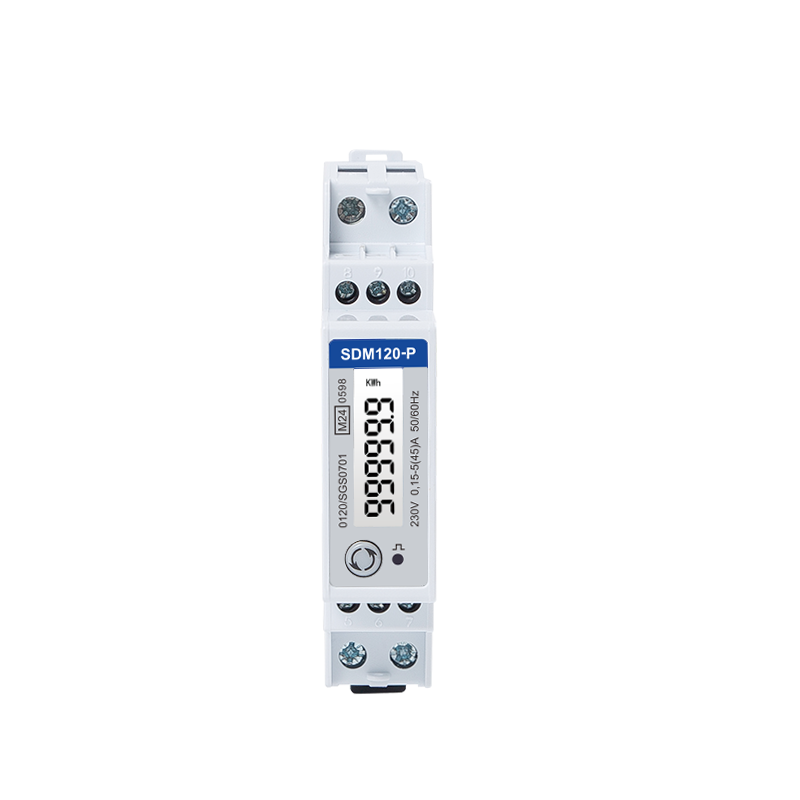

SDM120-P

Din Rail Single Phase MID Energy Meter with Pulse Output

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output
  • Bi-directional Measurement
  • Max. 45A Direct Load
  • 1 Module 18mm Width
  • MID approved
  • 1P2W

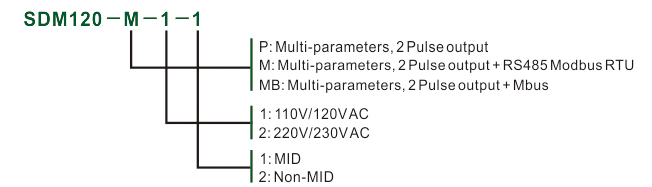

SDM120-Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION EN ERGY METER

The SDM120-P is a Din Rail Single Phase MID Energy Meter with Pulse Output. It is a range of 1-DIN (1 module 18mm width) single phase DIN rail kWh meter with Max.45A direct input. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, solar PV, EV Charging system, industrial and utility applications.

The unit has been MID approved to meet the requirements of EU Directive 2014/34/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Voltage

±0.5%

Current

±0.5%

Frequency

±0.2%

Power Factor

±1%

Active Power

±1%

Reactive Power

±1%

Apparent Power

±1%

Active Energy

Class 0.5/1 IEC62053-21
Class C/B EN50470-3:2022

Reactive Energy

Class 2 IEC62053-23



Input & Output

Input

Current



Rated Current (Ib/Iref)

5A

Max Current(Imax.)

45A

Min Current(Imin.)

0.15A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

85~276V AC

Output

SDM120P

2 Pulse Output for imp/exp. energy

SDM120M

2 Pulse Output + RS485 Modbus

SDM120MB

2 Pulse Output + M-bus EN13757



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

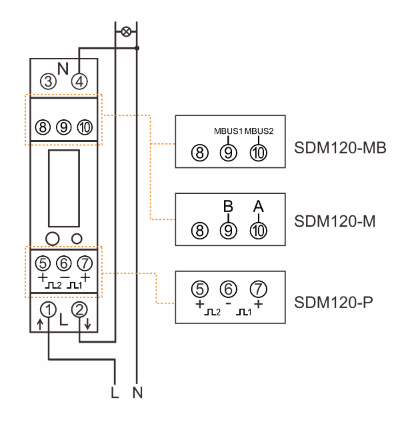

Wiring diagram

Dimensions
