Din Rail Type Single Phase MID Energy Meter

  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter
  • Din Rail Type Single Phase MID Energy Meter

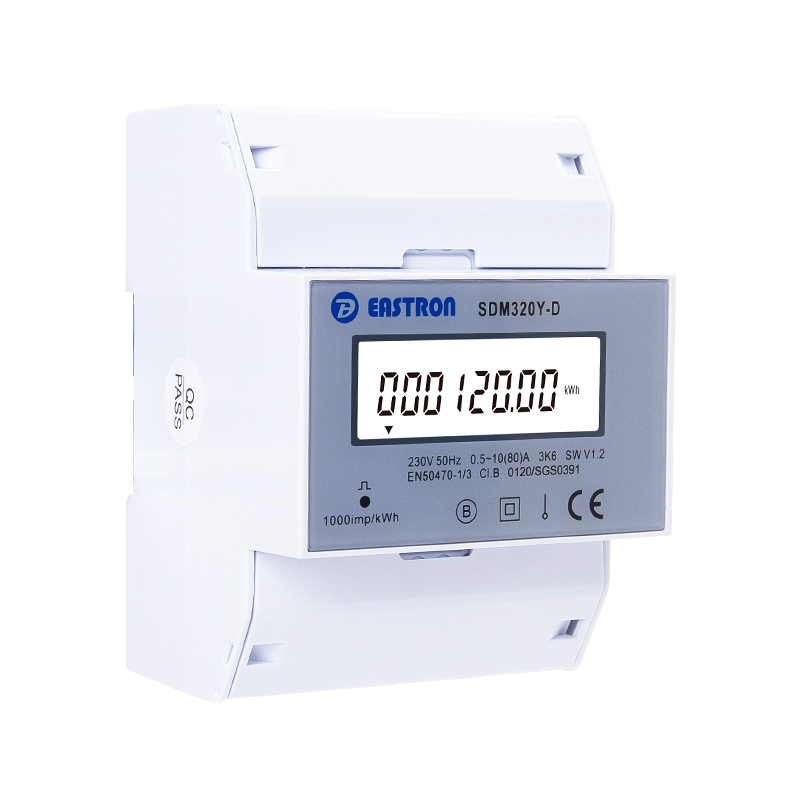

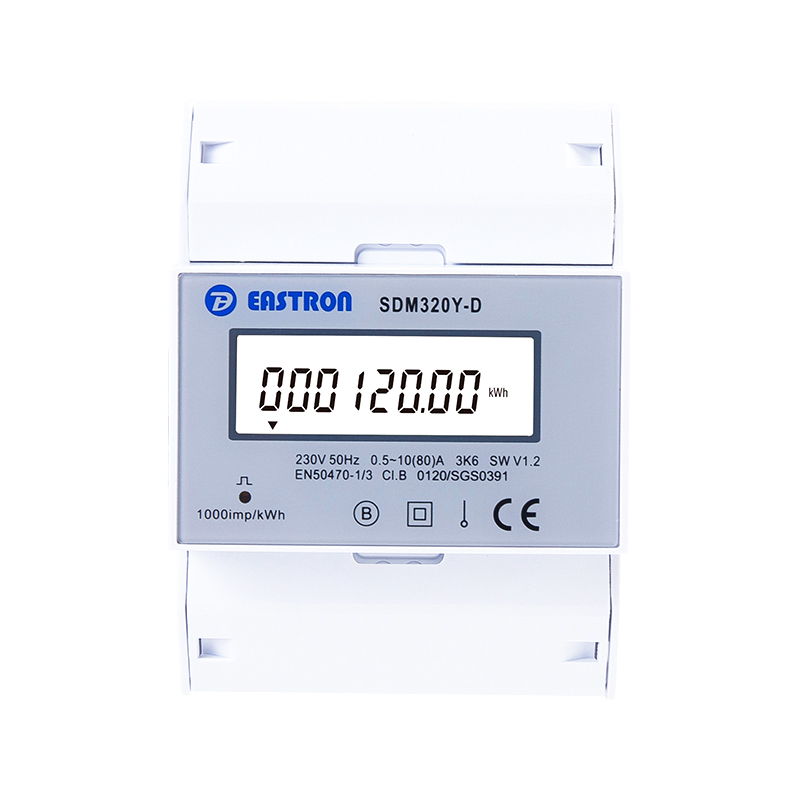

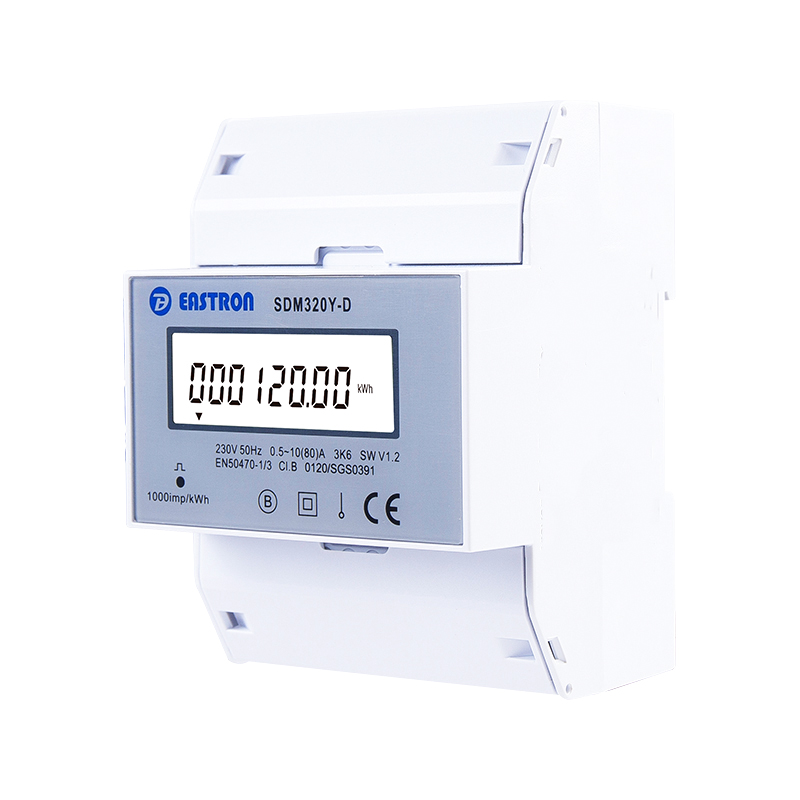

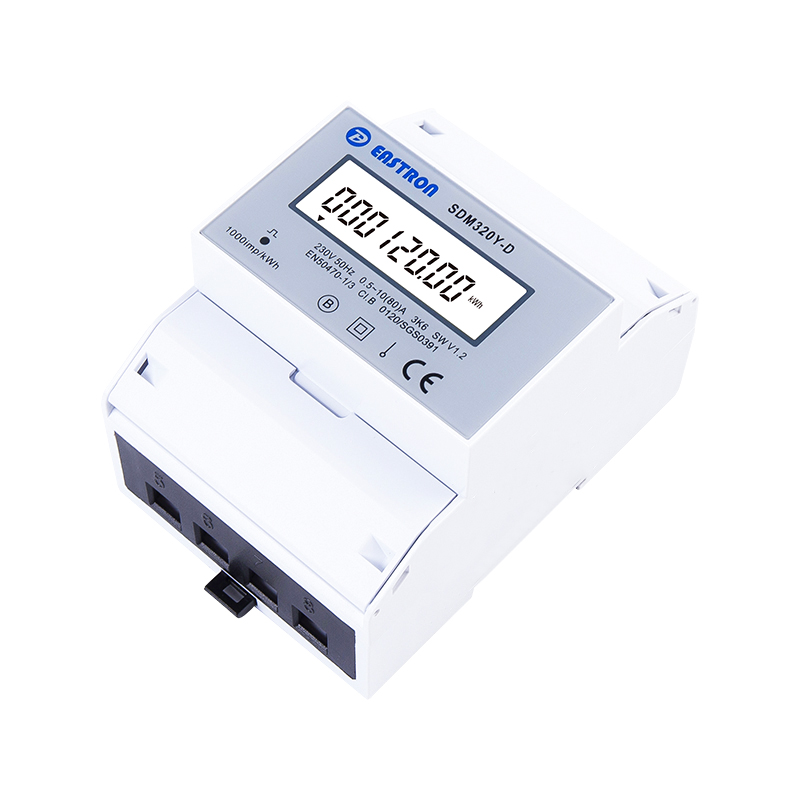

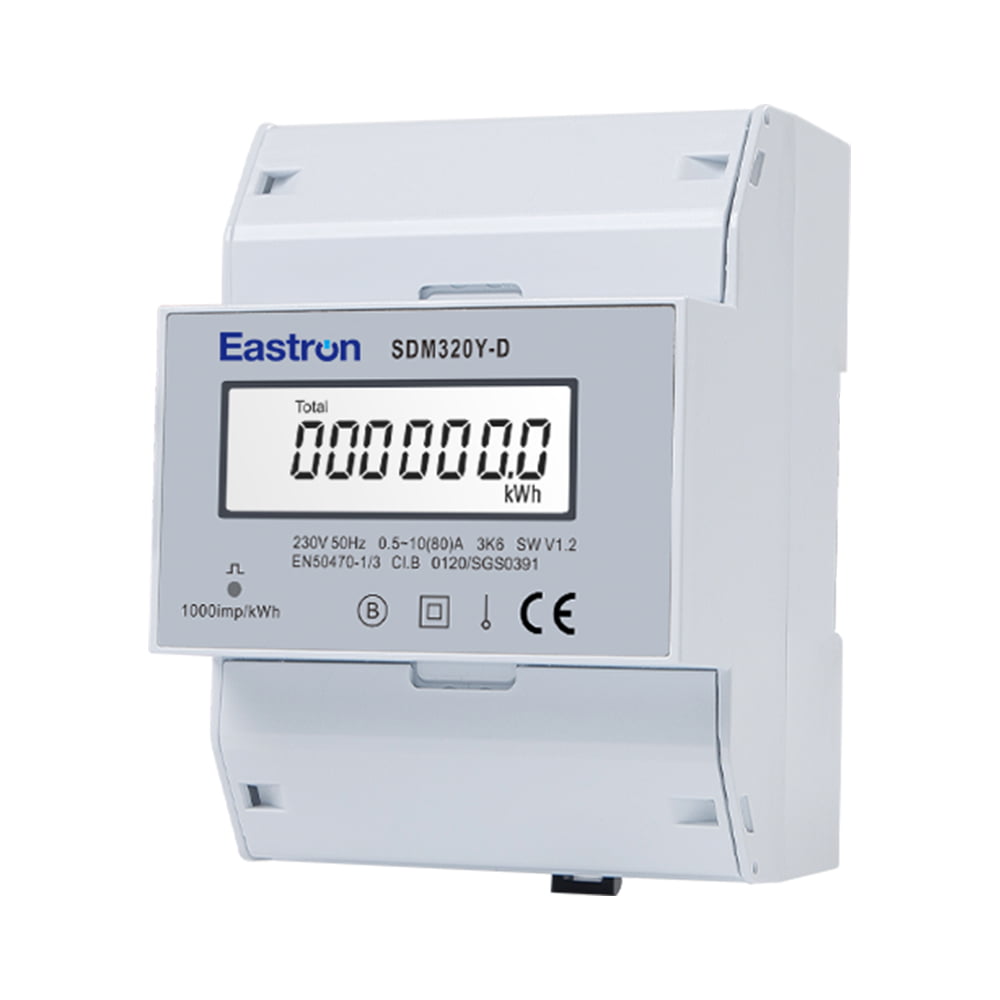

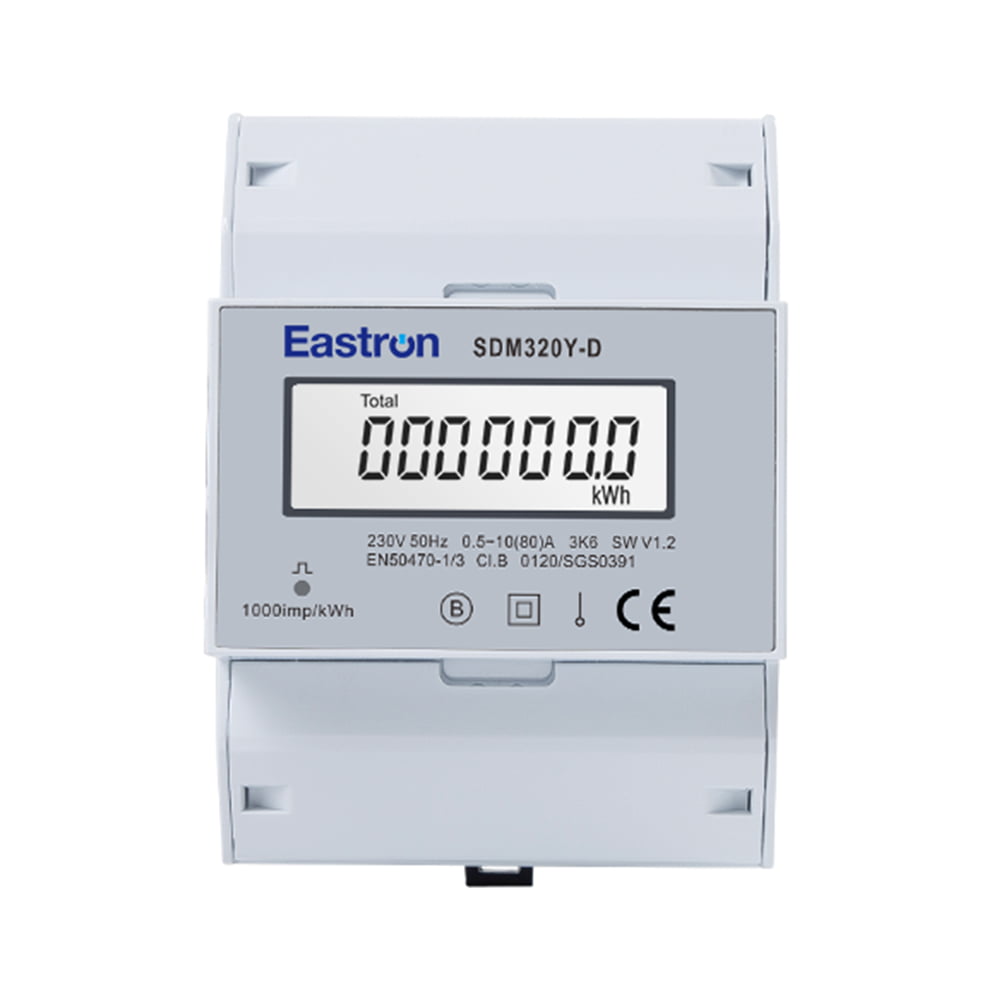

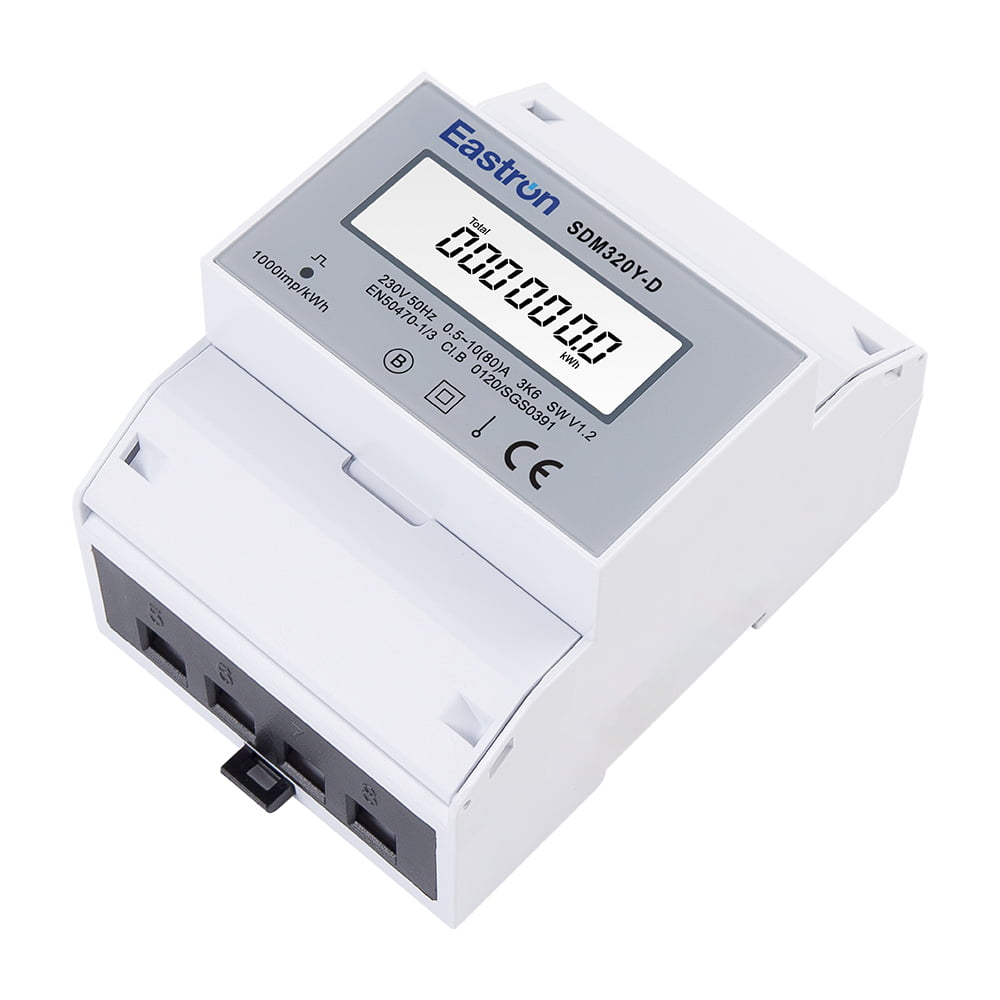

SDM320Y-D

Din Rail Type Single Phase MID Energy Meter

  • Max. 100A Direct Load
  • 230V AC Voltage Input
  • 4 Module Width
  • 1P2W
SDM320Y-D is a Din Rail Type Single Phase MID Energy Meter with pulse output function. It is a 4 module size meter, which measures active energy (kWh) only.
The meter equipped with a 1000imp/kWh pulse output.

Electrical characteristics

Type of measurement

RMS including on single phase AC system

Accuracy

Active Energy

IEC 62053-21 Class 1.0;

EN50470-1/3 Class B



Input & Output

Input

Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Voltage

Rated Volatge (Un)

230V

Operational Volatge

80% ~ 120% of Un

Output

SDM320Y-D

Pulse Output

SDM320Y-RF

Pulse Output + RS485 Modbus

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram
