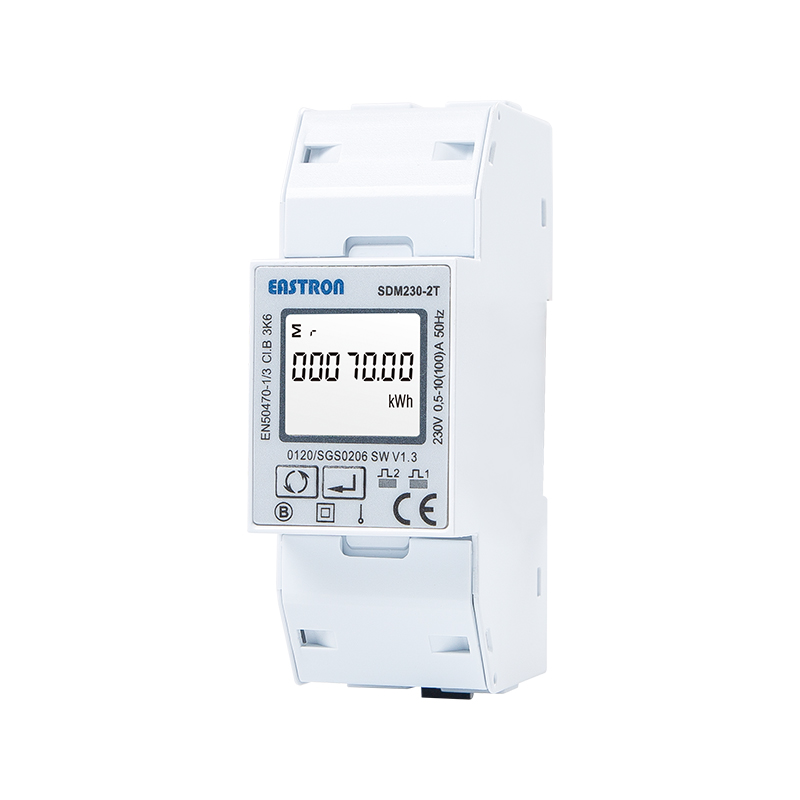

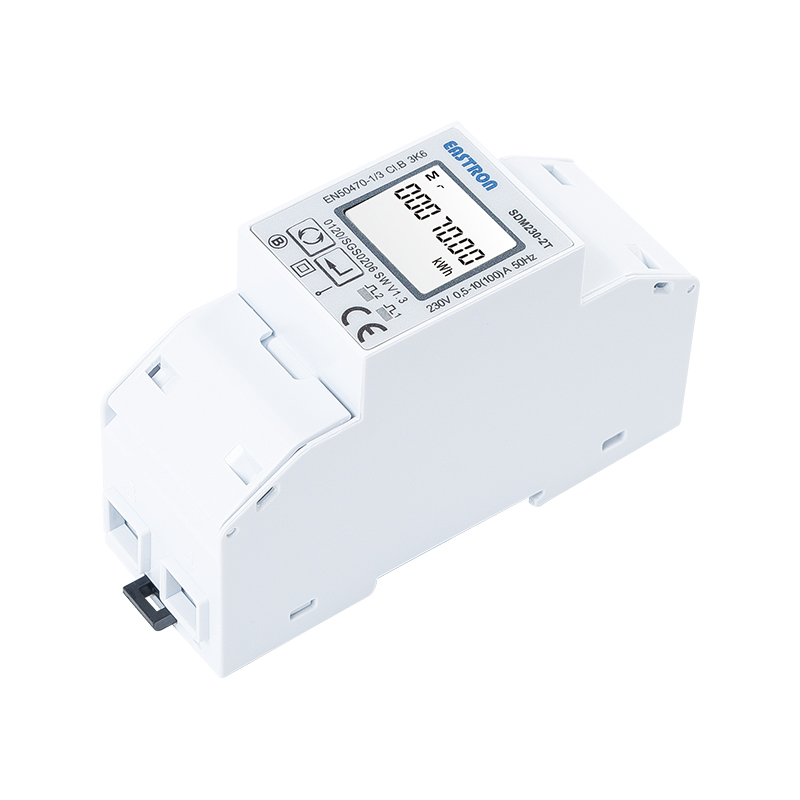

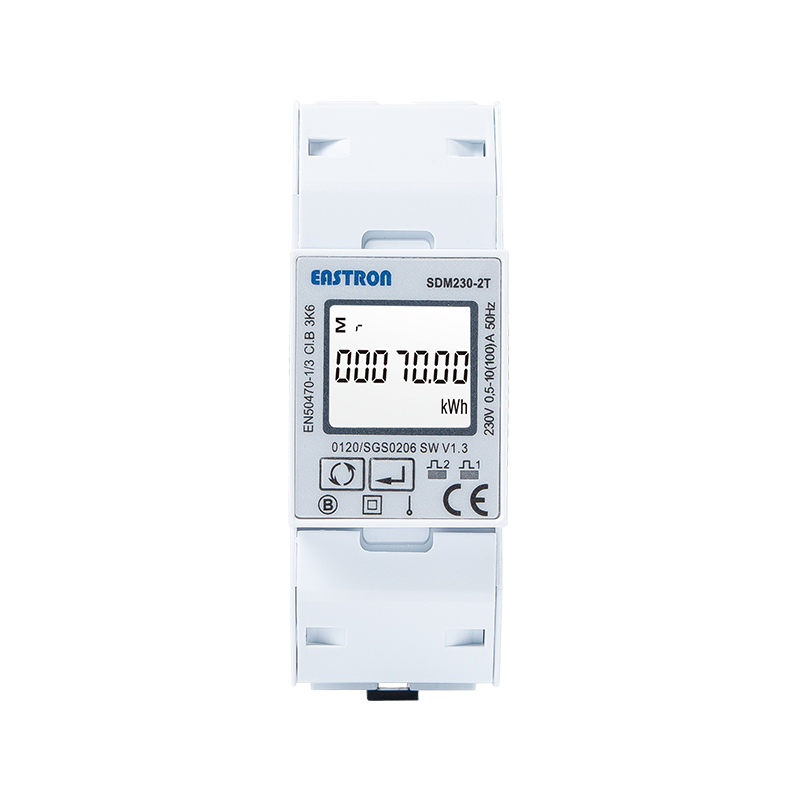

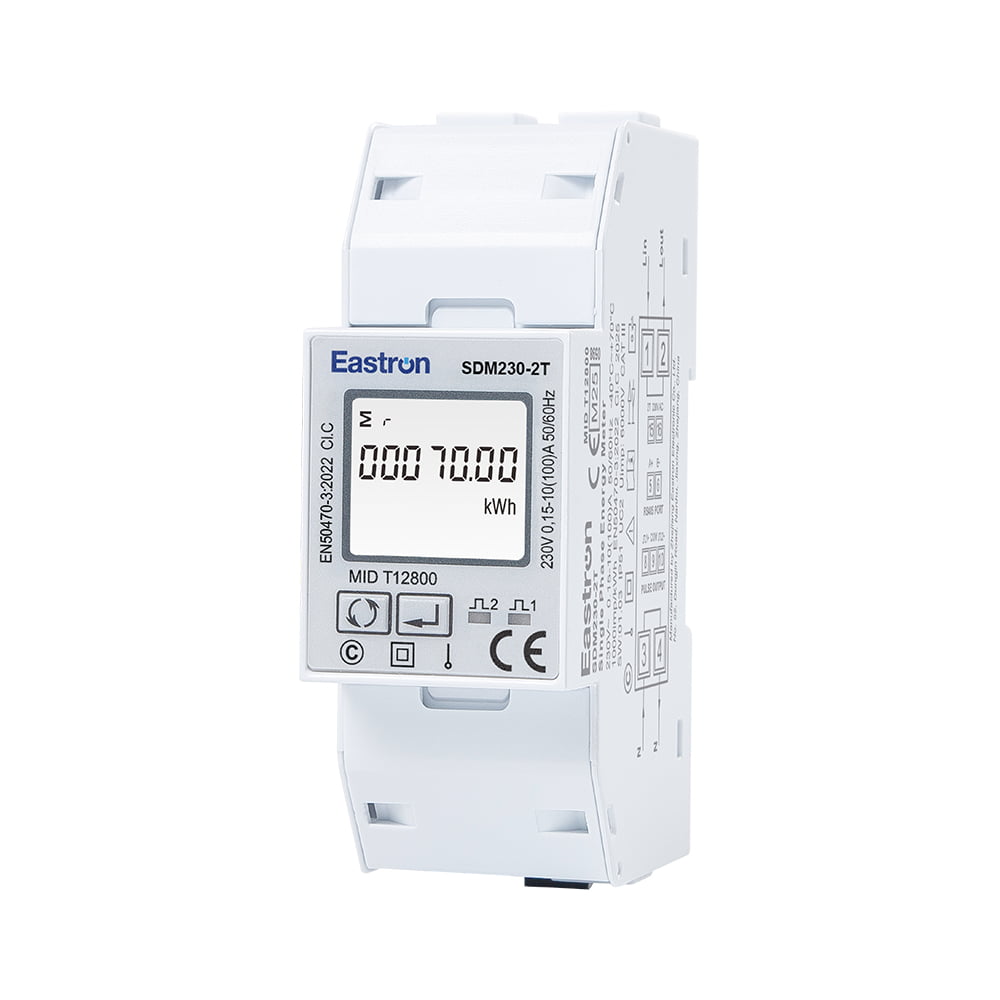

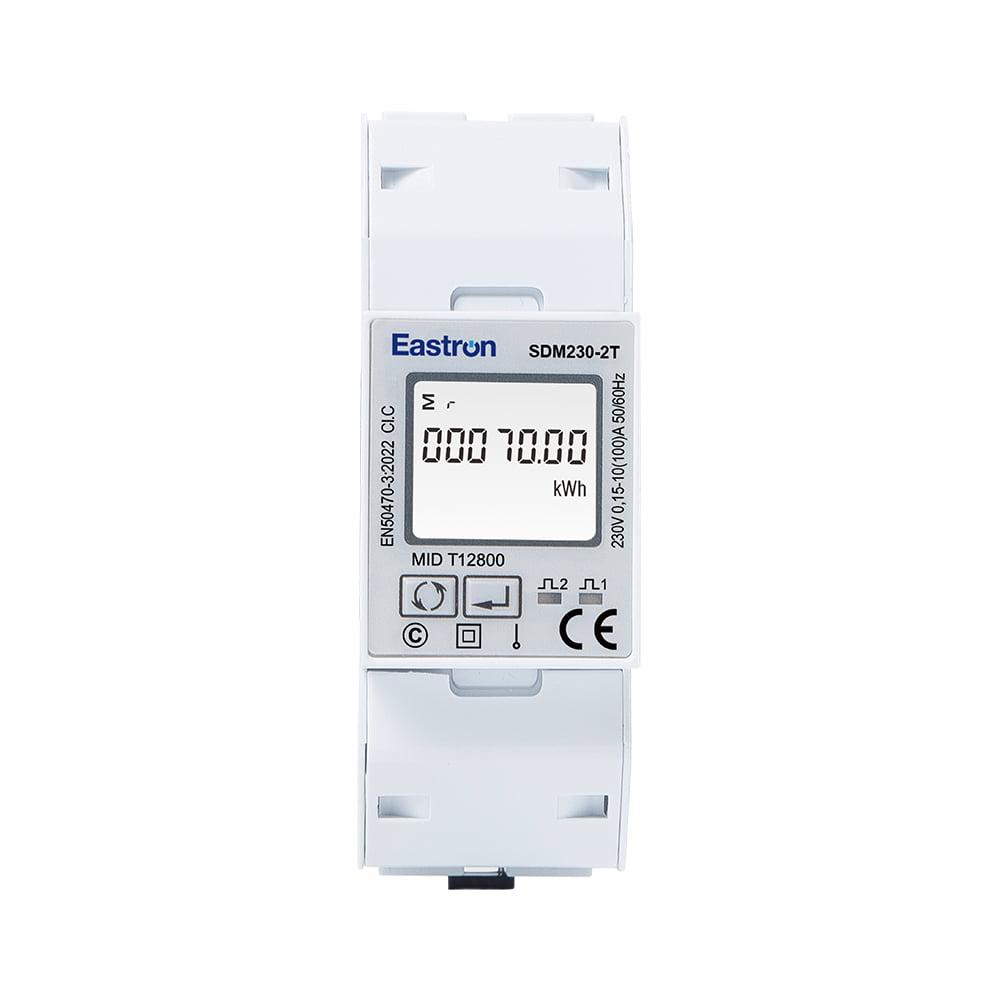

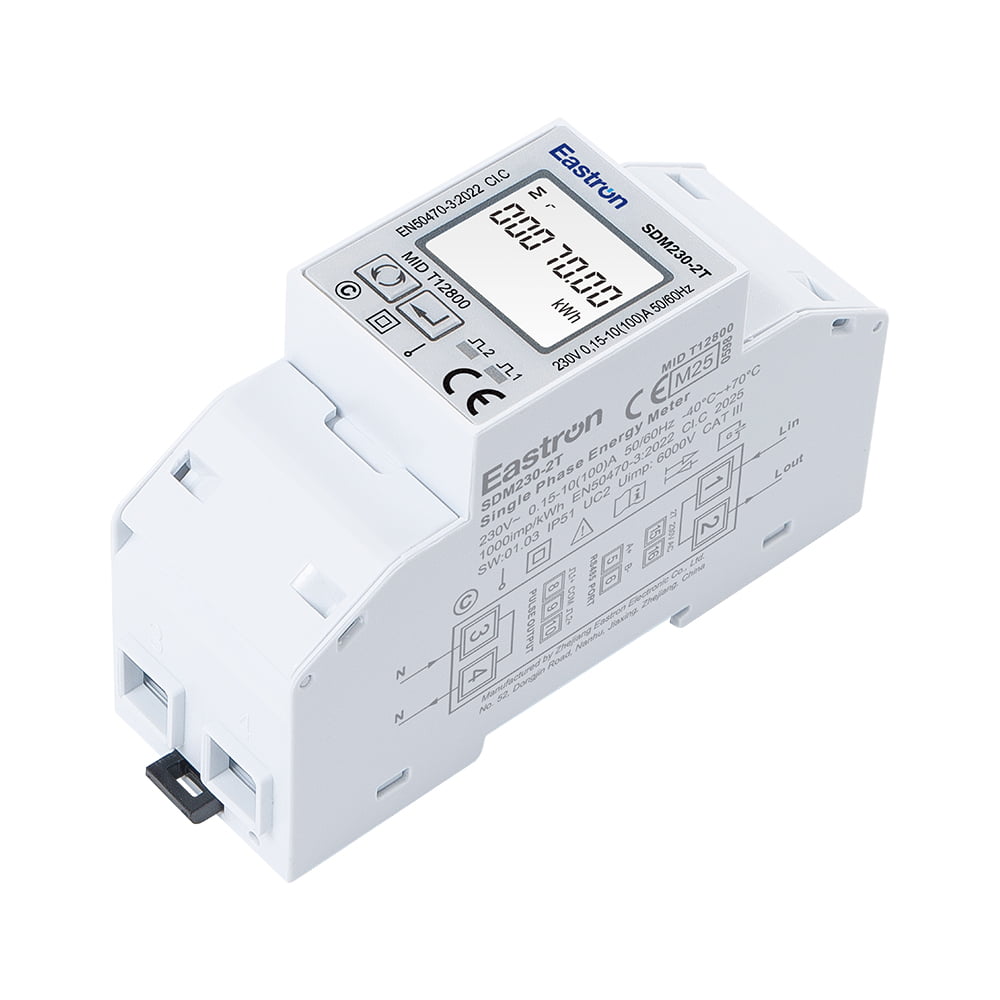

Dual Tariff 100A Din Rail Single Phase MID Energy Meter

  • Dual Tariff 100A Din Rail Single Phase MID Energy Meter
  • Dual Tariff 100A Din Rail Single Phase MID Energy Meter
  • Dual Tariff 100A Din Rail Single Phase MID Energy Meter
  • Dual Tariff 100A Din Rail Single Phase MID Energy Meter
  • Dual Tariff 100A Din Rail Single Phase MID Energy Meter
  • Dual Tariff 100A Din Rail Single Phase MID Energy Meter

SDM230-2T

Dual Tariff 100A Din Rail Single Phase MID Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output + Modbus
  • Bi-directional Measurement
  • Dual tariff ( dual power source )
  • Max. 100A Direct Load
  • 2 Module 36mm Width
  • MID approved
  • 1P2W

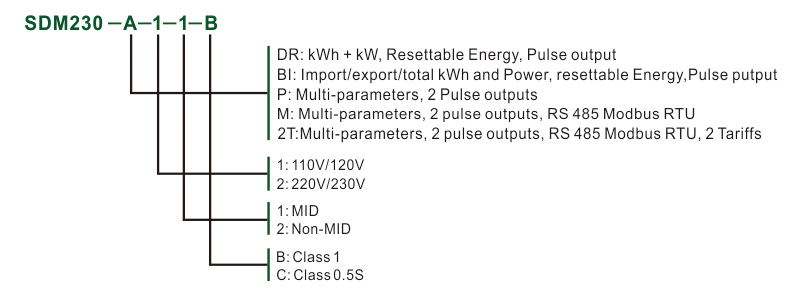

SDM230 Modbus / Mbus / 2T / Std / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

The SDM230-2T is a 2-DIN Dual Tariff 100A Din Rail Single Phase MID Energy Meter.  It replaces 2 energy meter recording data from two different sources of energy. It provides two counters showing energy consumption on public electricity board (EB) and diesel generator (DG). The meter measures all important electrical parameters including active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  The units support Max. 100A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, suitable for monitoring energy consumption in residential, solar PV, EV Charging system, industrial and utility applications.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM230-Pulse

2 Pulse Output for imp/exp. energy

SDM230-Modbus

2 Pulse Output + RS485 Modbus

SDM230-Mbus

2 Pulse Output + M-bus EN13757

SDM230-2T

2 Pulse Output + RS485 Modbus + 2 Tariffs (Dual Power Source)

SDM230M-DI

2 Pulse Output + RS485 Modbus + Digital Input

SDM230-Lora

2 Pulse Output + LoraWAN







RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
