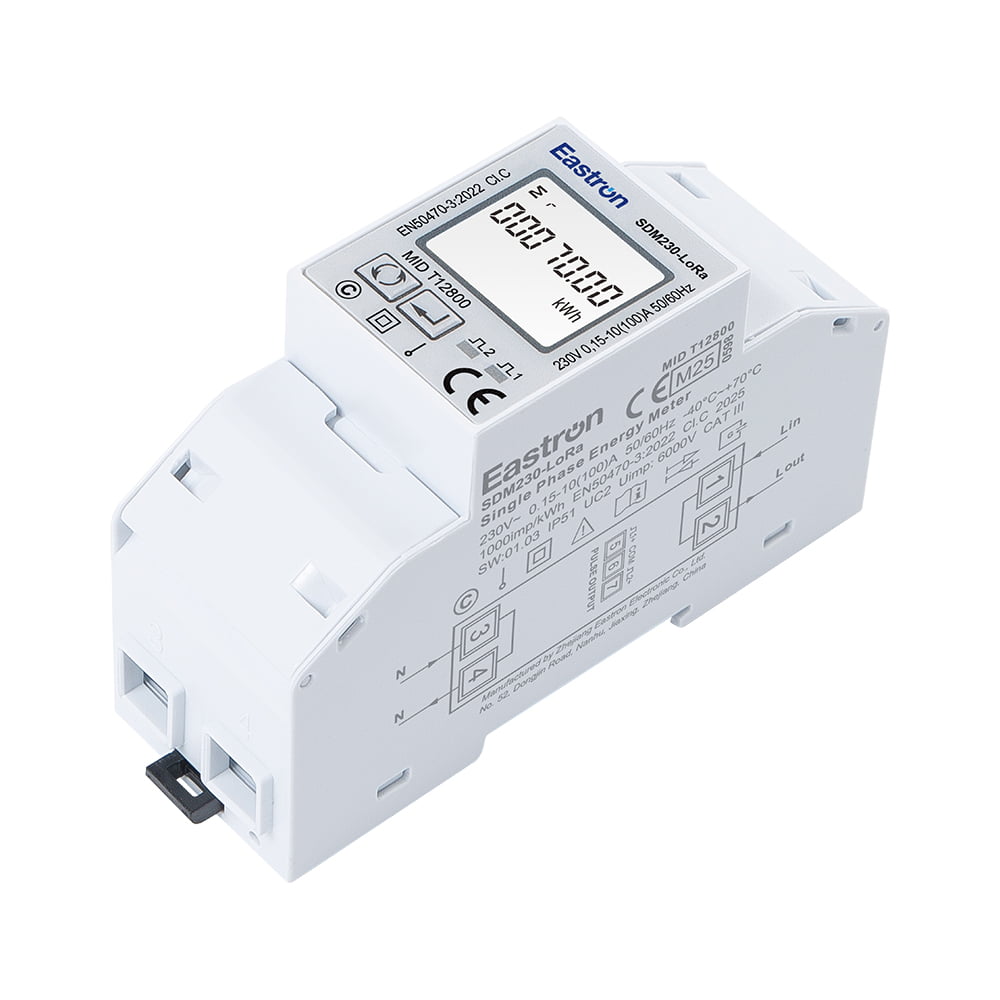

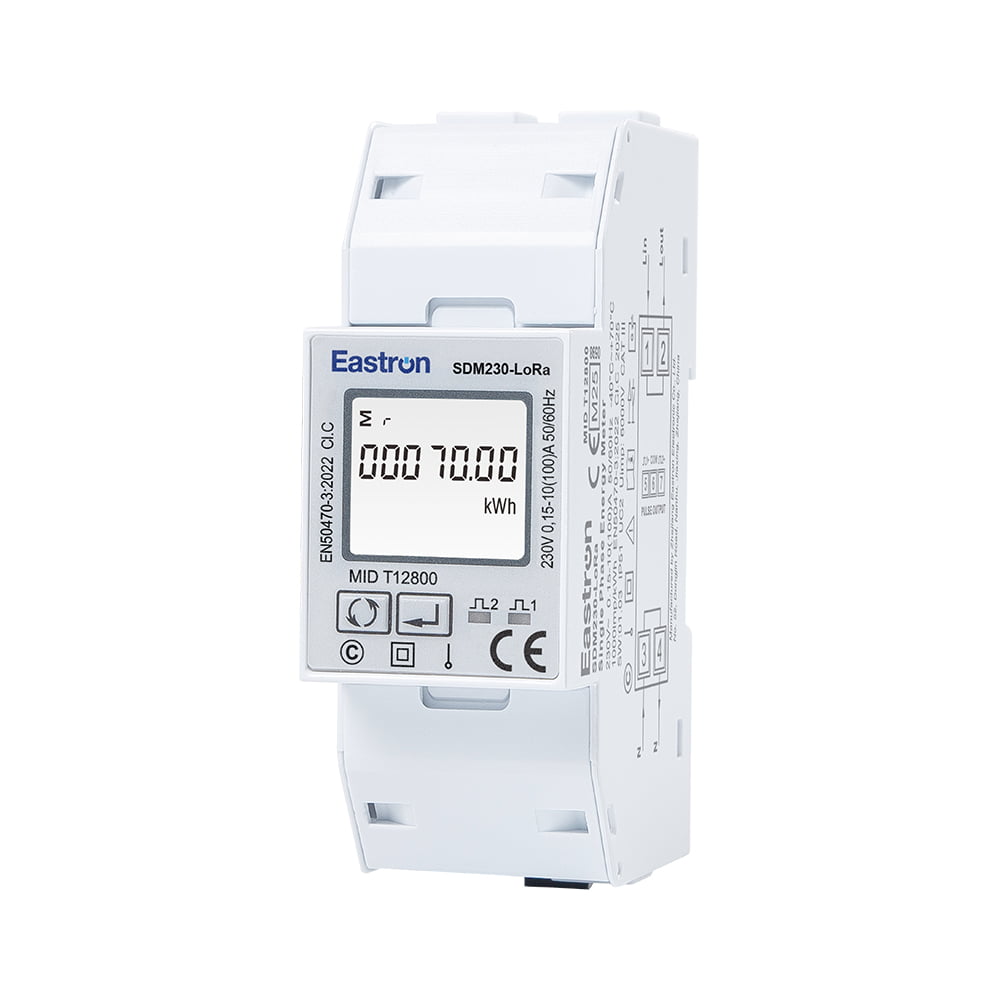

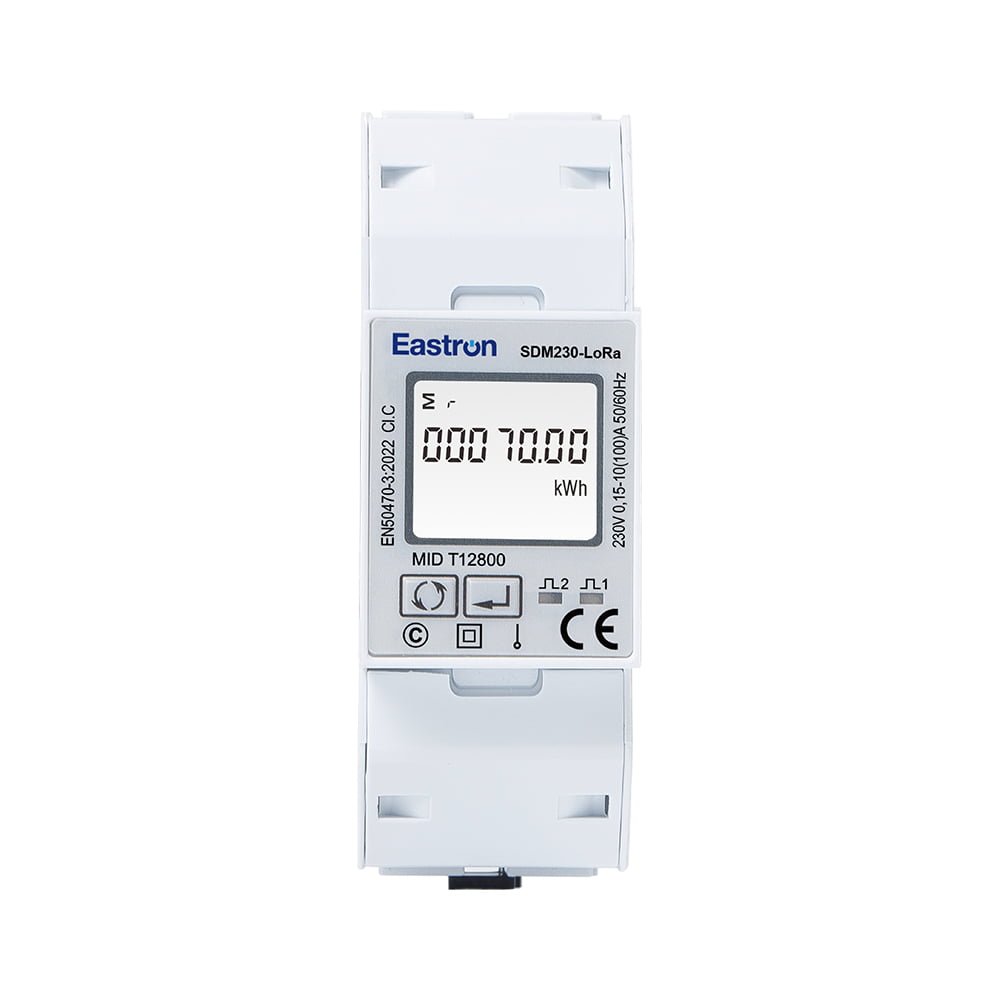

LoRaWAN 100A Din Rail Single Phase MID Energy Meter

  • LoRaWAN 100A Din Rail Single Phase MID Energy Meter
  • LoRaWAN 100A Din Rail Single Phase MID Energy Meter
  • LoRaWAN 100A Din Rail Single Phase MID Energy Meter
  • LoRaWAN 100A Din Rail Single Phase MID Energy Meter
  • LoRaWAN 100A Din Rail Single Phase MID Energy Meter
  • LoRaWAN 100A Din Rail Single Phase MID Energy Meter

SDM230-LoRa

LoRaWAN 100A Din Rail Single Phase MID Energy Meter

  • Single Phase 100A direct Connection
  • Support auto-upload mode for uploading data
  • Download/ Upload time interval can be set or adjusted.
  • Confirmations/ Off line detection available
  • Support auto-resume mode
  • Wide range of LoRa frequency band
  • (EU868/AS923/CN433/CN470/AU915/US902 MHz, etc.)
  • High accuracy, Class 1 /Class 0.5s
  • ETL, MID certified
The SDM230-Lora is a LoRaWAN 100A Din Rail Single Phase MID Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  The units support Max. 100A direct connection. It frees the user from communication cable wiring, provides more flexibility in stallation and saves a lot of cost on maintenance. It use the standard LoRaWAN protocol which can be for remote monitoring and setting, suitable for monitoring energy consumption in residential, industrial and utility applications. The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM230-Pulse

2 Pulse Output for imp/exp. energy

SDM230-Modbus

2 Pulse Output + RS485 Modbus

SDM230-Mbus

2 Pulse Output + M-bus EN13757

SDM230-2T

2 Pulse Output + RS485 Modbus + 2 Tariffs (Dual Power Source)

SDM230M-DI

2 Pulse Output + RS485 Modbus + Digital Input

SDM230-Lora

2 Pulse Output + LoraWAN







RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
