Mbus CT Type Din Rail Single Phase MID Energy Meter

  • Mbus CT Type Din Rail Single Phase MID Energy Meter
  • Mbus CT Type Din Rail Single Phase MID Energy Meter
  • Mbus CT Type Din Rail Single Phase MID Energy Meter
  • Mbus CT Type Din Rail Single Phase MID Energy Meter
  • Mbus CT Type Din Rail Single Phase MID Energy Meter
  • Mbus CT Type Din Rail Single Phase MID Energy Meter

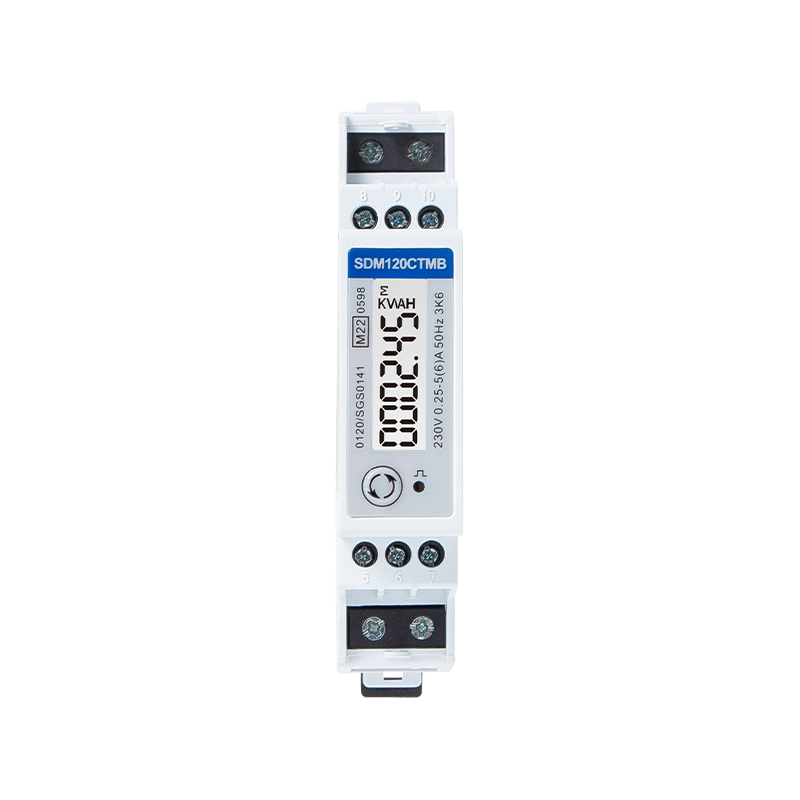

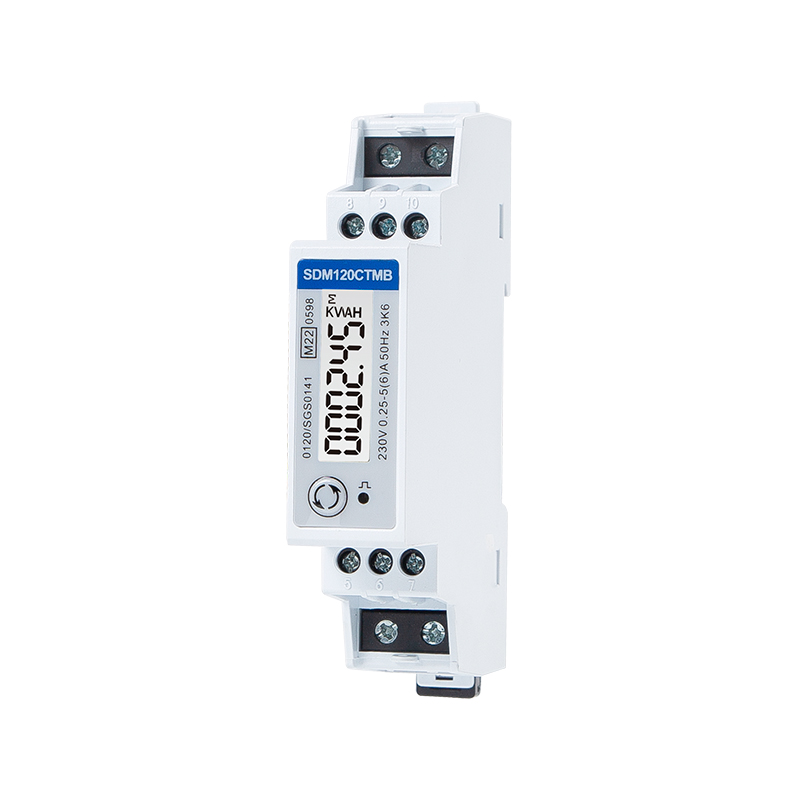

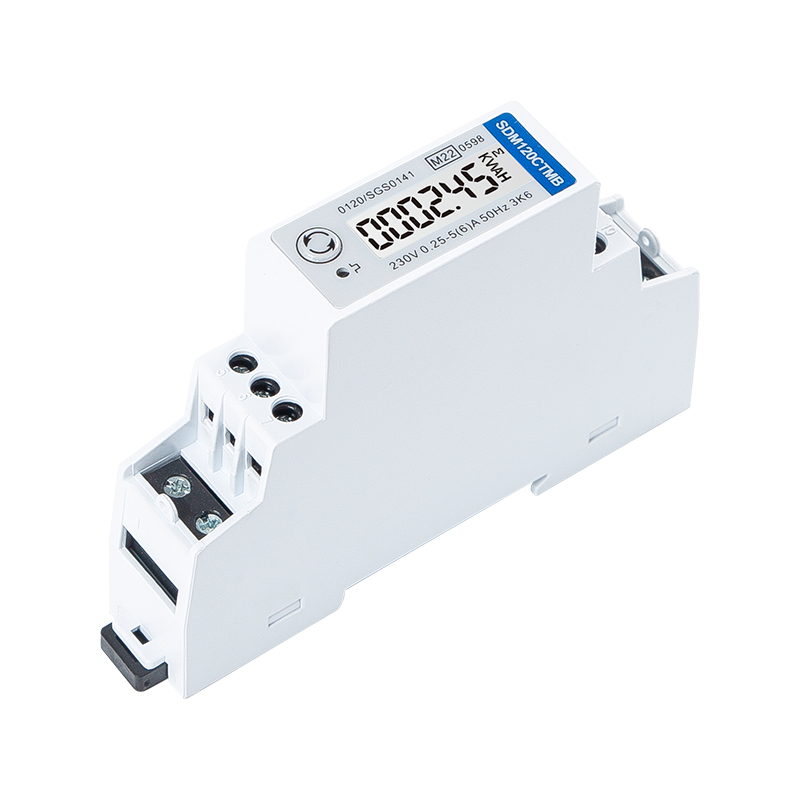

SDM120CTMB

Mbus CT Type Din Rail Single Phase MID Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output + Mbus
  • Bi-directional Measurement
  • CT operated
  • 1 Module 18mm Width
  • MID approved
  • 1P2W

SDM120CT Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

SDM120CTMB is Mbus communicated CT operated Din Rail Single Phase MID Energy Meter . It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, industrial and utility applications.

The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM120CTP

2 Pulse Output for imp/exp. energy

SDM120CTM

2 Pulse Output + RS485 Modbus

SDM120CTMB

2 Pulse Output + M-bus EN13757-3



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
