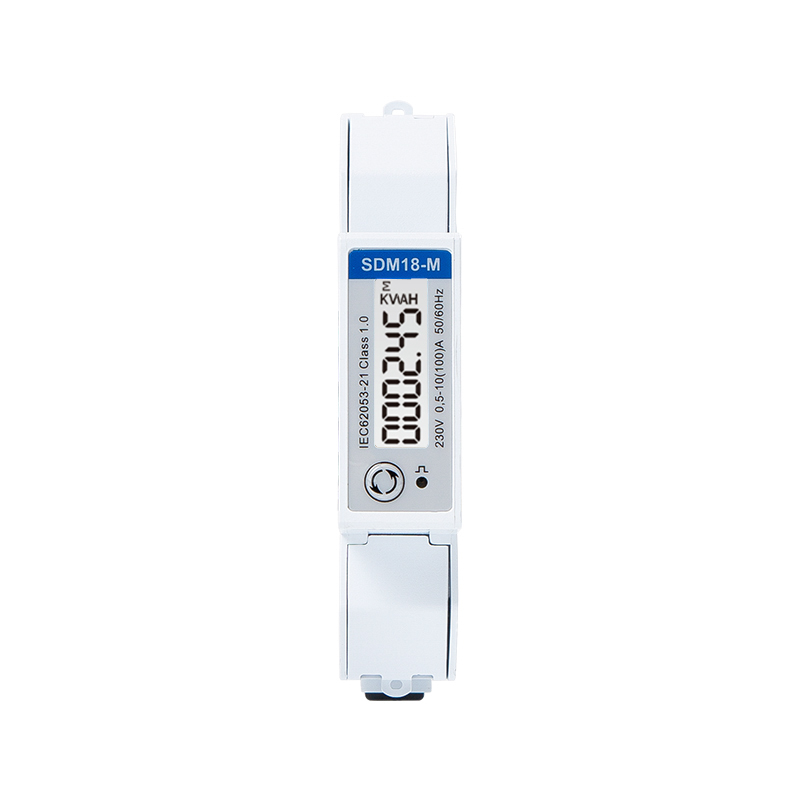

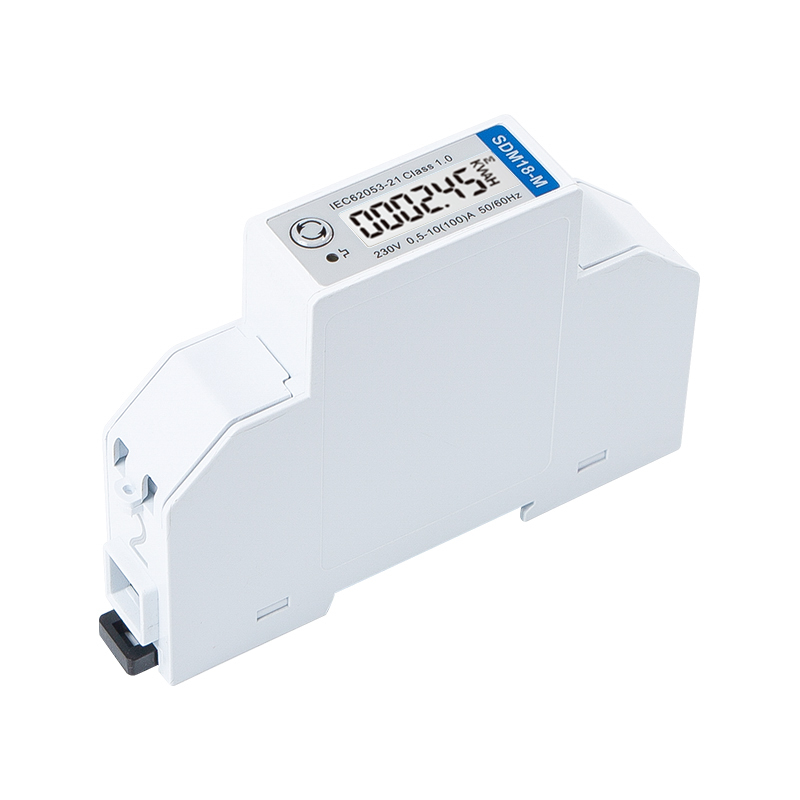

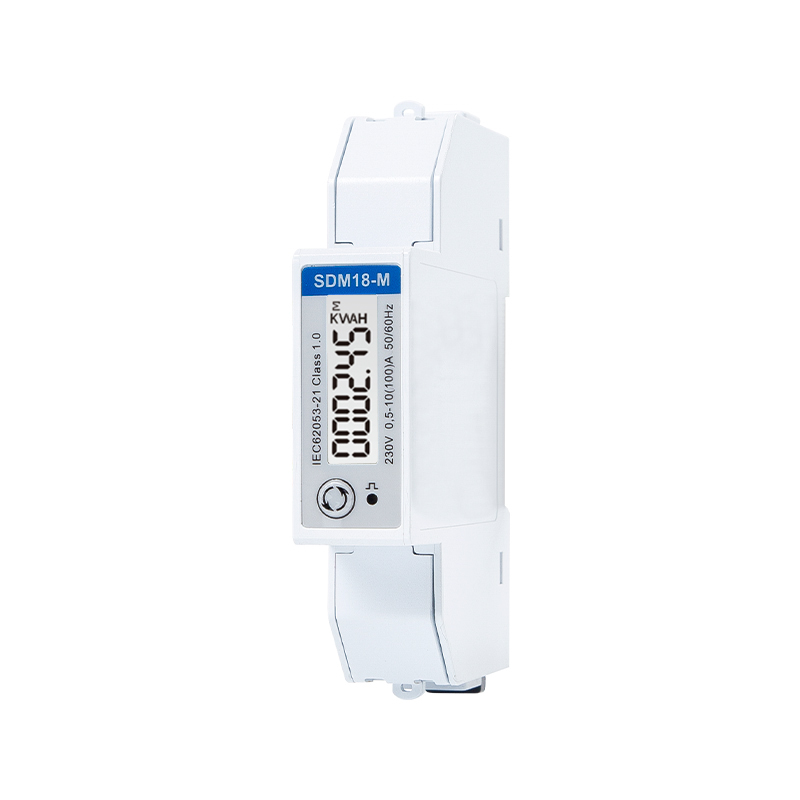

SDM18-M

Modbus RTU Single Phase Din Rail 100A direct type MID Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output + Mbus
  • Bi-directional Measurement
  • CT operated
  • 1 Module 18mm Width
  • MID approved
  • 1P2W
SDM18-M is Mbus communicated CT operated Din Rail Single Phase MID Energy Meter . It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, industrial and utility applications.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P2W)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0 / EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM18-M

RS485 Modbus

SDM18-MB

Mbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



M-Bus Communications

Interface Standard and Protocol

M-bus EN13757-3

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
