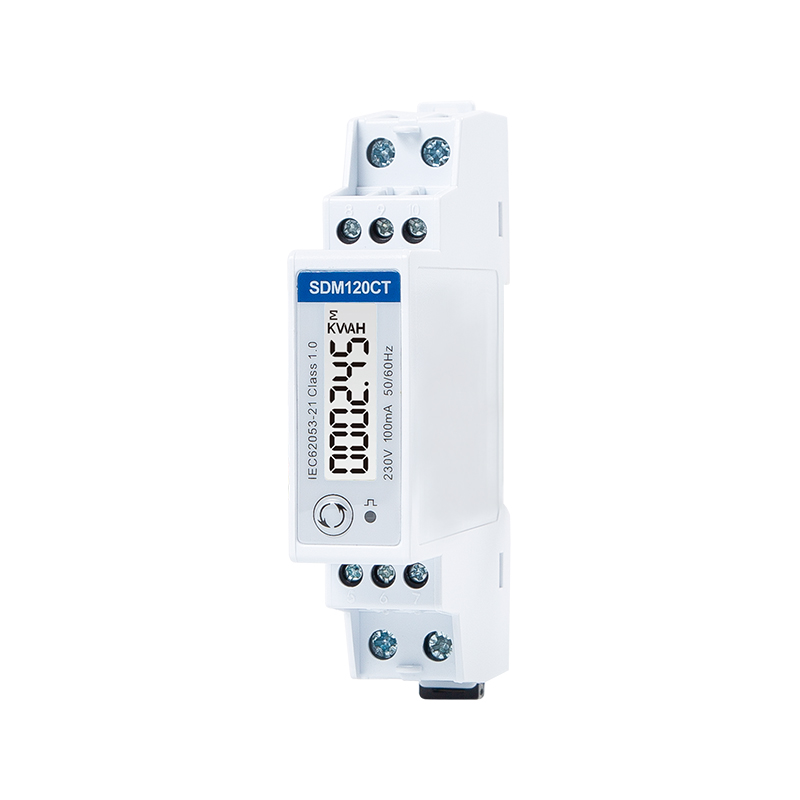

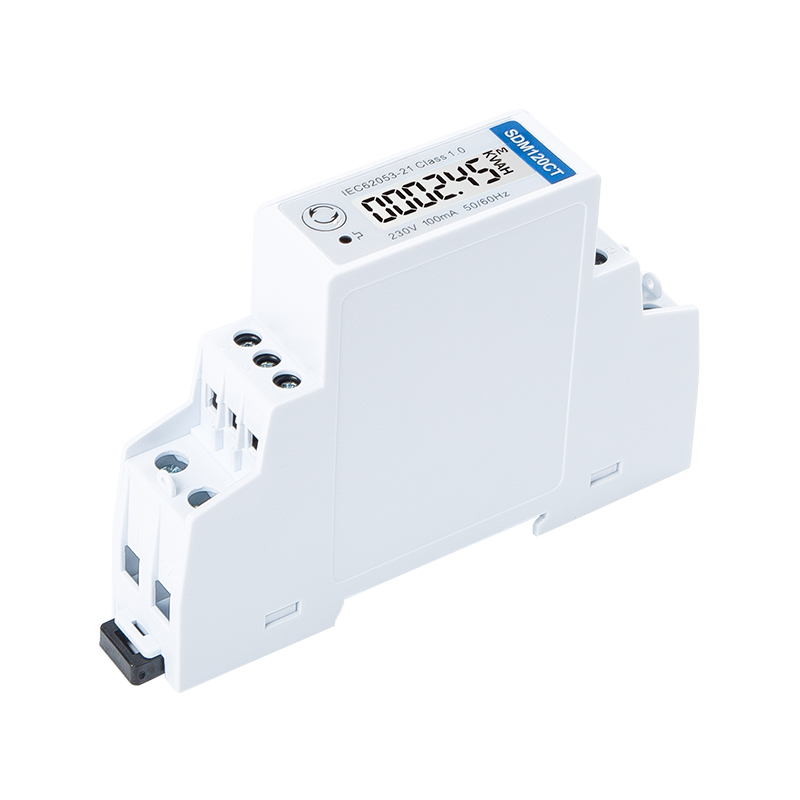

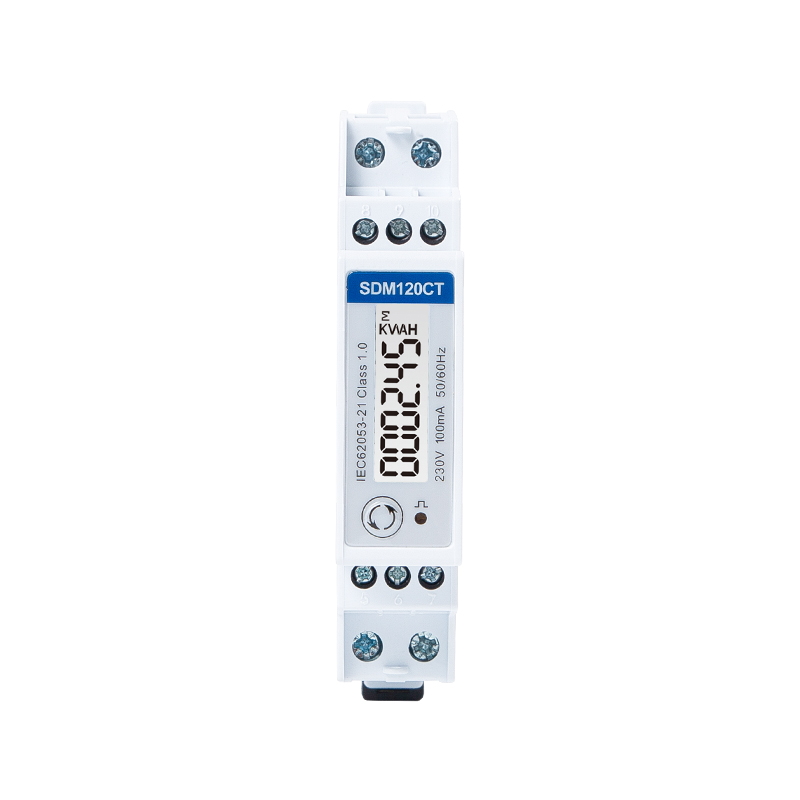

SDM120CT-MV

RS485 Modbus CT Type mV/mA input Single Phase Multi-function Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output +Modbus
  • Bi-directional Measurement
  • 40mA / 100mV/100mA CT operated
  • 1 Module 18mm Width
  • 1P2W

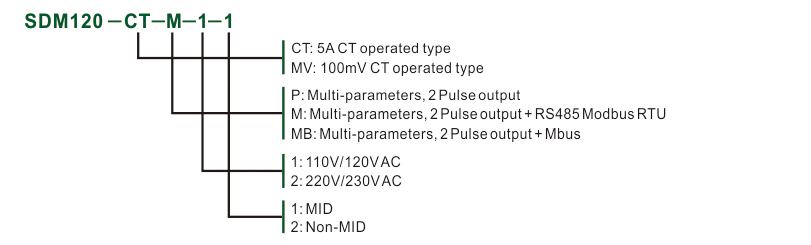

SDM120CT Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

The SDM120CT-MV is a RS485 Modbus CT Type mV/mA input Single Phase Multi-function Energy Meter with  RS485 Modbus/DLT645 output.  It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, popular with single phase PV solar power system. The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.

Input & Output

Input

Current

CT Primary

1-9999A

CT Secondary

100mV/ 100mA/ 40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

2 Pulse Output + RS485 Modbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

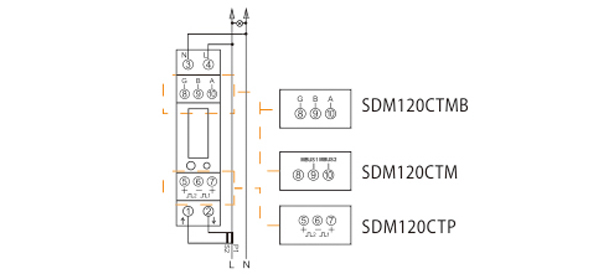

Wiring diagram

Wiring and Dimension [mm:]

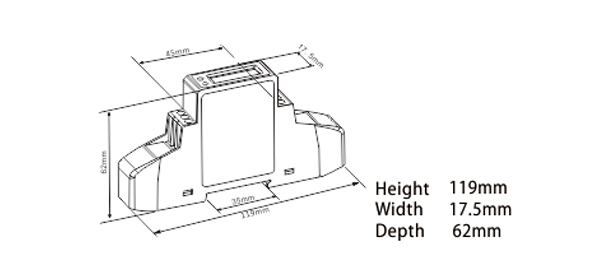

Dimensions
