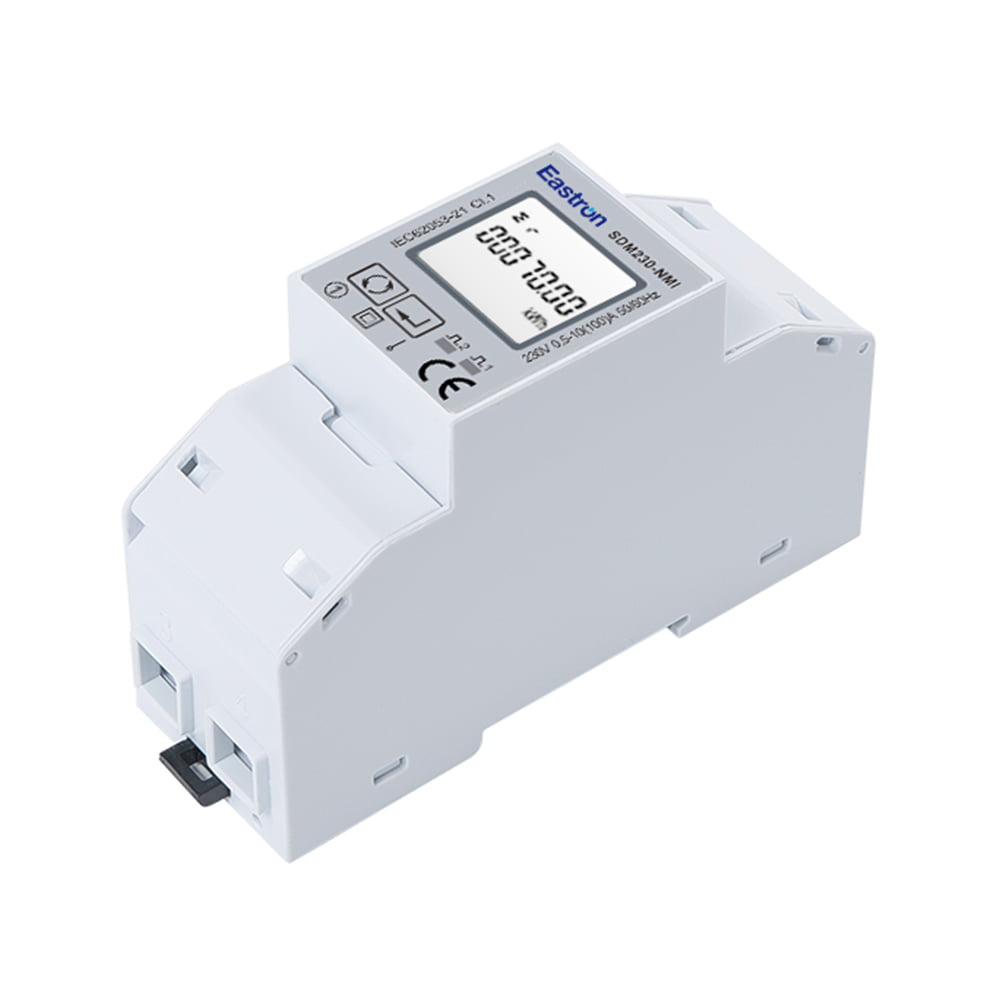

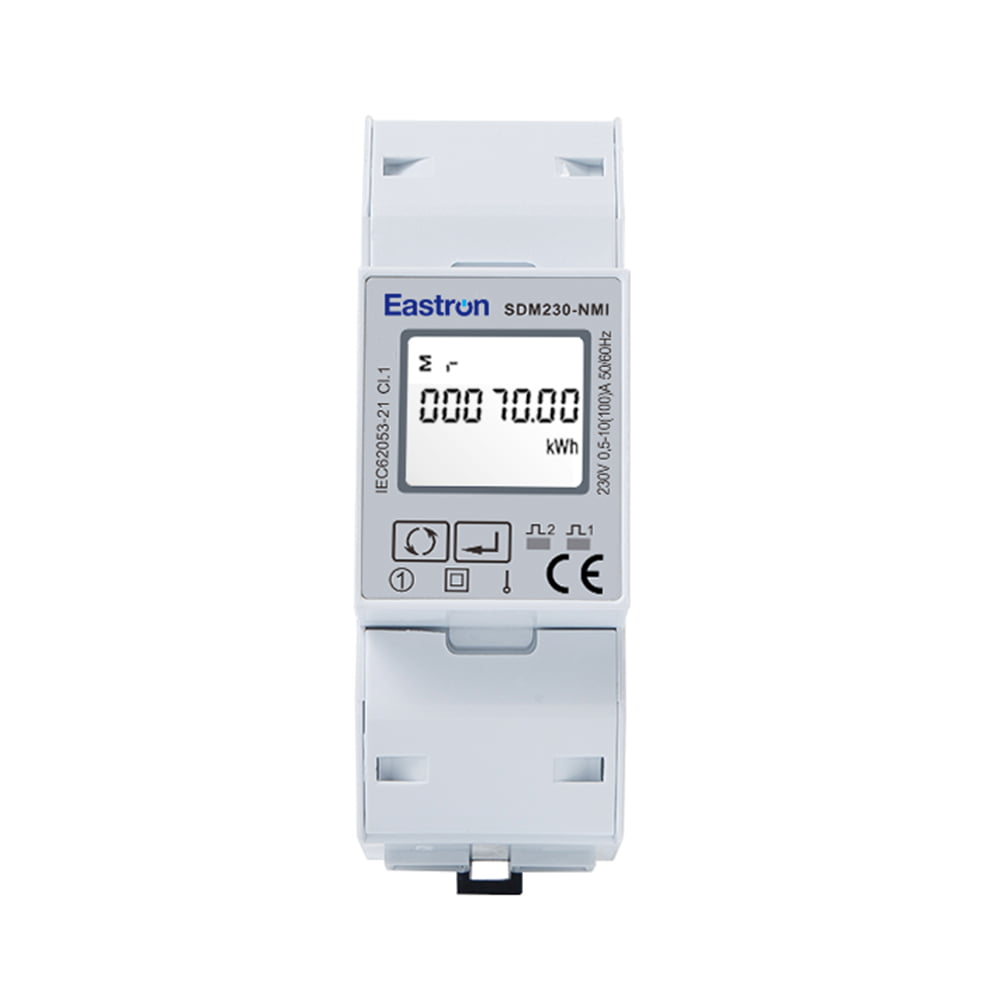

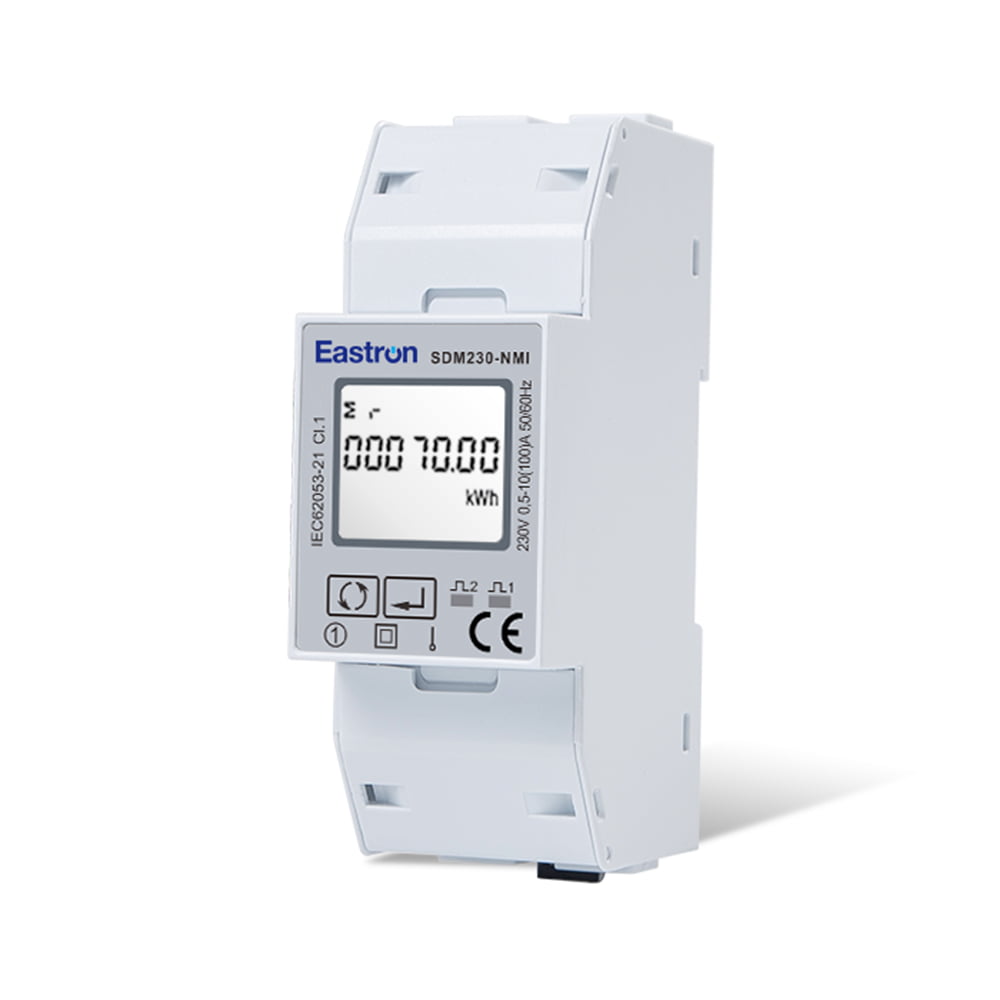

SDM230-NMI

Din Rail Single Phase Multi-function Solar PV/Zero Export Meter with 50mS Data Update

  • 50mS Data Update
  • Multi-measurement:kWh, W, V, A, PF, Hz, dmd, etc.
  • For Solar PV Metering
  • RS485 Modbus Communication
  • Max.100A Direct Load
The SDM230-NMI is a Din Rail single phase multi-function solar PV/ Zero export meter with 50mS data update. The meter measures active energy (kWh), reactive energy(kVArh), current, voltage, power, power factor, frequency, etc.
The unit support Max. 100A direct connection. Two pulse outputs and 1 communication port (RS485 Modbus) are provided for remote monitoring and setting.
The bi-directional measurement, as well as the 50mS data update makes it an ideal choice for  solar PV measurement solutions, especially the zero-export solution. The inverter could receive the data from the meter more quickly.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM230-NMI

2 Pulse Outputs + RS485 Modbus

SDM230-NMI-2

2x RS485 Modbus



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
