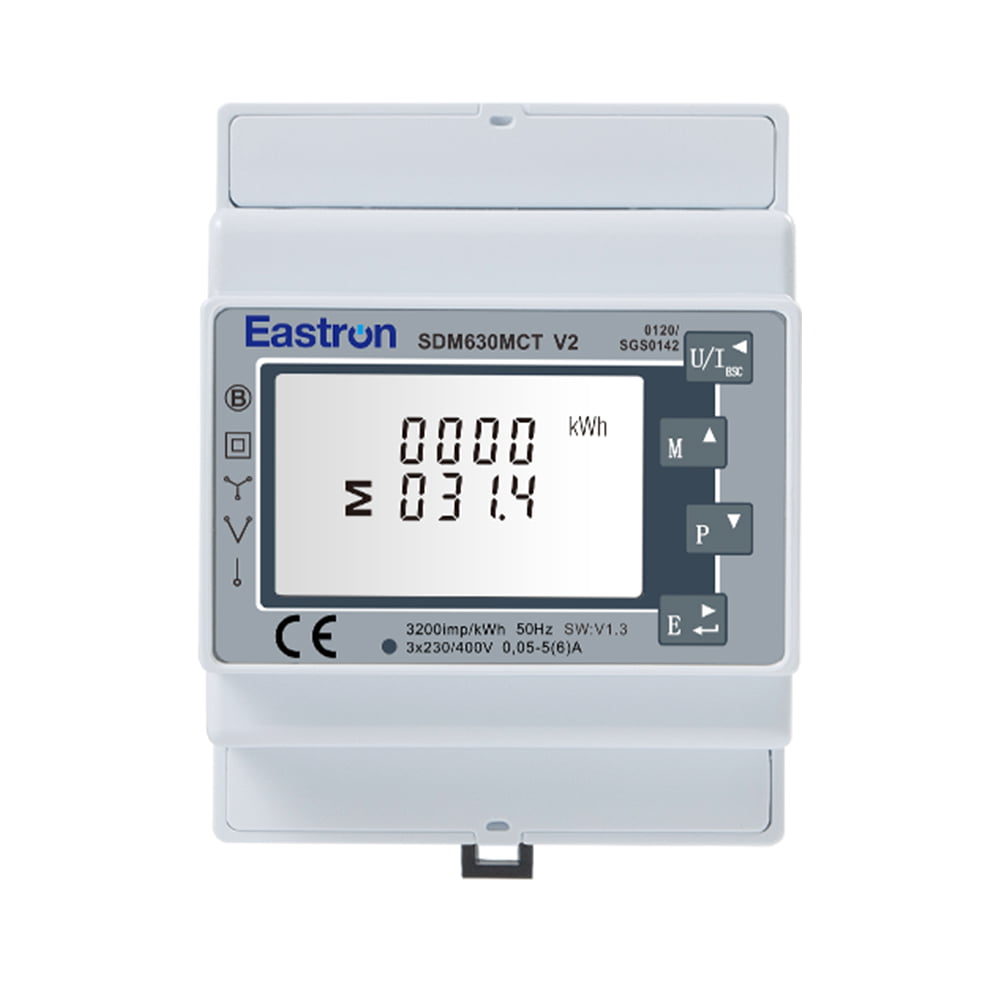

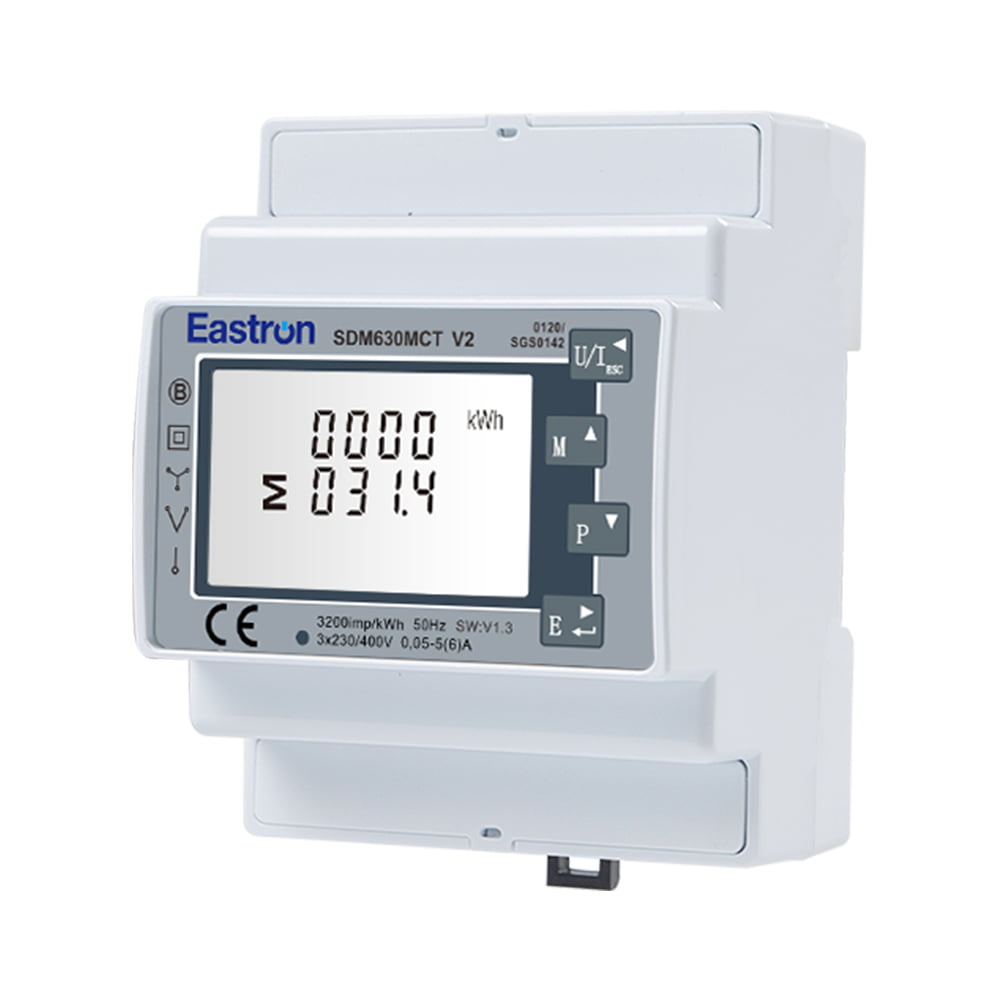

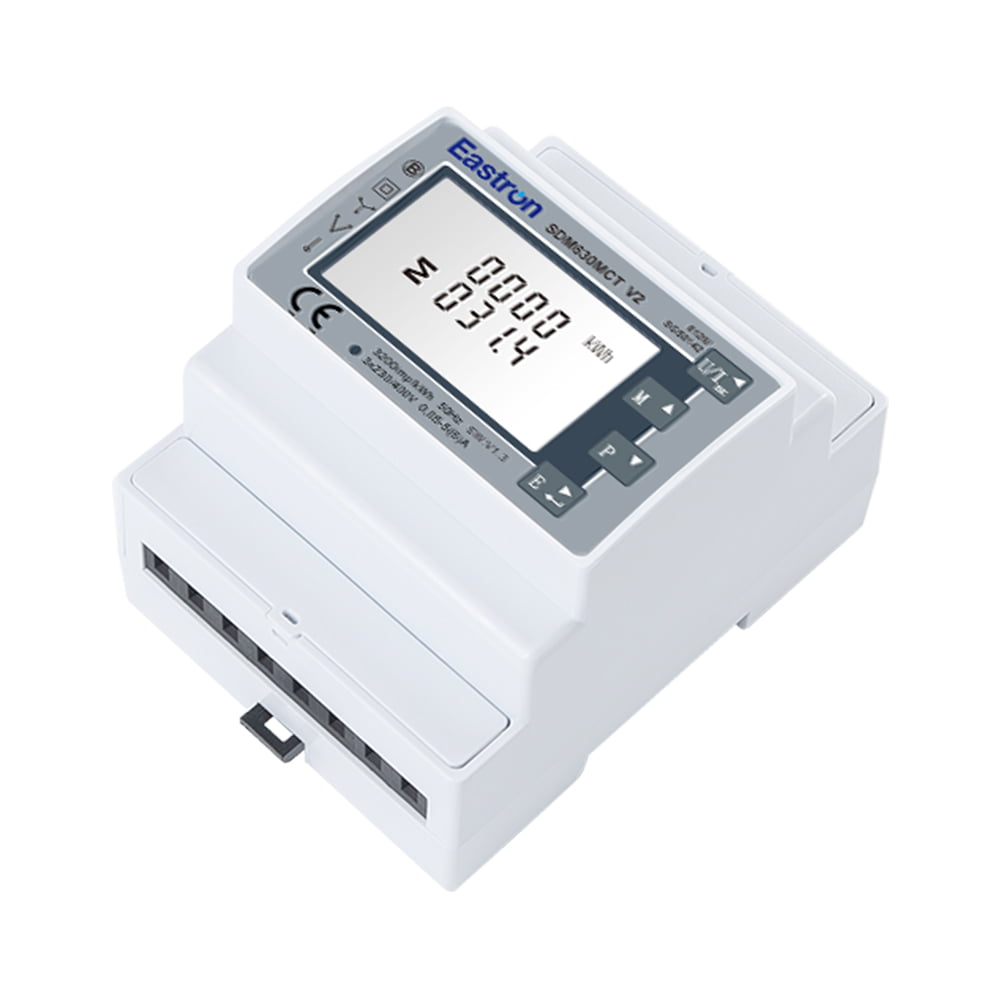

SDM630MCT V2

MID Approved CT Type Din Rail Three Phase Multi-function Solar PV /Zero Export Meter for PV Metering

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement for Solar PV Metering
  • 2 Pulse outputs
  • RS485 Modbus
The SDM630MCT V2 is MID Approved CT Type Din Rail Three Phase Multi-function Solar PV /Zero Export Meter for PV metering. Suitable for monitoring energy consumption and many other electrical parameters. Its bi-directional measurement function made it a good choice for Solar PV and the Zero Export Systems. The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. Build-in interface provides pulse and RS485 Modbus RTU outputs.
SDM630MCT V2 has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0703.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

EN50470-1/3 Class B and C

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)





Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT/ MT

2 Pulse Outputs + RS485 Modbus

SDM630MCT-2T/ SDM630MCT-Mbus-2T

2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source)

SDM630MCT-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630MCT-LoRa

2 Pulse Outputs + LoraWAN





RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



LoRaWAN Communications

Communication Frequency

EU868/ AS923/ AU915/ US915, etc.

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
