7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output

  • 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output

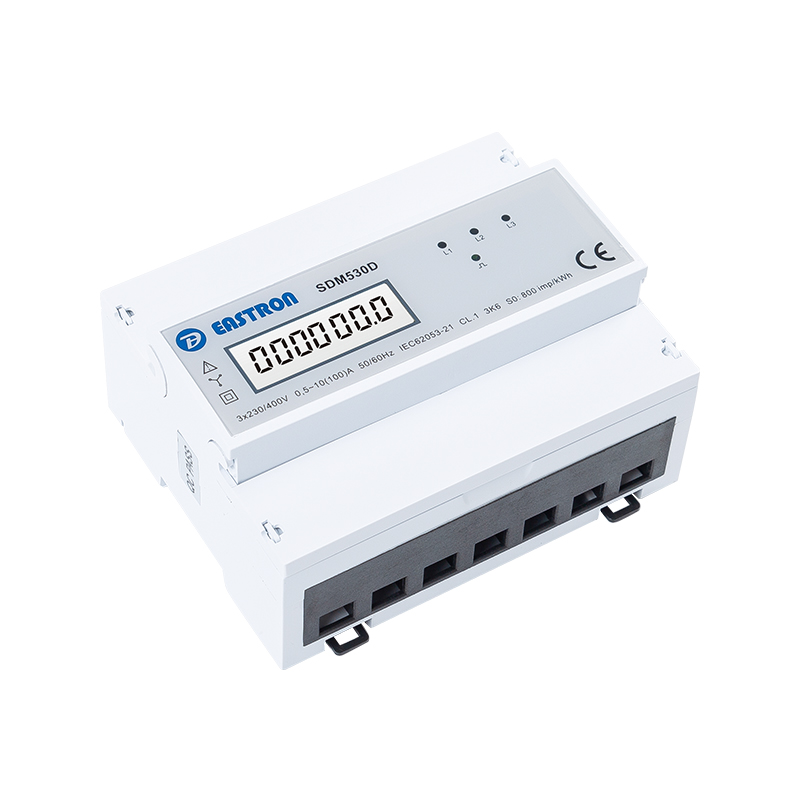

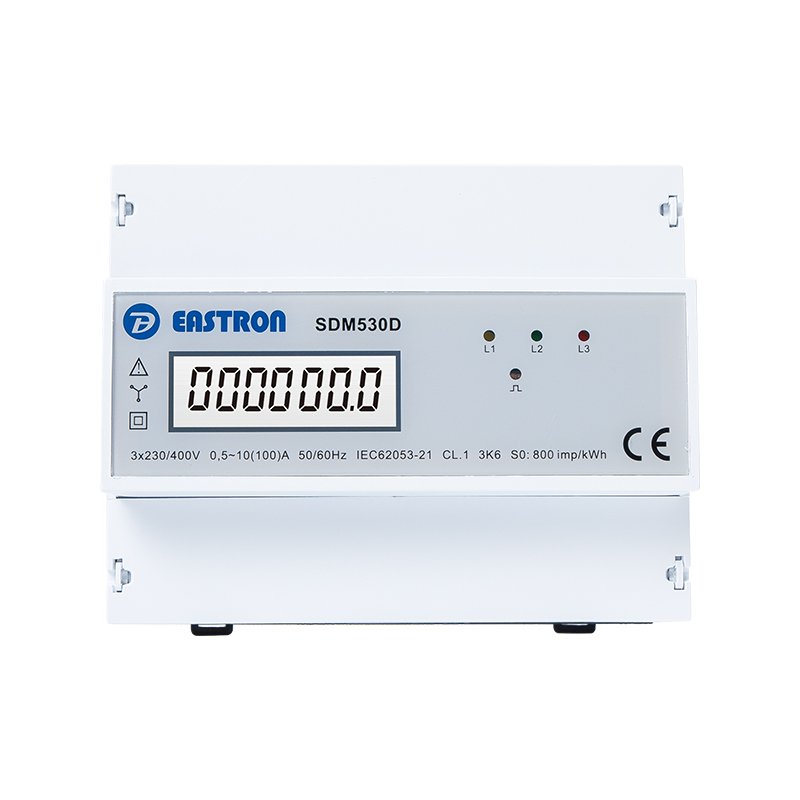

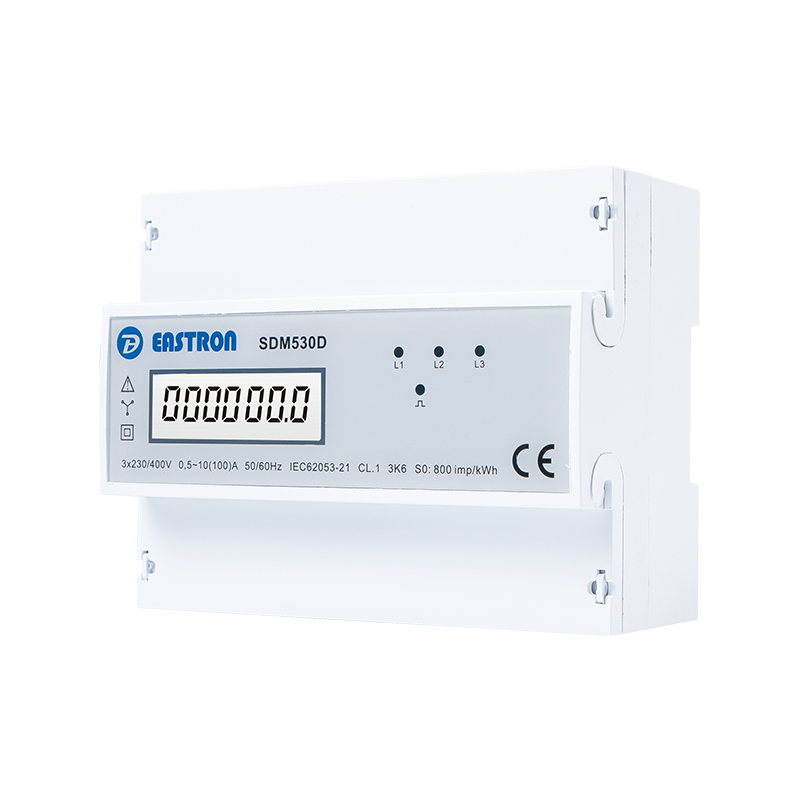

SDM530D

7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Max. 100A Direct Load
  • 7 Modules width
  • Active Energy Measurement
  • Pulse Output
  • High Accuracy of Class 1

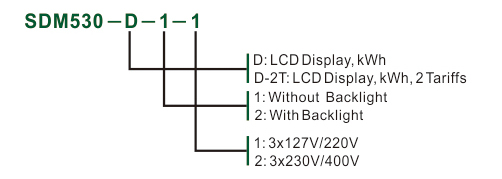

SDM530 D / D-2T

THREE PHASE FOUR WIRE KWH METER

SDM530D is a 7 modules din rail three phase electronic kWh meter. The meter support  three phase four wire connection. With high accuracy of Class 1, it is widthly used to measure three phase active energy(kWh) in commercial and industry applications.  A pulse output interface is provided.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Energy

IEC 62053-21 Class 1.0



Input & Output

Input



Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM530D

Pulse Output

SDM530D-2T

Pulse Output + 2 Tariffs (Dual Power Source)

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

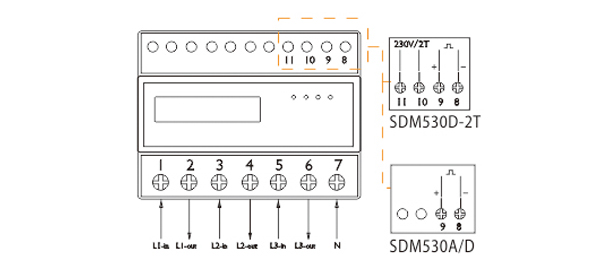

Wiring diagram

Wiring and Dimension [mm:]

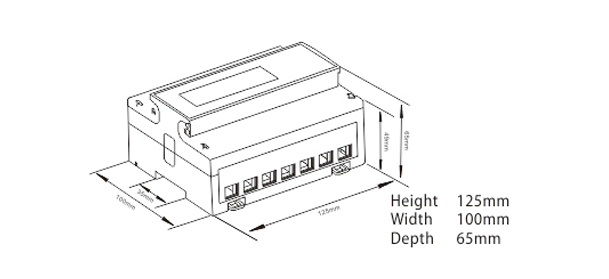

Dimensions
