CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement

  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement
  • CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement

SDM72CT-BI

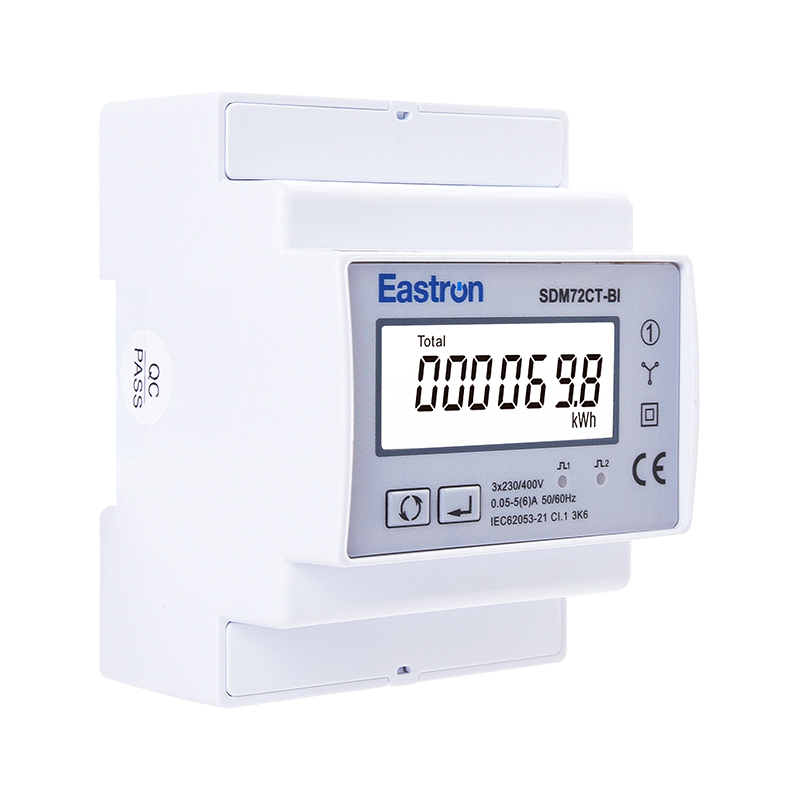

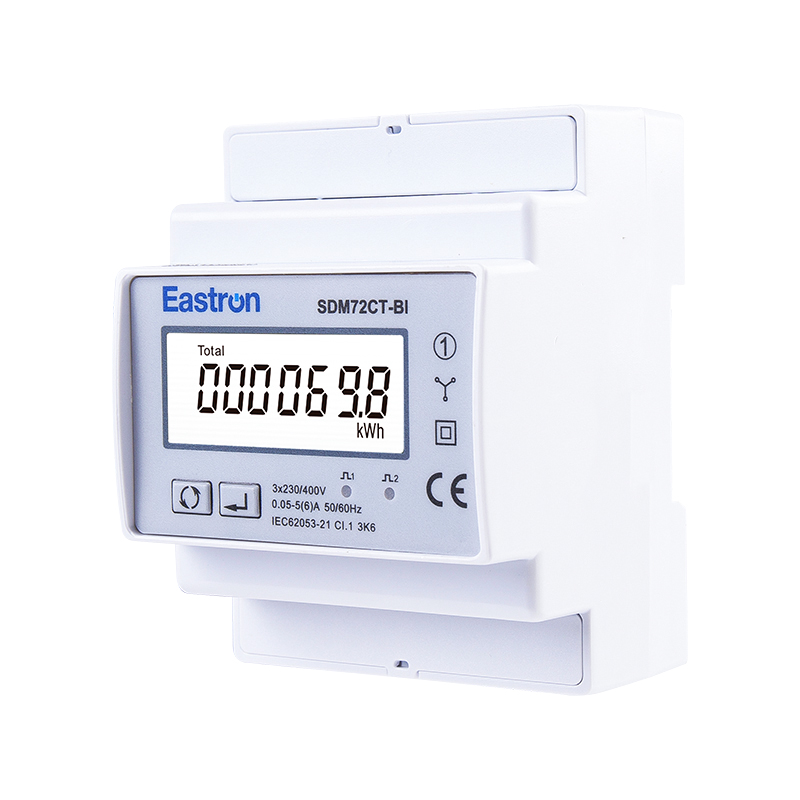

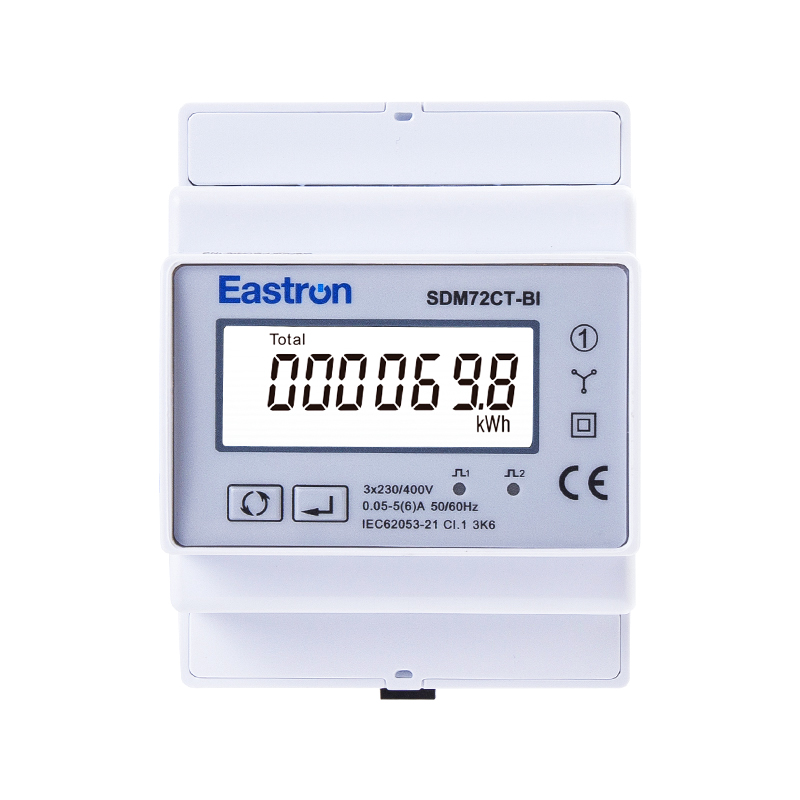

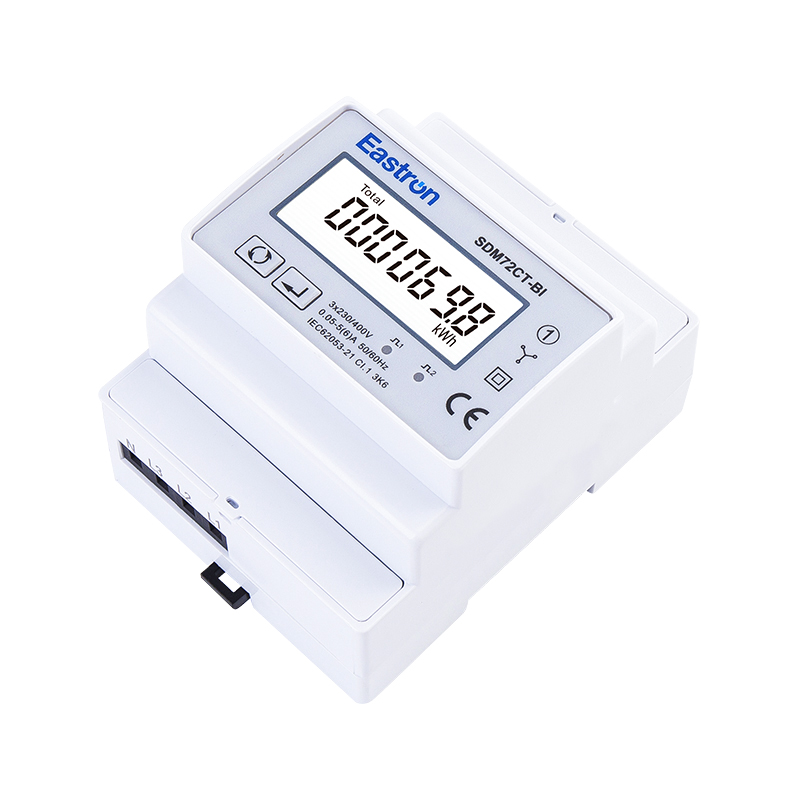

CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement

  • Bi-directional Measurement
  • Pulse Output
  • 5A CT Operated
  • 4 Modules 72mm width
  • Class 1.0 Accuracy
  • 35mm Din Rail Mounting

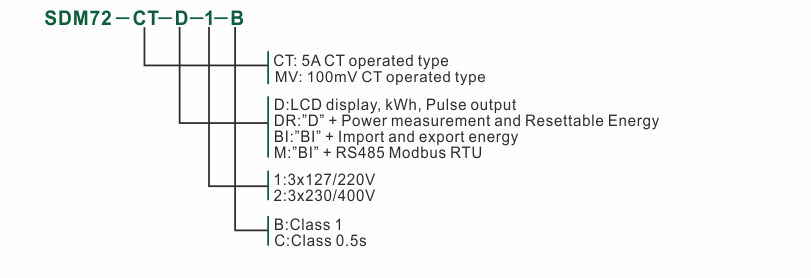

SDM72CT D / BI / DR

THREE PHASE FOUR WIRE ENERGY METER

SDM72CT-Bi is a CT Type Din Rail Three Phase Electronic kWh meter with Bi-directional Measurement and with Pulse Output function.

It is CT operated type, allowing a width range of current input, provides an economical solution for bi-directional energy and bi-directional power measurement in three phase four wire applications.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0



Input & Output

Input-Current

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Output

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

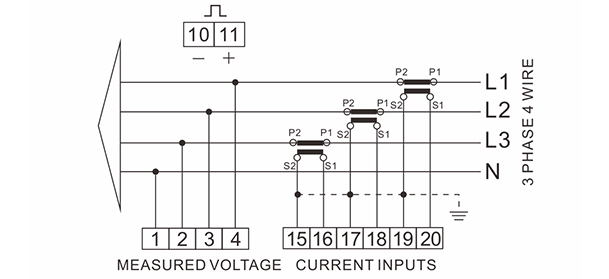

Wiring diagram

Wiring and Dimension [mm:]

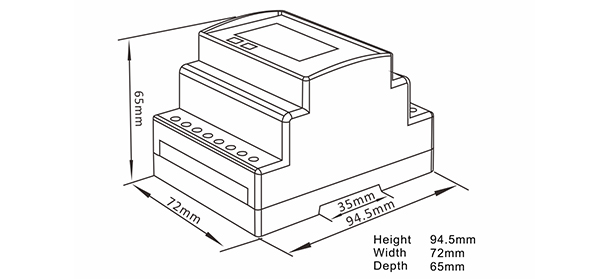

Dimensions
