Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output

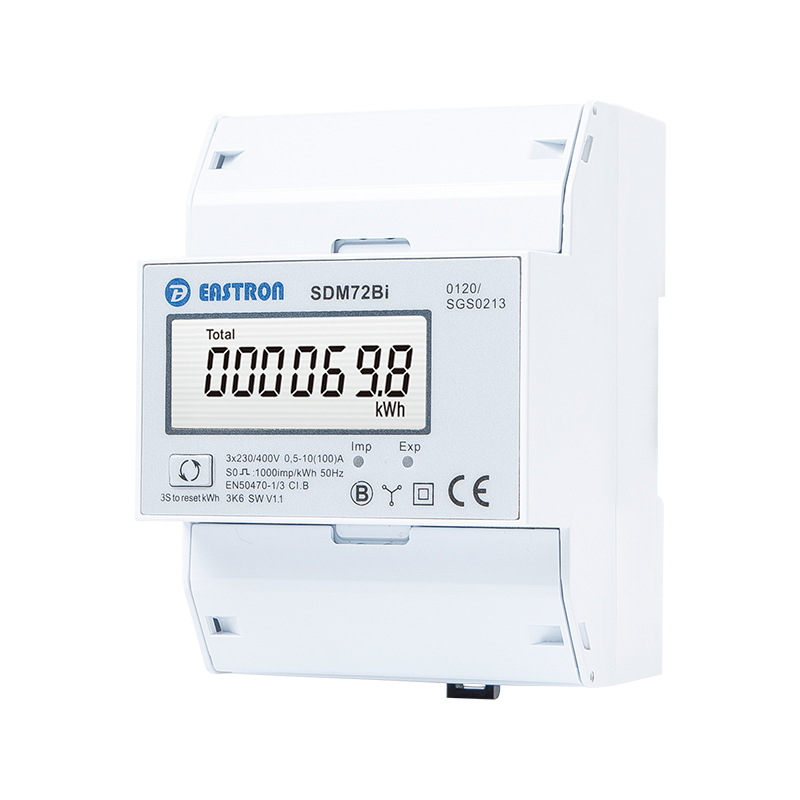

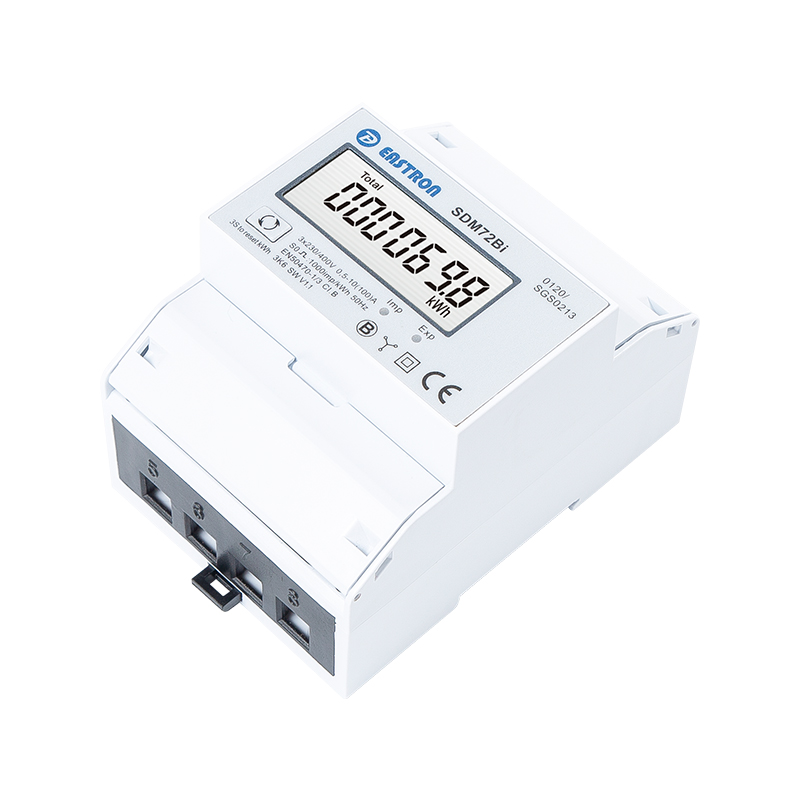

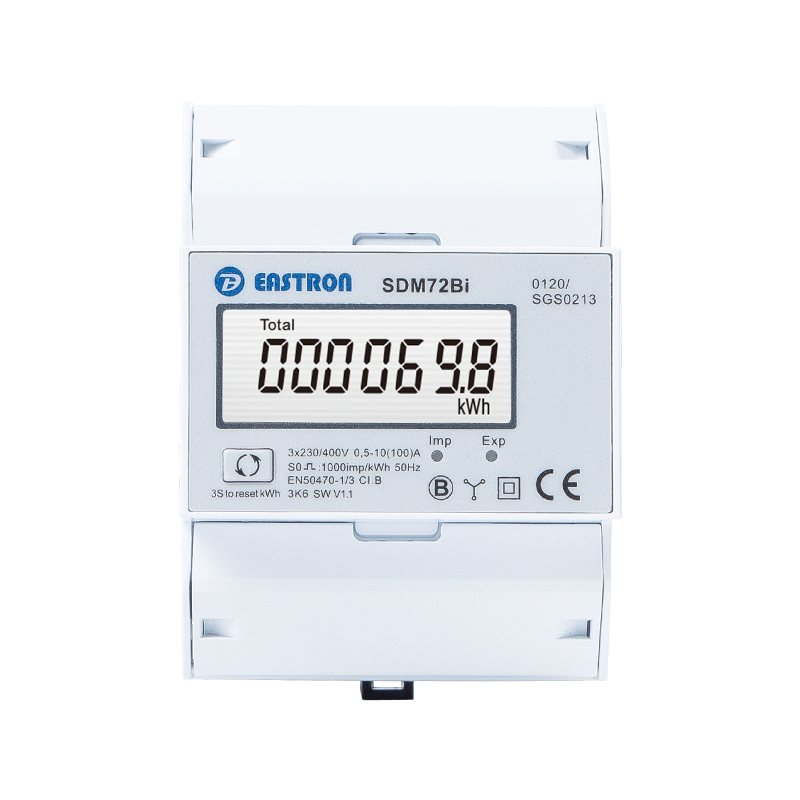

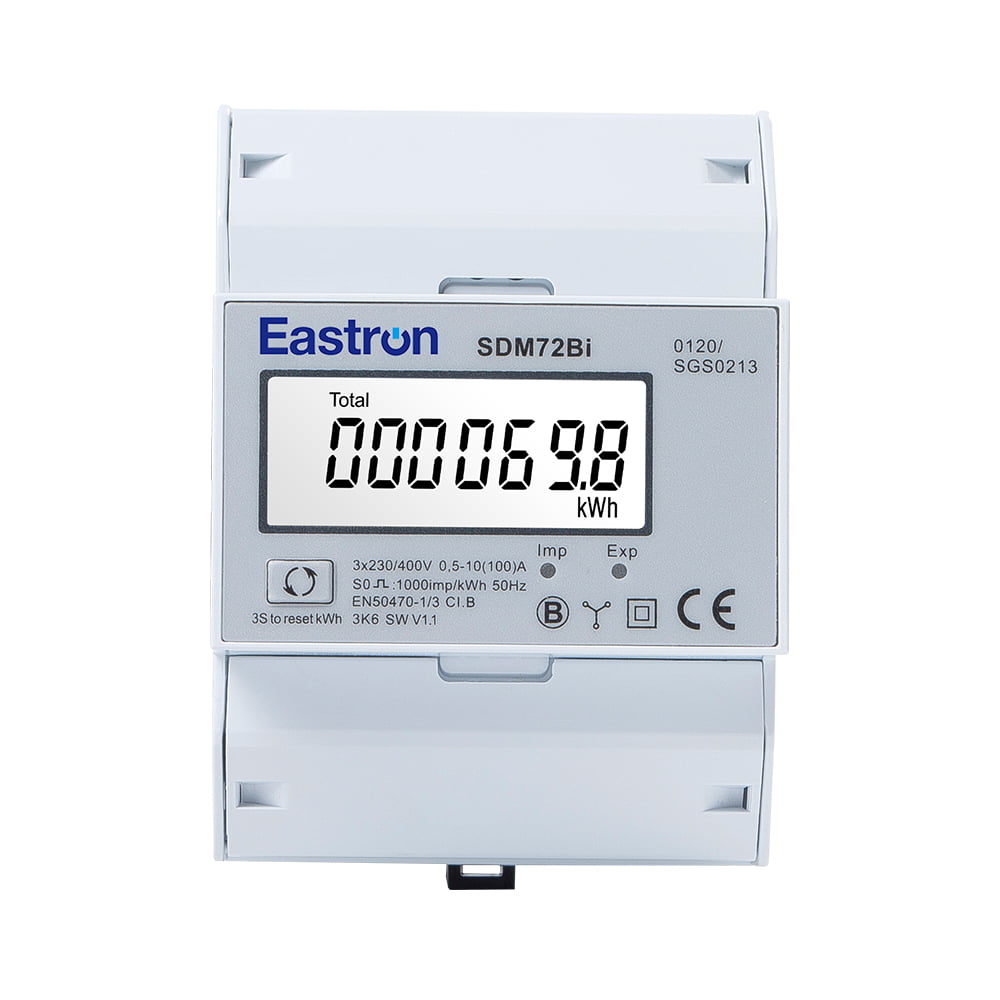

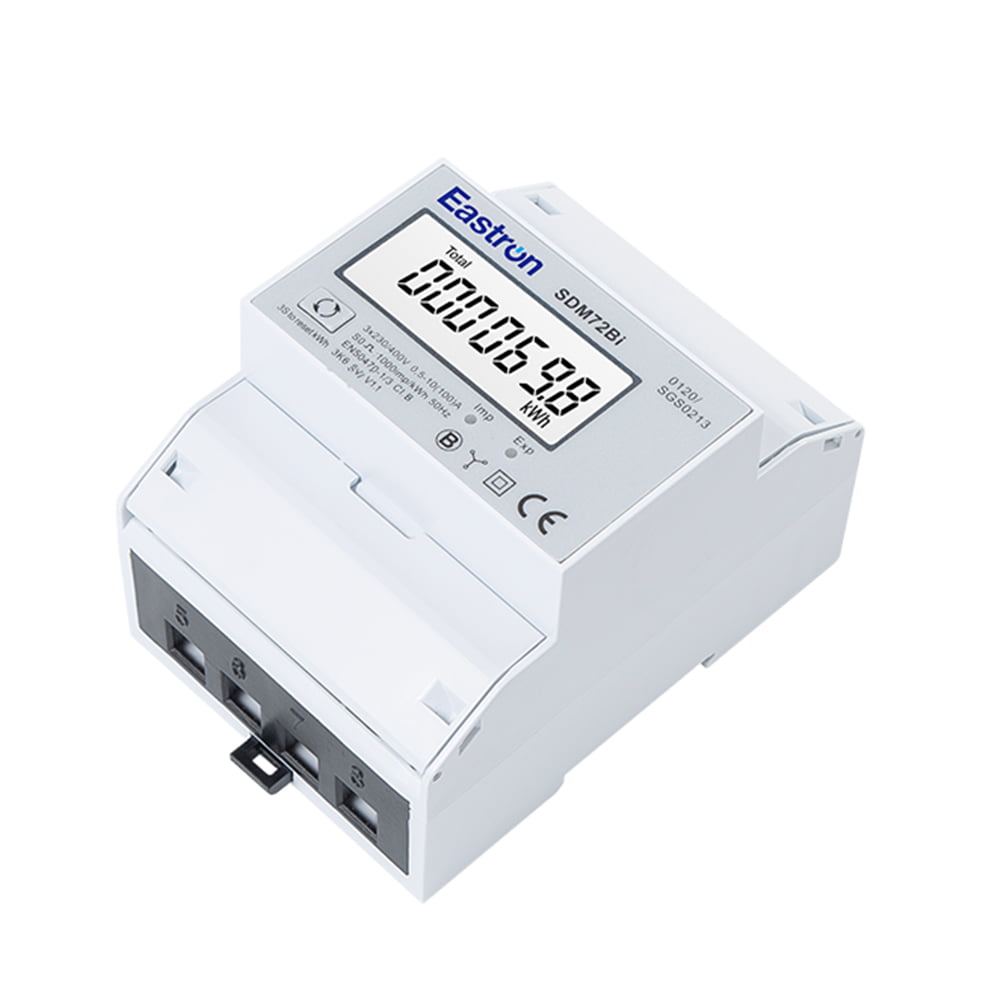

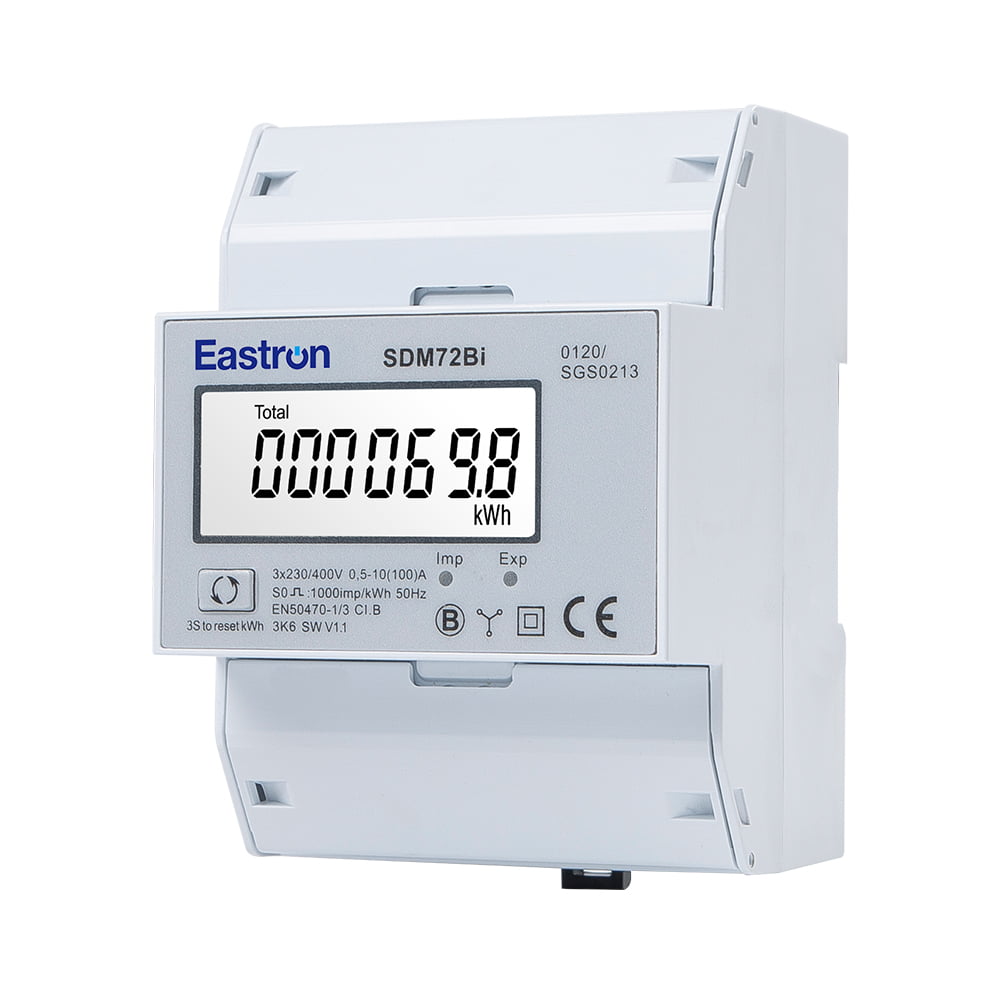

SDM72BI

Resettable Bi-directional Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Max. 100A direct load
  • 4 Modules 72mm width
  • Measures bi-directional energy(kWh)+ power(W)
  • Resettable energy
  • Pulse output

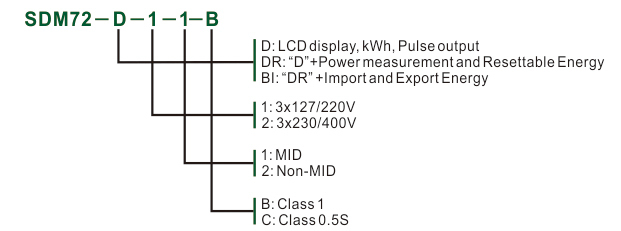

SDM72 D / DR / BI

THREE PHASE FOUR WIRE ENERGY METER

SD72BI is Resettable Bi-directional din rail three phase four wire electronic kWh meter with pulse output.

 The unit measures and displays import and export active energy (kWh) and Power (W). The resettable partial energy is provided, so the user can easily check the energy imported and energy exported during a certain period.

The bi-directional measurement also made it a good choice for solar pv systems.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B



Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM72D / DR / BI

Pulse Output for active energy

SDM72CT-D

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

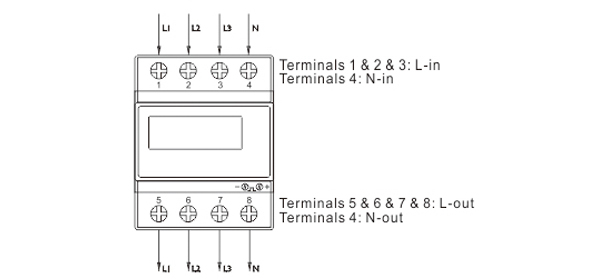

Wiring diagram

Wiring and Dimension [mm:]

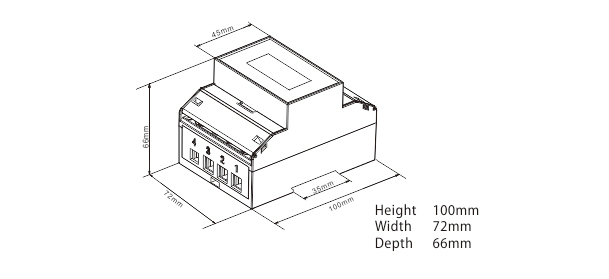

Dimensions
