Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter

  • Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter
  • Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter
  • Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter
  • Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter
  • Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter
  • Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter

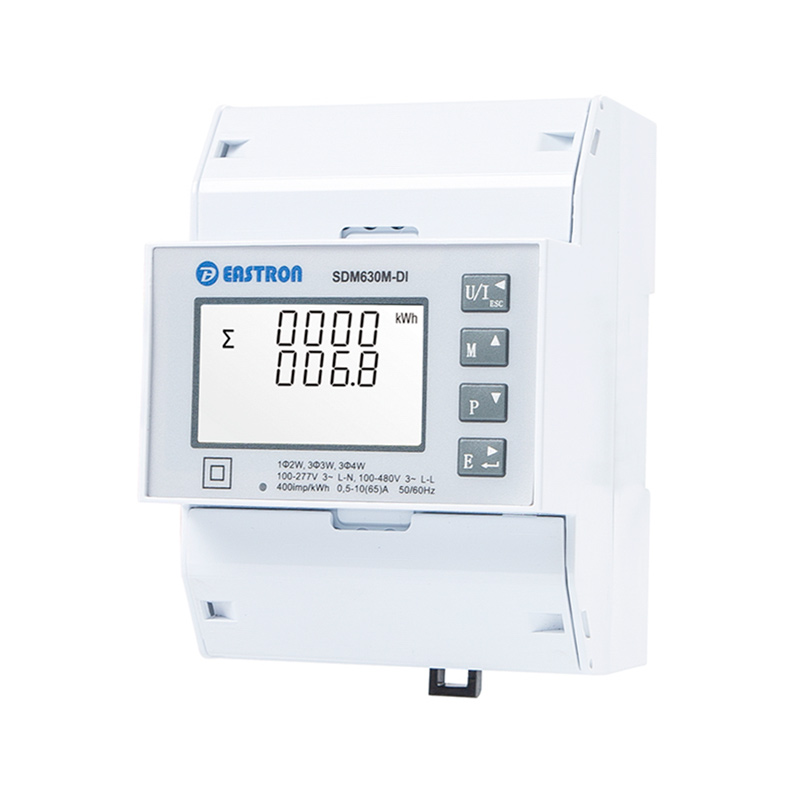

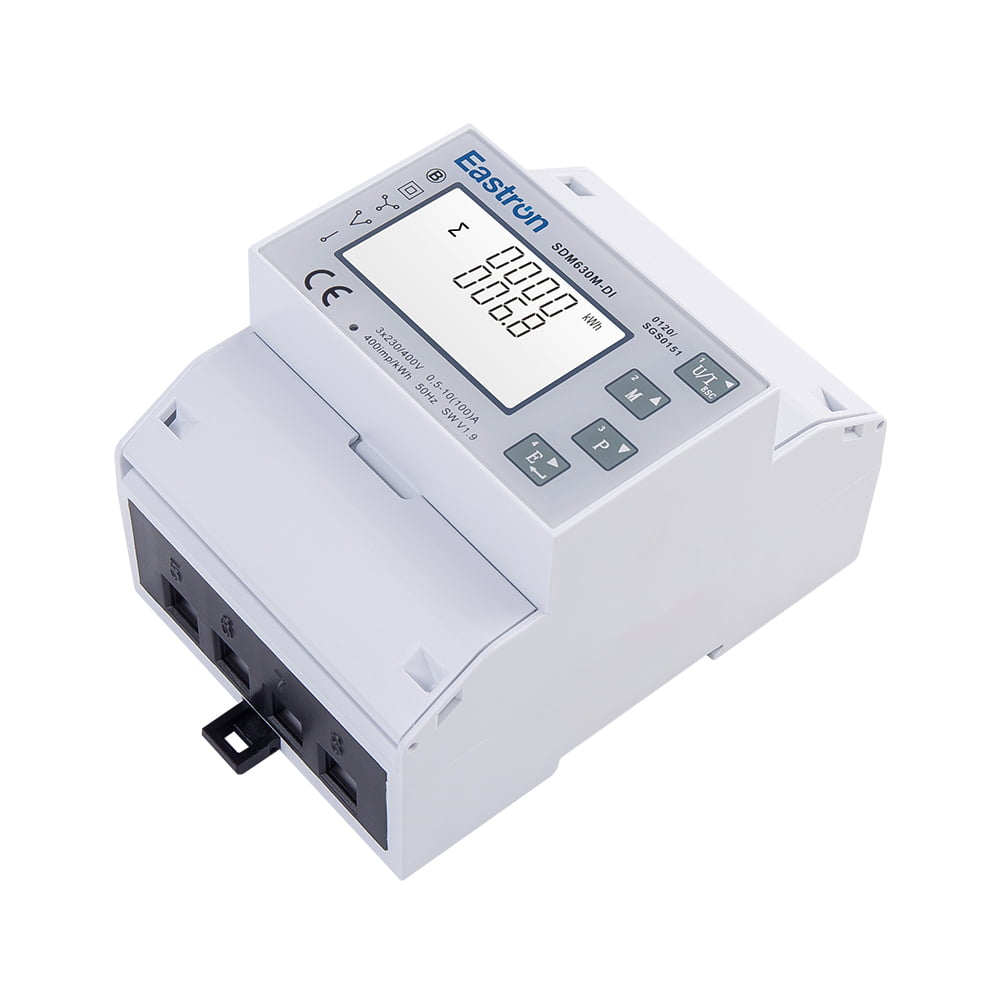

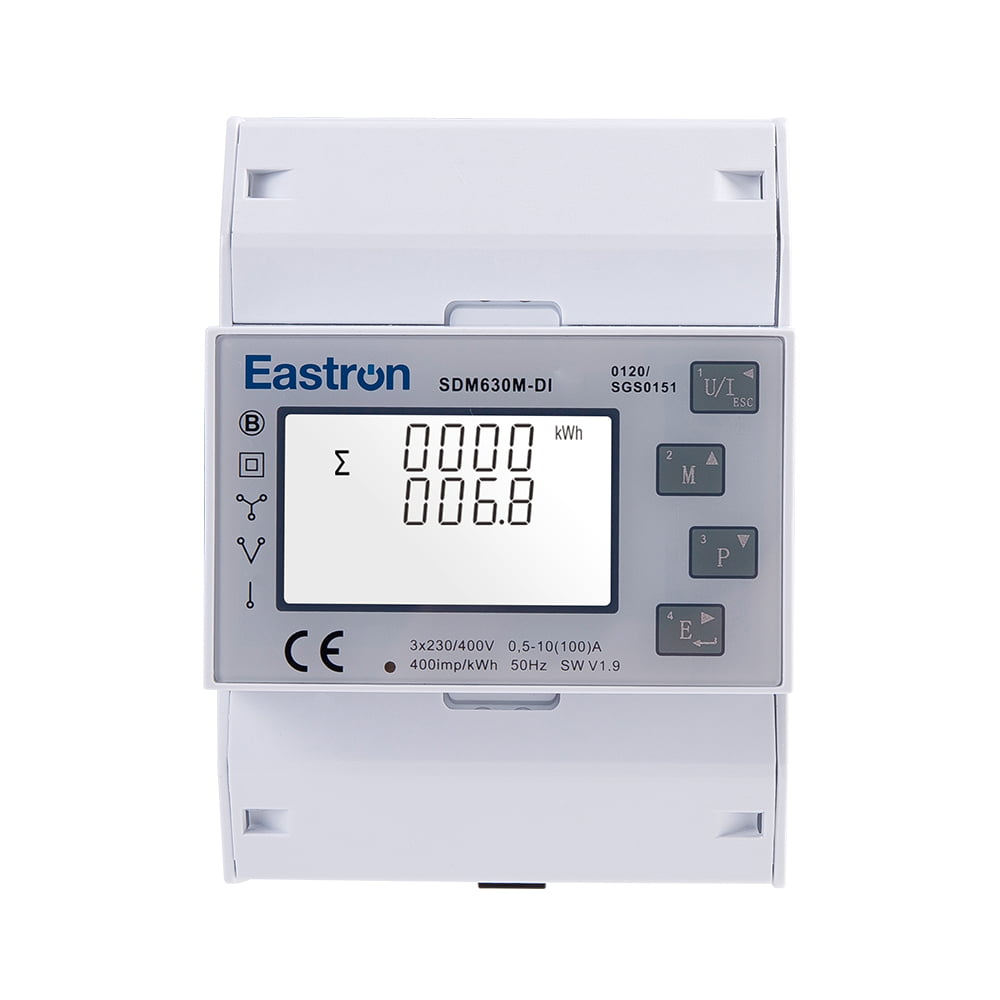

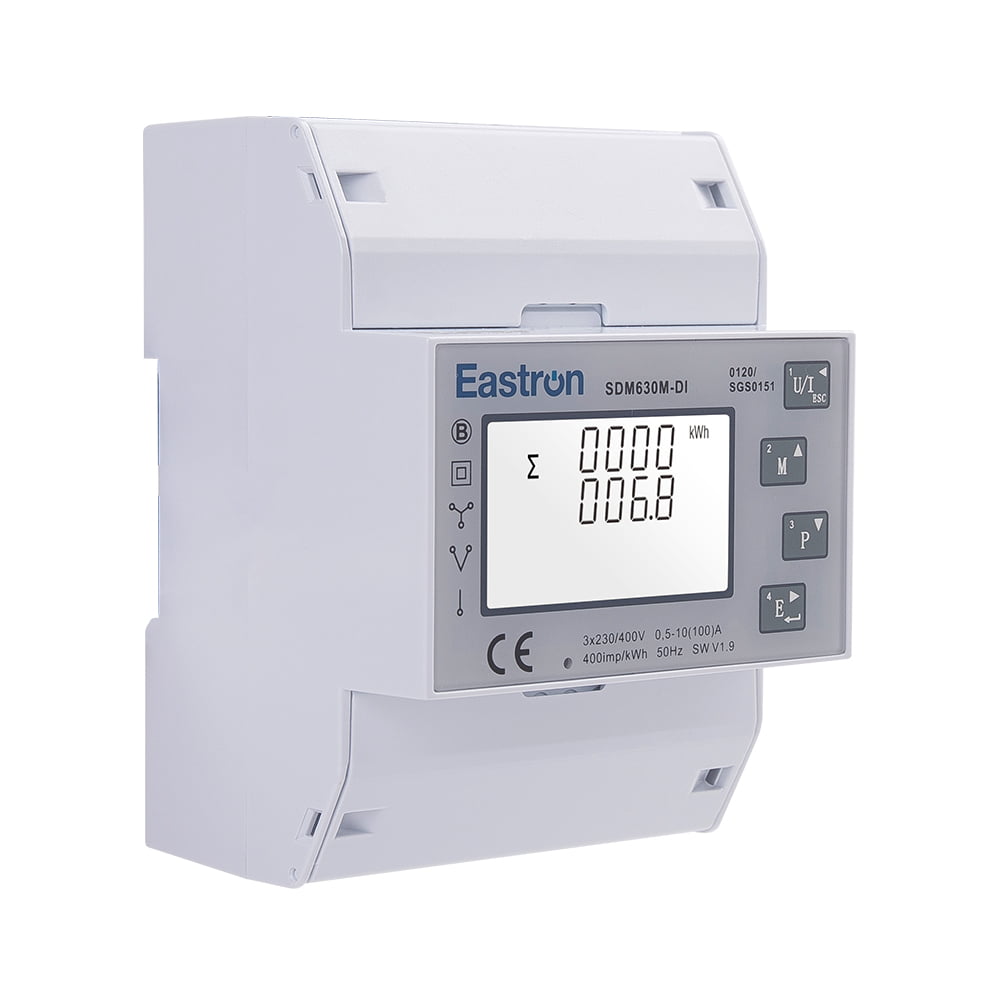

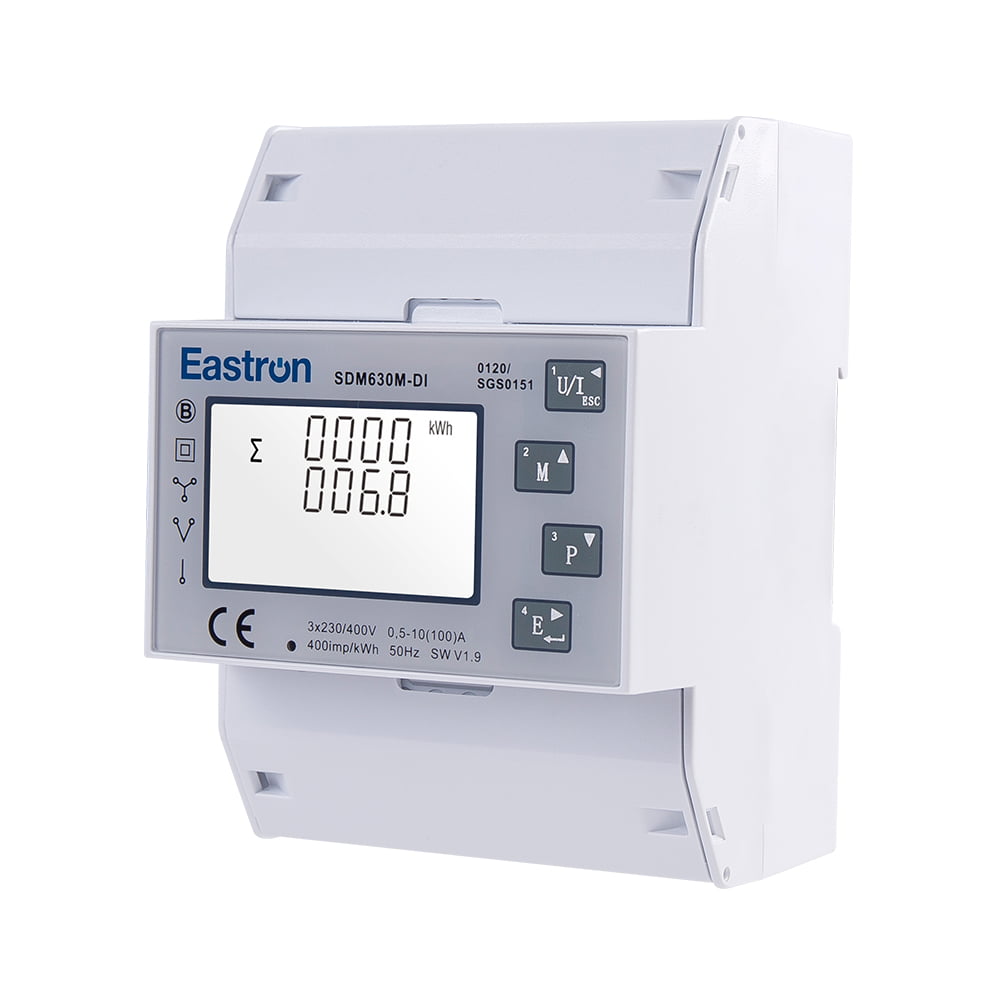

SDM630M-DI

Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter

  • Max. 65A Direct Load
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
  • Bi-directional measurement
  • 2 Digital Inputs
  • RS485 Modbus
  • ETL listed
SDM630M-DI is Digital Input Din Rail Multi-functional Three Phase ETL Energy Meter.
This unit measures and displays the characteristics of 1p2w, 3p3w and 3p4w networks. The measuring parameters include voltage (V), current (A), frequency
(Hz), power(kW/kVA/kVAr), power factor (PF), imported, exported and total energy (kWh/kVArh). It also comes with a complete comms capability with built-in RS485 Modbus RTU outputs and 2 digital inputs. This unit supports Max. 65A direct connection. Configuration is password protected.
The meter is ETL Listed by Intertek.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current (Ib/Iref)

10A

Max Current(Imax.)

65A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630M-DI

2 Pulse Outputs+ RS485 Modbus + Digital Input

SDM630-Modbus / MT

2 Pulse Outputs + RS485 Modbus

SDM630-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630-2T

2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
