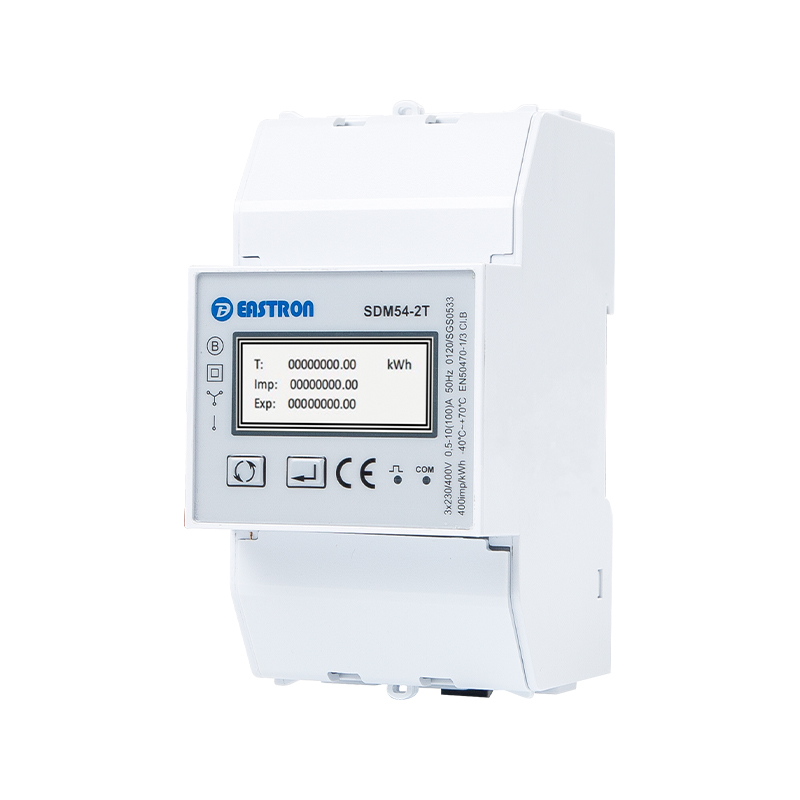

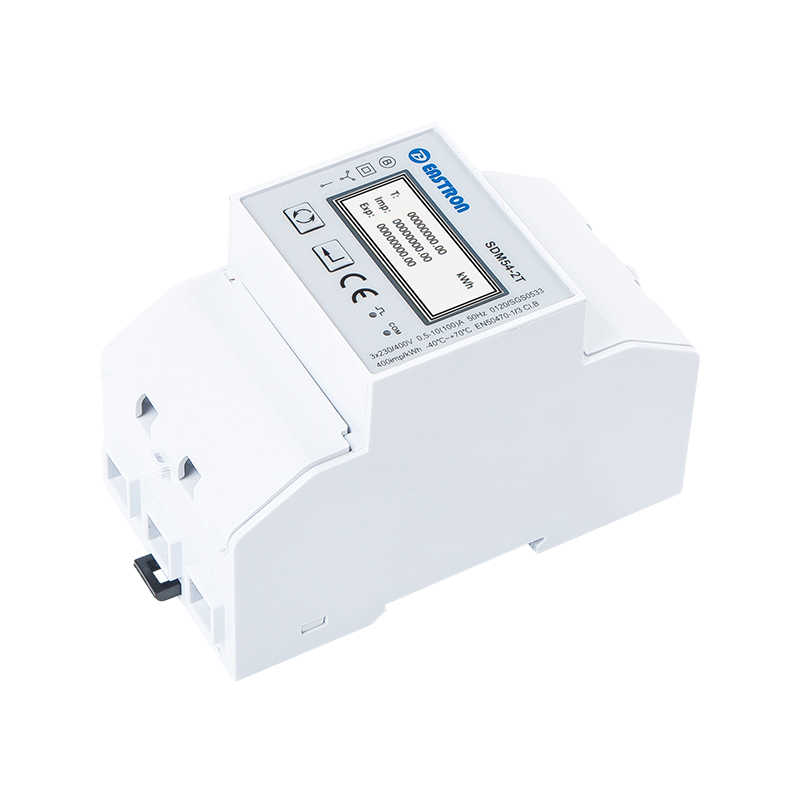

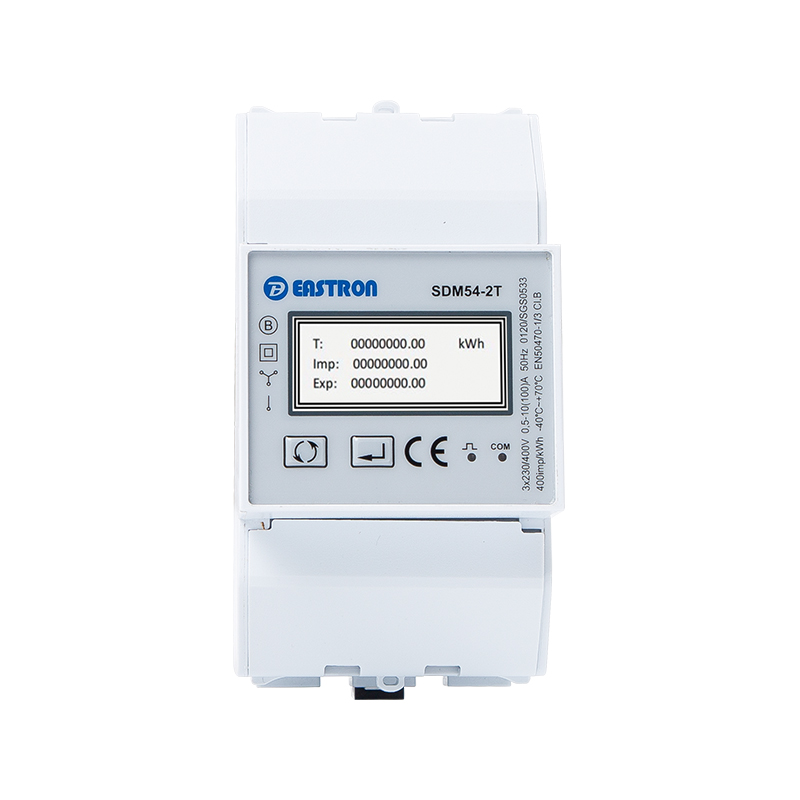

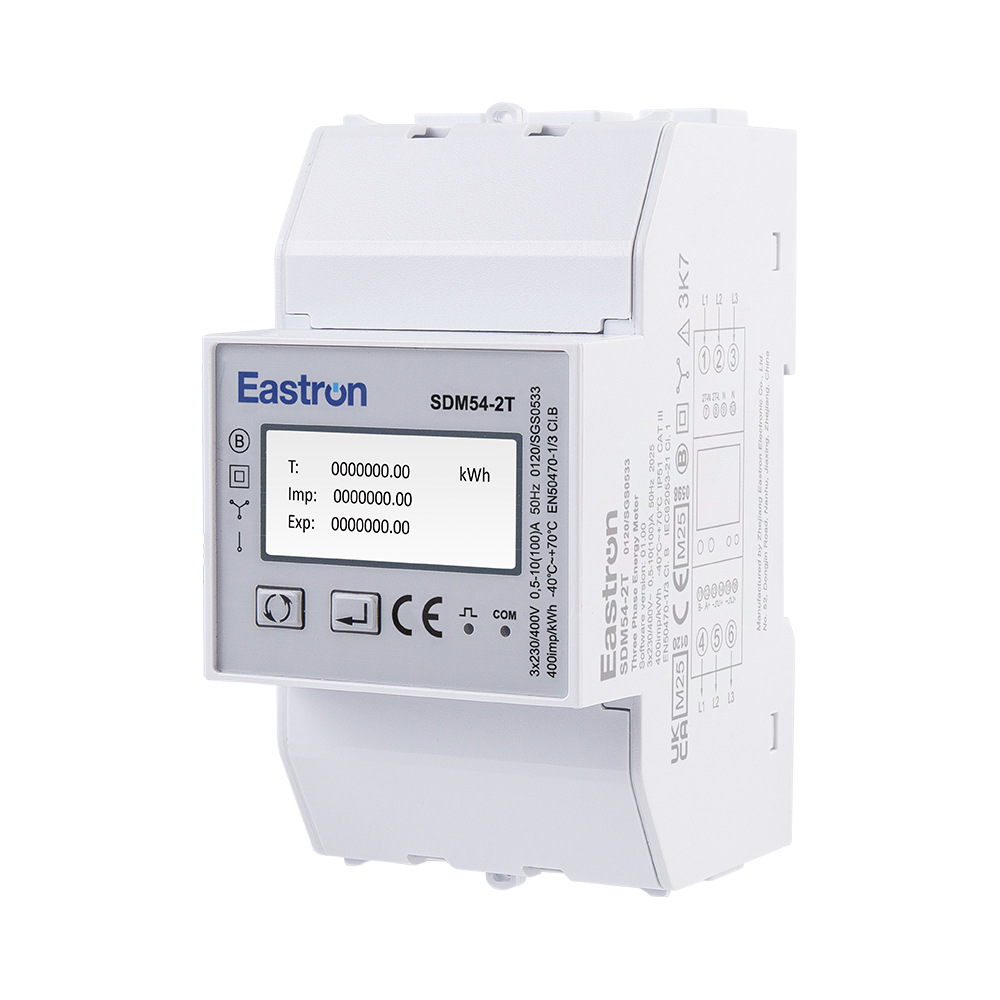

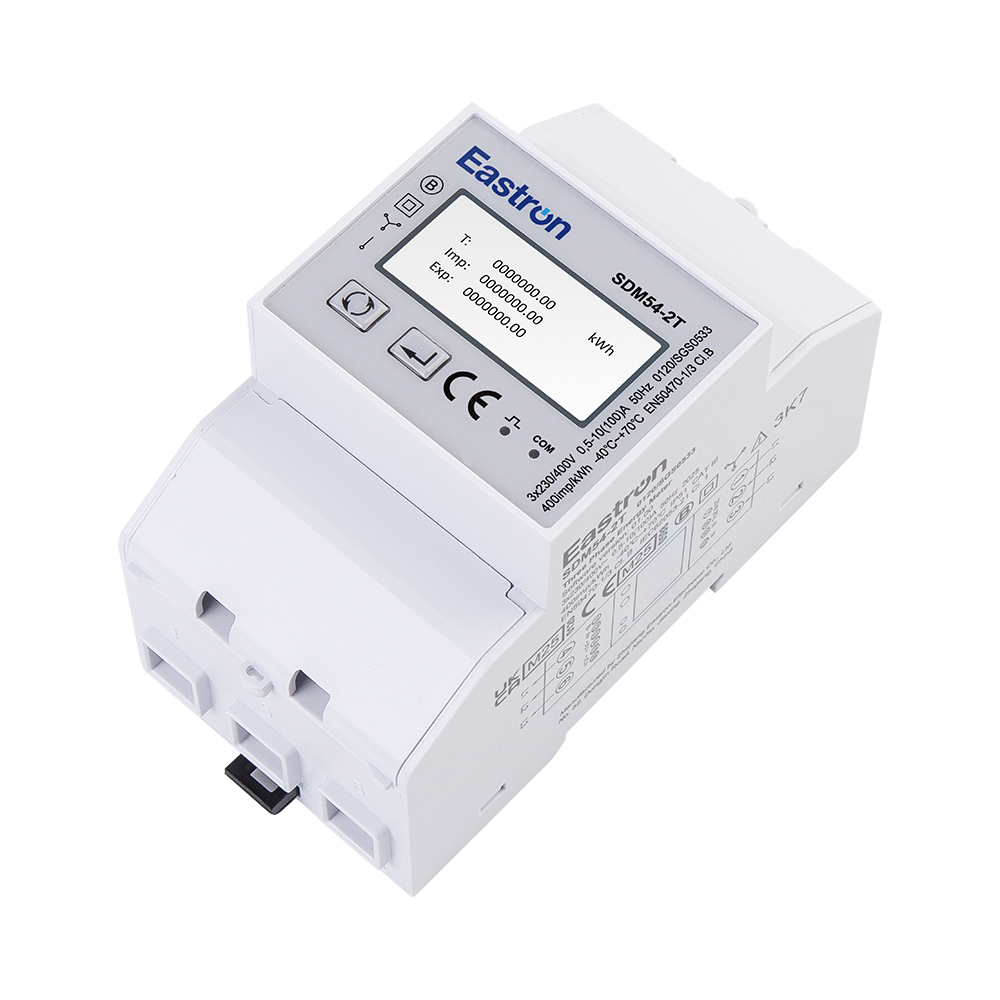

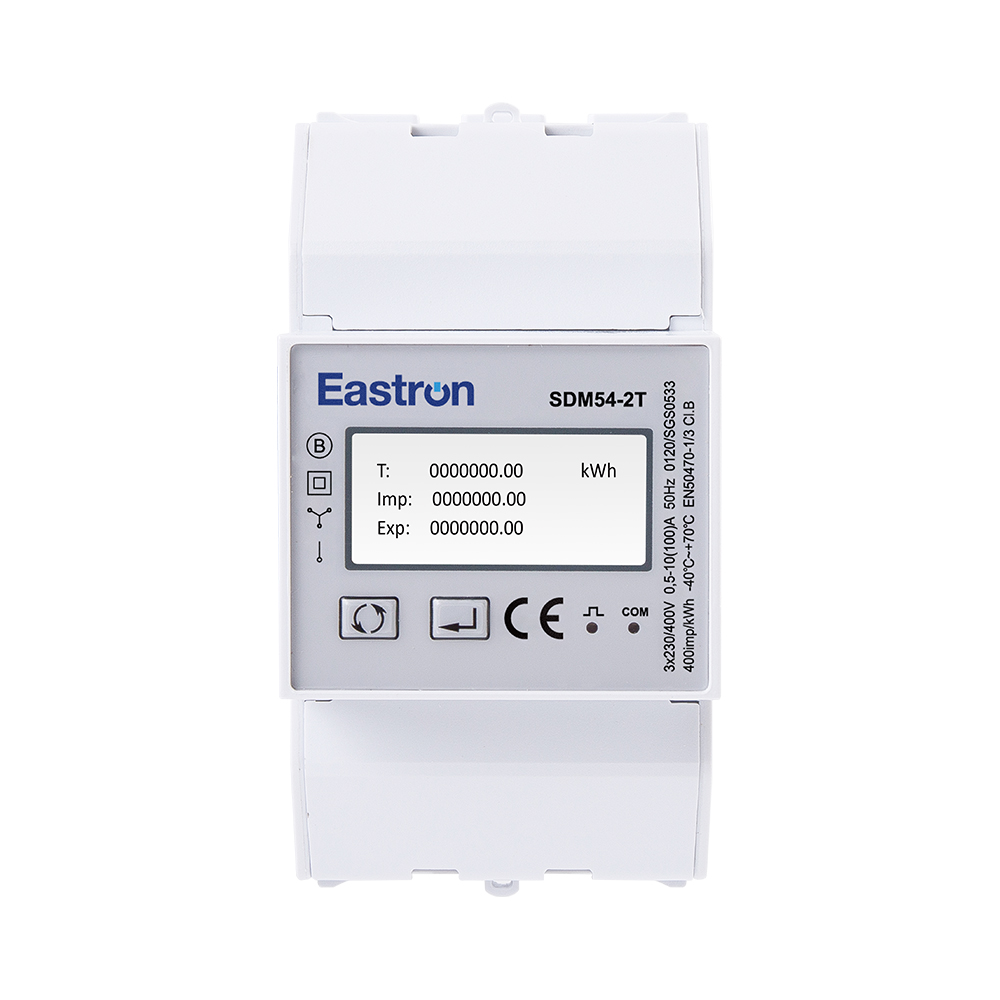

SDM54-2T

3 Module Dual Tariff RS485 Modbus Din Rail Three Phase MID Energy Meter

  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,V etc
  • LCD with backlit
  • 2 Pulse Output +Modbus
  • Bi-directional measurement
  • Dual tariff ( Dual power source )
  • 100A direct load
  • 3 Module 54mm width
  • MID approved
  • 3P4W,1P2W

SDM54 Modbus / Mbus / 2T

THREE PHASE MULTI-FUNCTION ENERGY METER

The SDM54-2T is a  3 Modules Dual Tariff RS485 Modbus Din Rail Three Phase MID Energy Meter with  backlit LCD display. It replaces 2 energy meter recording data from two different sources of energy. It provides two counters showing energy consumption on public electricity board (EB) and diesel generator (DG). The meter measures all important electrical parameters including active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  The units support Max. 100A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, suitable for monitoring energy consumption in residential, solar PV, EV Charging system, industrial and utility applications.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0

EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM54-M

2 Pulse Outputs + RS485 Modbus

SDM54-MB

2 Pulse Outputs + Mbus

SDM54-2T

2 Pulse Outputs + RS485 Modbus + 2 Tariffs ( Dual Power Source)



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None, Odd, Even (default)

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

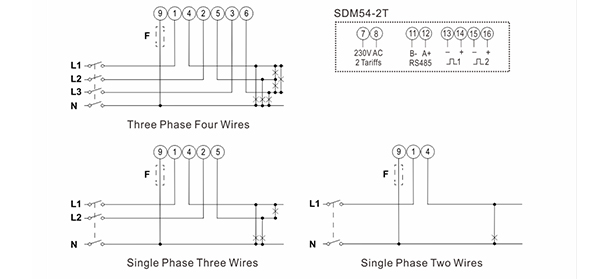

Wiring diagram

Wiring and Dimension [mm:]

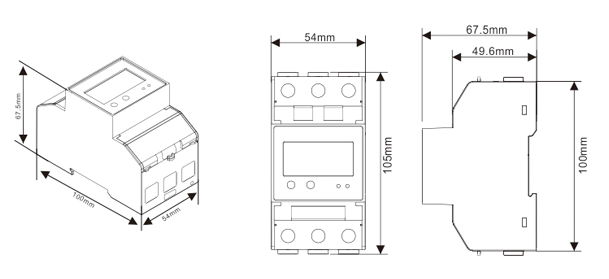

Dimensions
