MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter

  • MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter
  • MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter
  • MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter
  • MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter
  • MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter
  • MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter

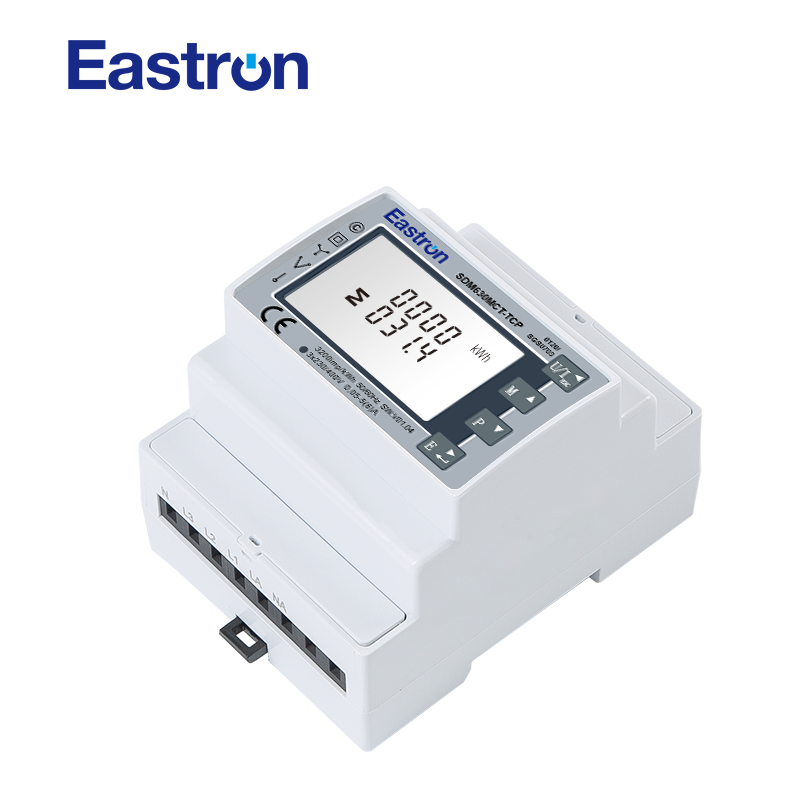

SDM630MCT-TCP

MID Approved CT Type Din Rail Three Phase Multi-function Modbus TCP Meter

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement
  • Ethernet TCP communication

SDM630MCT-TCP is a new multi-function energy meter designed by EASTRON,which can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product. The requisite current input(s) are obtained via current transformers(CT).

The meter SDM630MCT-TCP is equipped with a Ethernet communication port and MODBUS-TCP protocol is adopted for remote reading and programming. The meter has a big back-lighted LCD showing data and uses 4 touch keypads in front for data checking and programming.

SDM630MCT-TCP has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0703.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

EN50470-3:2022 Class B and C

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)





Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT-TCP

Ethernet Modbus TCP





Ethernet Modbus TCP Communications

Communication Address

1~247

IP

192.168.1.200

Port

502

Mask

255.255.255.0

Gateway

192.168.1.1

DHCP

Off





Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

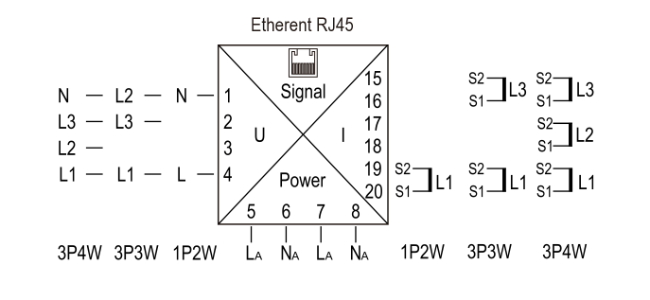

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
