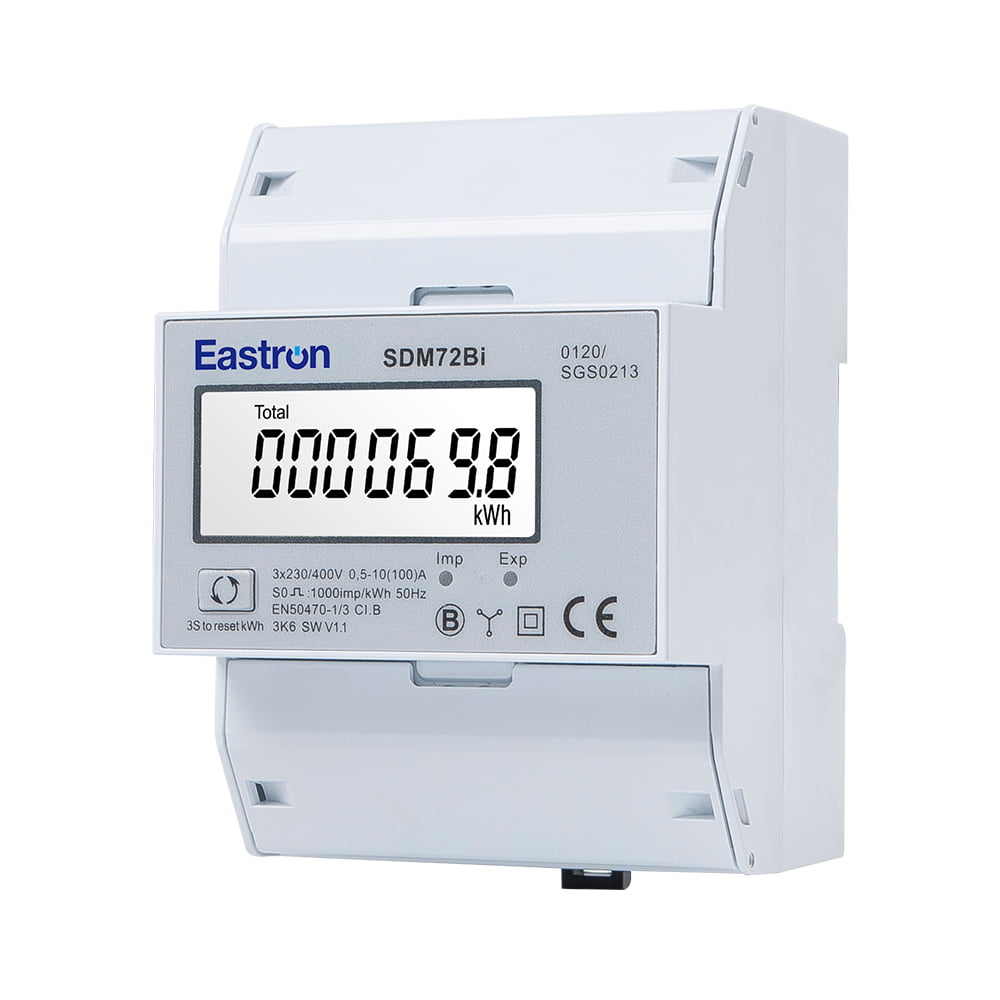

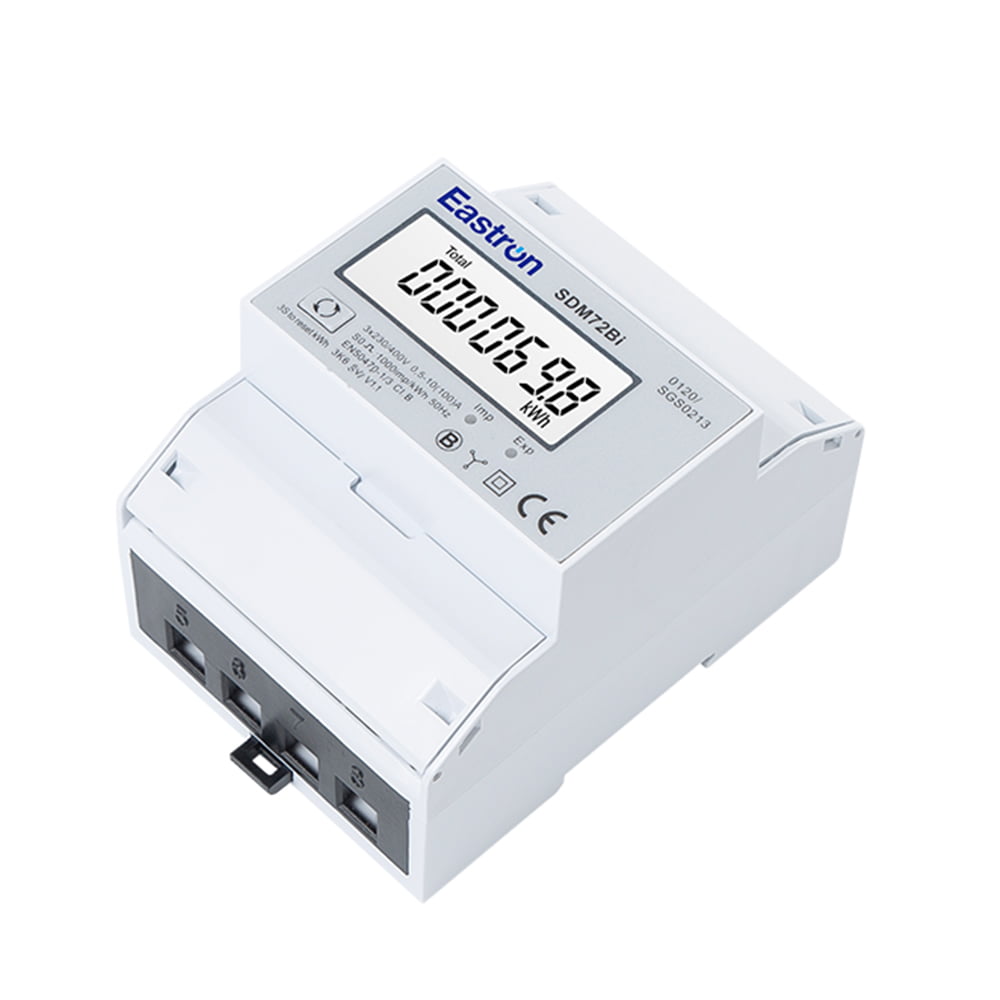

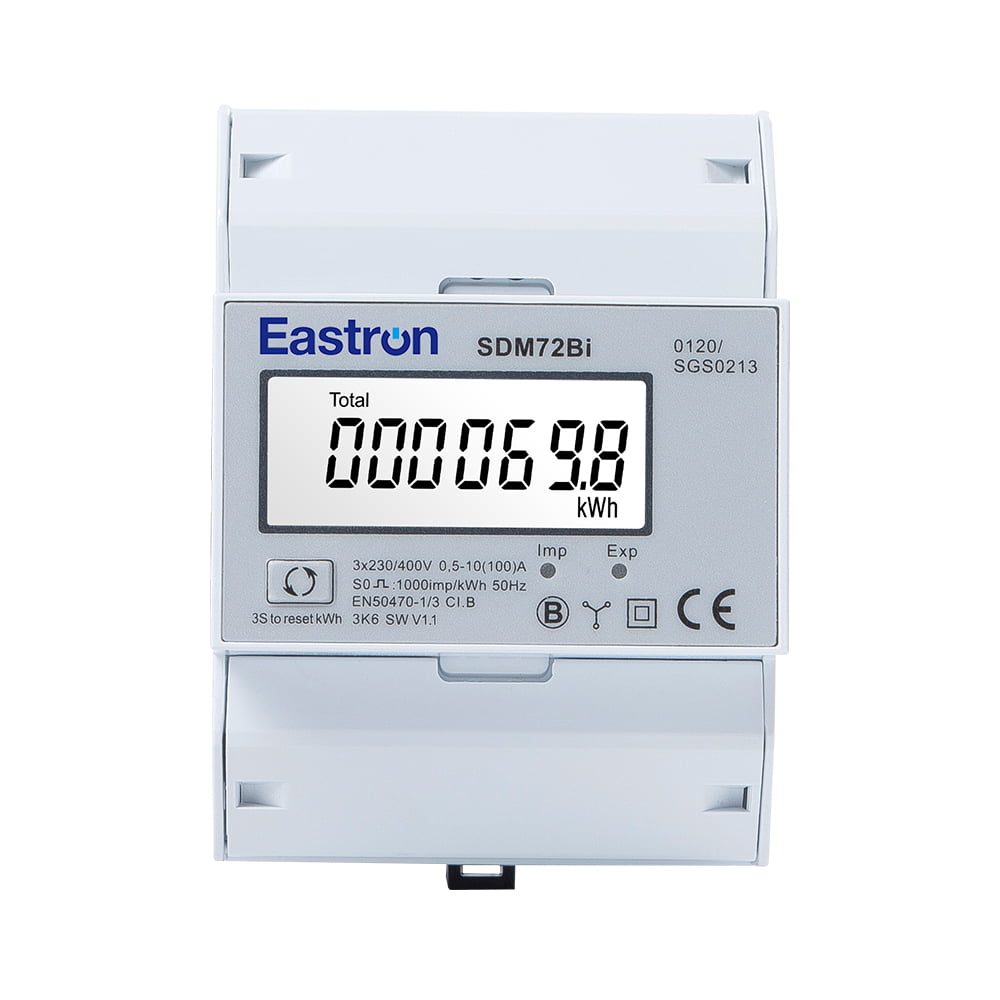

The SDM72Bi is a Bi-directional Measurement Three Phase Four Wire Din Rail Energy Meter. It equipped with a white back-lighted LCD screen for perfect reading. They are used to measure three phase four wire energy in commercial and industrial application.
SDM72BI measures total/ import/ export kWh and power.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
Electrical Characteristics |
||
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
Measurement Accuracy |
Power |
1% of range maximum |
Active Energy |
IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
Input & Output |
|||
Input-Current |
CT Type |
CT Primary |
1-9999A |
CT Secondary |
1A/5A |
||
Min Current |
0.25A |
||
Starting Current |
10mA |
||
Direct Type
|
Rated Current |
10A |
|
Max Current |
100A |
||
Min Current |
0.5A |
||
Starting Current |
40mA |
||
Output |
SDM72D / DR / BI |
Pulse Output for active energy |
|
SDM72CT-D |
Pulse Output for active energy |
