kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter

  • kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter
  • kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter
  • kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter
  • kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter
  • kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter
  • kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter

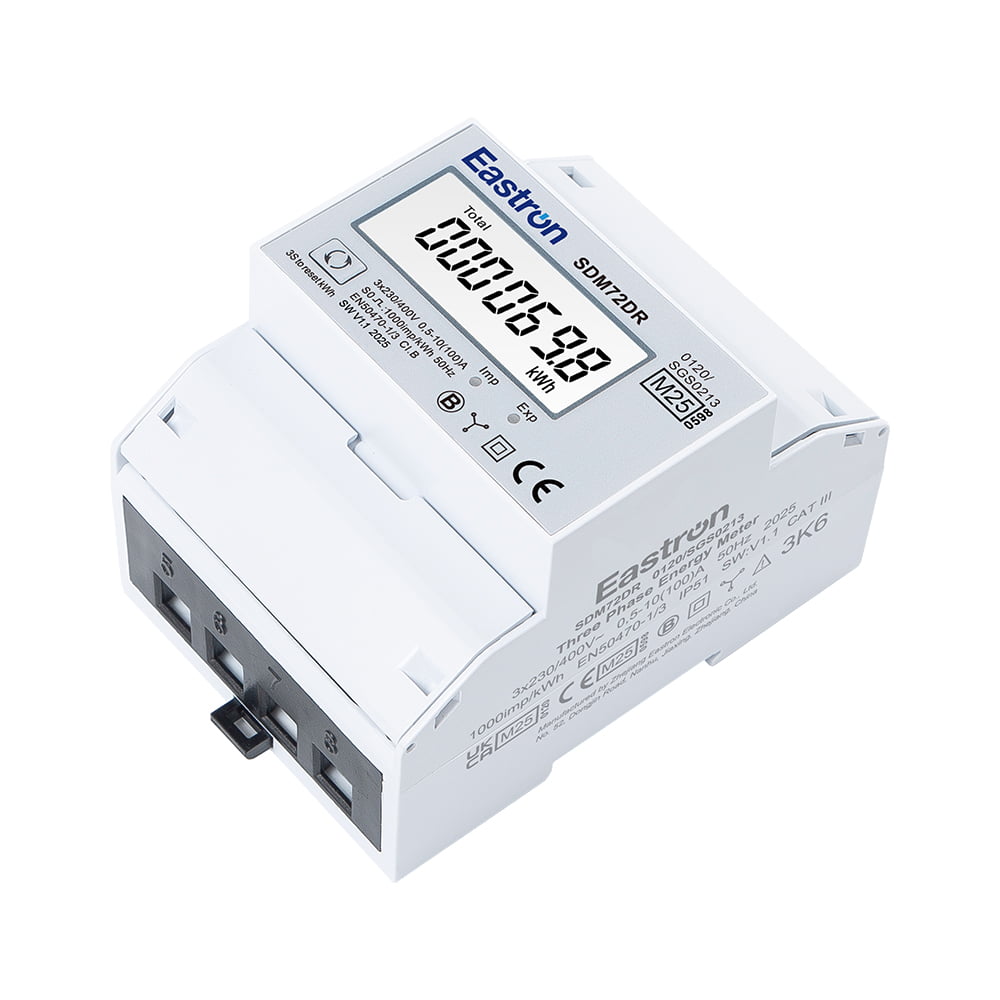

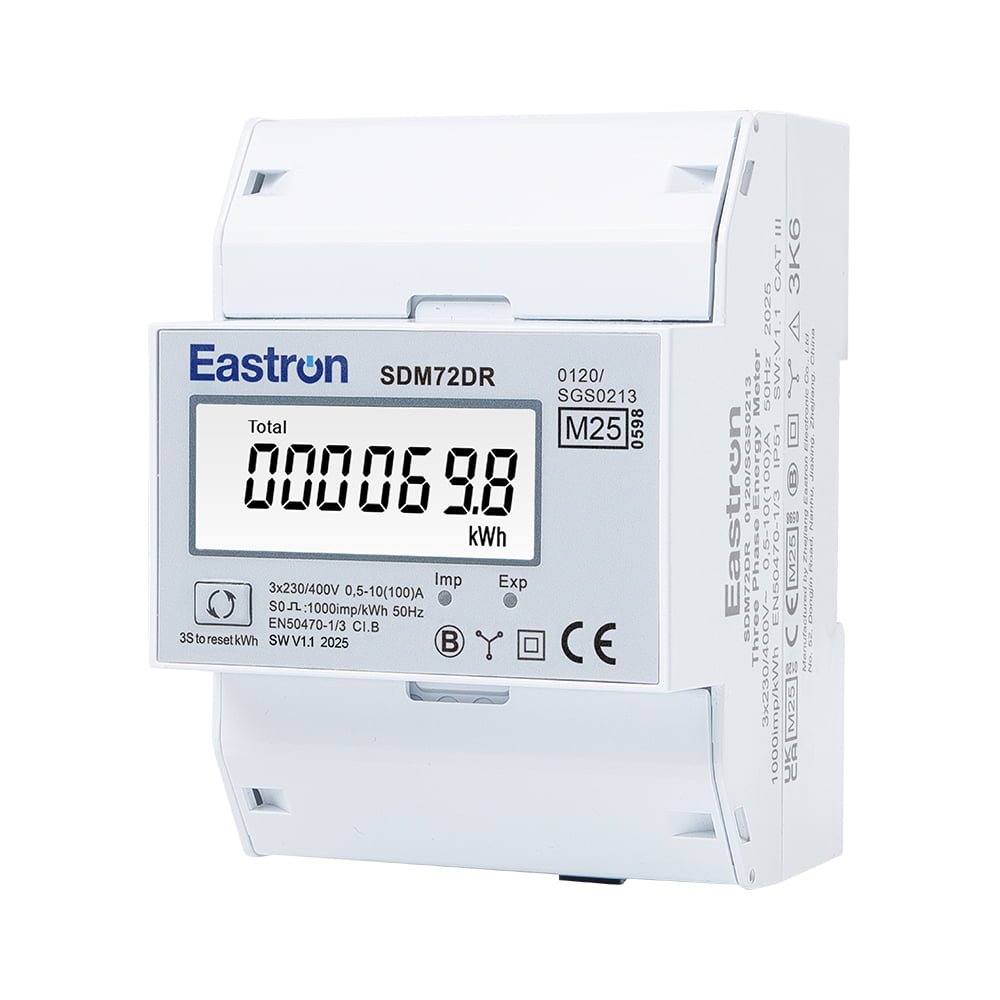

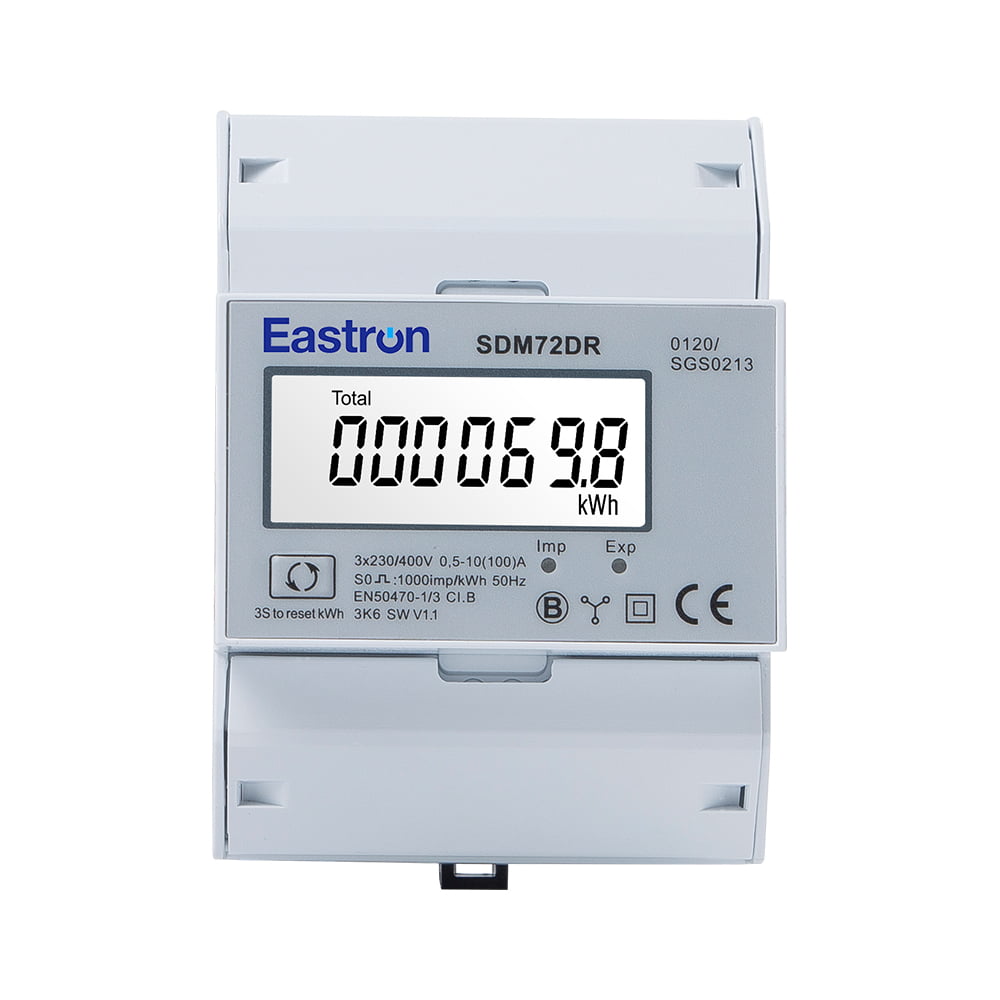

SDM72DR

kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter

  • Max. 100A direct load
  • 4 Module wide
  • Measures active energy(kWh)+ power(W)
  • Resettable energy
  • Pulse output

SDM72 D / DR / BI

THREE PHASE FOUR WIRE ENERGY METER

The SDM72DR is a kWh and Power Measurement Three Phase Four Wire Din Rail MID Energy Meter. It equipped with a white back-lighted LCD screen for perfect reading. They are used to measure three phase four wire energy in commercial and industrial application.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B



Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM72D / DR / BI

Pulse Output for active energy

SDM72CT-D

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
