Mbus CT operated Din Rail Three Phase MID Energy Meter

  • Mbus CT operated Din Rail Three Phase MID Energy Meter
  • Mbus CT operated Din Rail Three Phase MID Energy Meter
  • Mbus CT operated Din Rail Three Phase MID Energy Meter
  • Mbus CT operated Din Rail Three Phase MID Energy Meter
  • Mbus CT operated Din Rail Three Phase MID Energy Meter
  • Mbus CT operated Din Rail Three Phase MID Energy Meter

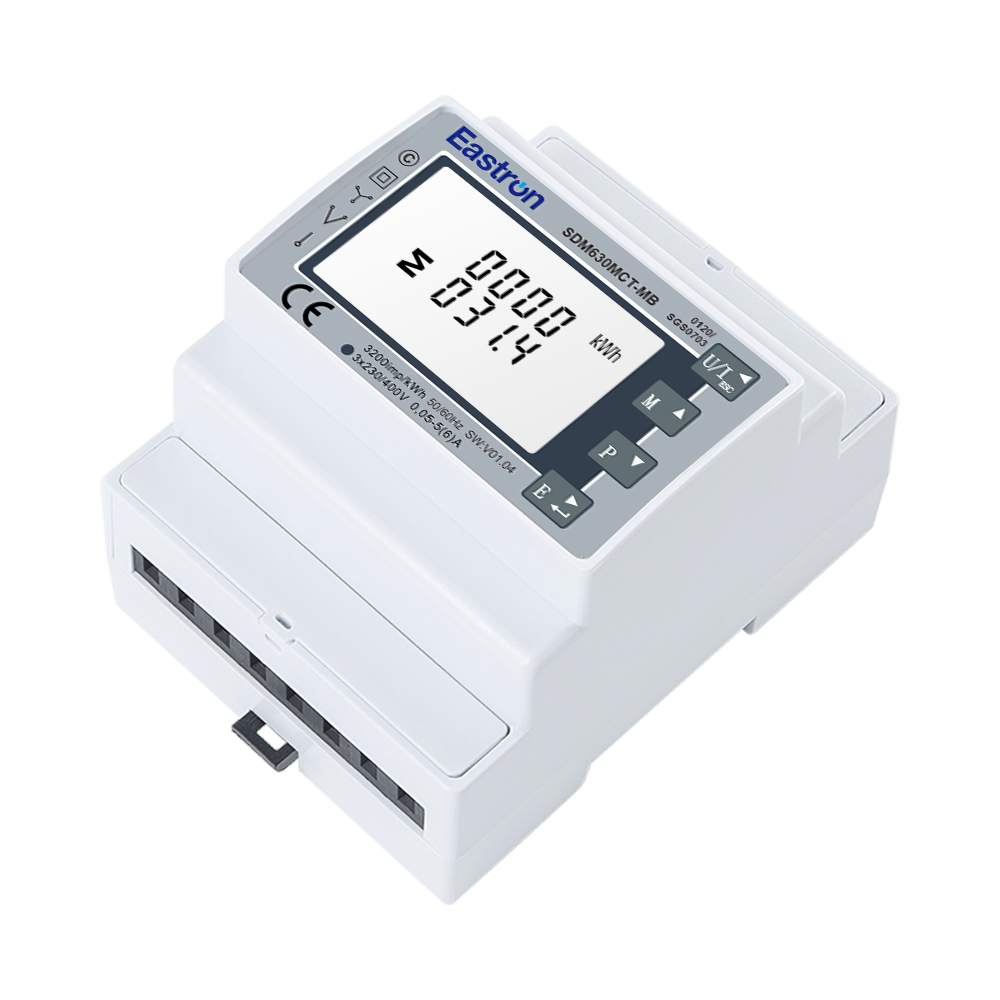

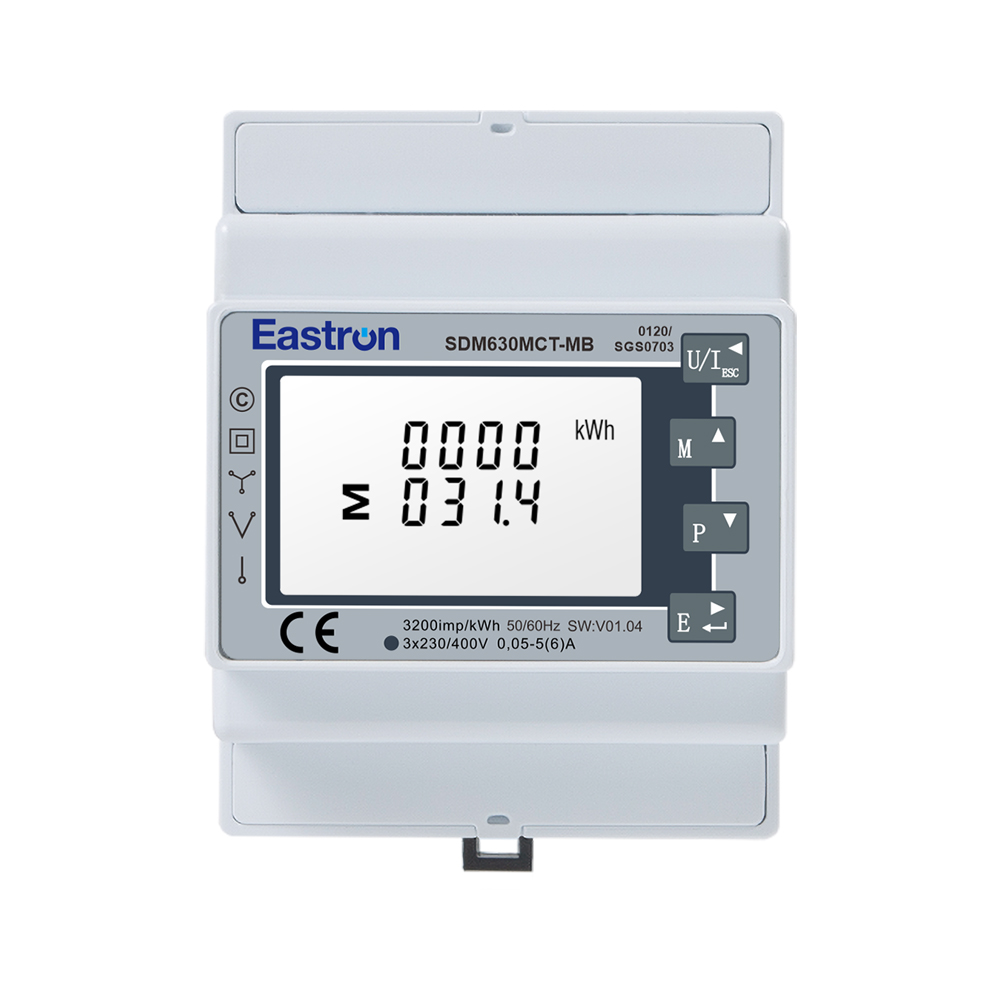

SDM630MCT-Mbus

Mbus CT operated Din Rail Three Phase MID Energy Meter

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement
  • kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement
  • Mbus communication
  • 2 Pulse outputs

SDM630MCT Modbus / Mbus / 2T / MV

THREE PHASE MULTI-FUNCTION ENERGY METER

The SDM630MCT-Mbus is Mbus CT operated Din Rail Three Phase MID Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. Build-in interface provides pulse and Mbus RTU outputs.

SDM630MCT-Mbus has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0703.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

EN50470-1/3 Class B and C

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)

Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output




SDM630MCT/ MT

2 Pulse Outputs + RS485 Modbus

SDM630MCT-2T

2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source)

SDM630MCT-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630MCT-LoRa

2 Pulse Outputs + LoraWAN

SDM630MCT-Mbus-2T

2 Pulse Outputs + M-bus EN13757 + 2T (Dual Power Source)

RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



LoRaWAN Communications

Communication Frequency

EU868/ AS923/ AU915/ US915, etc.

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
