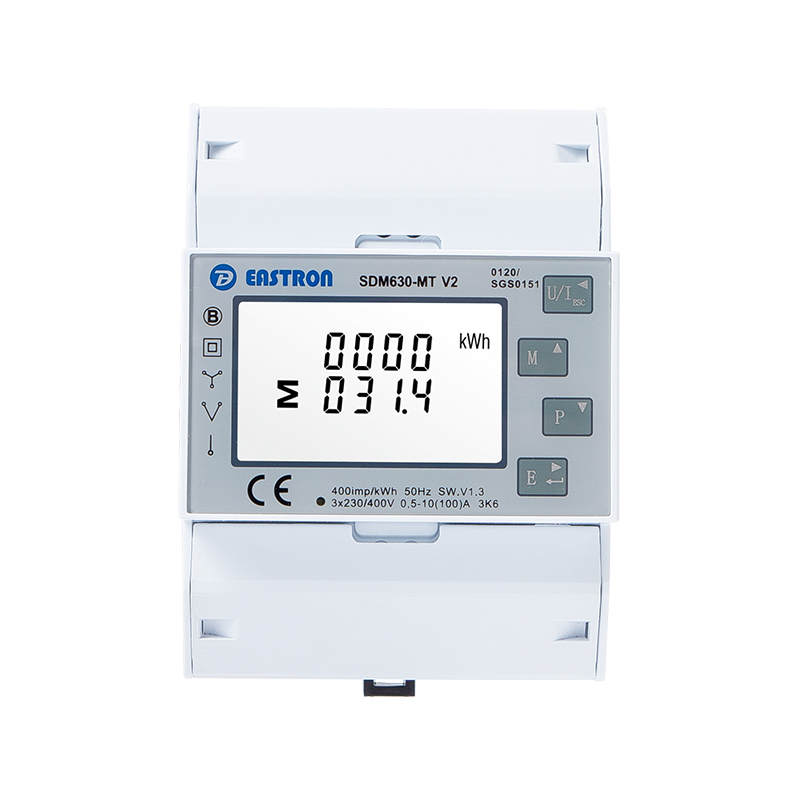

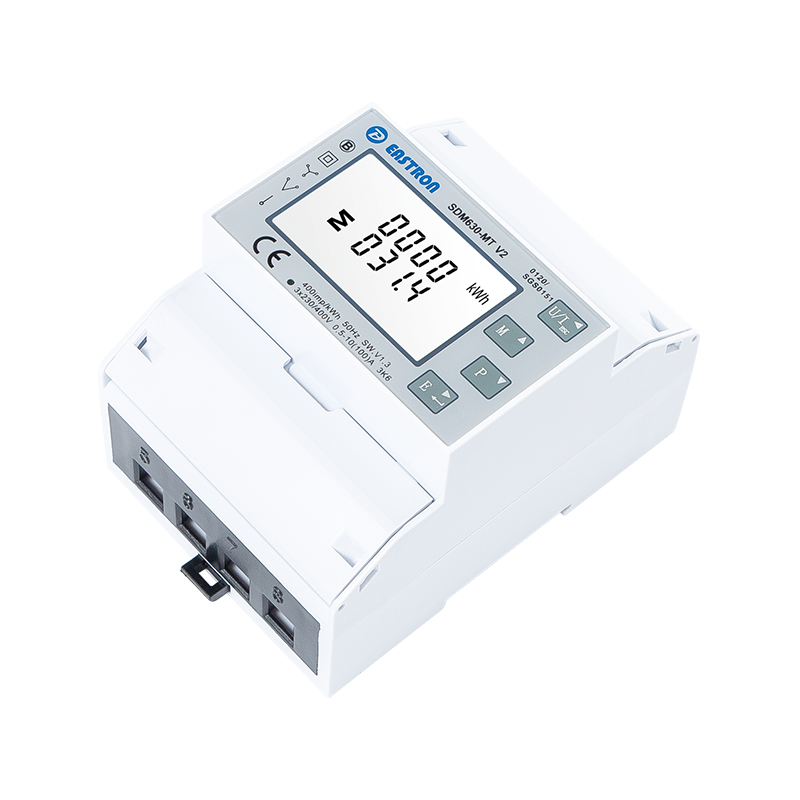

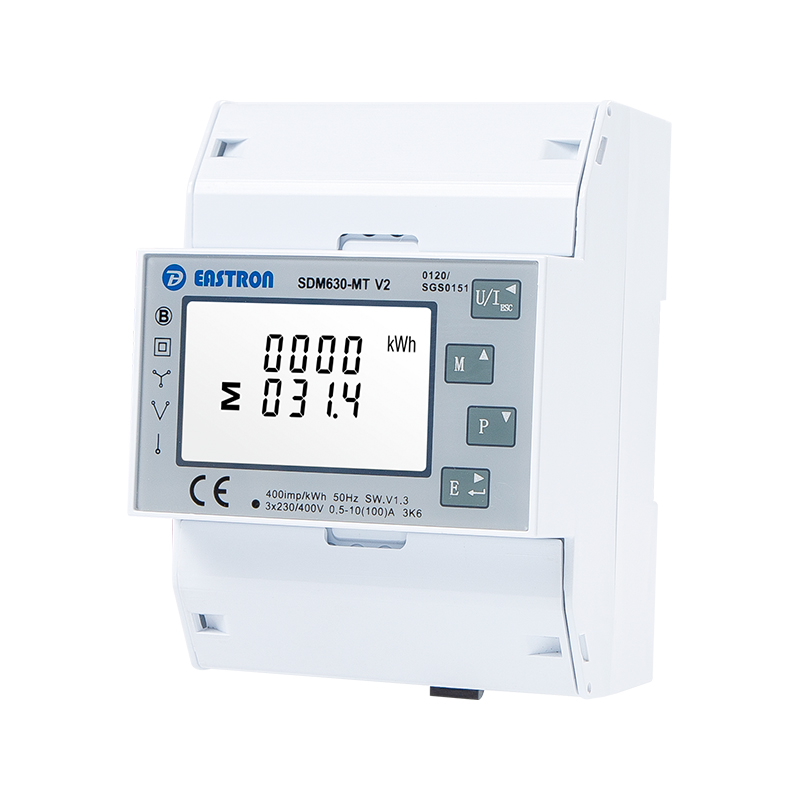

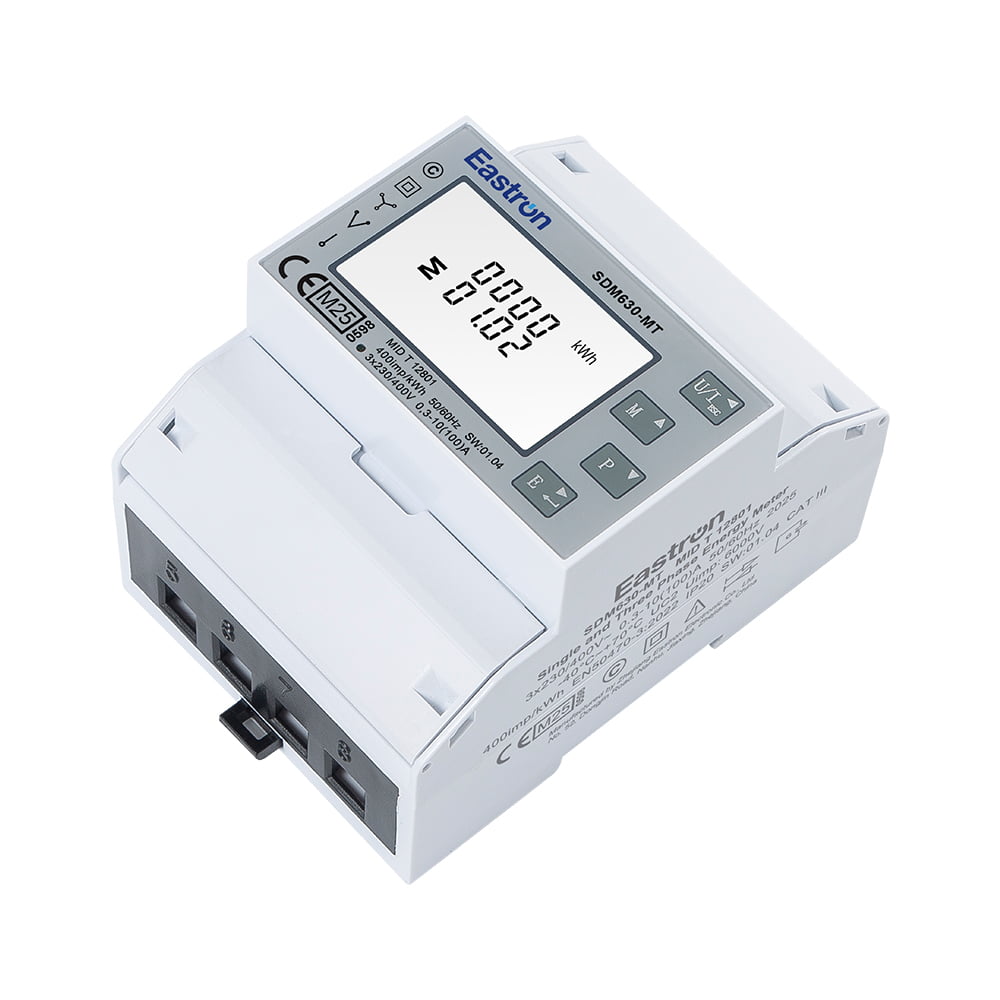

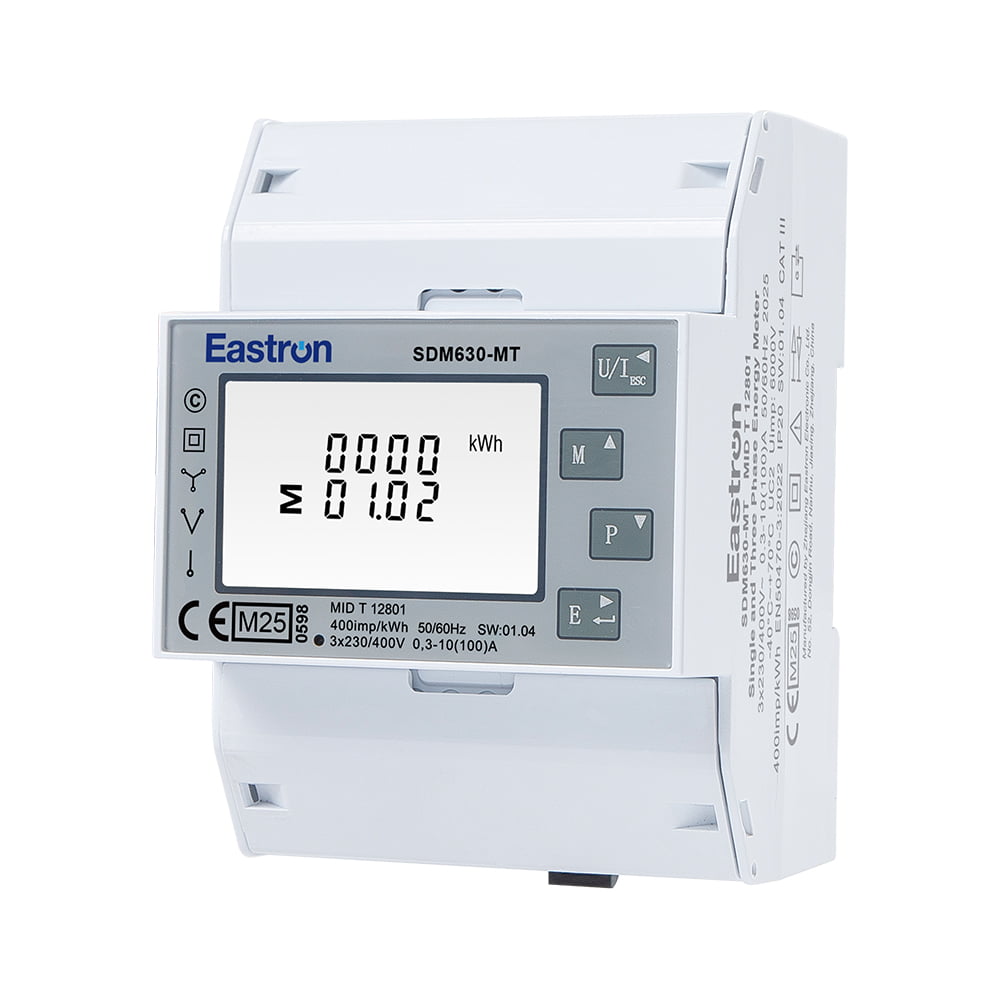

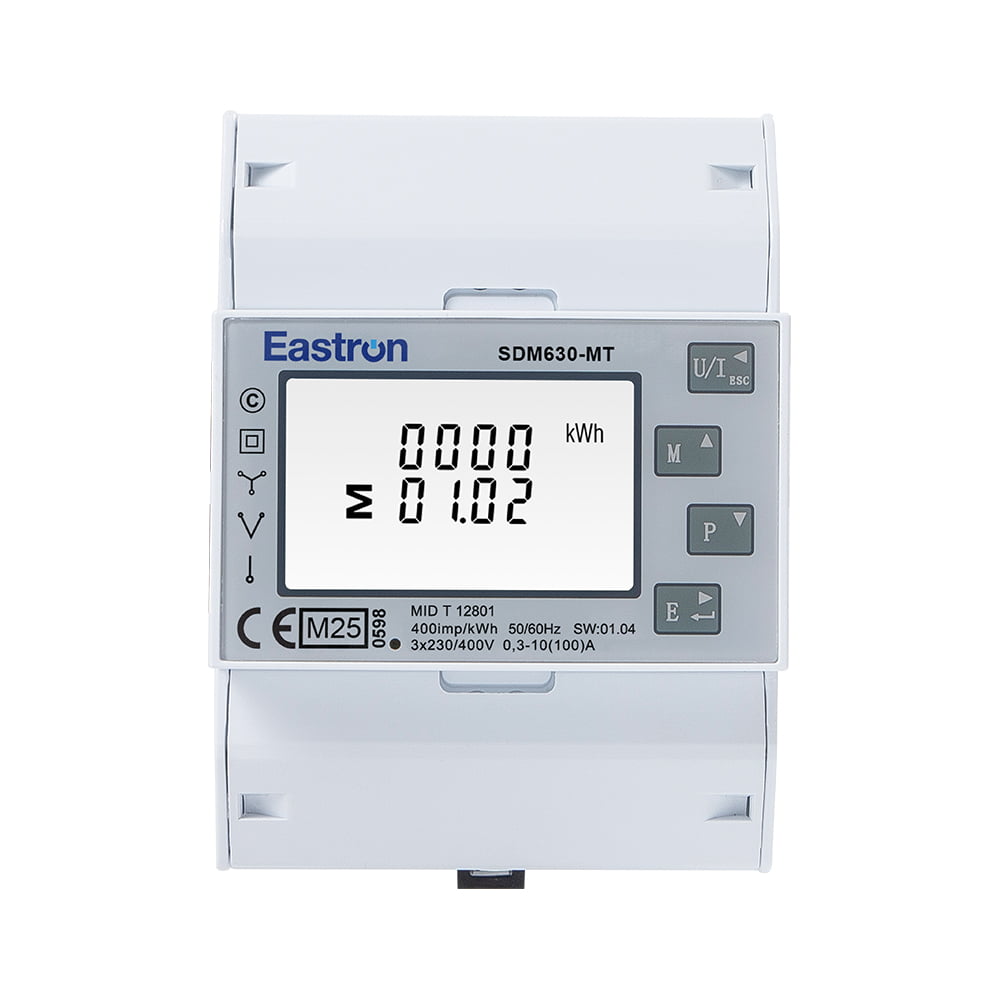

SDM630-MT

Multi-tariff RS485 Modbus Din Rail Three Phase MID Energy Meter

  • Max. 100A direct load
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
  • Bi-directional measurement
  • 2 Pulse outputs
  • RS485 Modbus
  • Multi-tariffs available (RTC)
The SDM630-MT is Multi-tariff RS485 Modbus Din Rail Three Phase MID Energy Meter.
The multi-tariff function is widely used to measure the energy consumed in different time zones. It supports max 4 tariffs and 10 time segments, the tariffs and segments can be set via RS485 communication. The unit measures and displays the characteristics of 1p2w,3p3w and 3p4w supplies, including voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes.
It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/0151.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630-Pulse

2 Pulse Outputs for imp/exp. energy

SDM630-Modbus / MT

2 Pulse Outputs + RS485 Modbus

SDM630-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630-2T

2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)

SDM630-Mbus-2T

2 Pulse Outputs + M-bus EN13757 + 2 Tariffs (Dual Power Source)

SDM630M-DI

2 Pulse Outputs+ RS485 Modbus + Digital Input

SDM630-TCP

Ethernet Modbus TCP





RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
