RS485 Modbus 100A Din Rail Three Phase MID Energy Meter

  • Multi-measurement: kWh,kVarh,KW,Kvar,KVA,P,F,PF,Hz,dmd,V,A,etc.
  • Max. 100A Direct Connection
  • Work with 3P4W/3P3W/1P2W
  • Class 0.5/C or Class 1/B Accuracy
  • Bi-directional Measurement
  • 2 Pulse Outputs
  • RS485 Modbus

SDM630-M

THREE PHASE MULTI-FUNCTION ENERGY METER

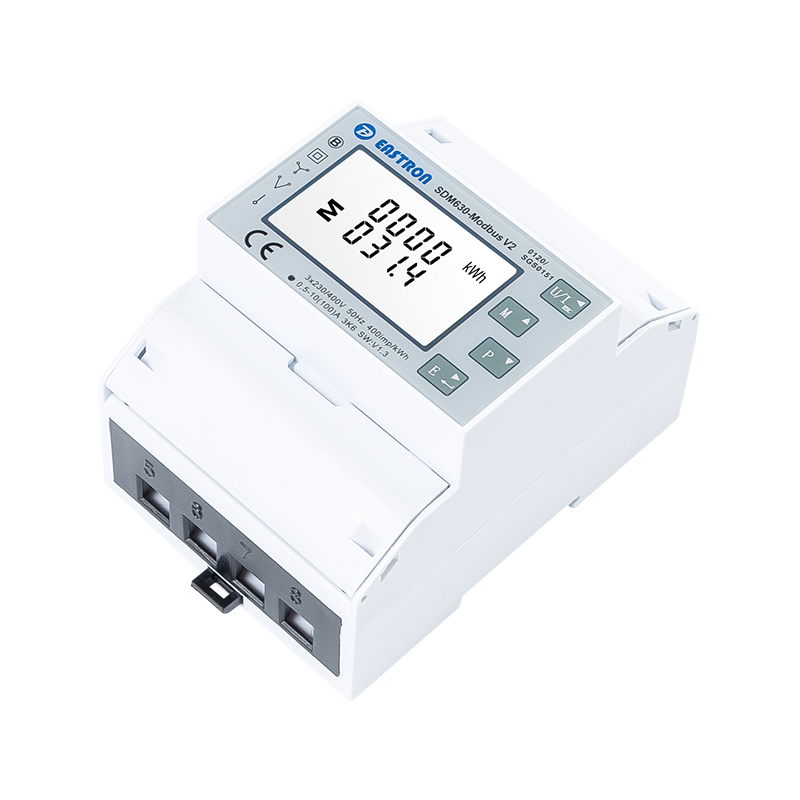

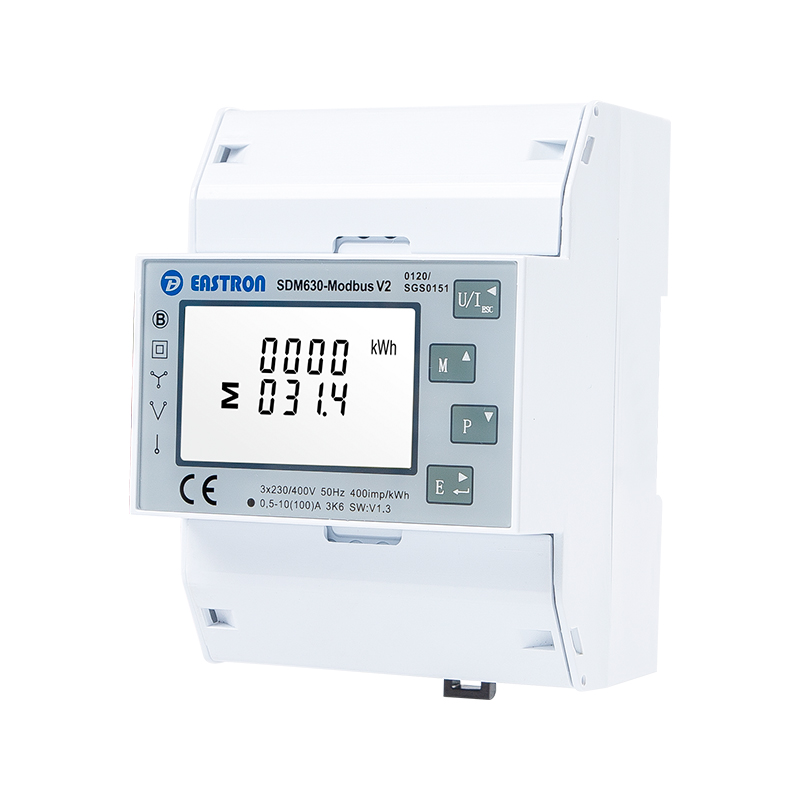

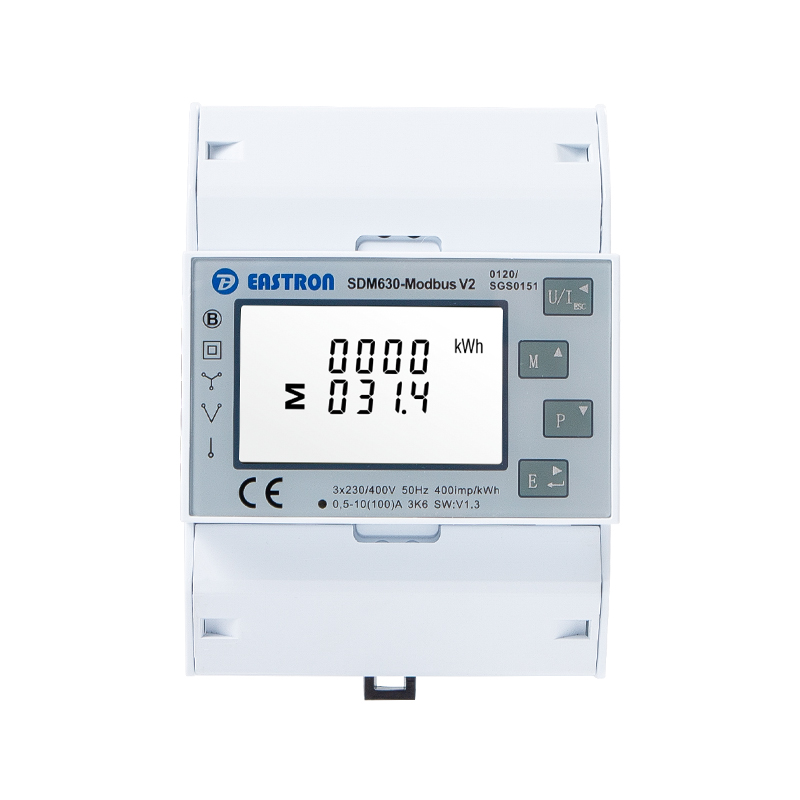

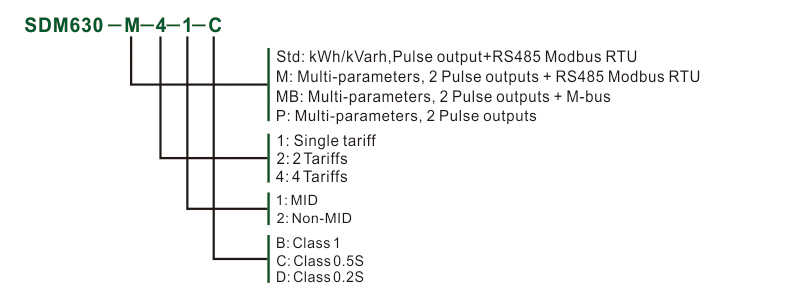

SDM630-M is RS485 Modbus 100A Din Rail Three Phase MID Energy Meter.

The unit can measure and display the characteristics of single phase two wires (1p2w), three phase three wires (3p3w) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product.

SDM630-M supports Max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.

It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Voltage

±0.5%

Current

±0.5%

Frequency

±0.2%

Power Factor

±1%

Active Power

±1%

Reactive Power

±1%

Apparent Power

±1%

Active Energy

Class 1/0.5 IEC 62053-21

Class B/C EN50470-3:2022

Reactive Energy

Class 2 IEC 62053-23



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.3A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

2 Pulse Outputs + RS485 Modbus





RS485 Modbus Communications

Network Address

nnn 3-digit number, 001 to 247

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

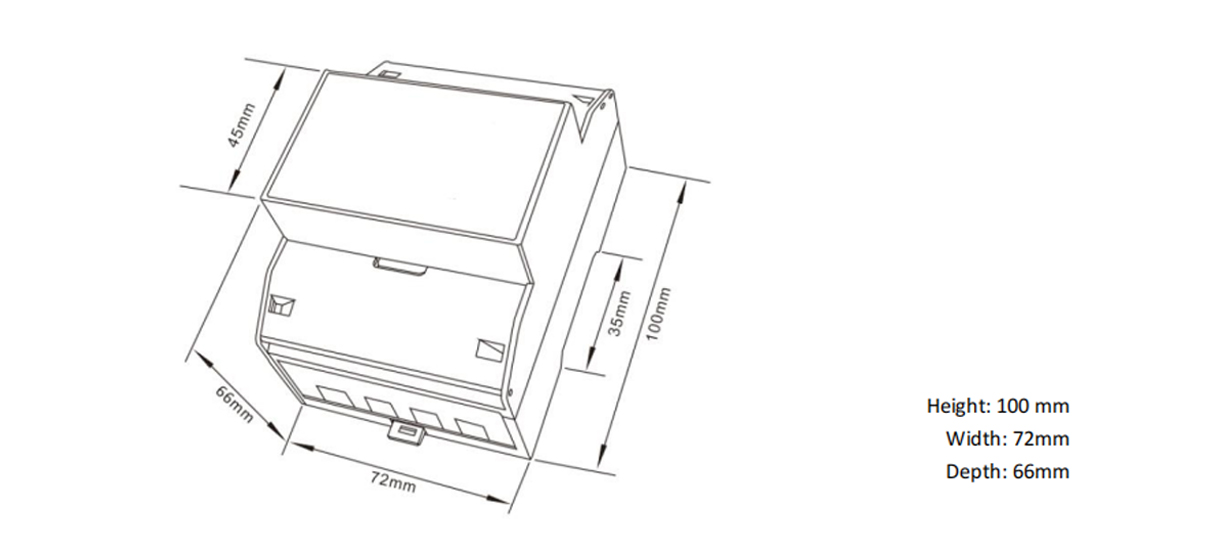

Dimensions
