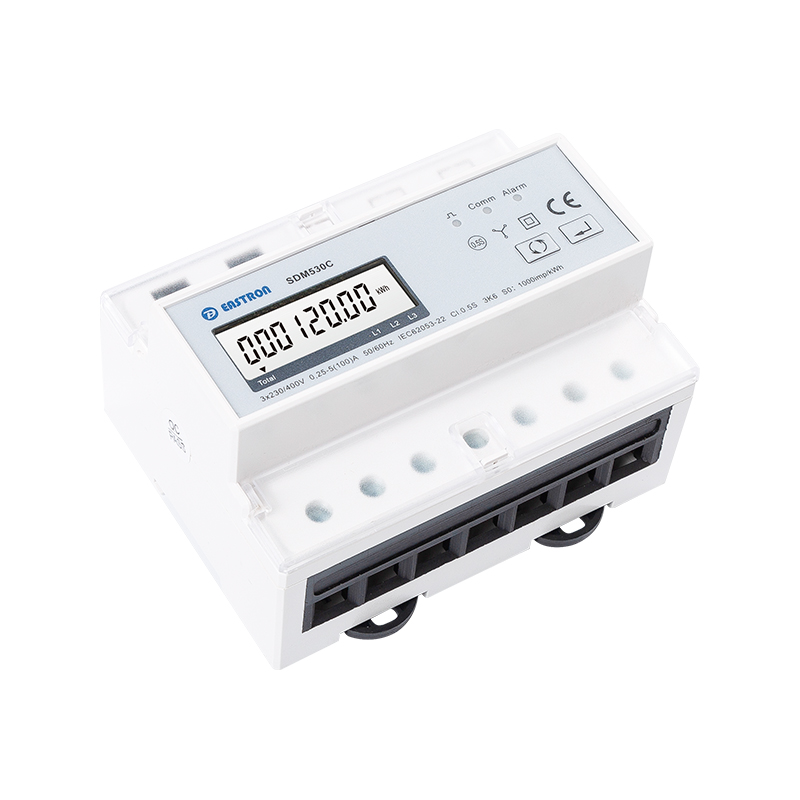

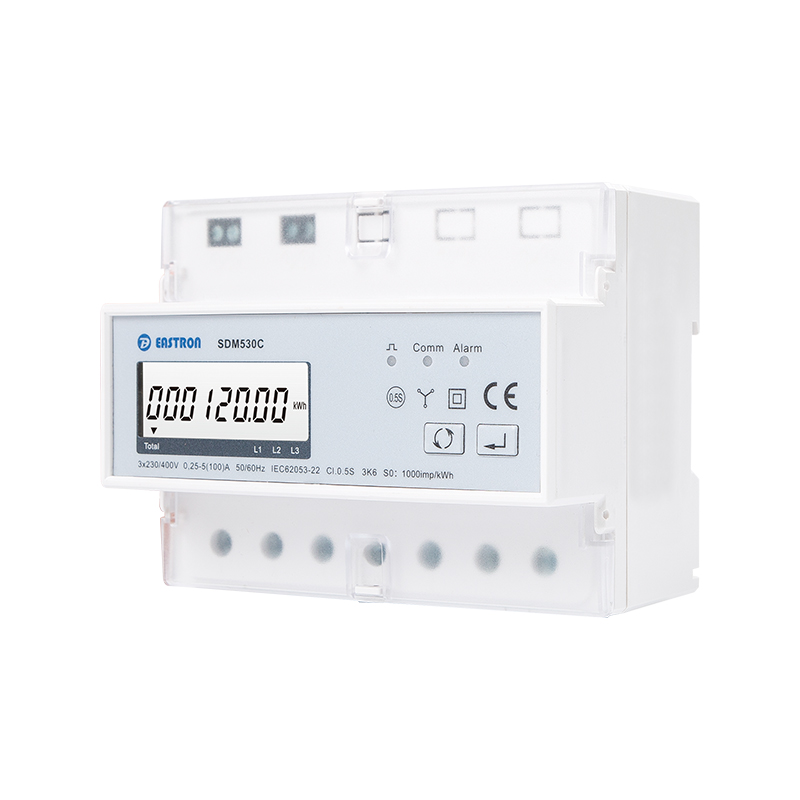

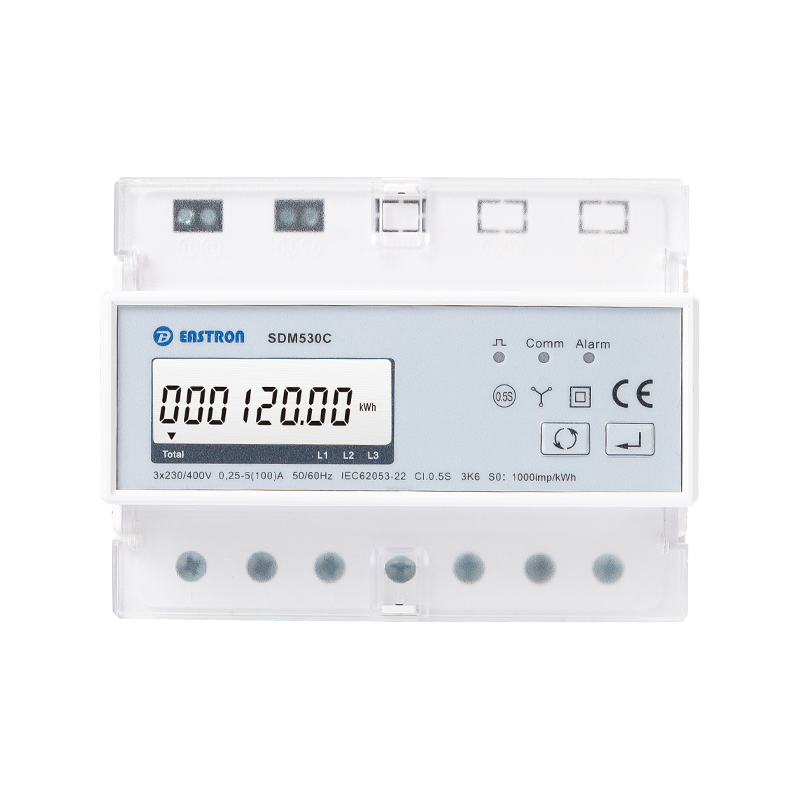

SDM530C

RS485 Modbus Remote Control Built-in Relay Three Phase MID Energy Meter

  • MID approved
  • Built-in relay for remote control
  • Max. 100A Direct Load
  • High Accuracy of Class 0.5S
  • Output for Energy Pulse Emission
  • RS485 Modbus Communication
  • Multi-parameters measurement

SDM530C is a din rail type RS485 Modbus remote control built-in relay three phase MID energy meter. It measures multi-parameters like current, voltage, power, frequency, import and export energy, etc. An RS485 Modbus communication is provided for remote setting and reading.

The meter also equipped with a built-in relay. The user can turn on/off the power remotely through Modbus communication. And when there is alarm like over-current or voltage, etc. The realy will also open automatically.

The meter has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0151. With the MID approvement, SDM530C is widely used in commercial and industry applications, and it could be used for billing purpose.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5s

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current

5A

Max Current

100A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

SDM530C/Y

Pulse Output + RS485 Modbus



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
