SDM530CT-MT

CT Type Three Phase Multi-function Energy Meter with Multi-tariff Function

  • Multi-tariff (RTC)
  • 1/5A CT input
  • 7 Module Size
  • Multi-parameters Measurement
  • Bi-directional Mesurement
  • 2 Pulse Outputs
  • RS485 Modbus RTU

SDM530CT - Modbus/Mbus/MT

THREE PHASE FOUR WIRE MULTI-FUNCTION ENERGY METER

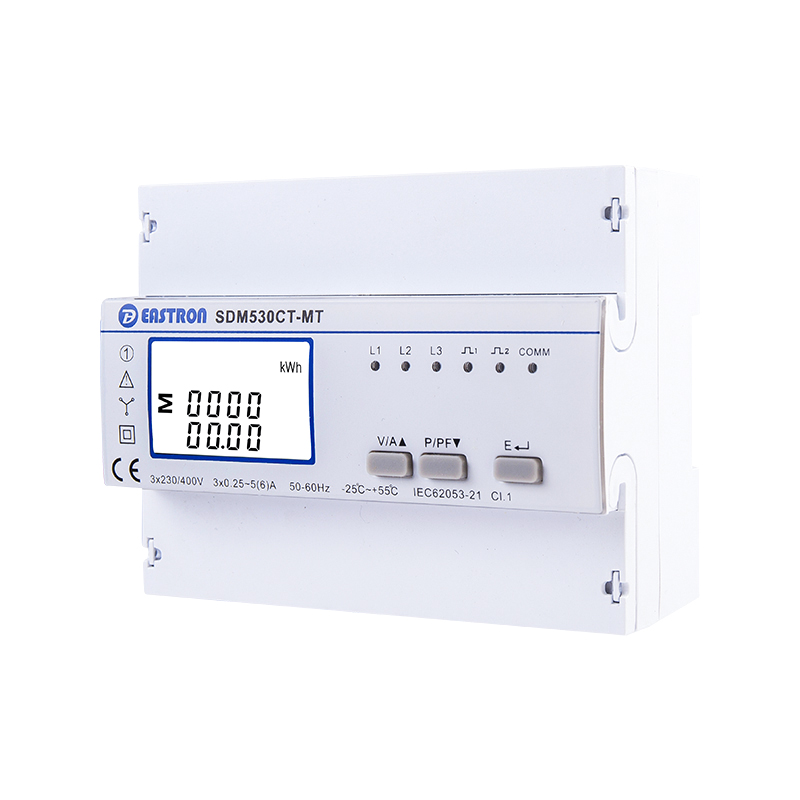

The model SDM530CT-MT is a CT type three phase multi-function energy meter with multi-tariff function. The unit measures and displays characteristic of three phase four wire supply, including voltage, current, frequency, power, active and reactive energy, imported and exported.

SDM530CT-MT can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provides pulse and RS485 Modbus. Configuration is password protected. The Multi-tariffs funnction allows the meter to set RTC and time segments to measure kWh in different time zone.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P4W)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Communication

2 Pulse Outputs + RS485 Modbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



Mechanical Characteristics

Weight

650g

IP Degree of Protection  (IEC 60529)

IP51 in door

Dimensions (WxHxD)

100x125x65 mm

Mounting Position

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Mechanical environment

M1



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram
