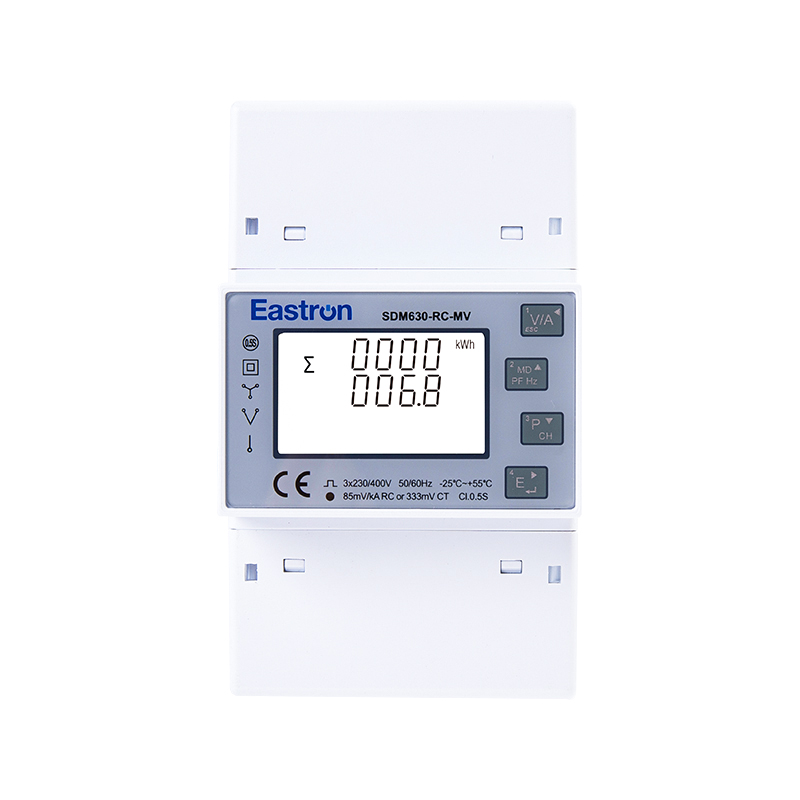

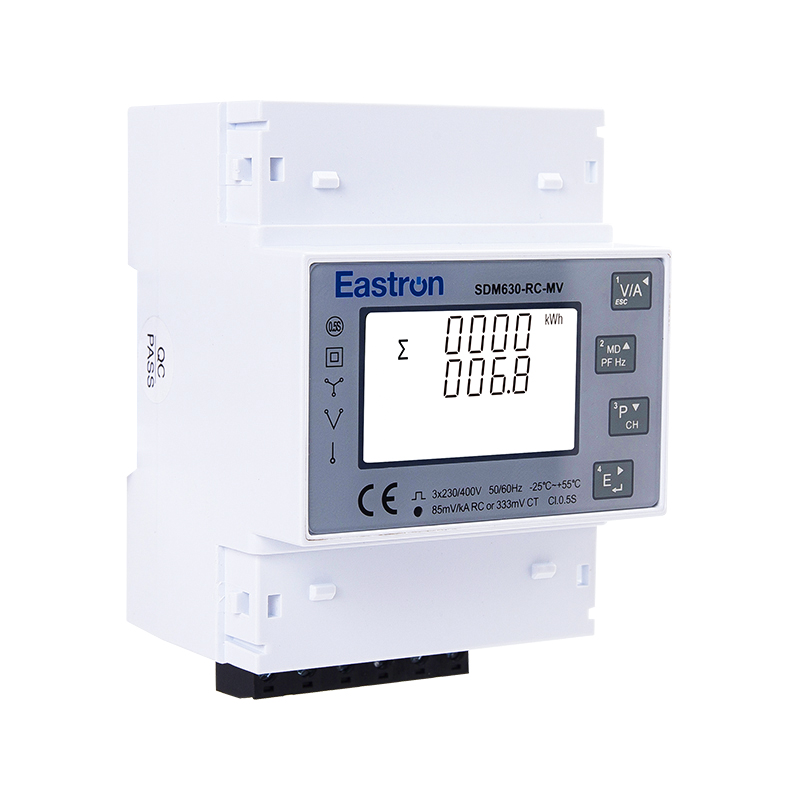

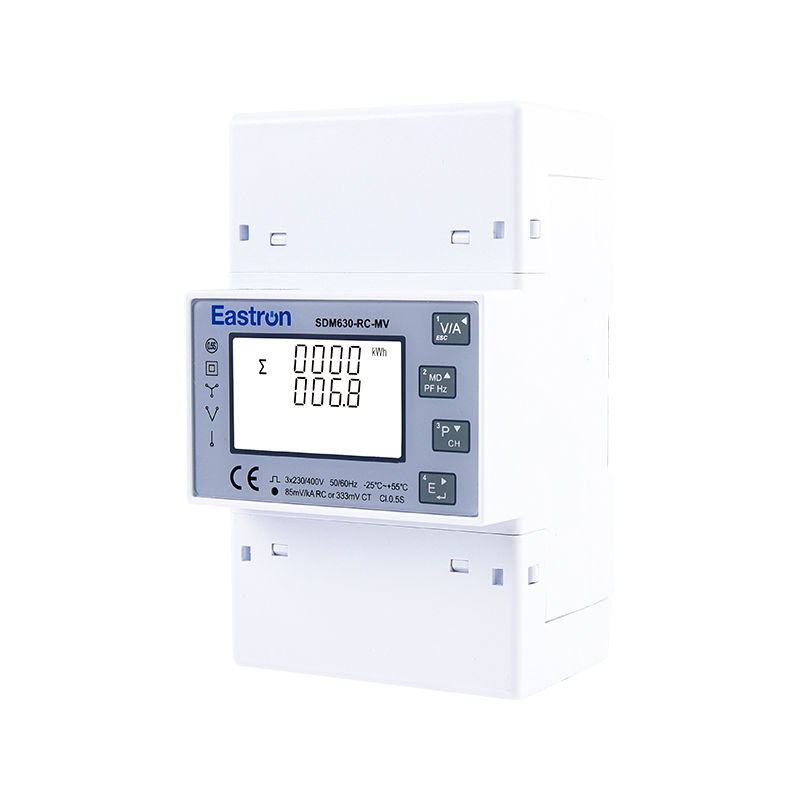

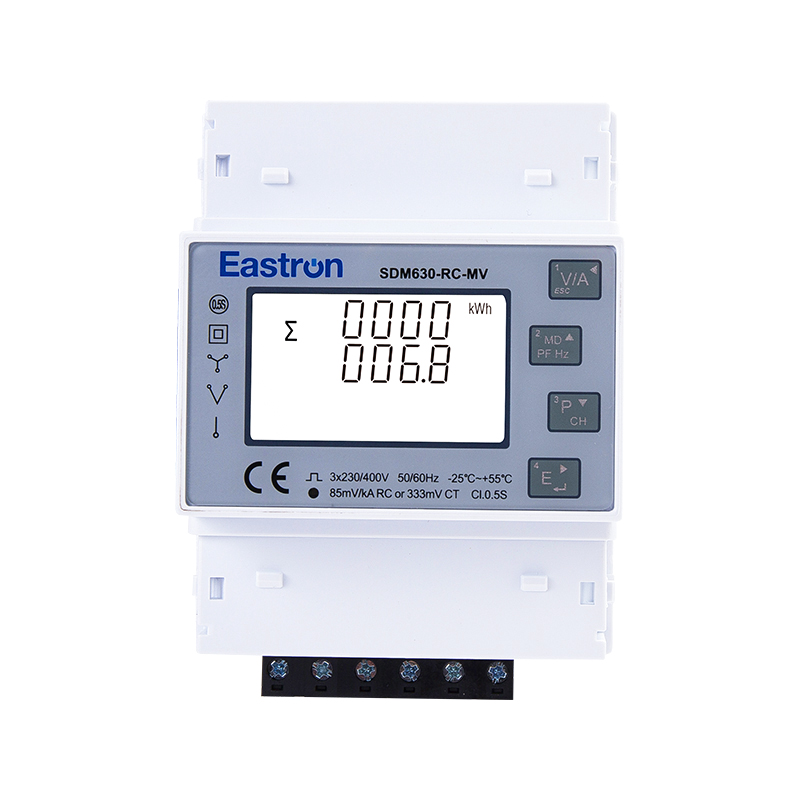

SDM630-RC-MV

Din rail type three phase multi-function power meter, available for CT or Rogowski coil connection

  • 333mV CT input or Rogowski coil connection
  • Multi-parameter measurement
  • Bi-directional measurement
  • RS485 Modbus communication

SDM630-RC-MV is a din rail type three phase multi-function power meter. The meter support 2 CT connection methods. One is normal CT and another is Rogowski coils. Both connection are through RJ12 terminals for fast connection and eliminate wiring error.

SDM630-RC-MV can measure and display the characteristics of 1P2W, 3P3W and 3P4W nextworks. It measuring parameters including voltage, current, frequency, power, power factor, import and export energy, etc. an RS485 port is provided for remote communication. Its RS485 port also offers a 24V DC power supply.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current (RJ12 port)

RC Mode

85mV/kA Rogowski coil input

CT Mode

333mV CT input

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT-RC-MV

RS485 Modbus (RJ45 port)



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram
