LoraWAN Type Remote Control Three Phase Multi-function Energy Meter

  • LoraWAN Type Remote Control Three Phase Multi-function Energy Meter
  • LoraWAN Type Remote Control Three Phase Multi-function Energy Meter
  • LoraWAN Type Remote Control Three Phase Multi-function Energy Meter
  • LoraWAN Type Remote Control Three Phase Multi-function Energy Meter
  • LoraWAN Type Remote Control Three Phase Multi-function Energy Meter
  • LoraWAN Type Remote Control Three Phase Multi-function Energy Meter

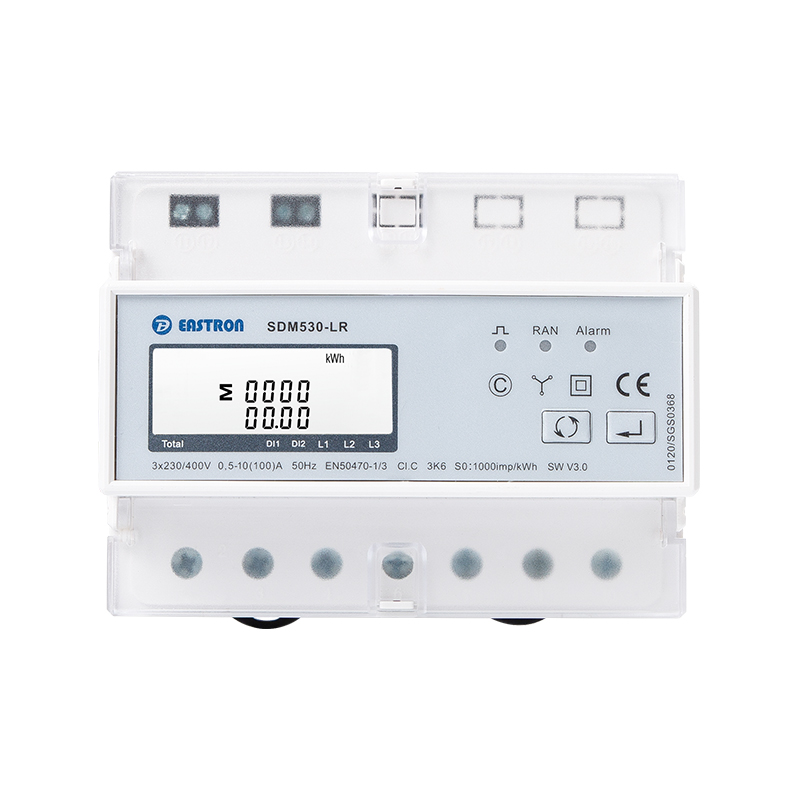

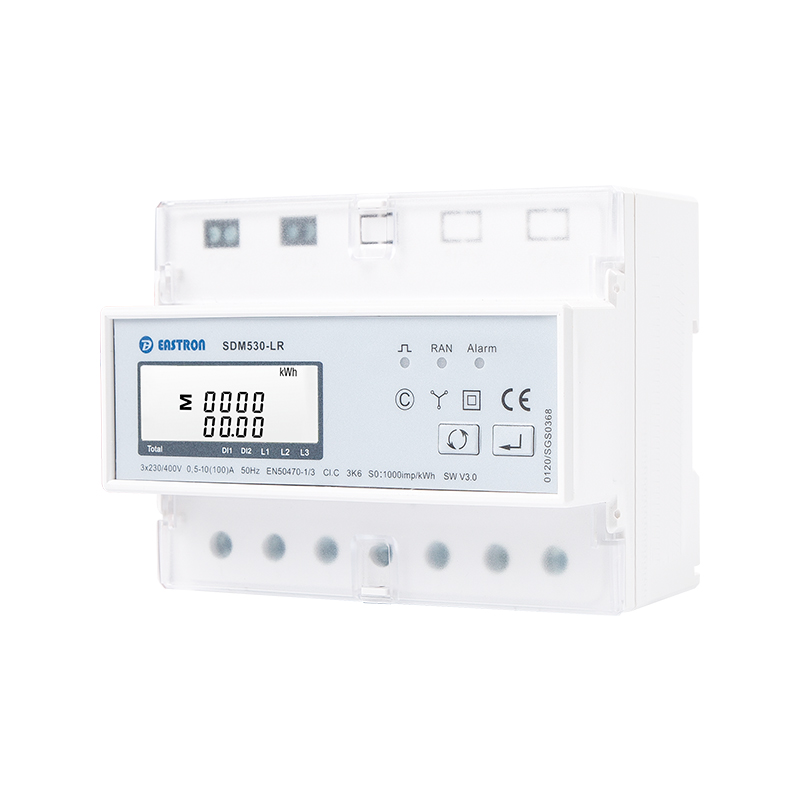

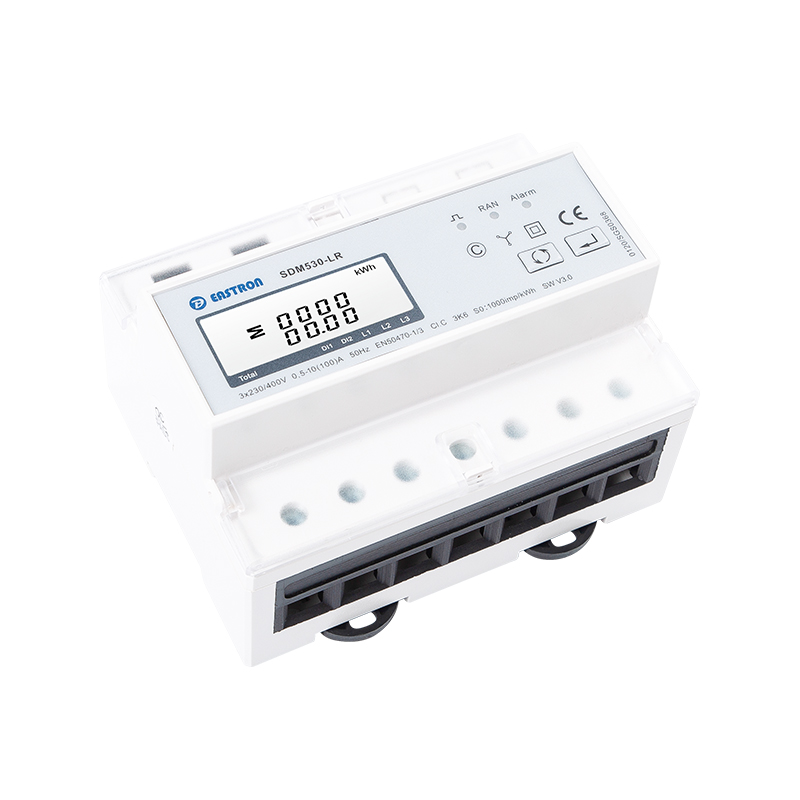

SDM530-LR

LoraWAN Type Remote Control Three Phase Multi-function Energy Meter

  • LoraWAN communication
  • Built-in Relay for Remote Power Control
  • Multi-parameter measurement
  • 26 Alarm values
  • Class 0.5s High Auucracy
  • Output for Energy Pulse Emission
SDM530-Lora is a LoraWAN Type Remote Control Three Phase Multi-function Energy Meter. It measures multi-parameters like current, voltage, power, frequency, import and export energy, etc. The communication is realized through LoraWAN wireless method.
The meter also equipped with a built-in relay. The user can turn on/off the power remotely through LoraWAN communication. And when there is alarm like over-current or voltage, etc. The realy will also open automatically. The relay of each phase can be controlled together or separately.
The model SDM530-LR is widely used in commercial and industry applications.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5s

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current

10A

Max Current

100A

Min Current

0.55A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

SDM530-LR

Pulse Output + LoraWAN



LoRaWAN Communications

Communication Frequency

EU868/ AS923/ AU915/ US915, etc.

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

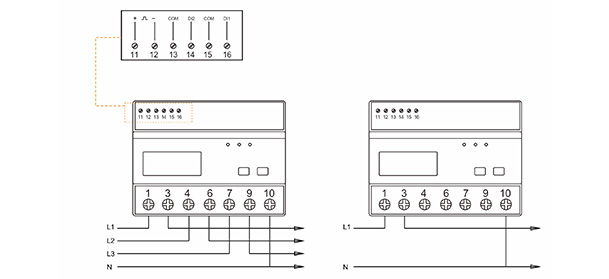

Wiring diagram

Wiring and Dimension [mm:]

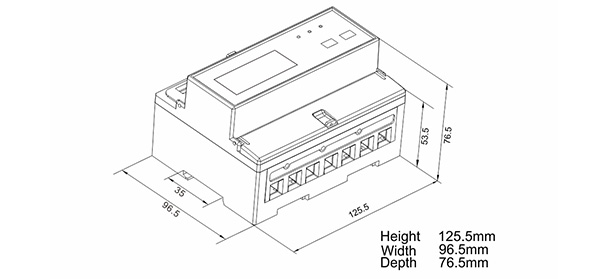

Dimensions
