Modbus TCP Din Rail Three Phase Multi-function Energy Meter

  • Modbus TCP Din Rail Three Phase Multi-function Energy Meter
  • Modbus TCP Din Rail Three Phase Multi-function Energy Meter
  • Modbus TCP Din Rail Three Phase Multi-function Energy Meter
  • Modbus TCP Din Rail Three Phase Multi-function Energy Meter
  • Modbus TCP Din Rail Three Phase Multi-function Energy Meter
  • Modbus TCP Din Rail Three Phase Multi-function Energy Meter

SDM630-TCP

Modbus TCP Din Rail Three Phase Multi-function Energy Meter

  • Max.100A Direct Load
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
  • Bi-directional measurement
  • Ethernet TCP communication

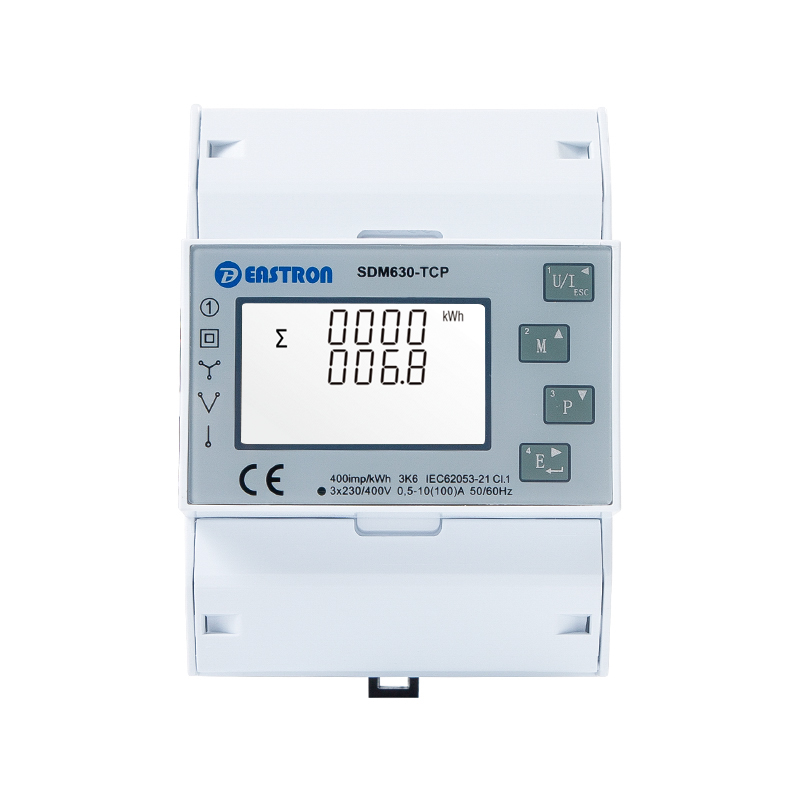

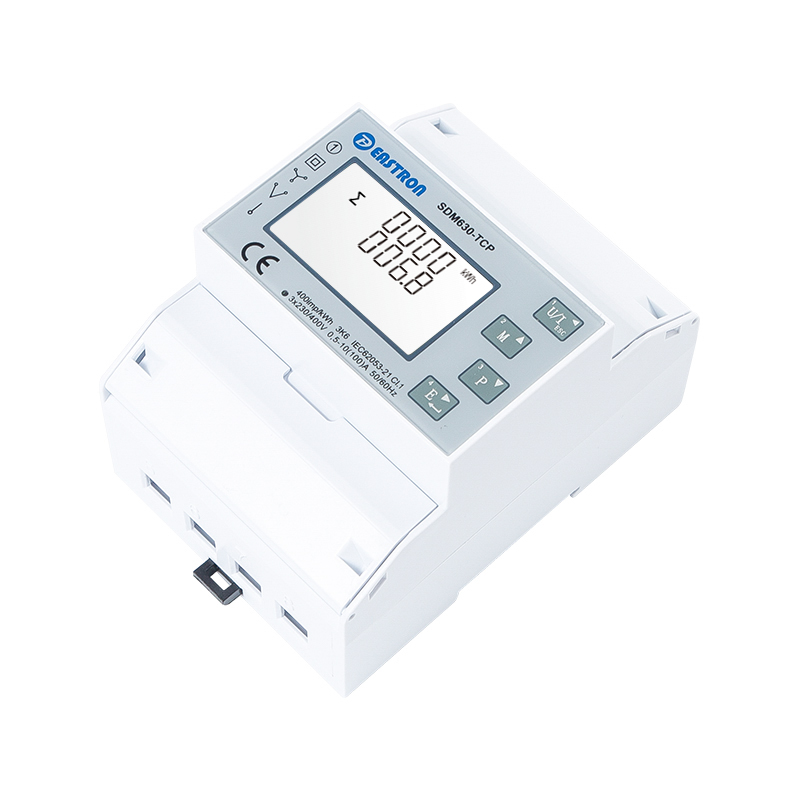

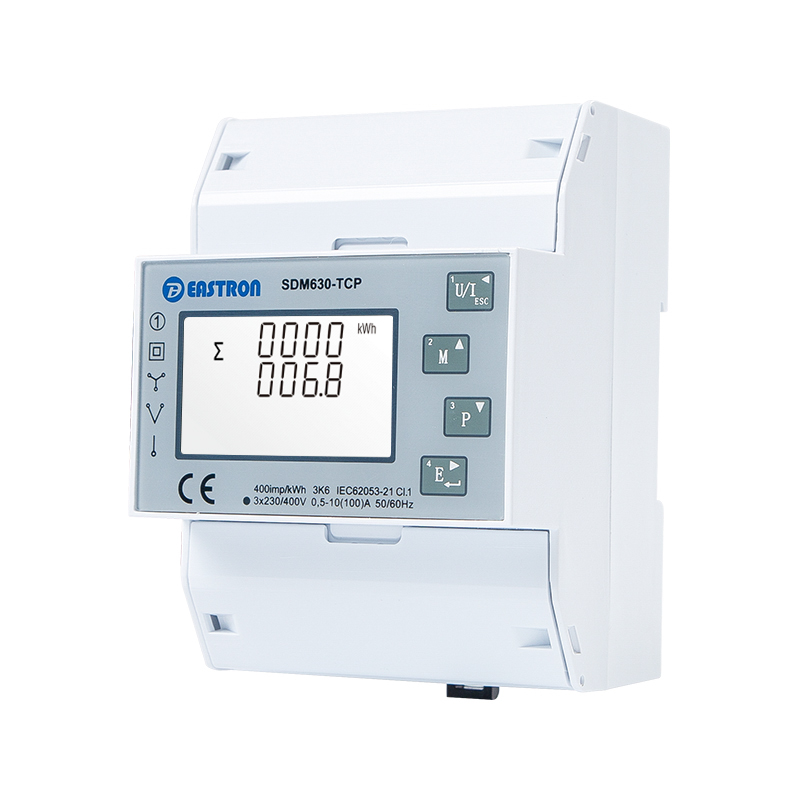

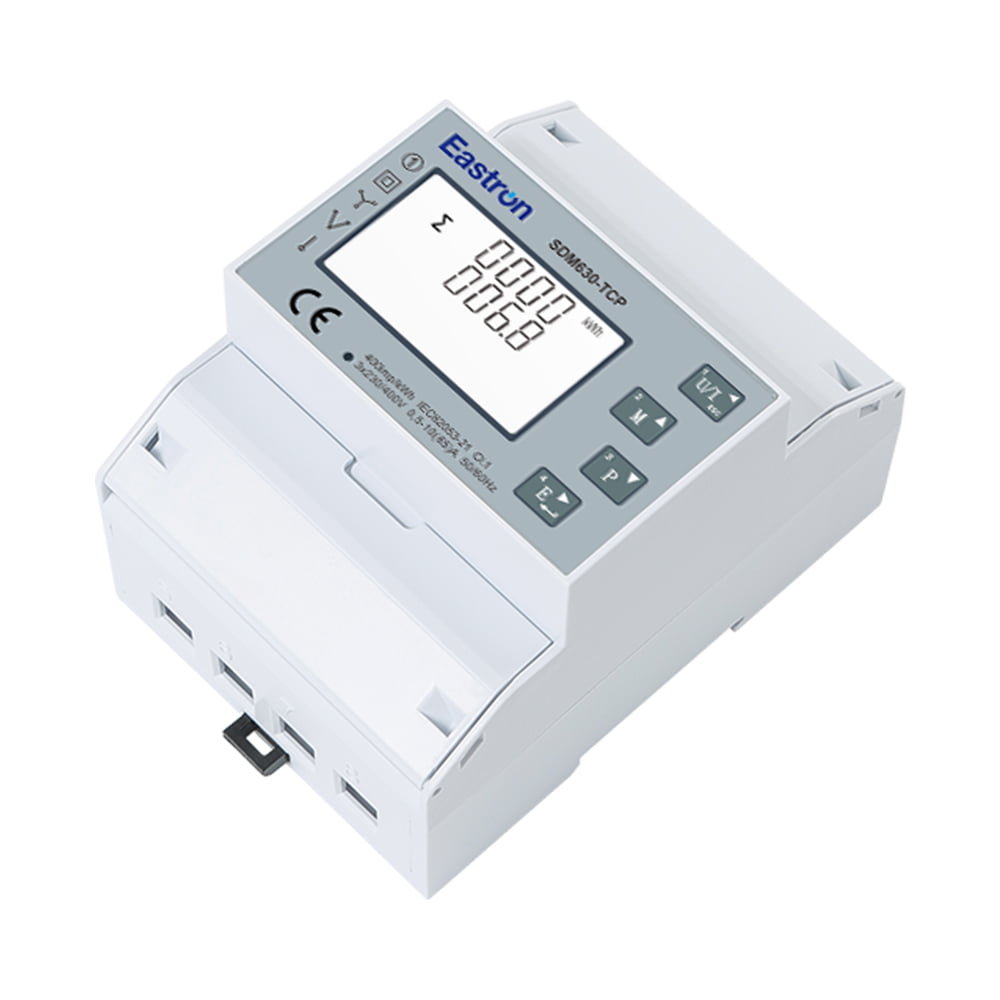

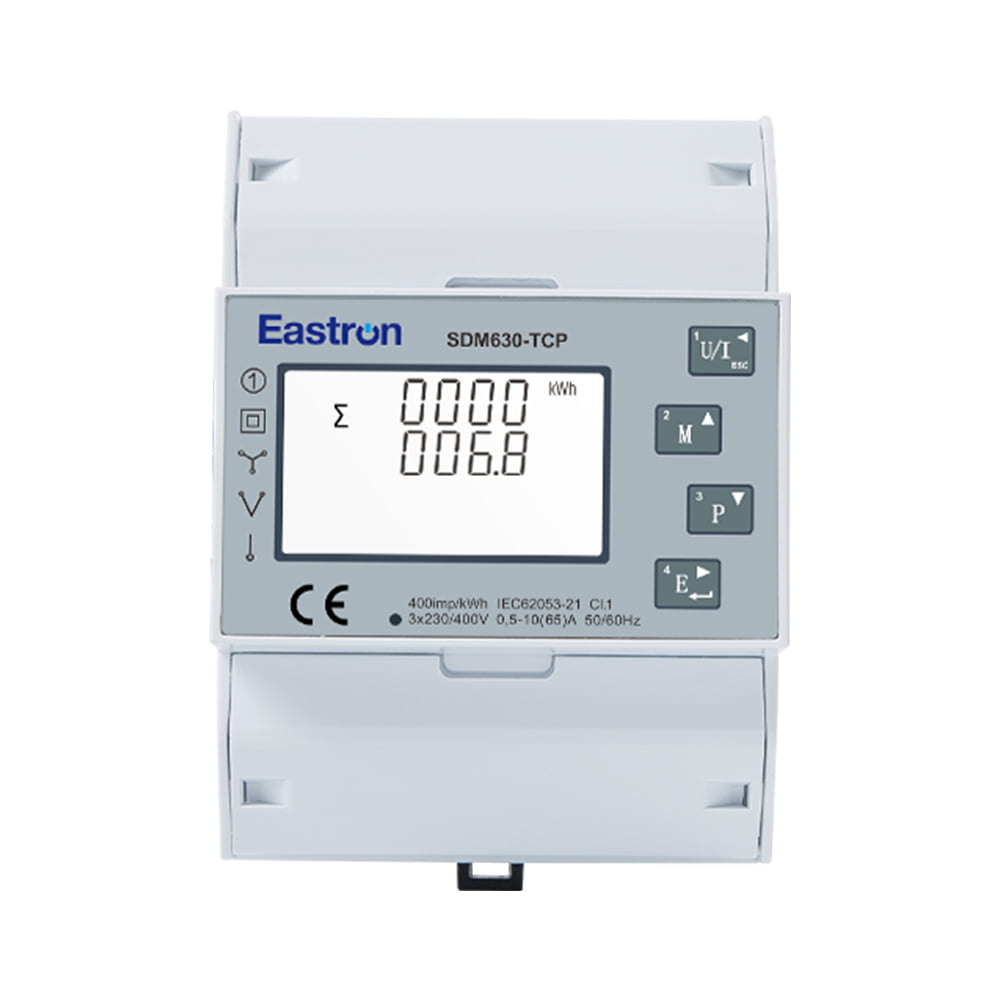

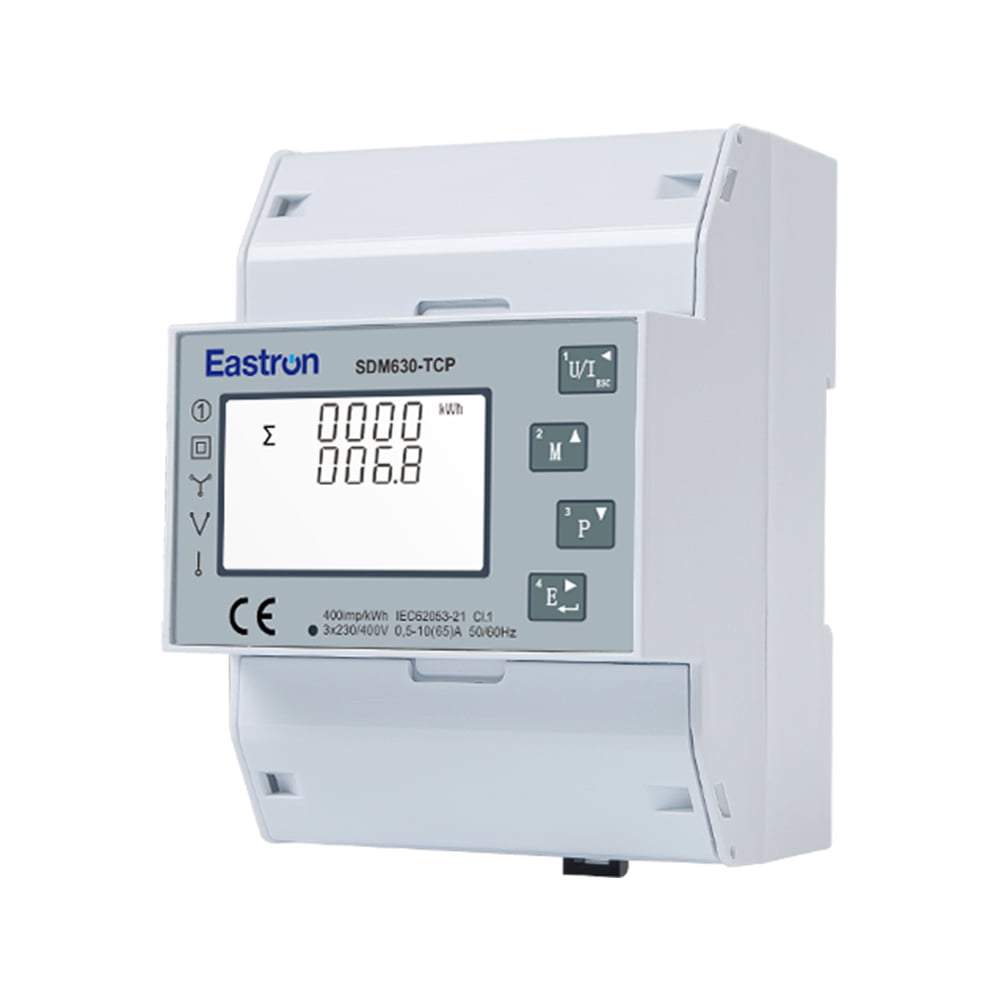

SDM630-TCP is a modbus TCP din rail three phase multi-function energy meter.
The meter can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc.
The meter supports max.100A direct connection, saving the cost and avoiding the trouble to connect external CTs, giving the unit a cost-effective and easy operation. The meter SDM630-TCP is equipped with a Ethernet communication port and MODBUS-TCP protocol is adopted for remote reading and programming.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630-Pulse

2 Pulse Outputs for imp/exp. energy

SDM630-Modbus / MT

2 Pulse Outputs + RS485 Modbus

SDM630-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630-2T

2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)

SDM630-Mbus-2T

2 Pulse Outputs + M-bus EN13757 + 2 Tariffs (Dual Power Source)

SDM630M-DI

2 Pulse Outputs+ RS485 Modbus + Digital Input

SDM630-TCP

Ethernet Modbus TCP





RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
